Description

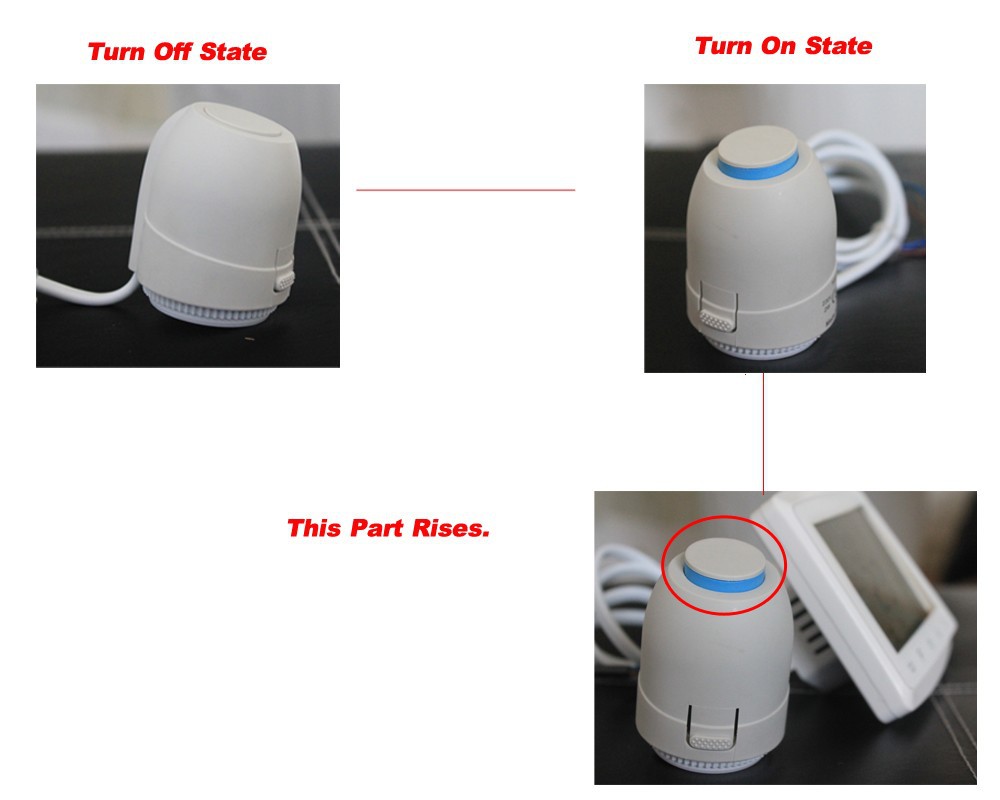

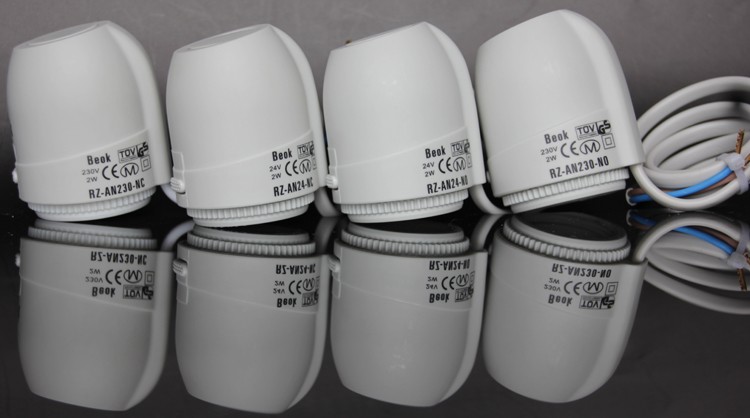

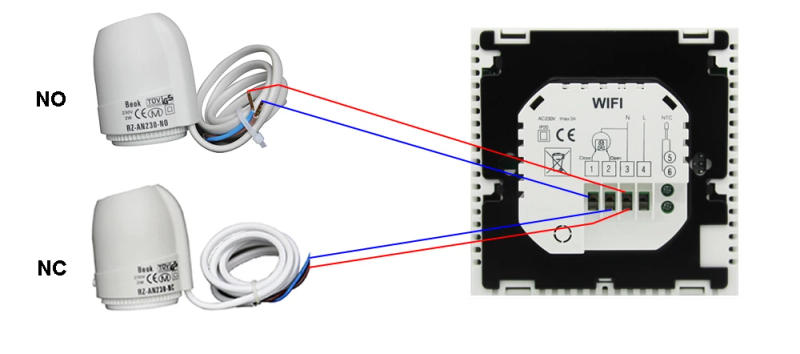

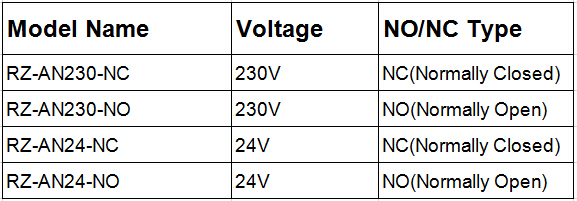

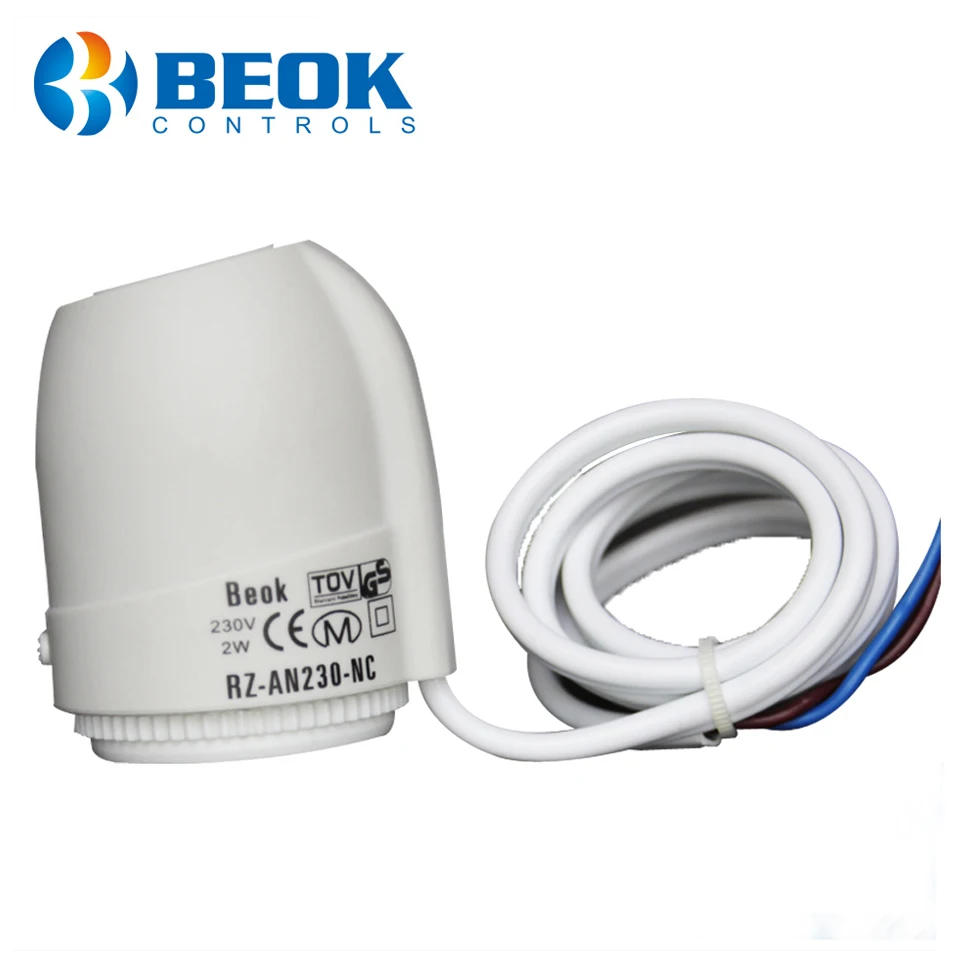

• for Manifold in Underflooring Heating System 230V Thermal Electric Actuator Product Description: RZ-AN thermal actuator is a two level kind switching device which has been examined by TUV It is always utilized to regulate radiator, floor heating formulation or zone valves It can robotically shut the flux of formula under the management of room thermostat and other electric switch This mannequin solely can be utilized as on-off administrator Product Technical Parameter: Model RZ-AN 230-NC RZ-AN 230-NO RZ-AN 24-NC RZ-AN 24-NO Working Voltage 230V/24V Initial Current About 50MA Power Consumption 2W Protection Grade IP41 Working Journey 3~3 Working Temperature -20~50 Storage Temperature -25~60 Security Class II(Double Insulation) Cable Length 65cm Running Time 180seconds (open-closed) CE Standard EN60730 Note :this product in the photograph is NC actuator, NO actuator rises now not apparent because of the diversified constitution please don't worry It will paintings effectively Product one hundred pc Real Display--- RZ-AN230-NC RZ-AN230-NO RZ-AN24-NC RZ-AN24-NO Actuator Use to be Connected with Manifold---

•
•
•
•
•
