Welcome to our shop
Our merchandise have reasonably priced expenses and good high quality We help dropshipping and wholesale If you would like paintings with us for a long time, please contact us and we can offer you a totally favorable fee Regards!
Specially designed for RC FPV, mini size, excessive gain, low SWR and excessive self recovery function at any angle
Ultra-low standing wave ratio, high acquire 14dBi acquire
Using high-quality carrier-grade feeders, they are often bent at any angle
The reinforced design of the antenna root makes the connection more reliable and sturdy
Technical Parameters:
Transmitting distance: 15km with 5 1200mw VTX/RX
5km with five 600mw VTX/RX
Frequency range: 5600-5950 MHz
Gain: 14dBi
Standing wave ratio: ≤2
3dB horizontal beam width: 40°
3dB vertical lobe width: 35°
Polarization method: vertical polarization
Front-to-back ratio: ≥25dB
First aspect lobe suppression: ≥13 dB
Maximum power: 50 Watt
Impedance: 50Ω
-Protection: DC Grounded

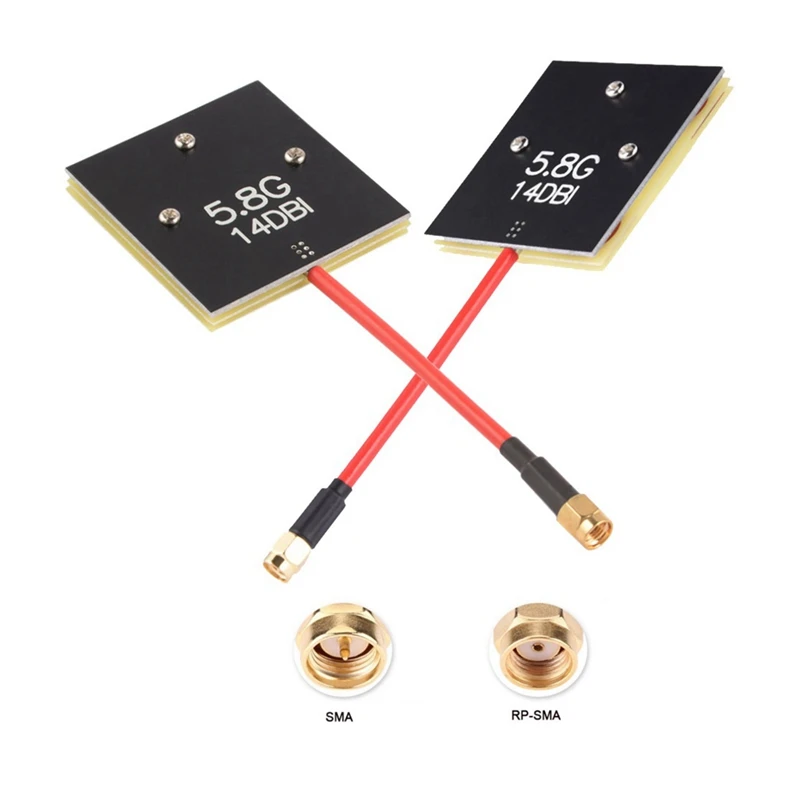

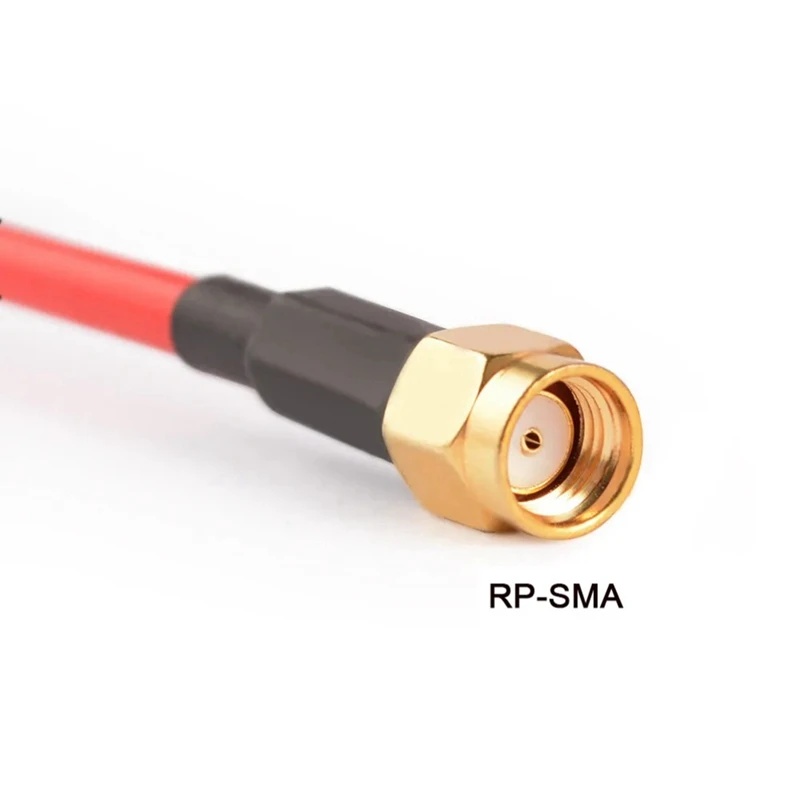

Connector: RP-SMA (Internal threaded internal hole)
Connector: SMA (internal thread internal needle)
High self restoration operate
Material: composite material
Color as shown
Package Contents:
1 x 14dbi antenna
Only the above package content, different merchandise will not be incorporated
Note: Light reflection and diverse exhibits may cause the colour of the article within the picture somewhat diversified from the genuine factor The size allowed error is +/- 1-3cm
