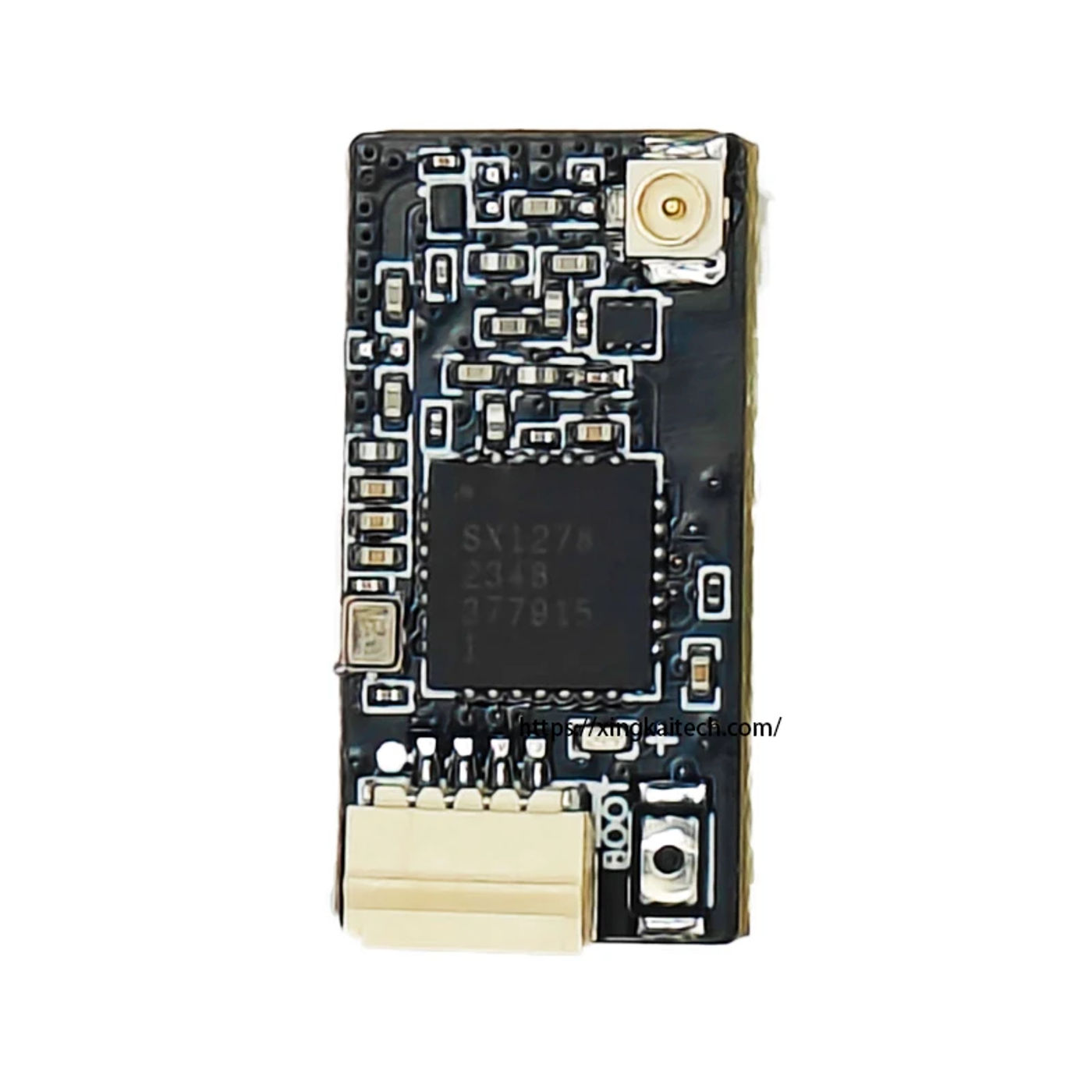

FPV Drone ELRS Nano Receiver 433Mhz 100mW ExpressL VRX Supporting antenna Long Range Receiver For FPV Long Range Racing Drone
1433M receiver parameters
Model:
ELRS-433M-MINI
Name:
ExpressLRS Receiverfrequency:433Mhz
antenna:
T-shaped
chip:
SX1278+ESP8285
color:
black
Backhaul power:
100mW
Input voltage:
3
Antenna connectors:
IPEX1
weight:
0(Receiver only)
size:
11mm*22mm
2、Transmitter compatibility
This receiver can be used to frequency varied manufacturers of excessive frequency heads The ELRS project is an open supply project, in order long because the high-frequency headers of the ELRS protocol are used, whatever the brand, they are often linked to each other, but three situations ought to be met:
1 The frequency should be the same, the same is two or the same433Mhz, etc
2 There are 3 types of firmware version certification standards: AU, EU, and FCC To be consistent, for example, the high-frequency head flashes the FCC 3 firmware, then the receiver also needs to flash the FCC 3 firmware or above;
three None of them have a linking password, or all of them have a similar password
Linking mode
four After welding the receiver, soon energize the aircraft 3 times, that is, ~ unplug the flexibility immediately after powering on - unplug the ability instantly - energy on does not pull out; The interval is inside 1 seconds, so that, if carried out correctly, the receiver&;s gentle flashes rapidly two times in a cycle, indicating that it is within the binding At this time, press the bind button of the remote control script to bind When the linking is successful, the receiver mild turnssolid
4 he receiver can&;t enter the band state for the 1st time, and the light is usually on Generally, the TXRX port of a few flight controllers is abnormal, inflicting the receiver to go into boot flashing mode when it is powered on, and only a TX RX on the flight controller should be changed at this time
four Why does my receiver light hold flashing? When you switch on the power, you haven't entered the linking state, or the remote control receiver has no signal for 60 seconds, it'll routinely input the WIFI flashing mode, and the indicator mild flashes quickly
four How to go into the wifi flashing mode to flash the firmware of the receiver? Regardless of it when it is powered on, it will enter the WIFI flashing mode in about 60 seconds, and the sunshine will flash soon
