Description

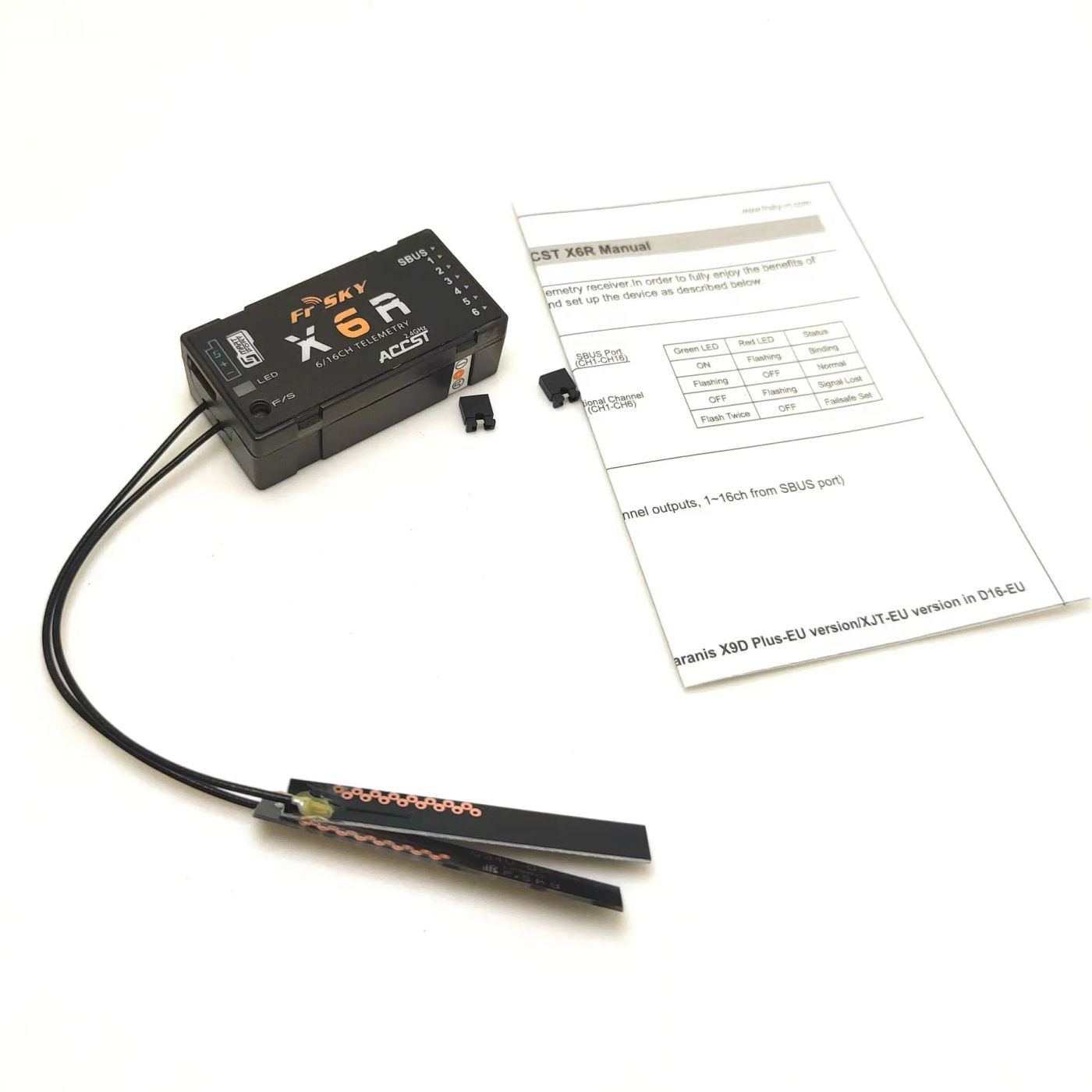

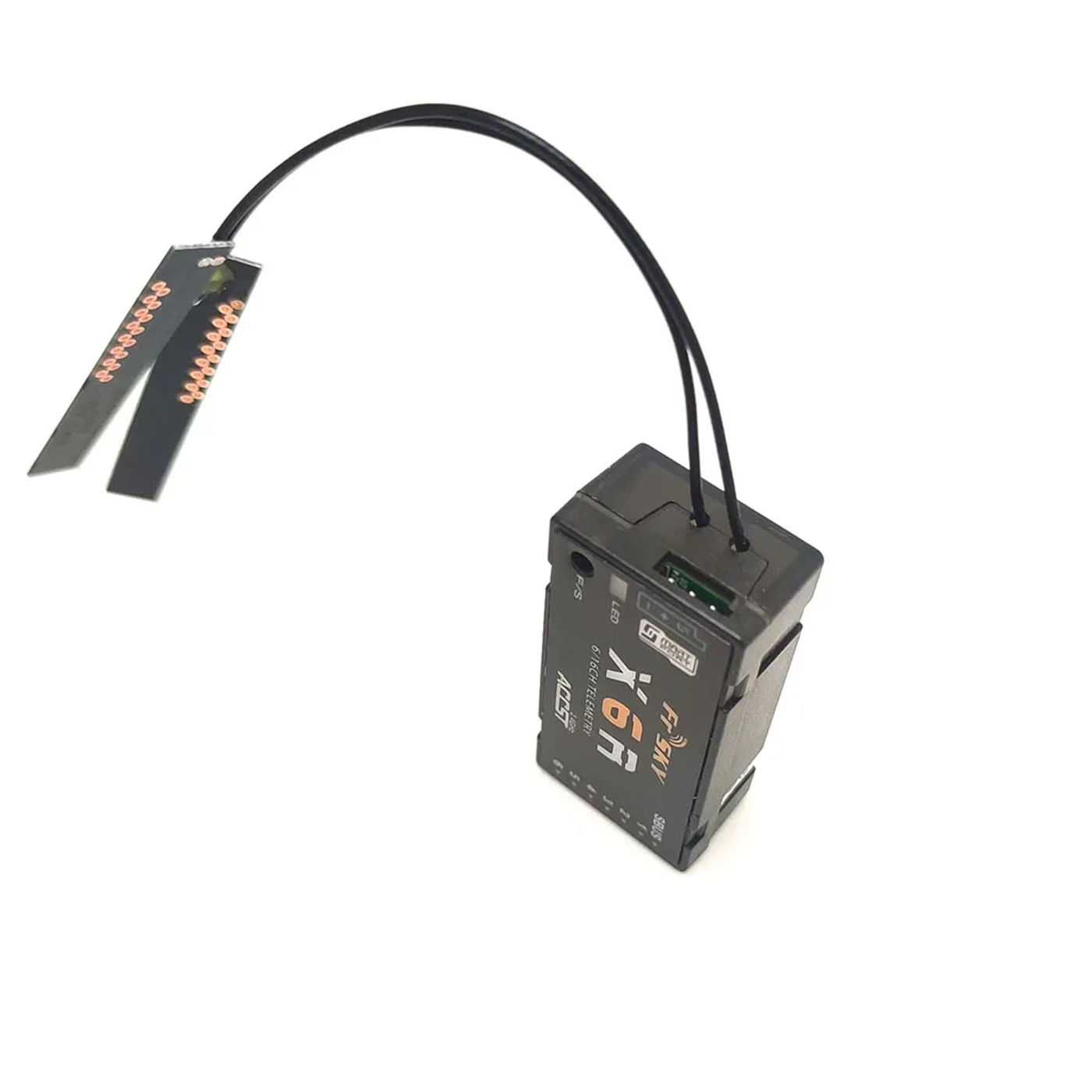

• Attention: Factory Condition MODE IS FRSKY D16IF YOU wish to use Accst D16 mode,you deserve to update the receiver,you can search information from internet or contact us before paymentand this is FCC VERSION,NOT EU LBT VERSIONFrSky X6R 2 16CH SBUS Receiver PCB Antenna Smart Port Data Return for Taranis X9D Jumper T16 T18 Radiomaster TX16S RC Drone FrSky&;s X6R receiver elements sixteen channels (6 common PWM outputs and all 16 channels on the committed Sbus output) Plus the thrilling new Smart Port and a traditional A2 port at the backside Pull the jumper and attach an FBVS for classic exterior voltage monitoring Smaller than the X8R, but nonetheless packing 16 channels and the new Smart Port that supports the recent hubless digital sensors! Or, connect the hot vario, after which connect the previous hub to apply present analog sensors Features With external analog telemetry port(AD1), When pins of A1 and X (Middle Pin) are connected by way of the jumper, A1 will exchange from External Analog Telemetry Port to Internal Built-in battery voltage sensor More number of channels: 1~6ch from traditional channel outputs, 1~16ch from SBUS port With RSSI PWM output (0~3) on board Smart Port enabled, knowing two-way full duplex transmission Specifications Dimension: 47x23x14mm (L x W x H) Weight: 16 Antenna: 150mm Coaxial Antenna with packing Number of Channels: 16CH (1~6ch from traditional channel outputs, 1~16ch from SBUS port) With RSSI output on board: PWM voltage output (0~3) Operating Voltage Range: 4~10V Operating Current: 100mA@5V Operating Range: full differ (>1) Firmware Upgradeable Compatibility: FrSky DFT/DJT/DHT/DHT-U in D_mode; FrSky Taranis X9D/XJT in D8 mode; FrSky Taranis X9D/XJT in D16 mode Compatibility All sixteen channels requires the FrSky Taranis, or the XJT module bound in D16 mode For 8 channels in D8 Mode you should utilize the FrSky Taranis or XJT, DJT, DFT, DHT and DHT-U modules Smart Port (S Port) is a signal twine complete duplex digital transmission interface evolved through FrSky Electronic Co, Ltd All merchandise enabled with Smart Port (including XJT module, X6R and X8R receiver, new hub-less sensors, new Smart Dashboard, etc), serial port user information and other person input/output instruments would be connected with out limitations for numbers or sequences at a high transmission pace Package Included: Frsky X6R receiver

•
•
•
•
•
