Description

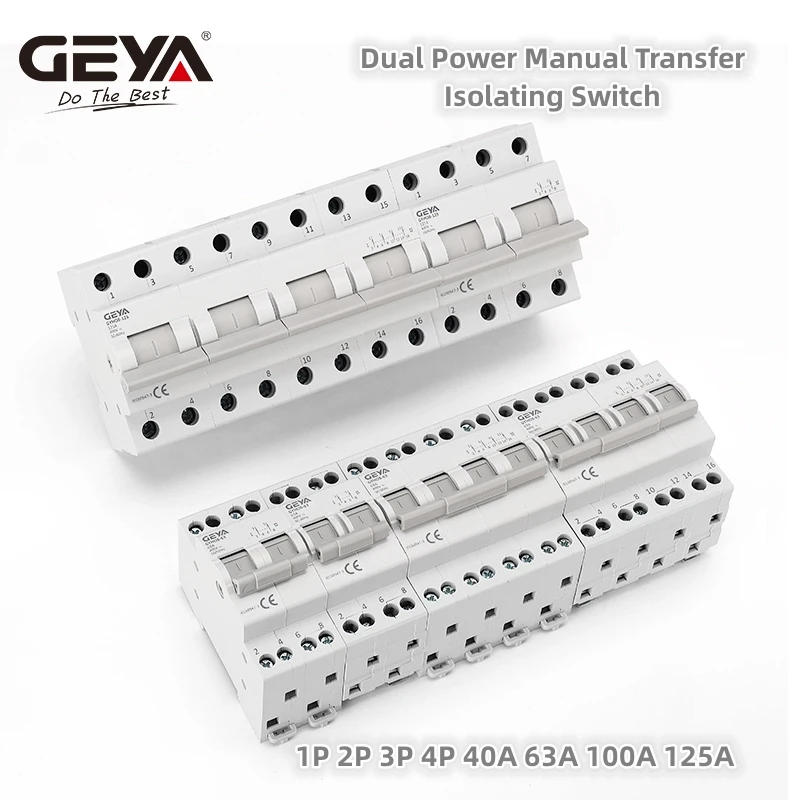

• General GYHO8 dual strength manual isolation swap has four functions-on, off, conversion and isolation It would be freely switched on and off between two plenty carried through a group of lines, or on two strength resources It is used for on-off and switching , utilizing DIN traditional rail (35×7) installation The shell is fabricated from PA66 injection molding, with excessive flame retardant functionality It is a perfect product that should be used for switching and opening and shutting in business kit and circuits The rated latest is 40A/63A/100A/125A, and it's convenient and secure to install and cord at the handbook rail Instructions for use 1P Manual Transfer Switch(MTS) 1 the handle on the I position: 1 and 2 are linked 2 the manage at the II position: 1 and four are connected three the handle is in the middle position: both groups are disconnected 2P Manual Transfer Switch(MTS) 1 the manage at the I position: 1 and a couple of are linked five and 6 are linked 2 the manage on the II position: 1 and four are connected five and 8 are connected three the manage is in the middle position: either teams are disconnected 3P Manual Transfer Switch(MTS) 1 the handle on the I position: 1 and a couple of are related five and six are connected 9 and 10 are related 2 the handle on the II position: 1 and 4 are connected 5 and eight are connected 9 and 12 are related three the handle is in the middle position: either teams are disconnected 4P Manual Transfer Switch(MTS) 1 the handle on the I position: 1 and 2 are connected 5 and six are related nine and 10 are related thirteen and 14 are linked 2 the manage at the II position: 1 and 4 are connected five and eight are connected nine and 12 are related 13 and sixteen are linked three the manage is in the center position: both teams are disconnected The position of the incoming and outgoing wires could be adjusted according to precise desires (the higher and lower out aren't essentially required, when used for dual energy switching, the lower in and upper out needs to be used) Company Information

•
•
•
•
•
