Description

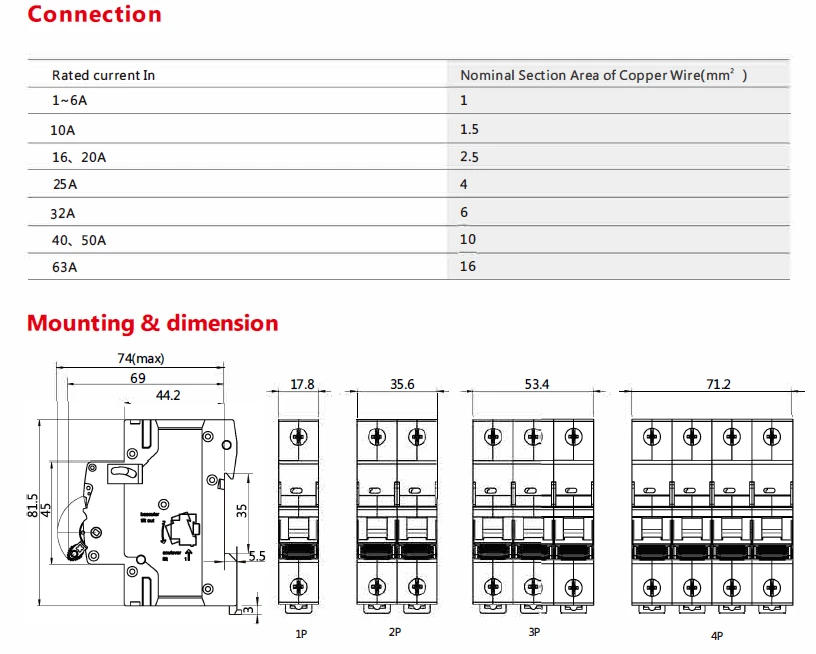

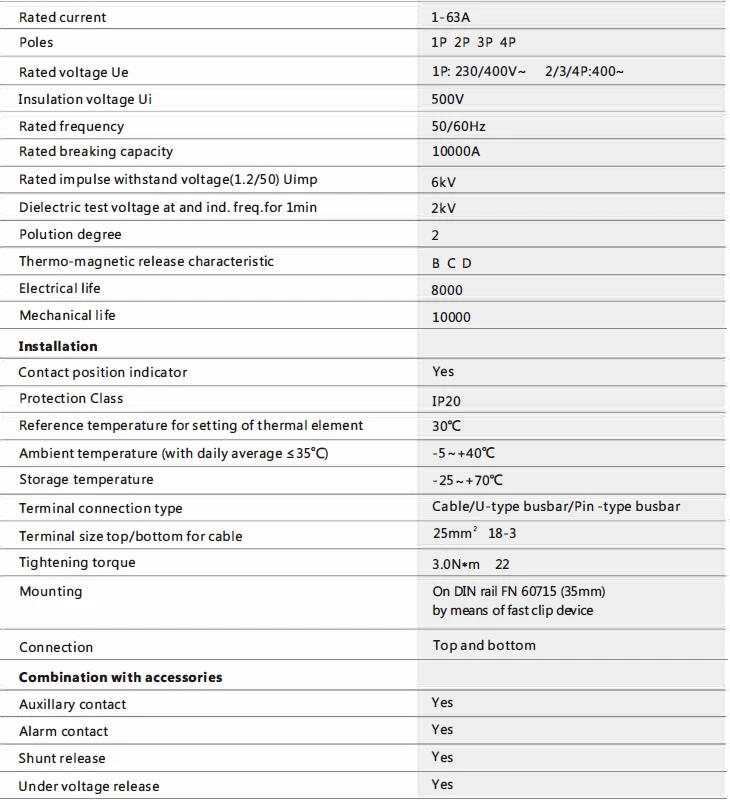

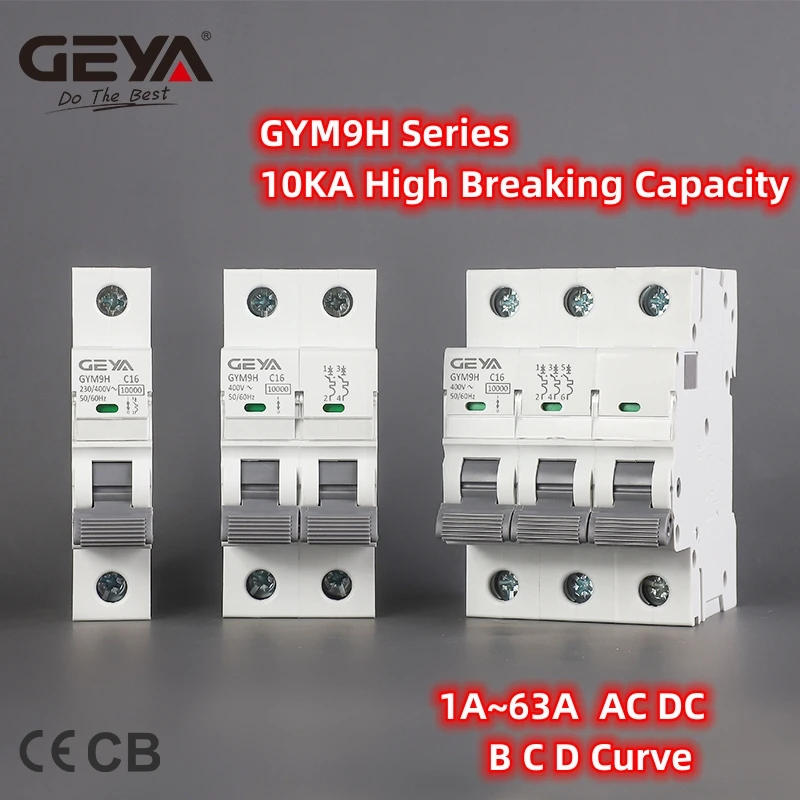

• General GYM9H 10KA miniature circuit breaker is especially used for cover opposed to overload and brief circuit under the AC 50Hz/60Hz, rated voltage 230V/400V and rated latest from 1A to 63A It can also be used for non-frequent on and stale swap operation under common circumstance ~In complicance with IEC/EN60898-1 ~With indicator function within the touch function ~Transparent hide designed to carry label ~Bilateral busbar wiring functions to conform to the broader use of premises ~Maximum connecting ability of 16mm2, wiring torque 2*m, applicable to a wide range of putting in equipments Technical Data Company Information

•
•
•
•
•
