Description

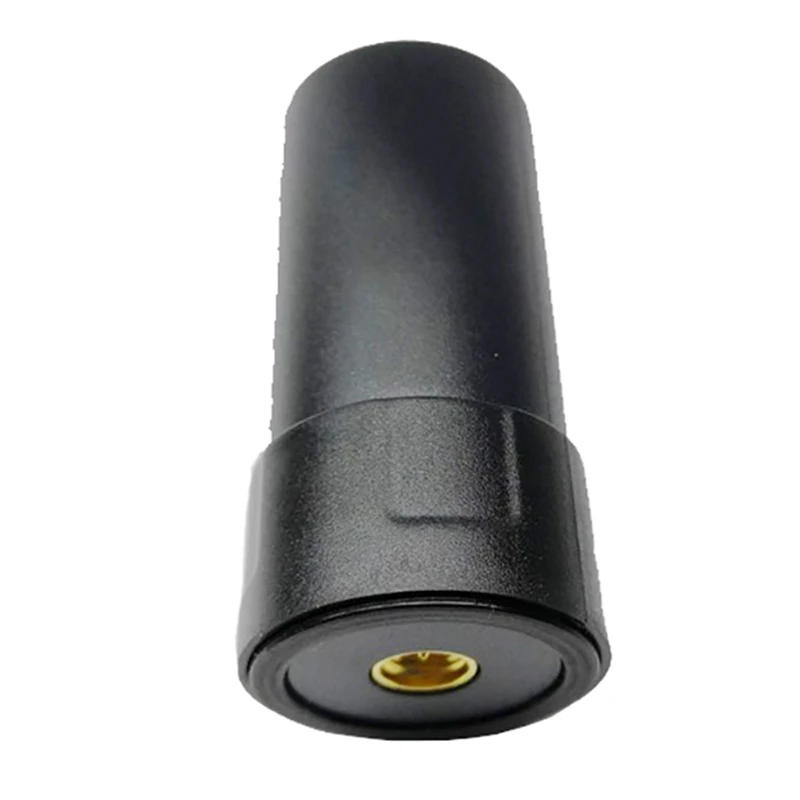

• The antenna adopts multi arm spiral expertise to ensure right round polarization and section center performance, lowering the impact of measurement errors; The antenna unit has the traits of high achieve and small gain roll off, which is sweet for receiving low elevation satellite tv for pc signals; Exquisite low noise, excessive gain amplification, and excellent out of band suppression; Static electrical energy protection: 15KV (air discharge); Small size, light weight, and easy to carry and set up Main technical alerts (typical) Patch Architecture:Quadrifilar Helix Supported positioning sign bands BD:B1/B2a; GPS:L1/L5; Galileo:El/E5a GLONASS:L1 Peak Gain*:≥2 dBi Polarization:RHCP Axial Ratio@zenith:≤1 Azimuth Coverage:360° Impedance:50 ohm LNA Frequency Range:1176±20/1559MHz~1606MHz LNA Gain*:35±3(Typ @25°C) Noise Figure*:≤1 dB@25°C , Typ Output VSWR:≤1:1 typ 2:1max Operation Voltage:3~6 DC Operation Current:≤45mA Mechanicals & Environmental Connector:SMA-J Radome:ABS+PC Operating Temp:-40℃~+85℃ Storage Temp:-45℃~+85℃ Humidity:95% No-condensing Waterproof:IP67 Colour:Black Material:plastic Package Contents: 1 x Antenna(Random Tags , do not settle for the specified) Only the above equipment content, other merchandise aren't integrated Note: Light reflection and various reveals may cause the color of the article in the photo just a little different from the genuine factor The size allowed error is +/- 1-3cm

•
•
•
•
•
