Description

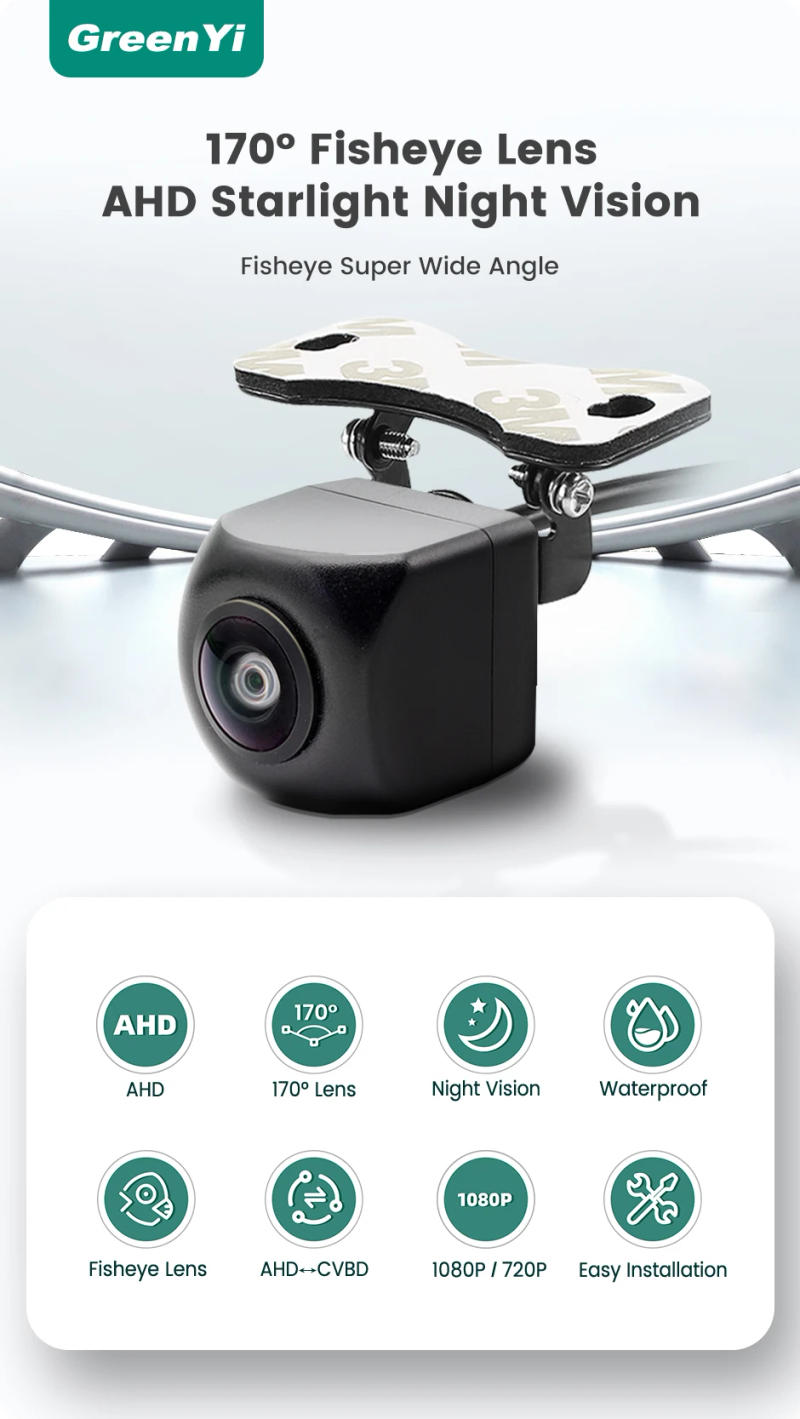

• 2 Types Available Tips, About AHD1080P Style: Please test whether or not the Android unit supports the AHD1080P camera! If AHD1080P can't be selected, AHD1080P cameras are not supported! Go to Car settings >> Factory settings >> Reverse (picture) settings >> Select AHD1080P Cameras with CVBS video indicators are universal for all monitors, yet AHD will solely paintings with AHD monitors! 170° Wide Angle Fisheye Lens - Real 170° AHD1080P Camera AHD1080P / AHD720P Optional Top Starlight Night Vision Starlight evening vision operate permits the camera to be used wisely even at evening Waterproof The digital camera is filled with waterproof silicone, Effective chip protection, IP68-Rated for Use in Extreme Conditions Conversion Line Control White: Mirror management Brown: Signal management Green: Parking line switch Pure Copper Cable The video cable is fabricated from high quality natural copper, which gives greater video transmission quality than cables that may be attracted by magnets Integrated Step-down Module Package 1 GreenYi automobile digital camera (AHD720P/AHD1080P optional) 2 Retail box 3 Power cable (6M four User handbook Installation Diagram FAQ： After connecting the rearview camera, the display screen shows no signal, a black screen, and no picture, what must I do? A) Please verify your sign layout (AHD/CVBS), and choose the proper signal to run the digital camera B) Please test your connection, the crimson set off line must hook up with your opposite mild and video display the reverse-in cable C) If your display screen has an AUX-IN function, you would connect with the AUX-IN Tip: CVBS cameras can test the functionality of the TV Universal cameras with 4Pin plugs can solely be put in with our cables You can consult customer service when you come upon any disorders throughout the installation process After connecting the rearview camera, the display shows black and white, what should I do if there isn't any color? A) Choosing the incorrect camera system(such as PAL/NTSC) will trigger the screen to be black and white Please choose the right formulation to run the digital camera and restart the digital camera energy CVBS digital camera is an NTSC system, and the AHD1080P digicam is a PAL formula B) Please check whether the 6M line is normal, please update it with one other 6M cable to test the digicam What functions are controlled by every single of the 3 cables of the rearview camera? Brown Cable: Video Signal Control • AHD-CVBS720P Camera: Default ( CVBS )+( 1280x720 )+( 170° ) Cut the brown cable→ ( AHD )+( 1280x720 )+( 170° ) • AHD1080P Camera: Default ( AHD1080P )+( 1920x1080 )+( 170° ) Cut the white cable→ ( CVBS )+( 1280x720 )+( 170° ) White Cable: Mirror Control • The default is the rearview digital camera (Mirroring) Cut the white cable→ Front view digicam ( Non-mirroring ) You can also manually rotate the sector perspective 90 °, to attain the effect of the side camera Green Cable: Parking Line Control • The digicam with the parking line/camera would not demonstrate the parking line, you could possibly lower the green cable, and then reconnect the camera&;s energy supply, which can replace the parking line Does it support custom-made products? Yes, we can customise all types of chips, lenses, colors, accessories, and appearance, please contact us for any curiosity

•
•
•
•
•
