Description

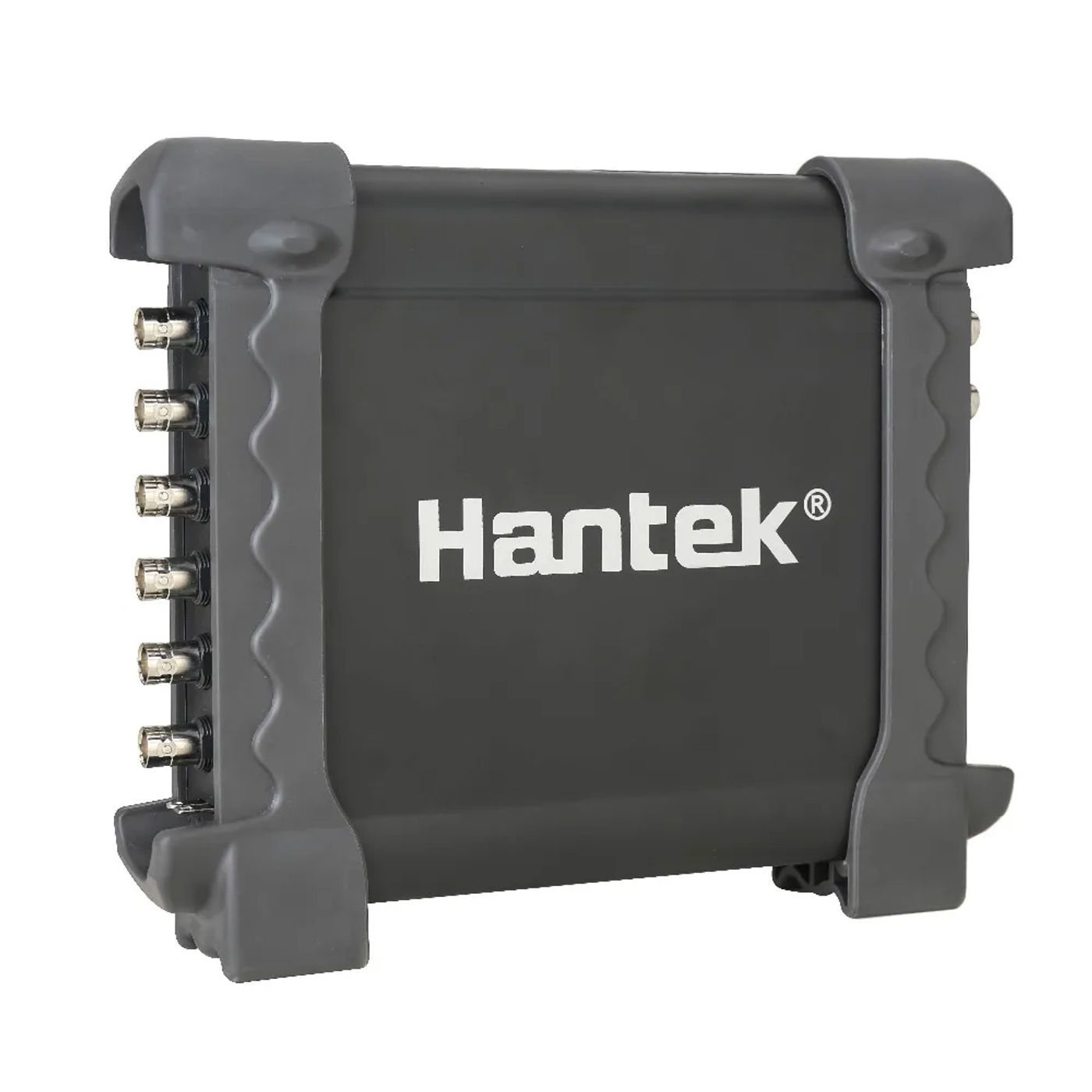

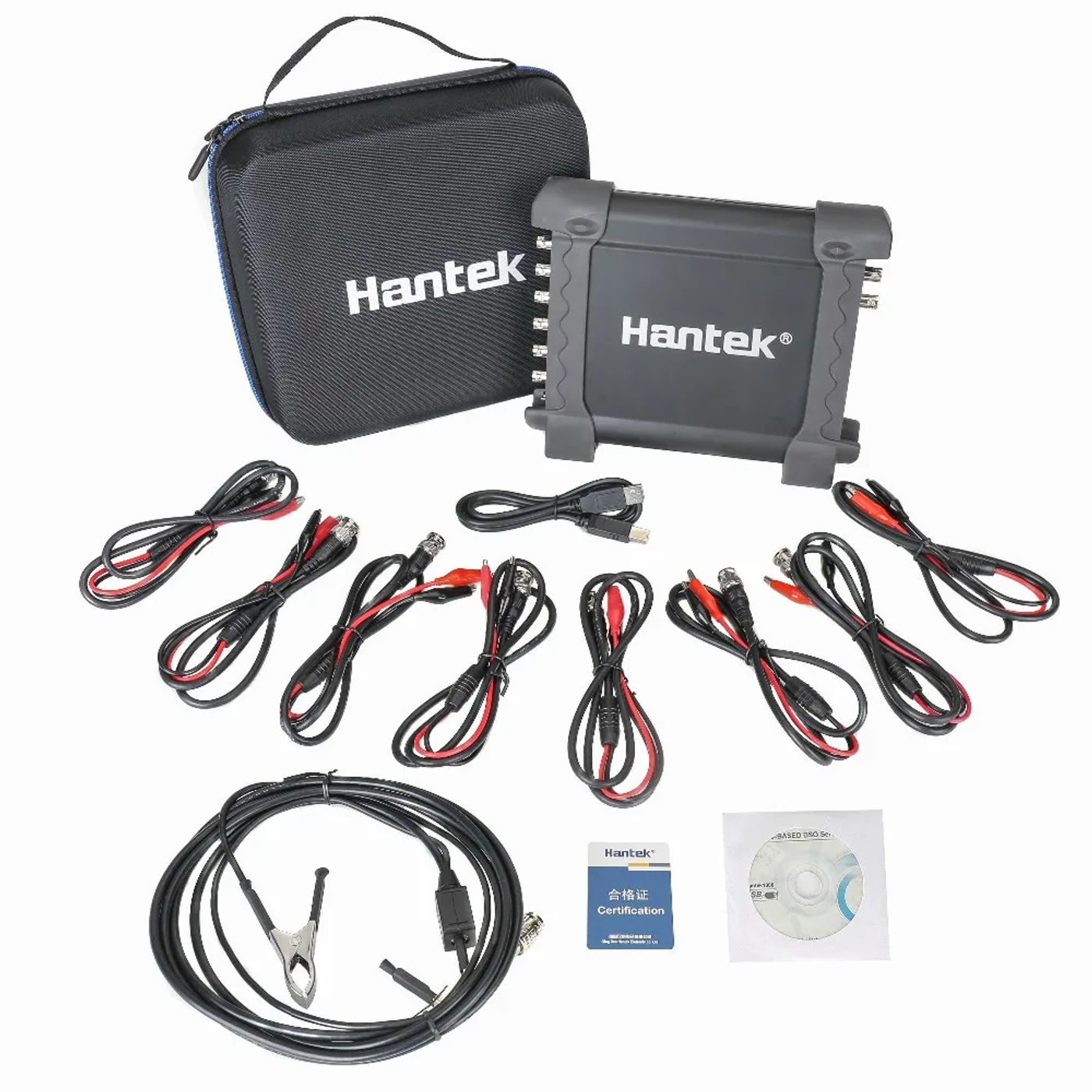

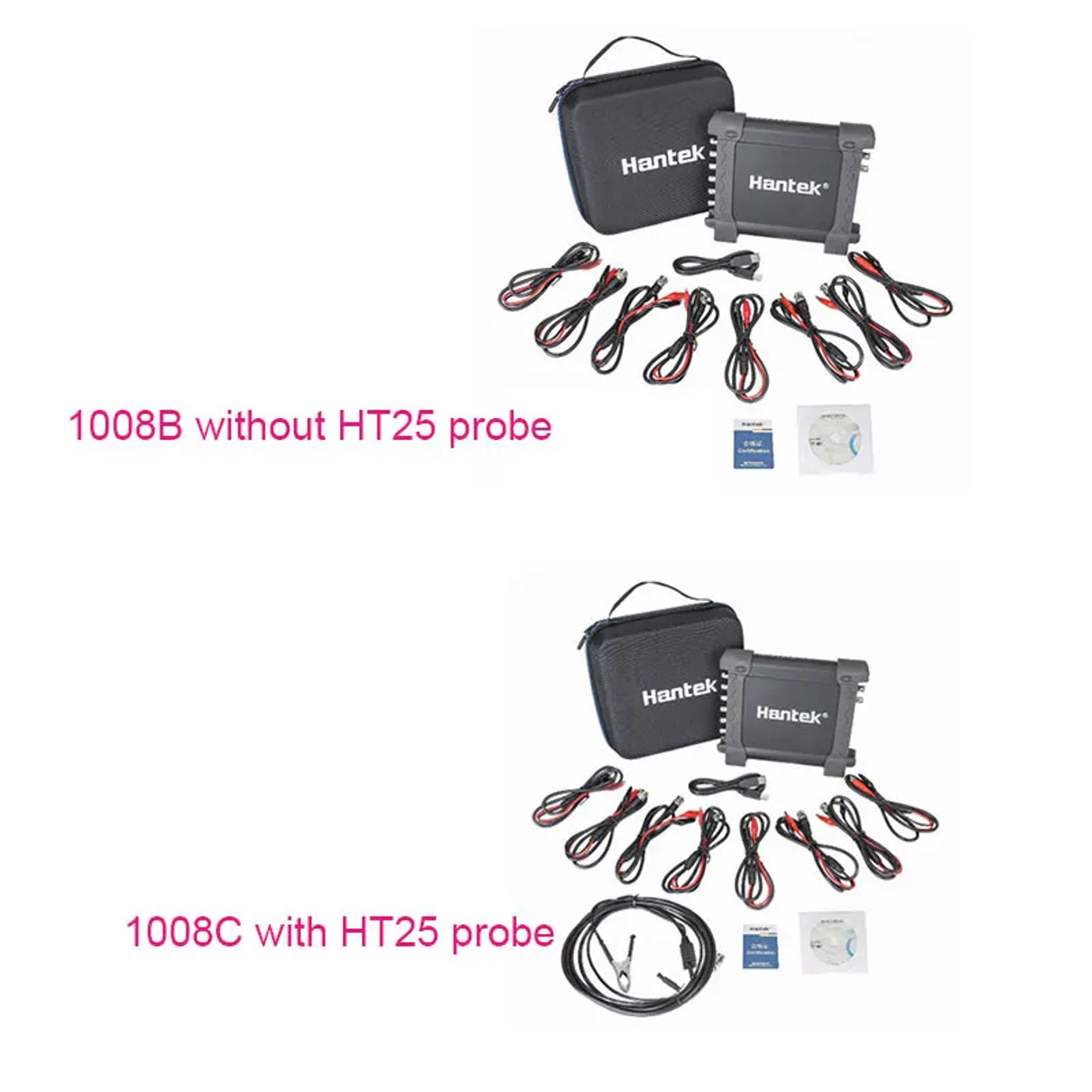

• Features: (1) Cost-effective Hantek PC USB 8CH Automotive Diagnostic Oscilloscope/DAQ/Programmable Generator: Highly efficient and price -effective; (2) 8 channels oscilloscope for vehicle testing; (3) Auto Ignition Probe; (4) 2/s genuine time sampling rate, 12bit vertical resolution; (5) spectrum evaluation function; (6) 10mV/div to 5V/div enter sensitivity; (7) DAQ card function; (8) eight channels programmable generator which can analog signals of crankshaft, camshaft, and so on Specifications: (1) Vehicle Testing First Diagnosis: Intake manifold vacuum & ignition, Petrol fumes adjusting valve vacuum & ignition, Idle exhaust ignition, Starting exhaust ignition Ignition: essential and secondary Sensor: Air Flow Meter, Camshaft, Crankshaft, Distributor, Lambda sensor, Throttle function Bus Diagnosis: CAN bus data examine, CAN bus sign integrity, CAN bus LH long time acquisition, LIN bus Performer: Petrol/Diesel Starter and charging circuits (2) Oscilloscope 8 channels oscilloscope, 2/s genuine time sampling rate 12 bits vertical resolution, spectrum evaluation operate (3) Programmable Generator eight channels programmable generator Can analog signals of crankshaft, camshaft and so forth (4) Others USB 2 interface plug and play, and little need extra strength supply; More than 20 kinds of automated testing function, a similar interface with benchtop oscilloscope, clean to use; NOTE: Software support: Windows NT, Window 2000, Windows XP, VISTA, Windows 7,Window 8,Window 10 Package including: 1 x 1008C DAQ oscilloscope eight x Crocodile probes/cabl 1 x USB Cable 1 x CD (driver etc) 1 x Bag Function Selection There are 3 applications of car diagnosis, oscilloscope and sign generator, including 78 forms of car analysis operate Measurement Method 20 styles of automatic dimension formula which are callout or close with one button It is handy and visual to read out the outcome Print The end result can be printed with one button and generate prognosis file which is straightforward to be stored and recorded REF Comparison Waveform The consumer can save the waveform as REF format and callout it again when you need to evaluate the 2 waveforms catched in numerous time Data Storage The analysis outcome would be kept because the structure of txt, csv, rfc, xls, doc, jpg and etc It is convenient to be checked and in contrast later 8CH Vehicle Diagnosis 8CH sign could be measured concurrently The size voltage of every channel would be adjusted independently You can decide to open or close each channel Waveform Record Support to list and replay the waveform The waveform could be save into the pc harddrive and simple to learn There is not any restrict to the listing time which might long-time measure and listing the waveform for troubleshooting Multilanguage Support Support the show floor in Chinese, English, German language, and it can be switched freely Cursor Measurement Support four types of cursor size mode -cross,track, horizontal, and vertical&;s easy to read out the time and voltage of abnormal signal Color and Lightness The background color is non-compulsory as user&;s desire And the lightness of waveform and gridding is settable USB Communication USB2 energy delivery + verbal exchange interface, plug and play, and assist scorching plugging Signal Generator Signal generator function, can simulate crankshaft and camshaft signal

•
•
•
•
•
