Description

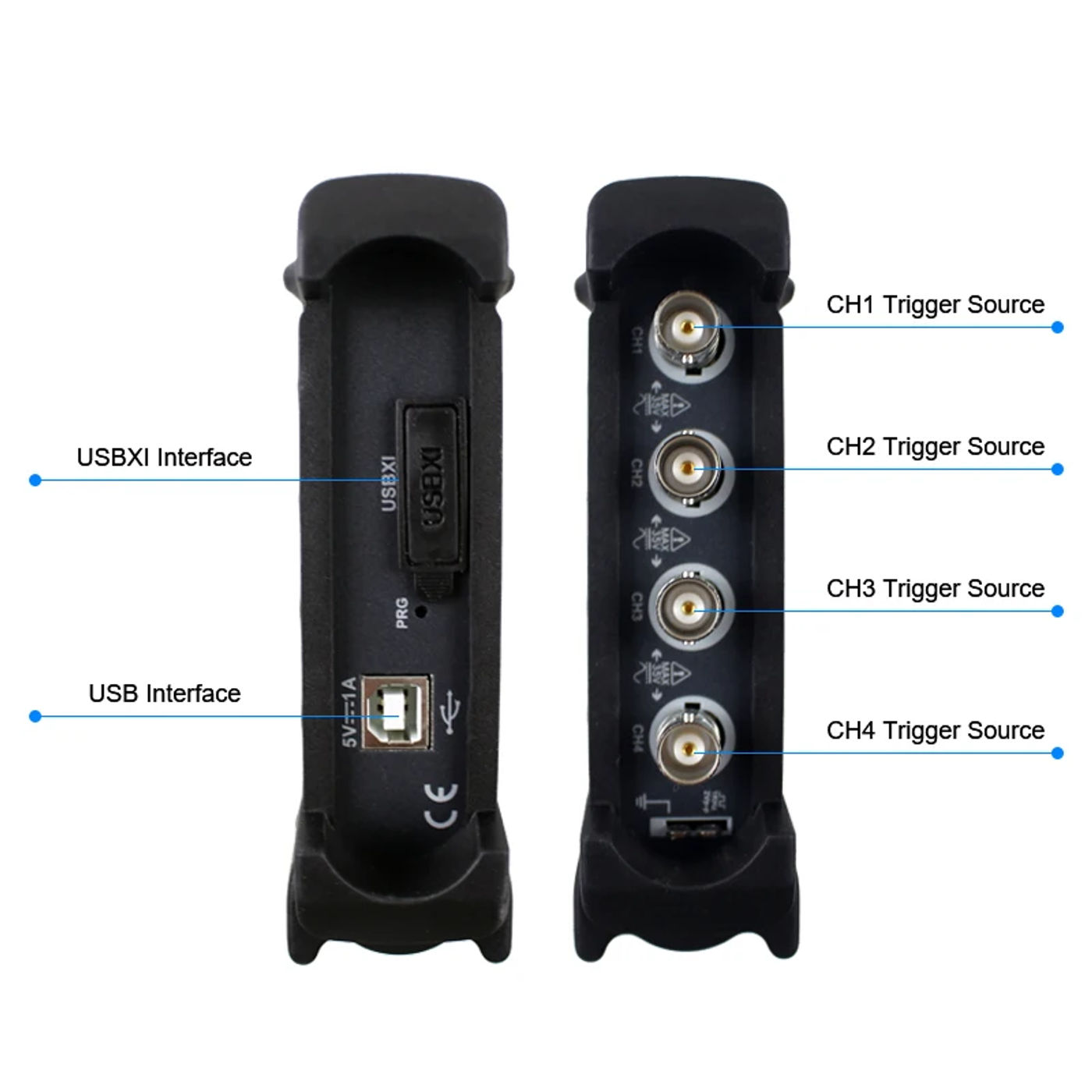

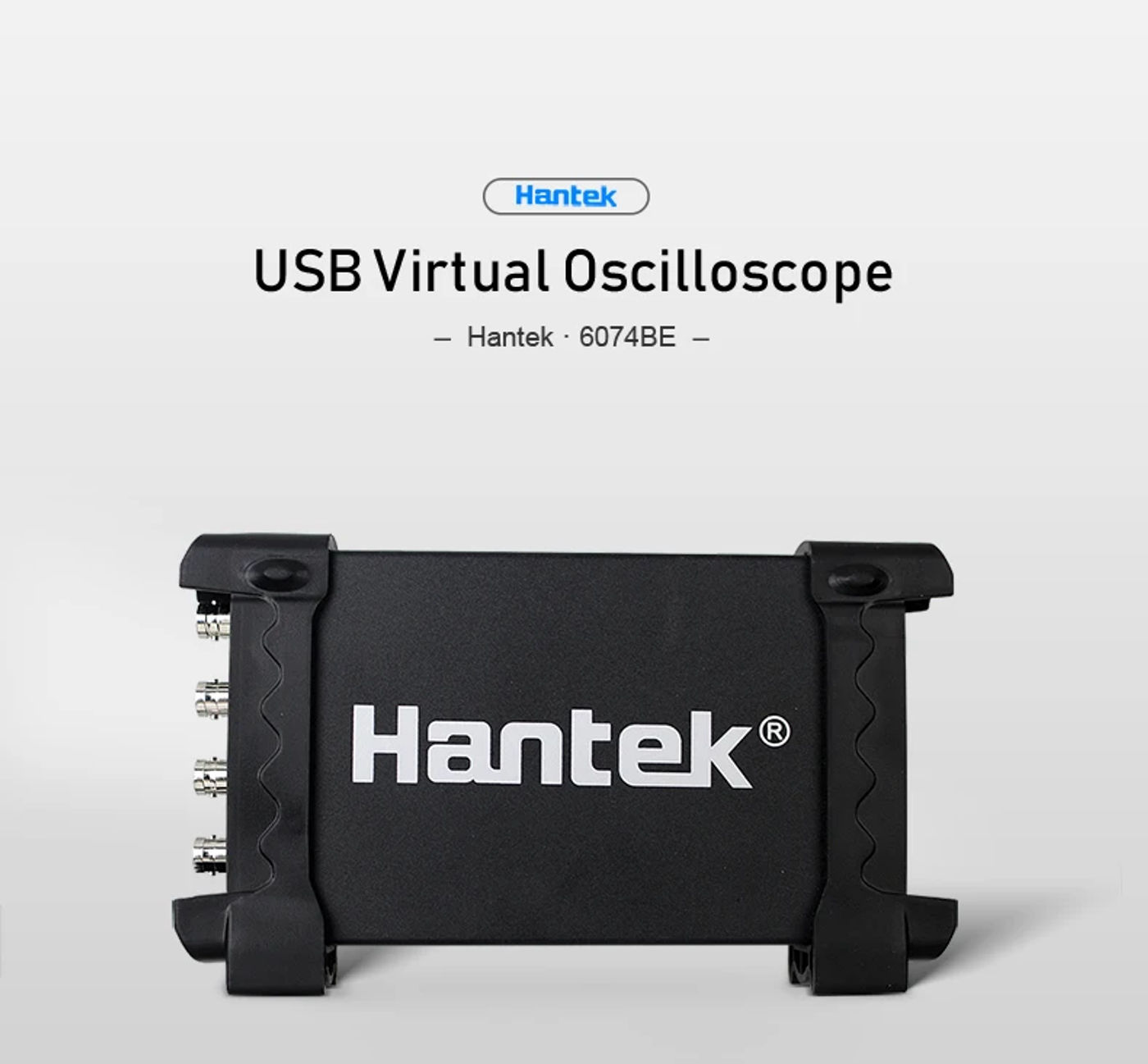

• USB Digital garage oscilloscopes, transportable oscilloscopes four channels 70MHz bandwidth automotive oscilloscope Hantek 6074BE/6074BC 6074BD 6254BD 6254BE Hantek6074 Series： Standard equipped over eighty styles of automotive dimension operate (Ignition Action/The Sensor/Bus Diagnosis/Performer/Startup&Charge); USB 2 interface plug and play, and no use more strength supply; Support tablet PC; Support WIN10/ WIN8/WIN7 etc Free software upgrading constantly, increased charge performance; Support USBXI, clean to function four remoted channels oscilloscope, 1GSa/s genuine time sampling rate, 2mV-10V/DIV high input sensitivity and massive enter range, 70MHz high bandwidth, small size, easy for carrying Dynamic cursor tracking, waveform listing and replay operate Feature Standard geared up over 80 types of car size function;First Diagnosis: Intake manifold vacuum ignition,Petrol fumes adjusting valve vacuum ignition,Idle exhaust ignition, Starting exhaust ignition;Ignition: primary and secondary;Sensor:Air Flow Meter, Camshaft, Crankshaft, Distributor, Lambda sensor, Throttle position;Bus Diagnosis:CAN bus data examine, CAN bus sign integrity, CAN bus LH long time acquisition, LIN bus;Performer: Petrol/Diesel Fit for the transportable computers, desk PC, and suitable for wild mobile use and work trip use Support WIN10/ WIN8/WIN7 etc USB 2 interface plug and play, and no need extra energy supply; Great function, More than 20 sorts of automated measurement function, PASS/FAIL Check operate Resourceful trigger function, dynamic cursor tracking, waveform listing and replay function Good mechanical design with small length which is simple for sporting The outer case is made via an analogous materials with iPad - Anodised aluminium It has tremendous warmth resistance and abrasive resistance with exquisite appearance The hardness of aluminium alloy surface is significantly advanced four isolated channels oscilloscope, 1GSa/s genuine time sampling rate, 2mV-10V/DIV excessive input sensitivity and large enter range, 70MHz excessive bandwidth, The waveform data could be output to EXCEL,BMP,JPG Waveform averaging, afterglow,lightness control, reverse, add, subtract, multiply, divide, X-Y display FFT spectrum analyzer One pc could connect to a number of oscilloscopes, develop the channel number easily Provide secondary development library DLL; Provide Labview\VB\VC\QT constructing instance Model Hantek6074BE Bandwidth 70MHz Channel 4 CH Real-time Sampling Rate 1GSa/s Memory Depth 64K Time BasePrecision ±50ppm Time Base Range 2ns/div-1000s/div (1-2-4 sequences) Input Impedance 1MΩ 25pF Input Sensitivity 2mV/div~10V/div Vertical Resolution 8Bit Vertical Displacement Range 2mV ~ 10V/div @ x1 probe; 20mV ~ 100V/div @ x10 probe; 200mV ~ 1000V/div @ x100 probe; 2V ~ 10000V/div @ x1000 probe DC Gain Accuracy ±3% Bandwidth 20MHz Trigger Mode Edge, Pulse, Video, Alternative Trigger Source CH1, CH2, CH3,CH4 Waveform Signal Process +,-,x,÷,FFT, Invert Cursors Measurement Cross, Trace, Horizontal, Vertical Auto Measurement Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle Volume 175mm * 105mm * 25mm package includ 6074BE* 1pcs HT307*1,HT19*1,HT18A*1,HT30A*1,gator clip lines*3,HT25*1,USB,CD,Manual Model Hantek6074BC Bandwidth 70MHz Channel four CH Real-time Sampling Rate 1GSa/s Memory Depth 64K Time BasePrecision ±50ppm Time Base Range 2ns/div-1000s/div (1-2-4 sequences) Input Impedance 1MΩ 25pF Input Sensitivity 2mV/div~10V/div Vertical Resolution 8Bit Vertical Displacement Range 2mV ~ 10V/div @ x1 probe; 20mV ~ 100V/div @ x10 probe 200mV ~ 1000V/div @ x100 probe; 2V ~ 10000V/div @ x1000 probe DC Gain Accuracy ±3% Bandwidth restrict 20MHz Trigger Mode Edge, Pulse, Video, Alternative Trigger Source CH1, CH2, CH3,CH4 Waveform Signal Process +,-,x,÷,FFT, Invert Cursors Measurement Cross, Trace, Horizontal, Vertical Auto Measurement Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle Volume 175mm * 105mm * 25mm Weight 0 equipment includ 1 x 6074bc usb oscilloscope; 2 x oscilloscope probe;(Note:Just 2pcs probes in the package,if you desire to purchase more,please contact with us directly!!!) 2 x BNC - clip cable; 1 x usb cable; 1 x CD (driver / guide inside) Model Hantek6074BD Bandwidth 70MHz Channel four CH Real-time Sampling Rate 1GSa/s Memory Depth 64K Time BasePrecision ±50ppm Time Base Range 2ns/div-1000s/div (1-2-4 sequences) Input Impedance 1MΩ 25pF Input Sensitivity 2mV/div~10V/div Vertical Resolution 8Bit Vertical Displacement Range 2mV ~ 10V/div @ x1 probe; 20mV ~ 100V/div @ x10 probe; 200mV ~ 1000V/div @ x100 probe; 2V ~ 10000V/div @ x1000 probe DC Gain Accuracy ±3% Bandwidth 20MHz Trigger Mode Edge, Pulse, Video, Alternative Trigger Source CH1, CH2, CH3,CH4 Waveform Signal Process +,-,x,÷,FFT, Invert Cursors Measurement Cross, Trace, Horizontal, Vertical Auto Measurement Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle Volume 175mm * 105mm * 25mm Weight zero Accessory 2 passive probes, 2 gator clip strains The distinction is The 6074BC would not have a automobile check possibility function, and different purposes are similar to the 6074BE As the advent of the product is upgraded, the color could also be barely different, however it will not influence the use

•
•
•
•
•
