Description

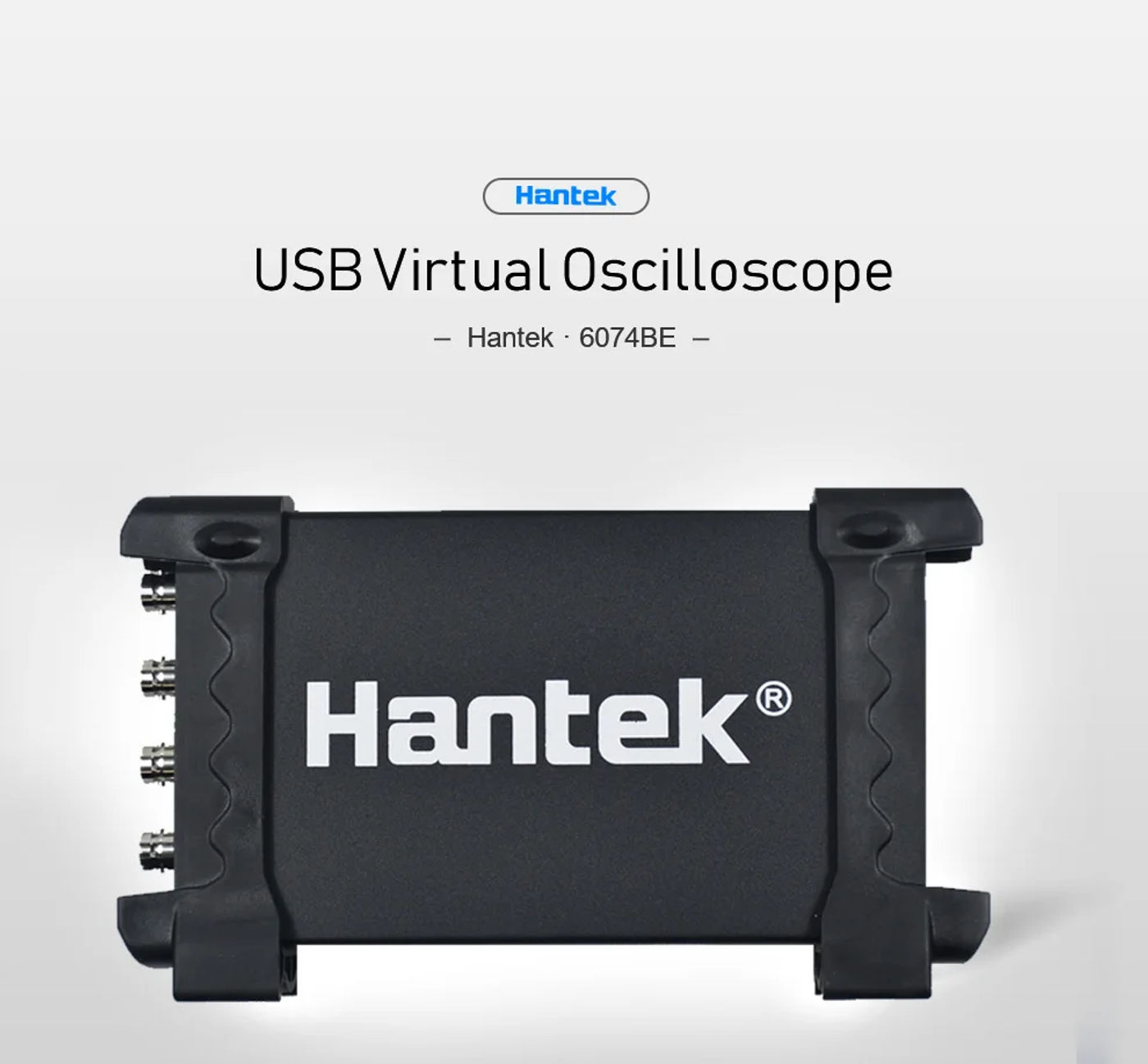

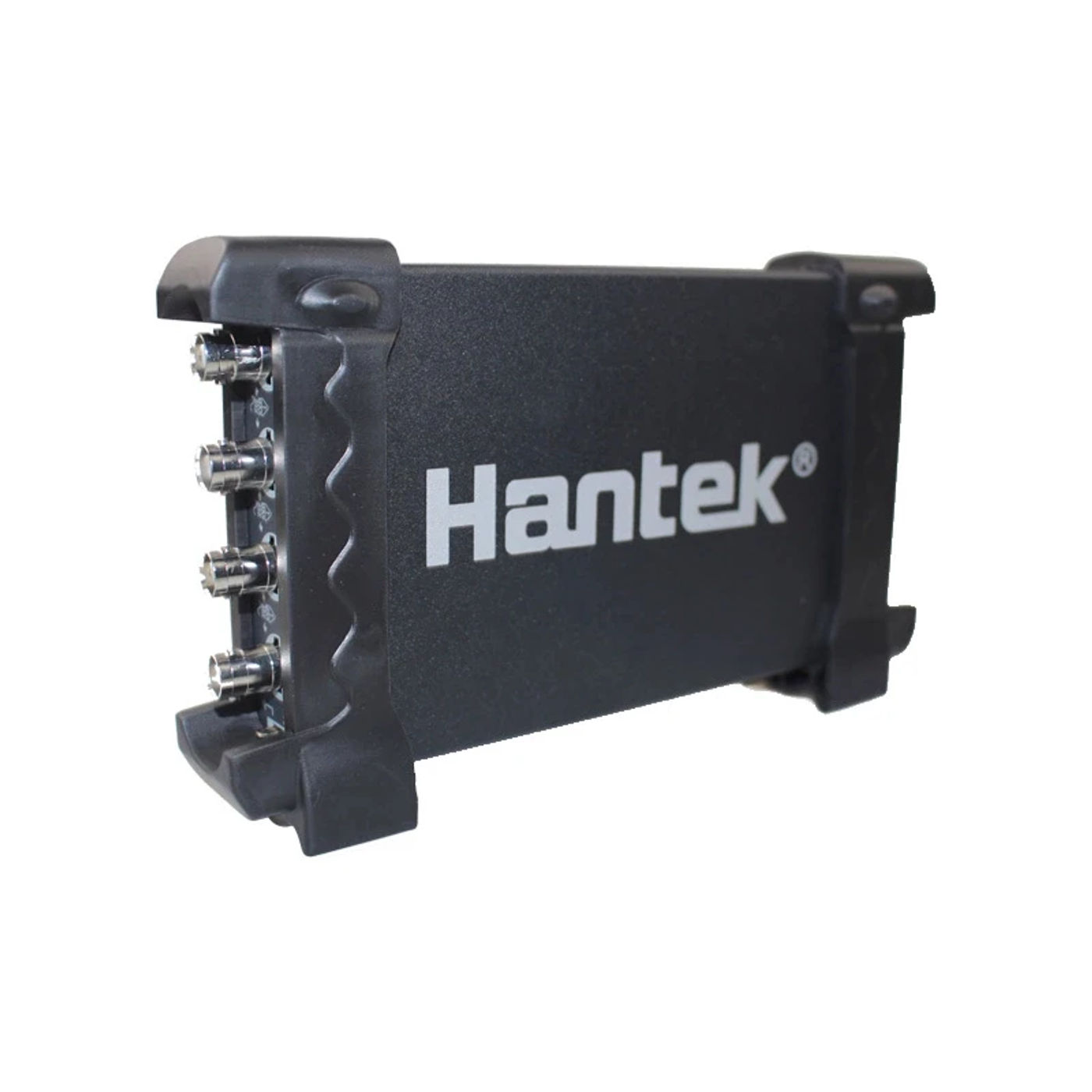

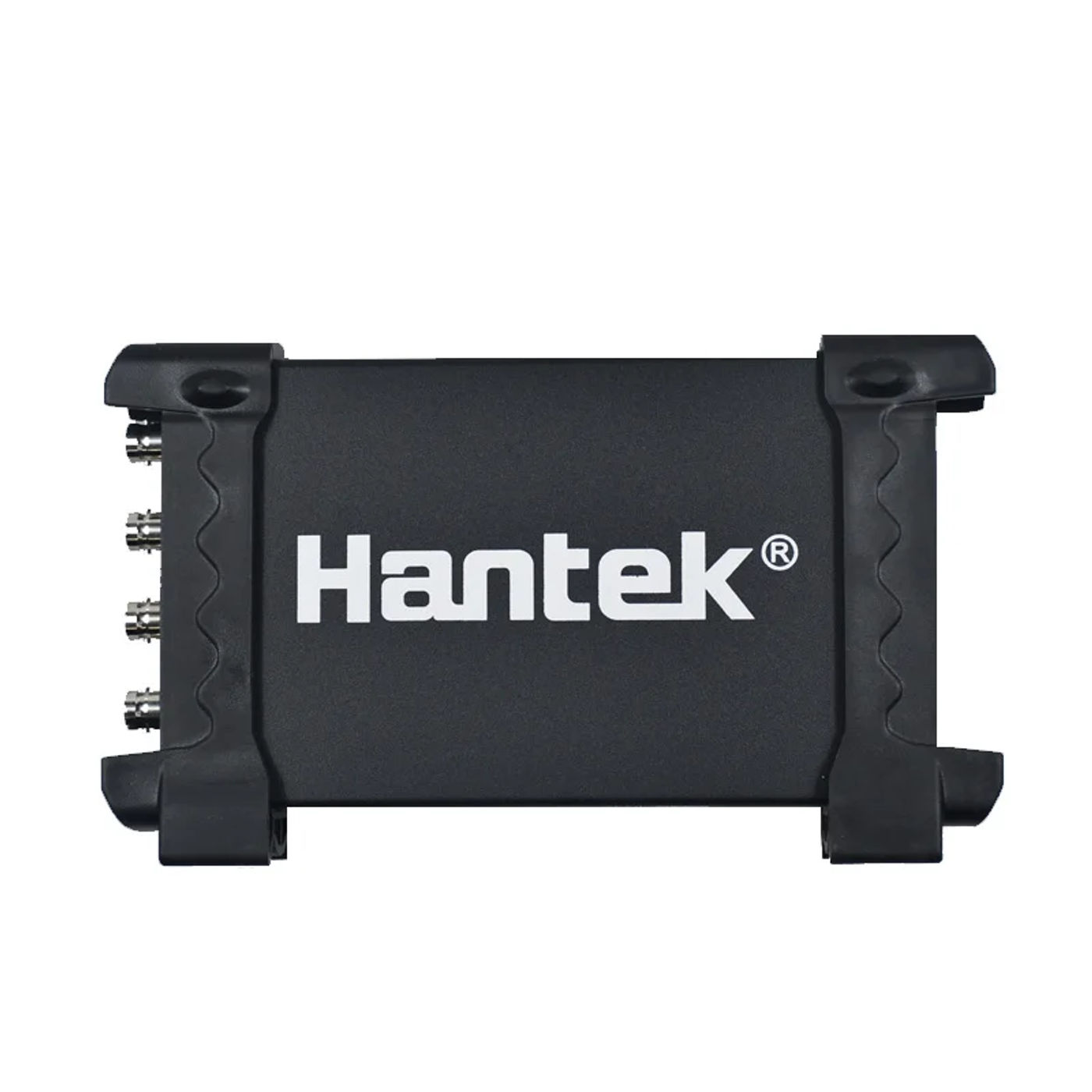

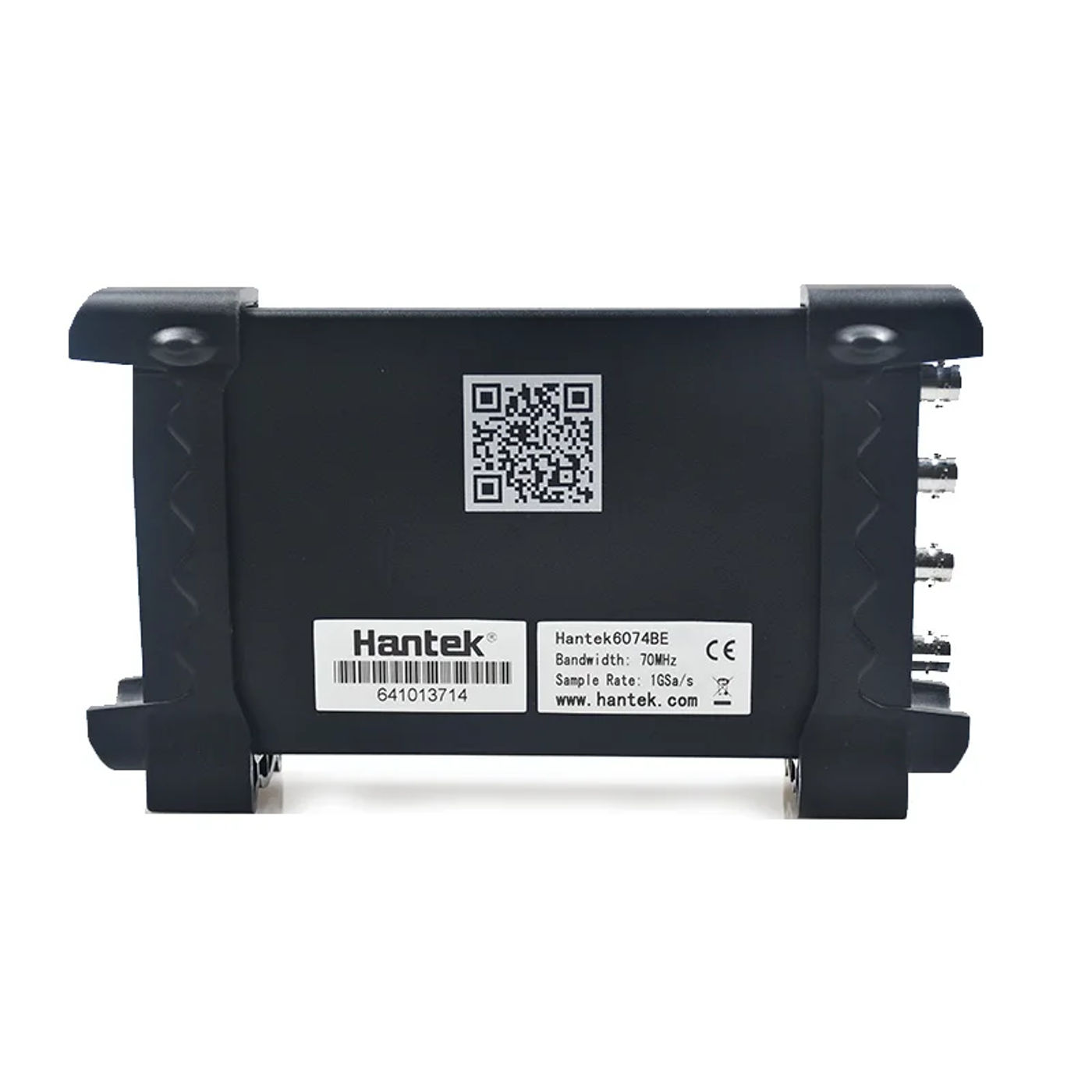

• Hantek 6074BE 6074BC 6074BD 6254BD 6254BE USB Digital storage oscilloscopes, transportable oscilloscopes four channels 70MHz bandwidth car oscilloscope Hantek6074 Series： Standard equipped over eighty sorts of automobile measurement operate (Ignition Action/The Sensor/Bus Diagnosis/Performer/Startup&Charge); USB 2 interface plug and play, and little need more energy supply; Support pill PC; Support WIN10/ WIN8/WIN7 etc Free application upgrading constantly, increased charge performance; Support USBXI, clean to operate 4 remoted channels oscilloscope, 1GSa/s genuine time sampling rate, 2mV-10V/DIV excessive enter sensitivity and large enter range, 70MHz excessive bandwidth, small size, clean for wearing Dynamic cursor tracking, waveform checklist and replay operate Feature Standard geared up over 80 styles of automobile measurement function;First Diagnosis: Intake manifold vacuum ignition,Petrol fumes adjusting valve vacuum ignition,Idle exhaust ignition, Starting exhaust ignition;Ignition: essential and secondary;Sensor:Air Flow Meter, Camshaft, Crankshaft, Distributor, Lambda sensor, Throttle position;Bus Diagnosis:CAN bus information examine, CAN bus sign integrity, CAN bus LH very long time acquisition, LIN bus;Performer: Petrol/Diesel Fit for the transportable computers, table PC, and suitable for wild cellular use and business journey use Support WIN10/ WIN8/WIN7 etc USB 2 interface plug and play, and little need more energy supply; Great function, More than 20 varieties of computerized dimension function, PASS/FAIL Check function Resourceful set off function, dynamic cursor tracking, waveform checklist and replay function Good mechanical design with small length which is easy for sporting The outer case is made by way of a similar material with iPad - Anodised aluminium It has great heat resistance and abrasive resistance with beautiful appearance The hardness of aluminium alloy floor is drastically improved 4 remoted channels oscilloscope, 1GSa/s genuine time sampling rate, 2mV-10V/DIV high enter sensitivity and large input range, 70MHz excessive bandwidth, The waveform information could be output to EXCEL,BMP,JPG Waveform averaging, afterglow,lightness control, reverse, add, subtract, multiply, divide, X-Y show FFT spectrum analyzer One laptop may possibly connect with a number of oscilloscopes, expand the channel quantity smoothly Provide secondary development library DLL; Provide Labview\VB\VC\QT constructing instance The distinction is The 6074BC doesn't have a vehicle check possibility function, and other applications are the same as the 6074BE As the arrival of the product is upgraded, the colour could also be slightly different, however it won't influence the use Model Hantek6074BE Bandwidth 70MHz Channel four CH Real-time Sampling Rate 1GSa/s Memory Depth 64K Time BasePrecision ±50ppm Time Base Range 2ns/div-1000s/div (1-2-4 sequences) Input Impedance 1MΩ 25pF Input Sensitivity 2mV/div~10V/div Vertical Resolution 8Bit Vertical Displacement Range 2mV ~ 10V/div @ x1 probe; 20mV ~ 100V/div @ x10 probe; 200mV ~ 1000V/div @ x100 probe; 2V ~ 10000V/div @ x1000 probe DC Gain Accuracy ±3% Bandwidth 20MHz Trigger Mode Edge, Pulse, Video, Alternative Trigger Source CH1, CH2, CH3,CH4 Waveform Signal Process +,-,x,÷,FFT, Invert Cursors Measurement Cross, Trace, Horizontal, Vertical Auto MeasurementAuto Measurement Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle VolumeVolumeVolumeVolumeVolumeVolumeVolumeVolume 175mm * 105mm * 25mm175mm * 105mm * 25mm175mm * 105mm * 25mm175mm * 105mm * 25mm equipment includ 6074BE* 1pcs HT307*1,HT19*1,HT18A*1,HT30A*1,gator clip lines*3,HT25*1,USB,CD,Manual Model Hantek6074BC Bandwidth 70MHz Channel four CH Real-time Sampling Rate 1GSa/s Memory Depth 64K Time BasePrecision ±50ppm Time Base Range 2ns/div-1000s/div (1-2-4 sequences) Input Impedance 1MΩ 25pF Input Sensitivity 2mV/div~10V/div Vertical Resolution 8Bit Vertical Displacement Range 2mV ~ 10V/div @ x1 probe; 20mV ~ 100V/div @ x10 probe 200mV ~ 1000V/div @ x100 probe; 2V ~ 10000V/div @ x1000 probe DC Gain Accuracy ±3% Bandwidth restrict 20MHz Trigger Mode Edge, Pulse, Video, Alternative Trigger Source CH1, CH2, CH3,CH4 Waveform Signal Process +,-,x,÷,FFT, Invert Cursors Measurement Cross, Trace, Horizontal, Vertical Auto Measurement Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle Volume 175mm * 105mm * 25mm Weight zero package includ 1 x 6074bc usb oscilloscope; 2 x oscilloscope probe;(Note:Just 2pcs probes within the package,if you would like purchase more,please touch with us directly!!!) 2 x BNC - clip cable; 1 x usb cable; 1 x CD (driver / manual inside) Model Hantek6074BD Bandwidth 70MHz Channel 4 CH Real-time Sampling Rate 1GSa/s Memory Depth 64K Time BasePrecision ±50ppm Time Base Range 2ns/div-1000s/div (1-2-4 sequences) Input Impedance 1MΩ 25pF Input Sensitivity 2mV/div~10V/div Vertical Resolution 8Bit Vertical Displacement Range 2mV ~ 10V/div @ x1 probe; 20mV ~ 100V/div @ x10 probe; 200mV ~ 1000V/div @ x100 probe; 2V ~ 10000V/div @ x1000 probe DC Gain Accuracy ±3% Bandwidth 20MHz Trigger Mode Edge, Pulse, Video, Alternative Trigger Source CH1, CH2, CH3,CH4 Waveform Signal Process +,-,x,÷,FFT, Invert Cursors Measurement Cross, Trace, Horizontal, Vertical Auto Measurement Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle Volume 175mm * 105mm * 25mm Weight 0 Accessory 2 passive probes, 2 gator clip strains

•
•
•
•
•
