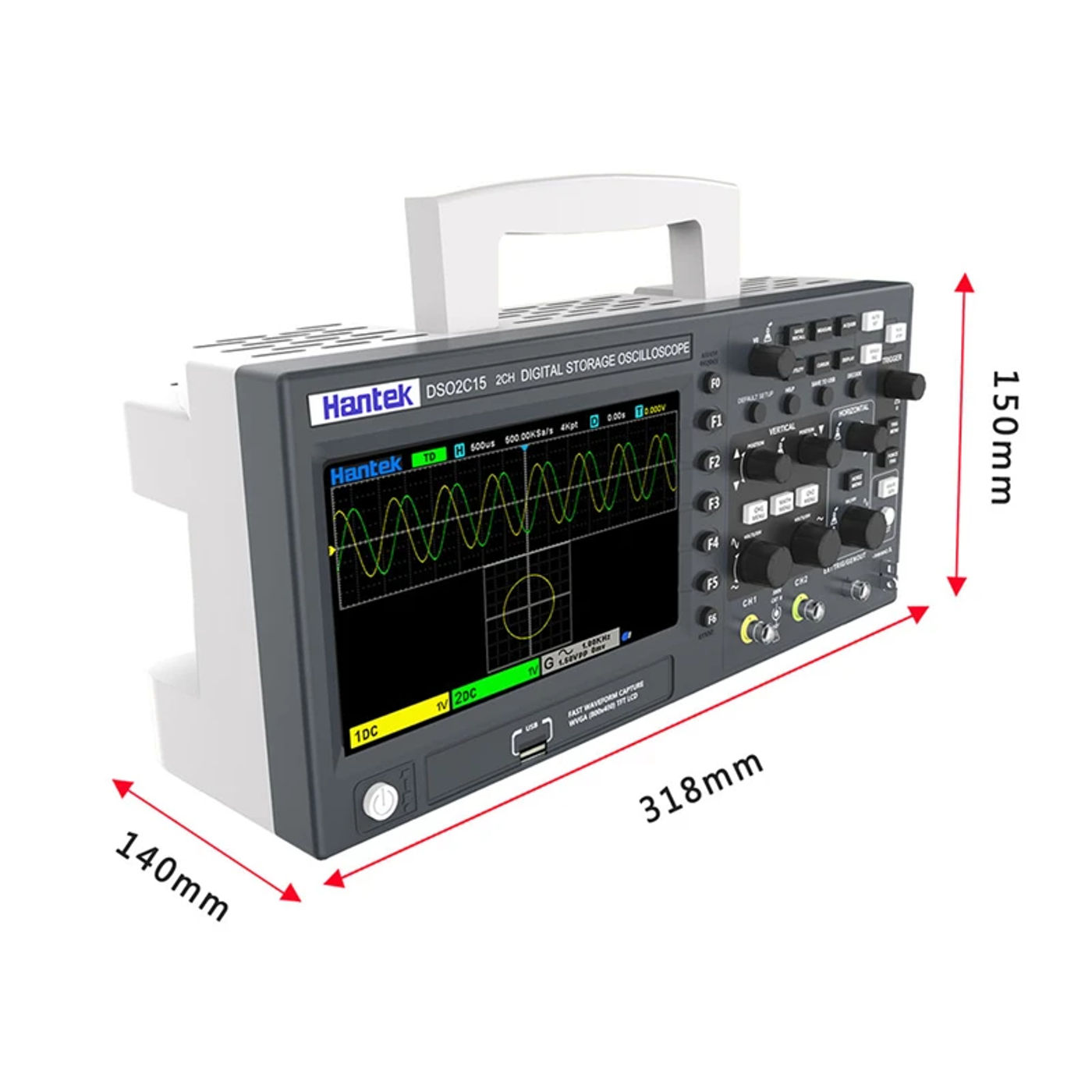

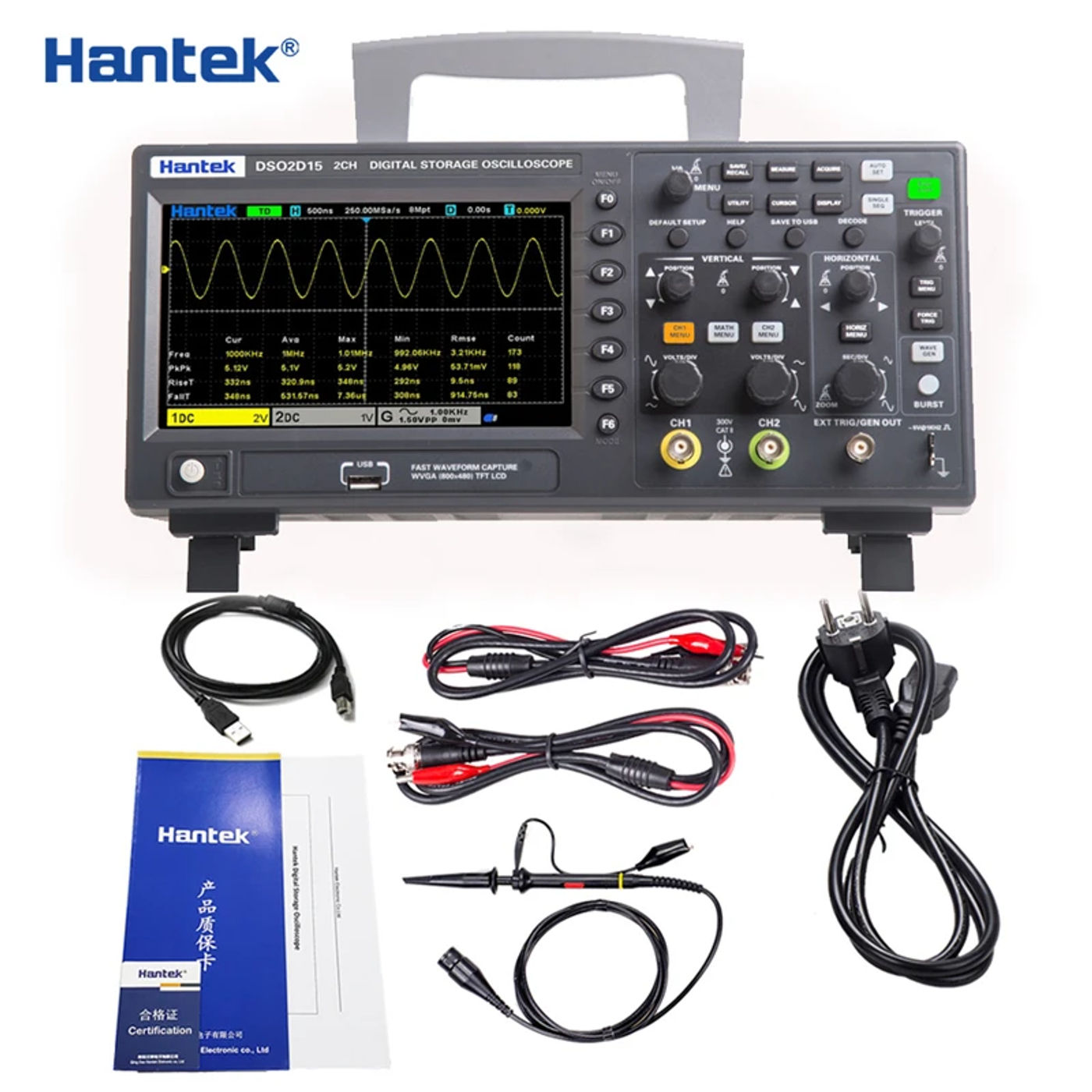

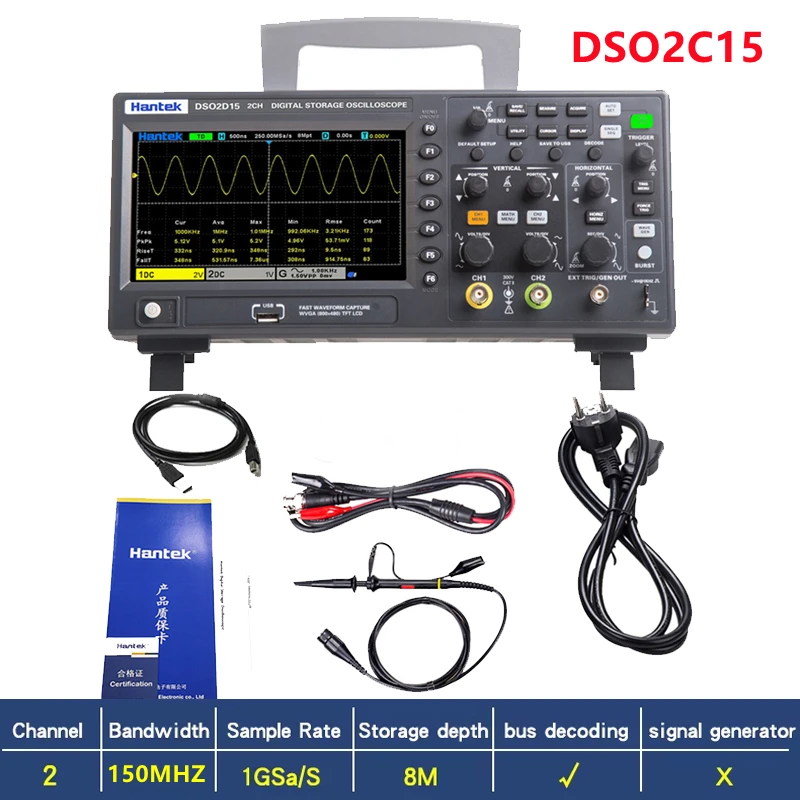

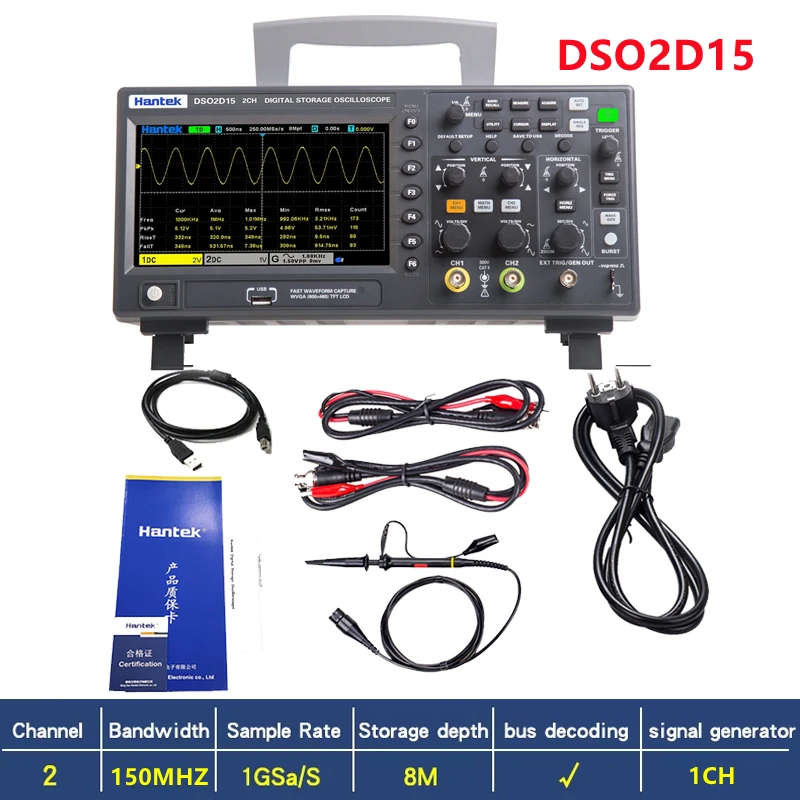

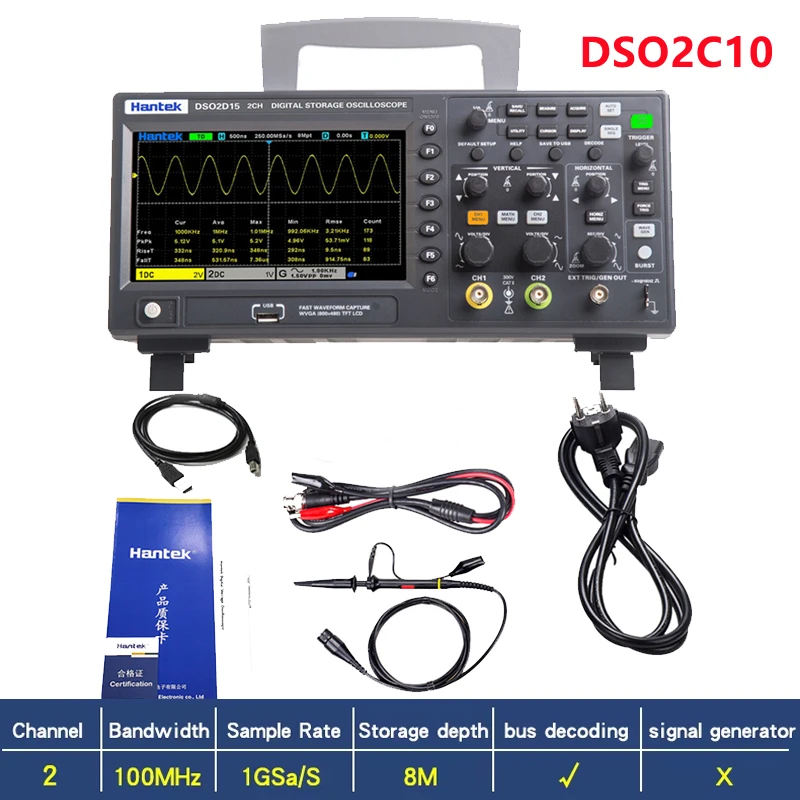

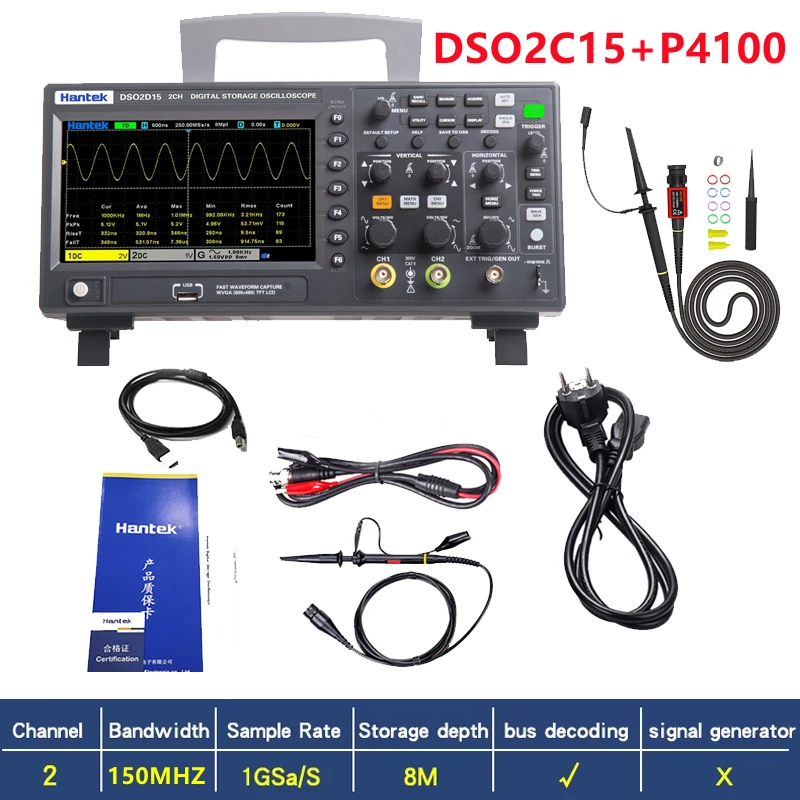

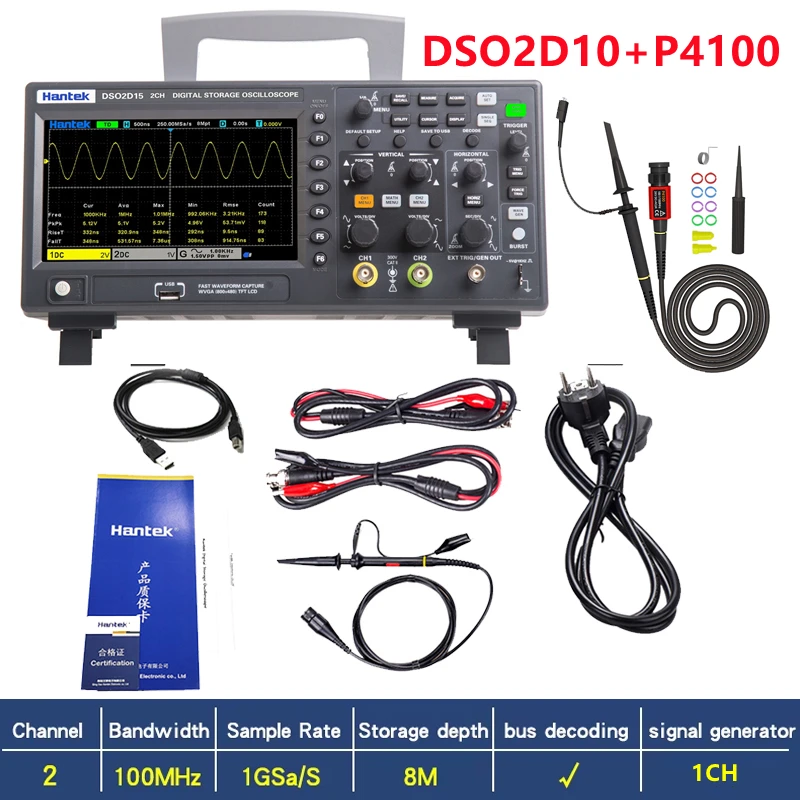

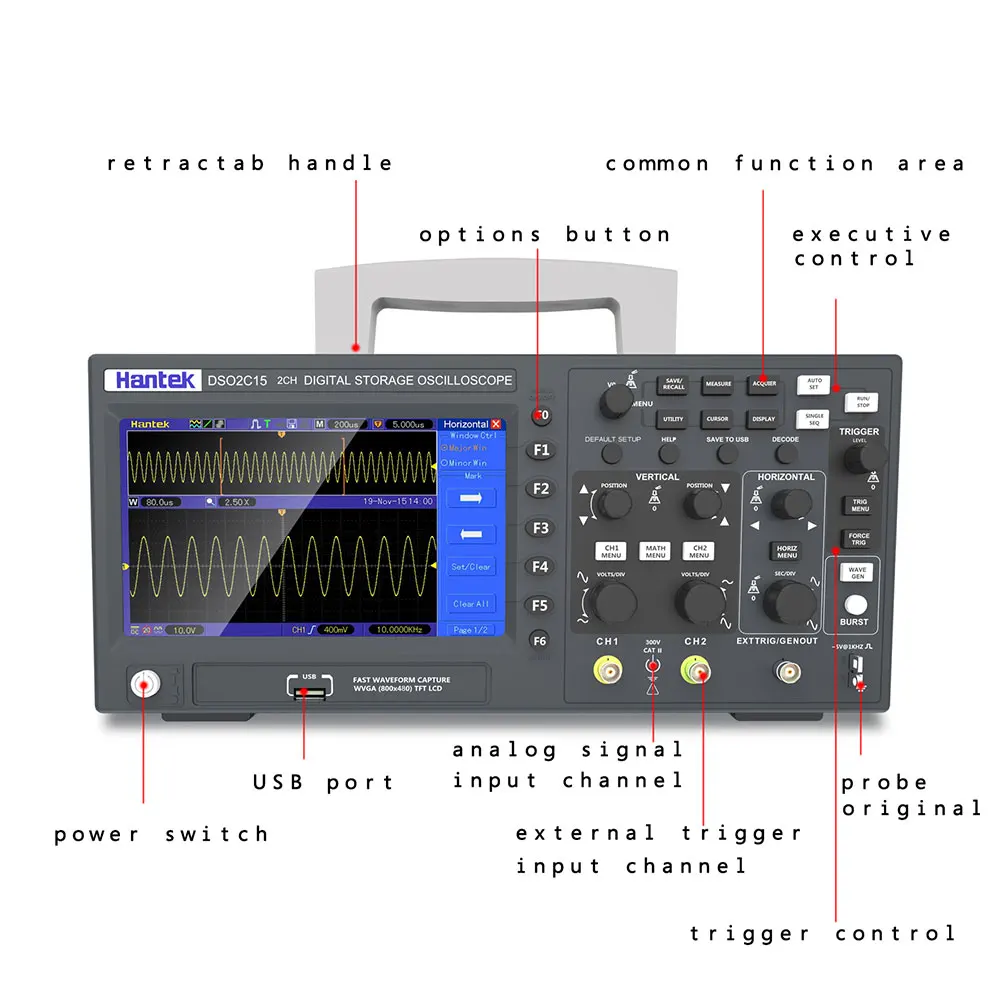

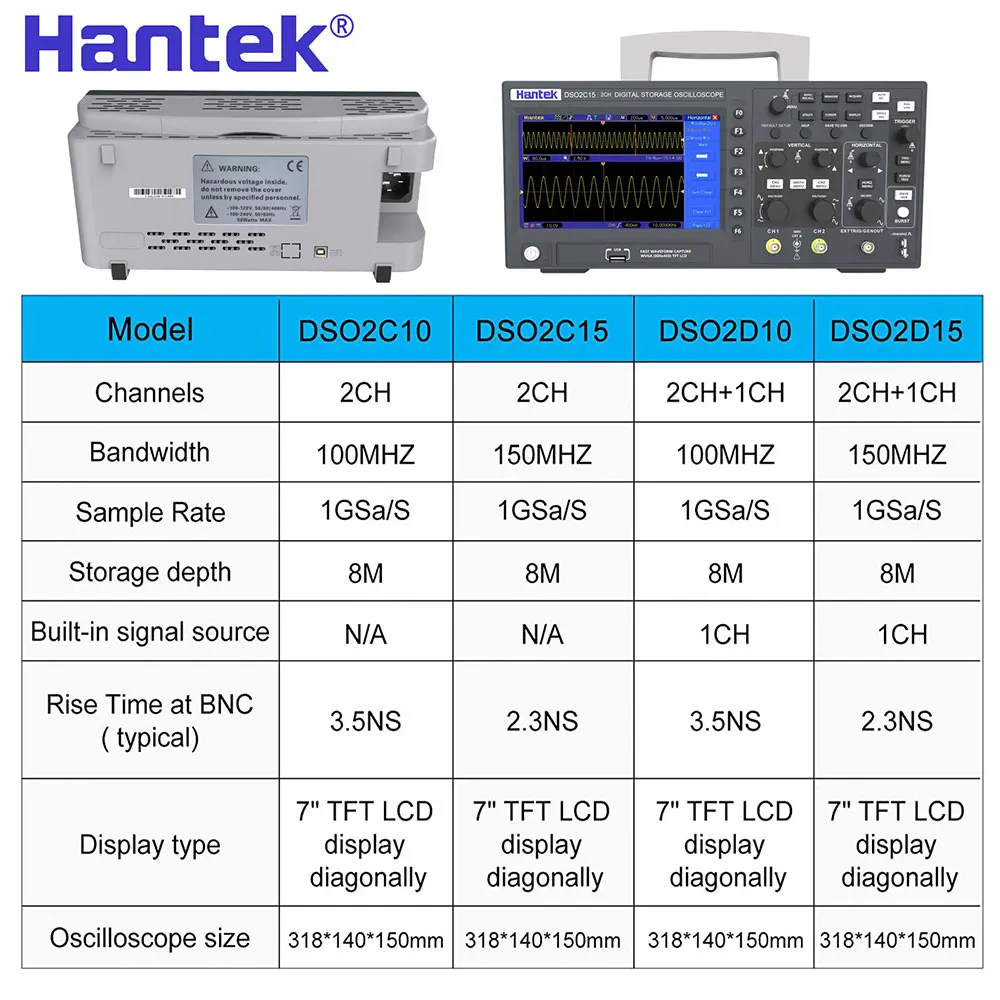

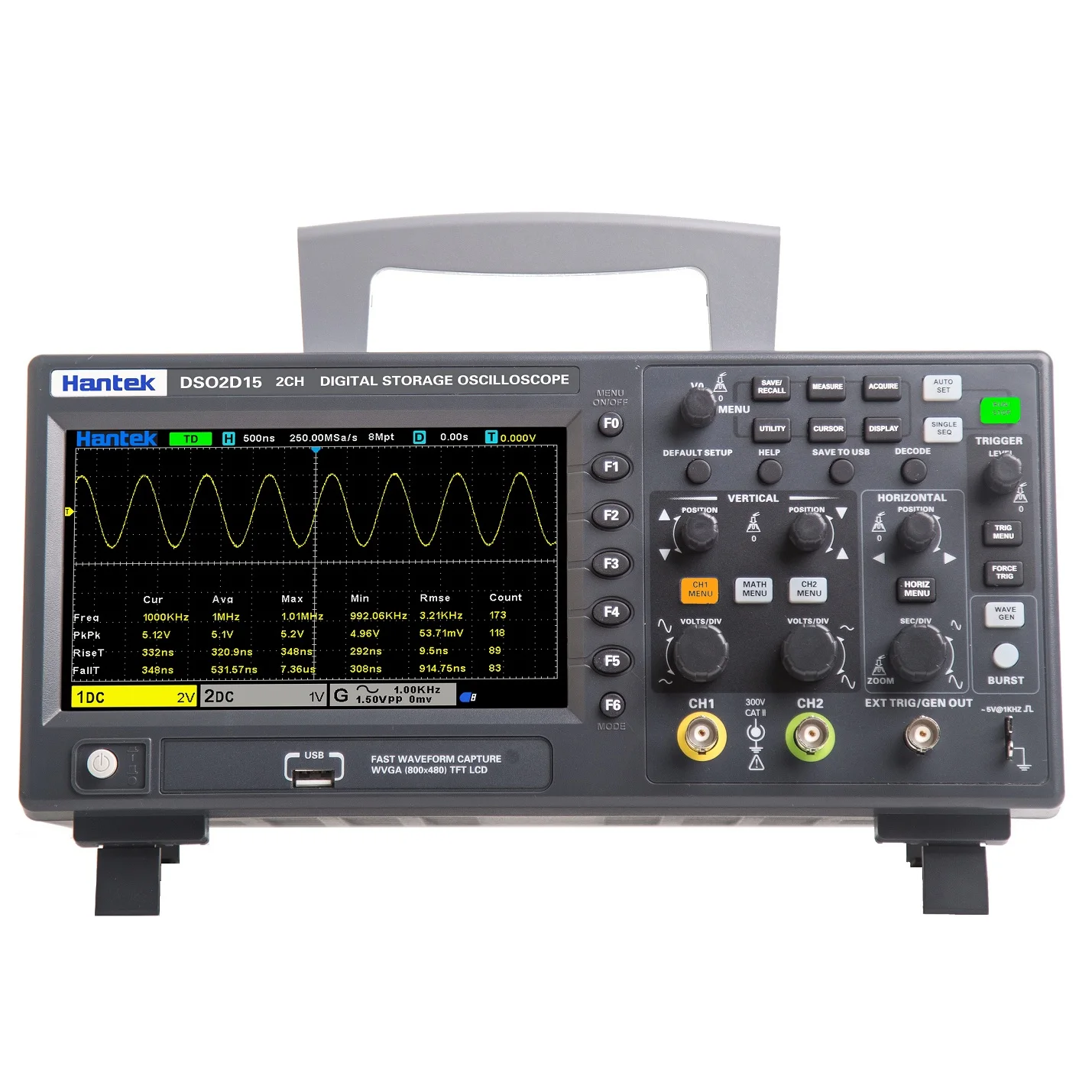

• HanTek Digital Oscilloscopes DSO Series USB Oscilloscopes, Multimeter Tester, 2-channel 100Mhz/150Mhz Memory DSO2C15 DSO2D10 DSO2C10 DSO2D15 Characteristics: 1) 2 channels, either channels are managed via self sustaining knobs 2) a hundred MHZ, 150 MHZ analog channel bandwidth 3) 1 GSa/s real-time sampling rate 4) 8M reminiscence depth 5) Vertical vary 2mV/grid ~ 10V/grid 6) Built-in 1 channel 5MHz waveform generator 7) Vertical resolution: eight bits 8) Trigger: Edge, Pulse Width, Video, Slope, Timeout, Window, Mode, Interval, Delay, UART, LIN, CAN, SPI, IIC 9) CAN deciphering and protocol analysis: RS232 / UART, I2C, SPI, CAN, LIN (RF) 10) Can be saved to varied data formats resembling Setup, Waveform, Reference Waveform, CSV, Picture 11) 5-bit electronic voltmeter and 6-bit hardware frequency indicator operate (12) 32 kinds of automated dimension statistics, real-time statistics of utmost value, minimum value, normal deviation, etc (13) 2 sets of electronic voltmeter (14) Support threshold test, free measurement at the display (15) Rich SCPI remote command and management (16) Many exterior interfaces: USB host/device Note: DSO2C10 and DSO2C15 don't have waveform generator function!

•
•
•
•
•
