Description

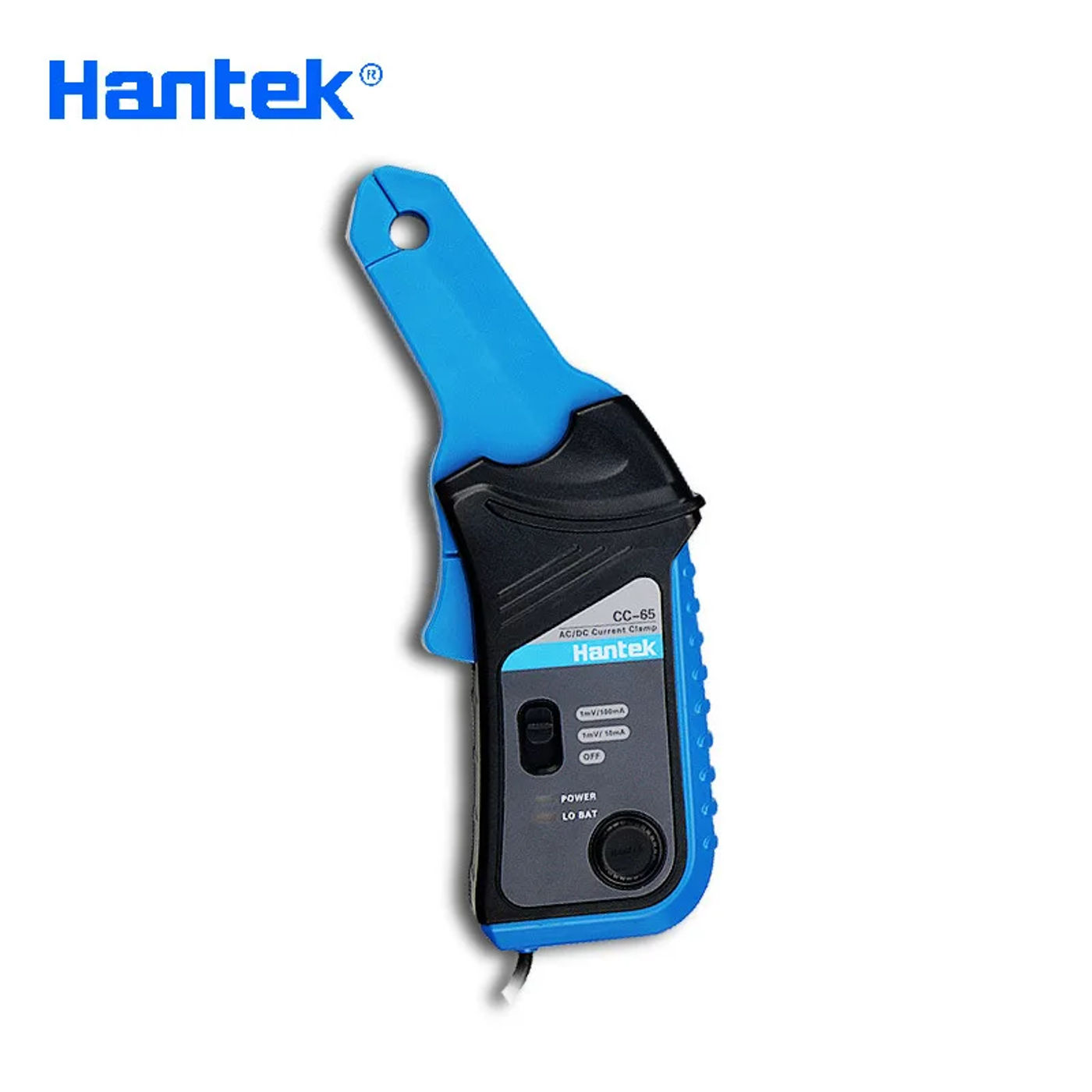

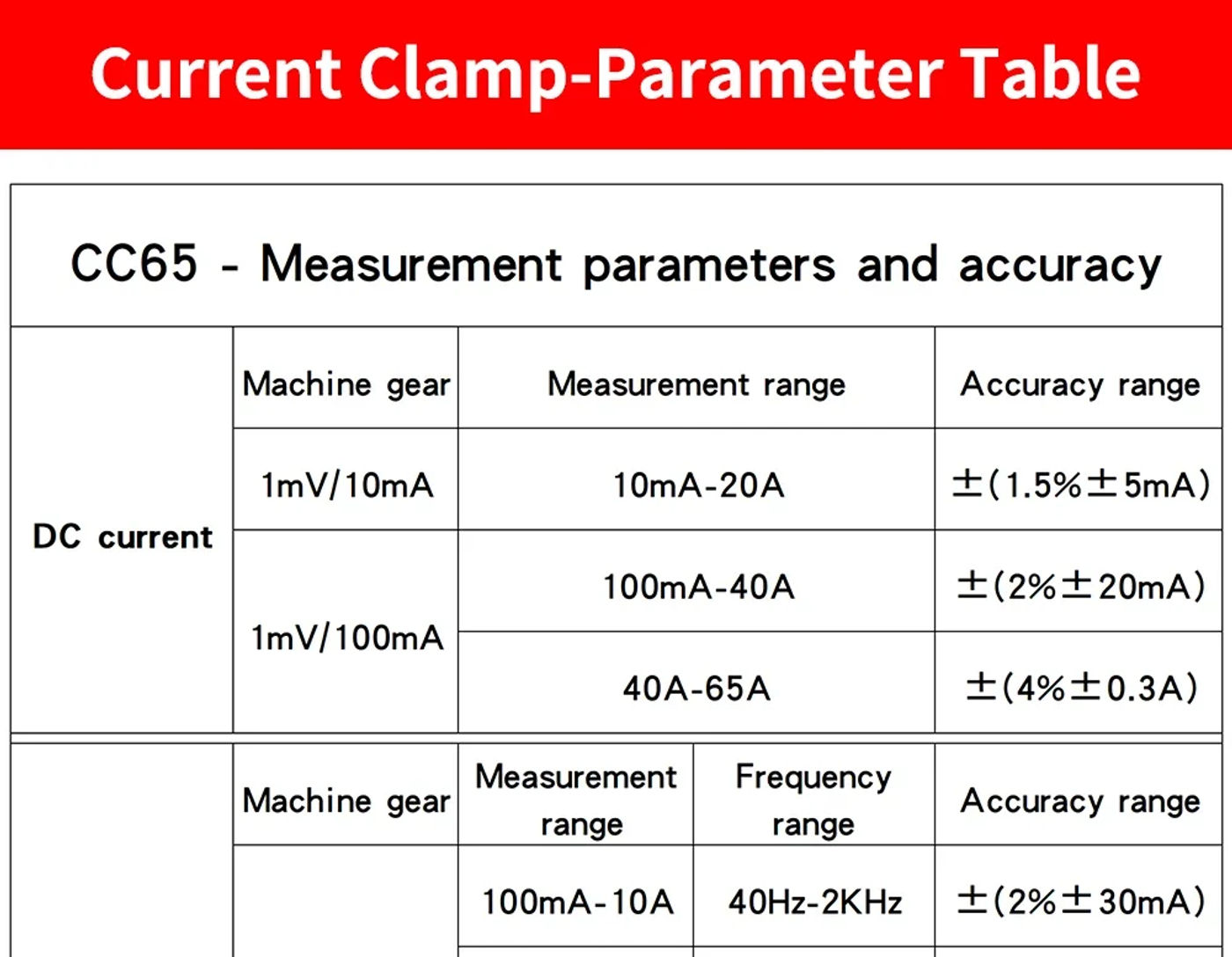

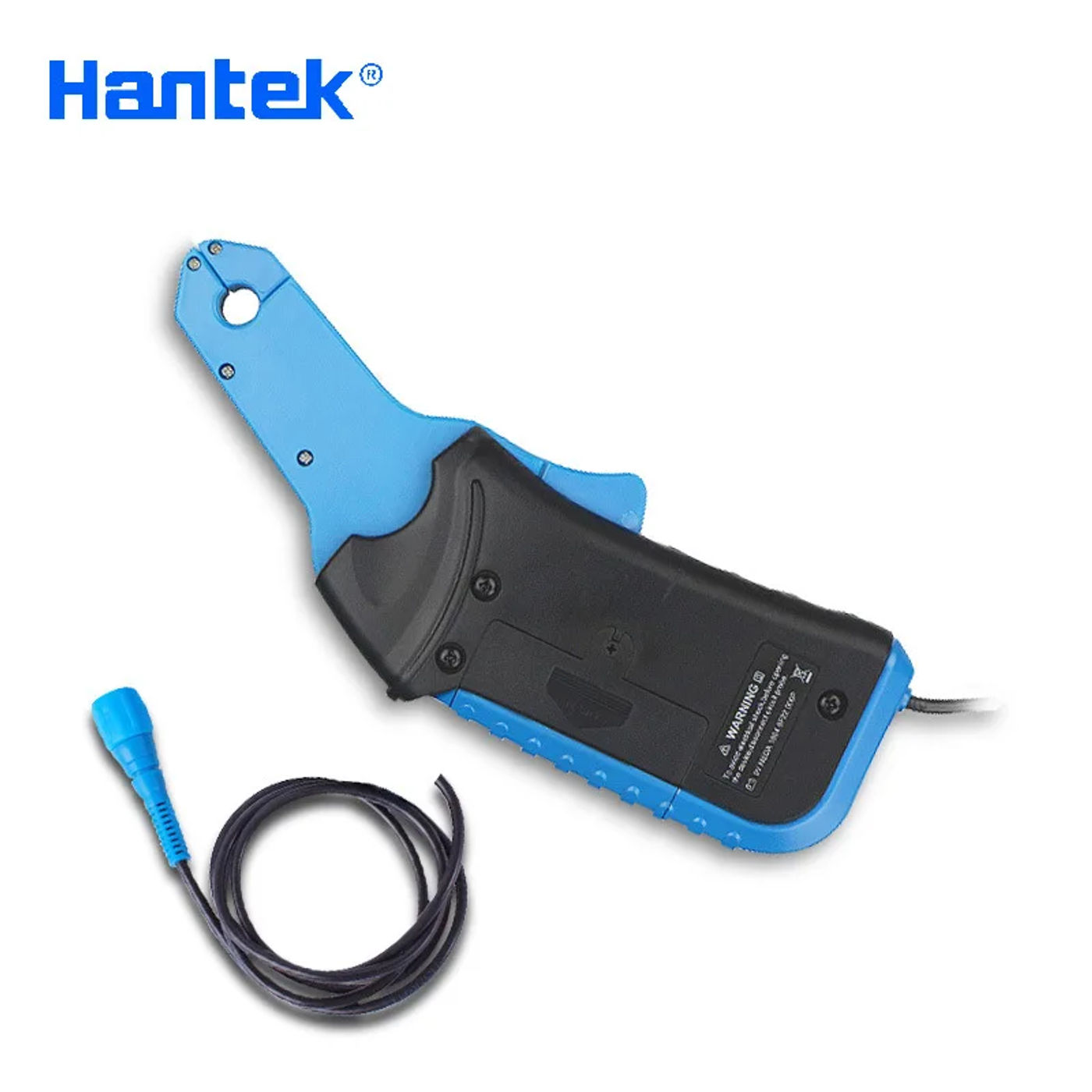

• Hantek oscilloscope AC/DC Current Clamp probe CC-65 CC-650 CC-800 20KHz/400Hz Bandwidth 1mV/10mA 65A/650A with BNC plu AC/DC Current Clamp CC-65: AC/DC Current Clamp, 20kHz Bandwidth, 1mV/10mA, 65A; It is a transducer which permits your multimeter to measure recent information and allow your oscilloscope to measure the present waveforms Supplied with coil cable with directly banana plug or BNC plug Feature: AC/DC frequency range: Up to twenty kHz Effective Measurement Range: 20mA to 65A DC It is a transducer which permits your multimeter to measure recent information and allow your oscilloscope to measure the present waveforms Its latest transducer consists by means of permalloy and hall element, which linearly rework the AC or DC current to AC or DC recent voltage And if connect to an oscilloscope via BNC variety connector, you&;re able to word the present waveforms; If connect with a multimeter by banana variety connector, you could obtain the present data Application: Power circuit size and malfunction analysis; Motor drive of frequency converter (or different electronics) measurement; Power electronics equipments size Specification DCARange 1mV/10mA ±(1%±5mA)10mA~20A 1mV/100mA ±(2%±20mA)100mA~40A; ±(4%±0)40A~65A ACARange 1mV/10mA ±(2%±30mA)100mA~10A(40Hz~2KHz); ±(4%±30mA)100mA~10A(2KHz~10KHz); ±(6%±30mA)100mA~10A(10KHz~20KHz); ±(8%±30mA)10A~15A(40Hz~20KHz) 1mV/100mA ±(2%±30mA)200mA~40A(40Hz~1KHz); ±(4%±30mA)200mA~40A(1KHz~2KHz); ±(6%±30mA)200mA~40A(2KHz~5KHz); ±(8%±0)40A~65A(40Hz~20KHz) CapturedConductorSize 9mmmaximum LowBatteryIndictor redLEDlighting OperatingTemperature 0°to50°70%R StorageTemperature -20°to+70°,80%R BatteryType 9VDC,NEDA1604,6F22,0006P BatteryLife 100hourstypicalwithalkaline Weight 250gmtypical Dimensions 195mm(H)x70mm(W)x33mm(D) Output SuppliedwithcoilcablewithstraightbananaplugorBNCplug AC/DC Current Clamp CC-650: AC/DC Current Clamp, 400Hz Bandwidth, 1mV/10mA, 650A; It is a transducer which allows your multimeter to measure current records and allow your oscilloscope to measure the present waveforms Feature: AC/DC frequency range: Up to 400Hz Effective Measurement Range: 20mA to 650A DC It is a transducer which allows your multimeter to measure recent records and enable your oscilloscope to measure the current waveforms Its latest transducer is composed via permalloy and corridor element, which linearly rework the AC or DC latest to AC or DC current voltage And if connect to an oscilloscope via BNC sort connector, you&;re able to notice the current waveforms; If hook up with a multimeter by way of banana kind connector, you may obtain the current information Application: Power circuit dimension and malfunction analysis; Motor power of frequency converter (or different electronics) measurement; Power electronics equipments dimension The manufacturing facility has upgraded the arrival of CC65 The latest product images are proven in the following figure, but the labels have changed Other dimension records and outcomes are the same as the previous model。10mV/A=10mV/1000mA=1mV/100mA

•
•
•
•
•
