Description

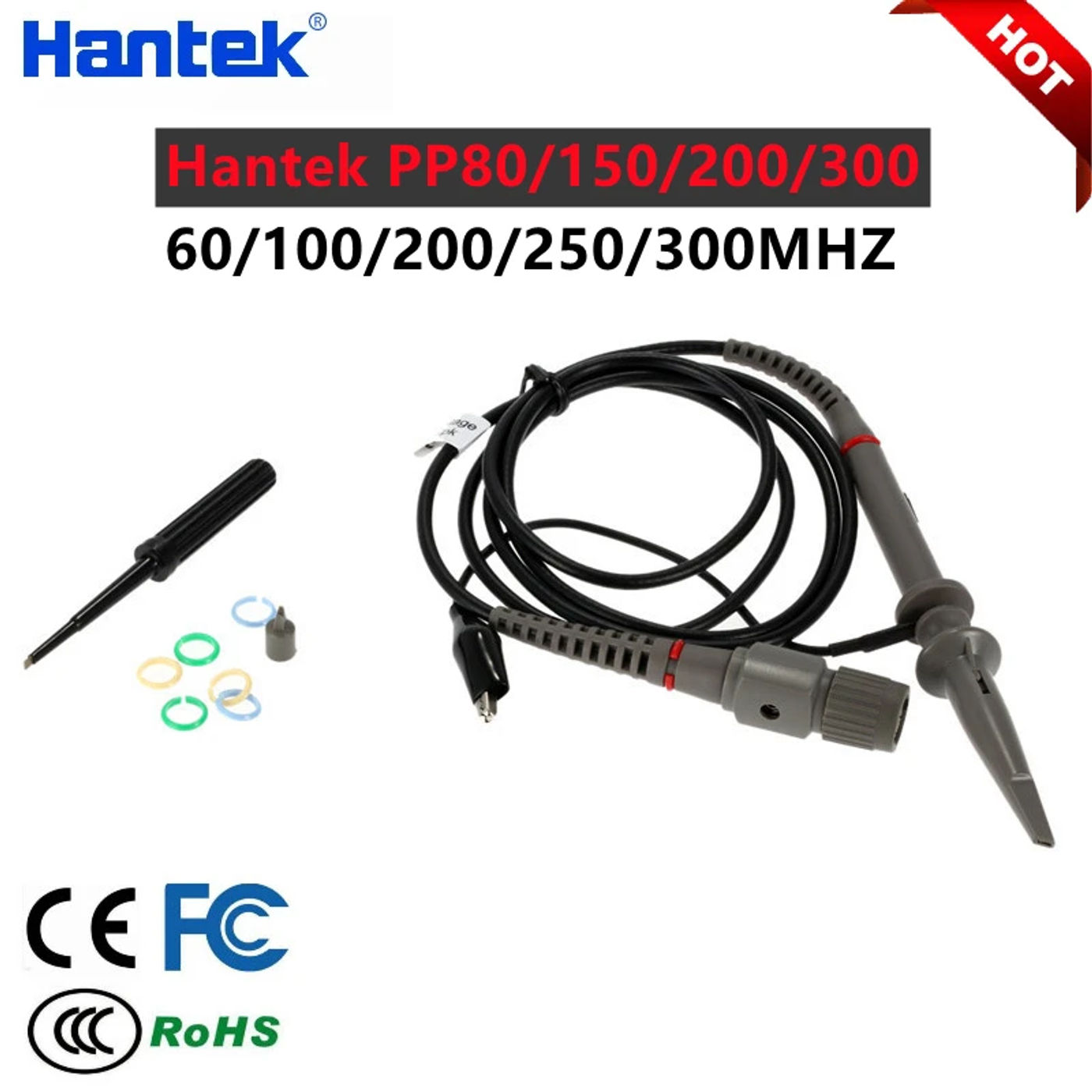

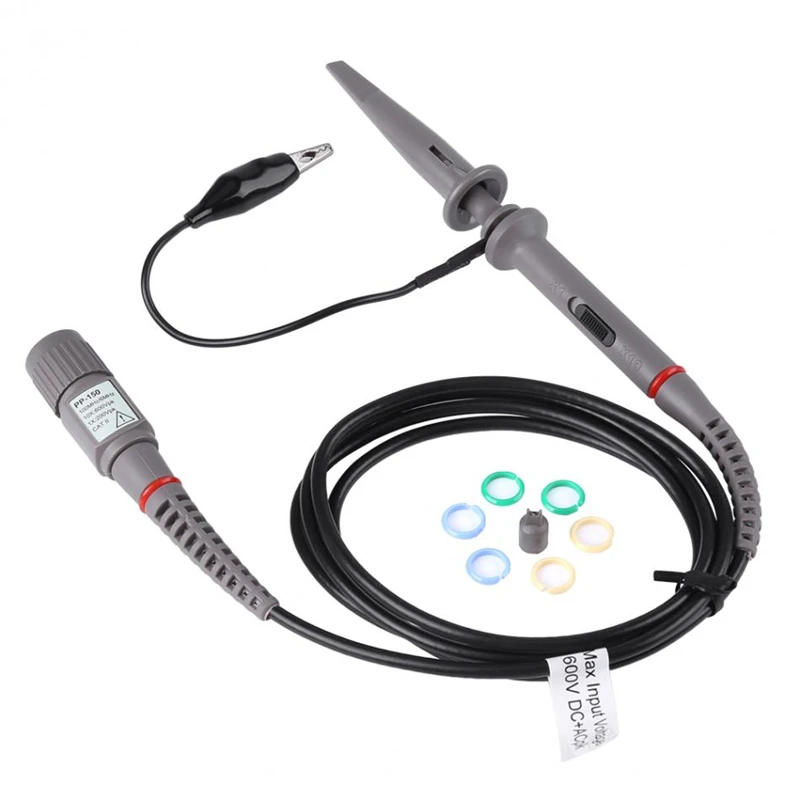

• Hantek PP-80-150-200-250-300 High Voltage Probe Features: High high quality and reliable Attenuation ratio: 1× and 10× adjustable Portable design in accordance with ergonomics Integral injection molding makes the utilization extra flexible and the oscilloscope ready to adapt more testing situations Safety standards: it has handed the CE Attestation of European Community Application Fields: Compatible with home and foreign digital and analog oscilloscopes in relevant frequency Measurement in intermediate and coffee frequency alerts Specifications: Color: Black + Grey Type: PP-80 / PP-150/PP-200/PP-250 Attenuation: x1 x10 Input Resistance: 1MΩ: 10MΩ Input Capacitance: x1: 85pF-115pF x10: 18 Compensation Range: 15pF ~ 35pF System Bandwidth: x1: DC-5MHz x10: DC-100MHz Input Voltage: x1: <200V DC +Peak AC x10: <600V DC +Peak AC Operating Temperature: -10 degrees~ +50degrees / 14Fahrenheit~ 122Fahrenheit Non Operating Temperature:-20degrees~ +75degrees/ -4Fahrenheit ~ 167Fahrenheit Humidity: ≤85% (Relative Humidity) Cable Length: 120cm / forty seven Item Size: Approx 17 * 2 * 2cm / 6 * zero * zero (ONLY Probe) Item Weight: Approx forty nine / 1

•
•
•
•
•
