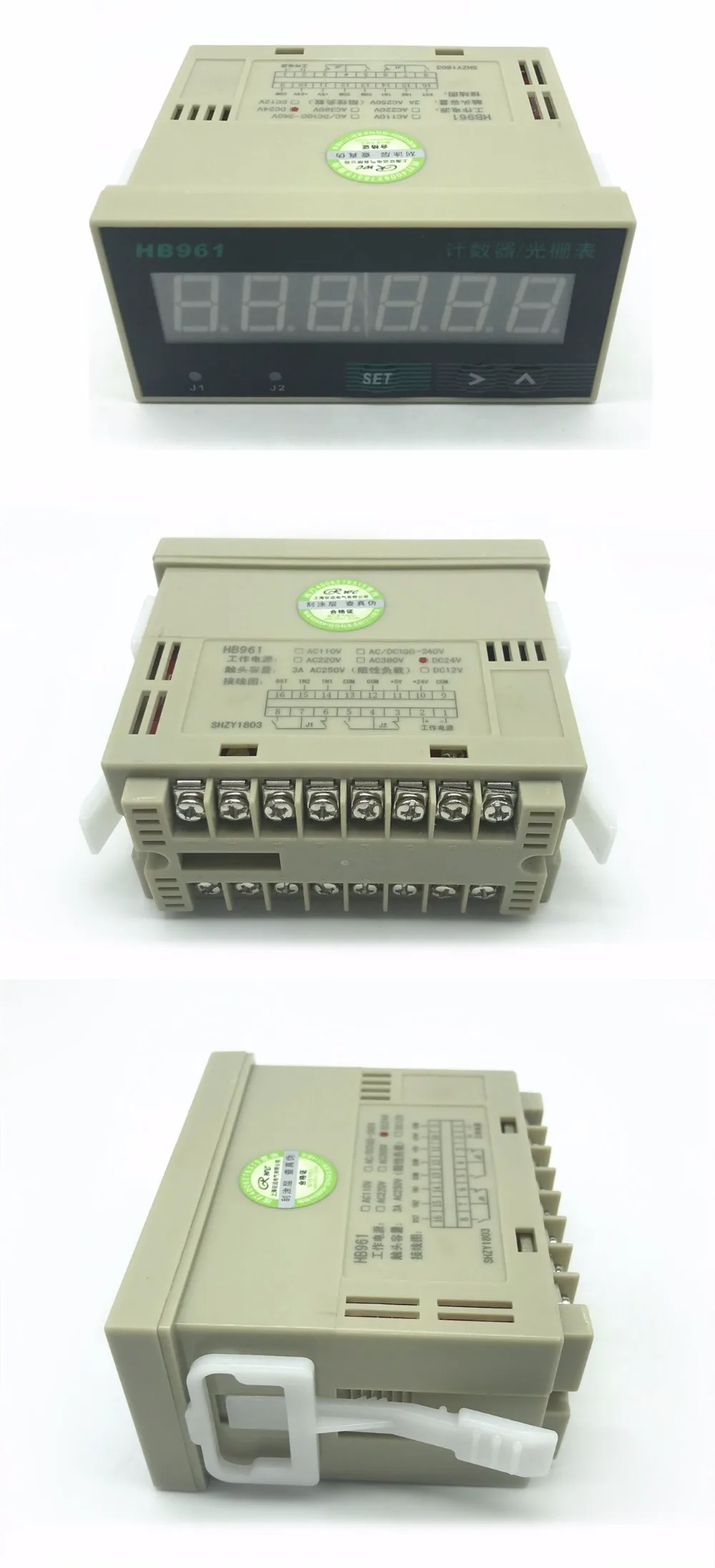

• HB961Counter/Quadrature Encoder Position & Rate Panel MeterKey Features· Inputs: Single-ended IO, pulse or quadrature encoder signal (Low voltage: -30 to +0; High voltage: +4V to 30V)· Compatible Sensor: Accept photoelectric switch, proximity switch, corridor sensor, angular and linear encoder input· Excitation output: 5V and 24V(30mA), 30mA DC current· User-defined linearizing parameters to display genuine bodily portions with A,B,C three parameters and decimal point· Current counter, alarm value, and different parameters would be stored in non-volatile memory· Multiple relay output modes for different management desire Specifications· Power: AC 85-260V or DC 85-260V· Readout: 6 LED digits, 7-segment, 14 mm(0”), red LED· Nominal switching capacity: AC 220V 3A· Expected life (min operations): 105· Nominal switching capacity: AC 220V 3A· Max Pulse Rate: 30KHz (15KHz with encoder input)· Display Range: -199999 to 999999, “EEEEEE” notation past 999999· Operating Environmental: –0°C to +50°C, Humidity : 5% R to 85% R· Size: 96*48*82 mm· Mechanical Assembly Hole Size: 92*45 mm· Adjustable output with A, b, C parametersPlease contact customer support if you need product handbook

•
