Description

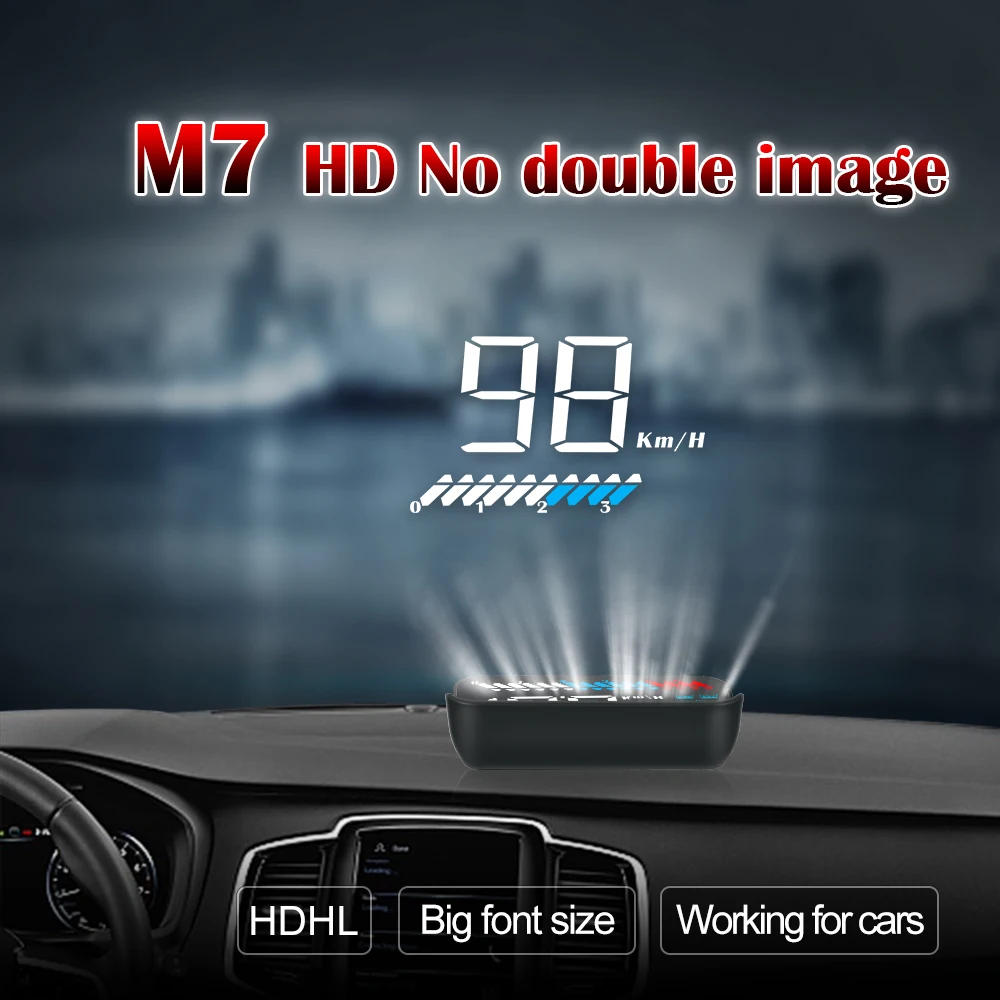

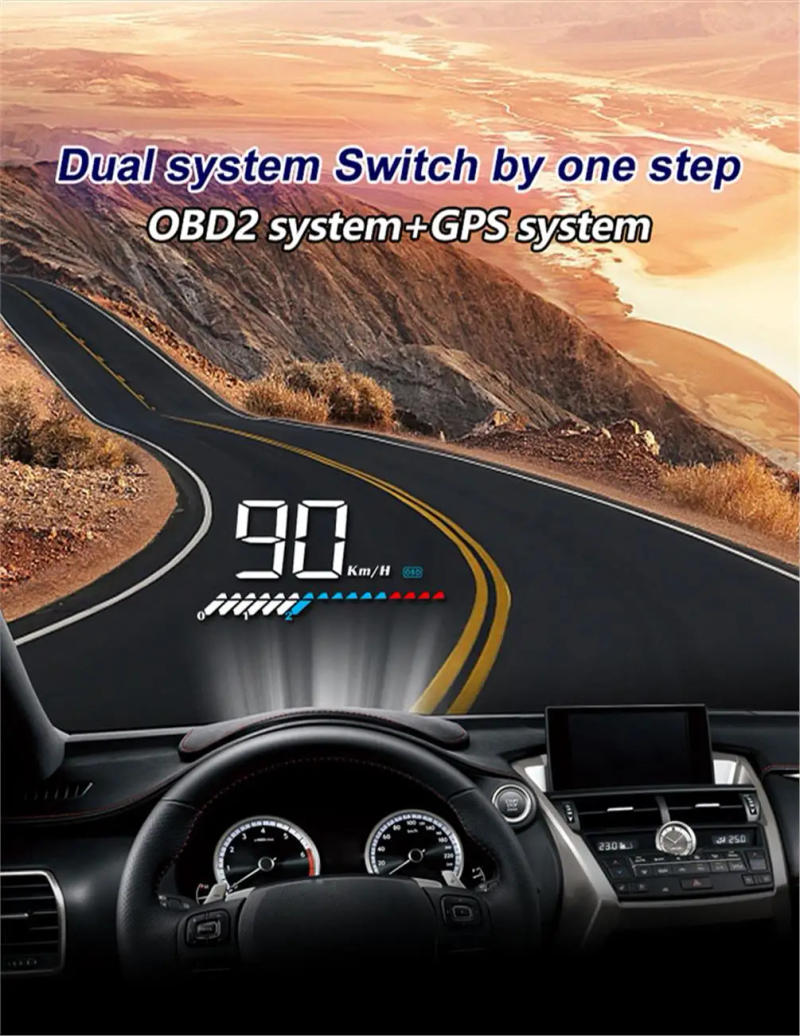

• Special Reminder: This product working voltage: 11V~18Vdc (12Vdc/200mA) larger than 24 volts automobile please use USB cable This product is a dual system: 5 seconds after energy on, scroll wheel left dial to select the OBD and GPS system, no operation five seconds after robotically enter the final chosen components Automotive flat screen display, referred to as HUD is in the entrance windshield of the auto to display driving data, similar to speed, RPM, water temperature, voltage, single-segment using distance, etc, to avoid the driver to observe the instrumentation within the strategy of riding to impact the safety of the HUD would be in the extensive field of vision without transferring the conditions of on the spot reading of riding information, in order that the driving force always keep the best riding condition! System Selection: Within five seconds after power on, scroll wheel left dial to choose OBD and GPS components no operation after five seconds robotically input the OBD formulation OBD system: (support regular OBD2 traditional interface car) Vehicle speed, RPM, water temperature, voltage, distance traveled when the engine is off, RPM icon, ornament icon GPS display: change all the way down to demonstrate GPS formulation usual to all cars Speed, Voltage, Number of Satellites, Speed icon, Decoration icon When OBD is not compatible, unplug the ability delivery once to choose GPS components again Restore manufacturing unit settings: When HUD is off, press and preserve the scroll wheel vertically, switch on the power and the screen may be fully lit, launch the scroll wheel button to revive the factory settings Eliminate fault codes: After powering on and connecting to the protocol, scroll wheel appropriate dial five seconds HUD display screen is totally illuminated and clear the fault code, scroll wheel correct dial back for 5 seconds to restore normal exhibit Switch alarm sound: HUD ordinary exhibit after the wheel wheel left dial 5 seconds to hear the sound of drops that is to open the buzzer, and then long left dial 5 seconds to shut the buzzer Enter surroundings mode: Please watch the picture on the windshield when developing the operation, lengthy press the wheel button vertically to the within for 5 seconds to go into the setup items, the menu shows 1 At this time, in the course of the wheel left and right toggle to pick the menu items (1) Vertical brief press the wheel button to enter the parameter value, the wheel left and appropriate toggle to change the parameter value, vertical quick press the wheel to come back to the menu, vertical lengthy press the wheel for 5 seconds to avoid wasting and quit Product Specification： 1 Use conditions: ambient temperature -40C-+80C atmospheric pressure 86-106KPa Relative humidity 10%-95% Ambient noise <=60dB(A) 2 Operating voltage: 11V~18Vdc (12Vdc/200mA) 3 Standby current: <=30mA 4 Display mode: digital image mirrored image sort five screen: LED demonstrate Screen size: 3 Product size: 3 Product Features: 1 Drive safely, hold your eyes forward, and pressure with out browsing down at the dashboard 2 Easy to install, just connect HUD with car OBD port through OBD cable, HUD will reveal 3 when vehicle engine is on/off Overtime using alarm, low voltage alarm, overspeed alarm, high temperature alarm, engine failure alarm 4 KMH & MPH swap freely℃ and ℉ switch freely five Applies to: OBD II compliant automobiles (after 2007) matches all vehicles 6 Installation location: at the middle console 7 Connection: Connect to automobile OBD port eight Display information: speed, engine speed, water temperature, using distance, battery voltage, Packing list: 1×HUD unit 1×USB cable 1×Reflective movie 1×User guide 1×OBD cable1×Non-slip mat

•
•
•
•
•
