Description

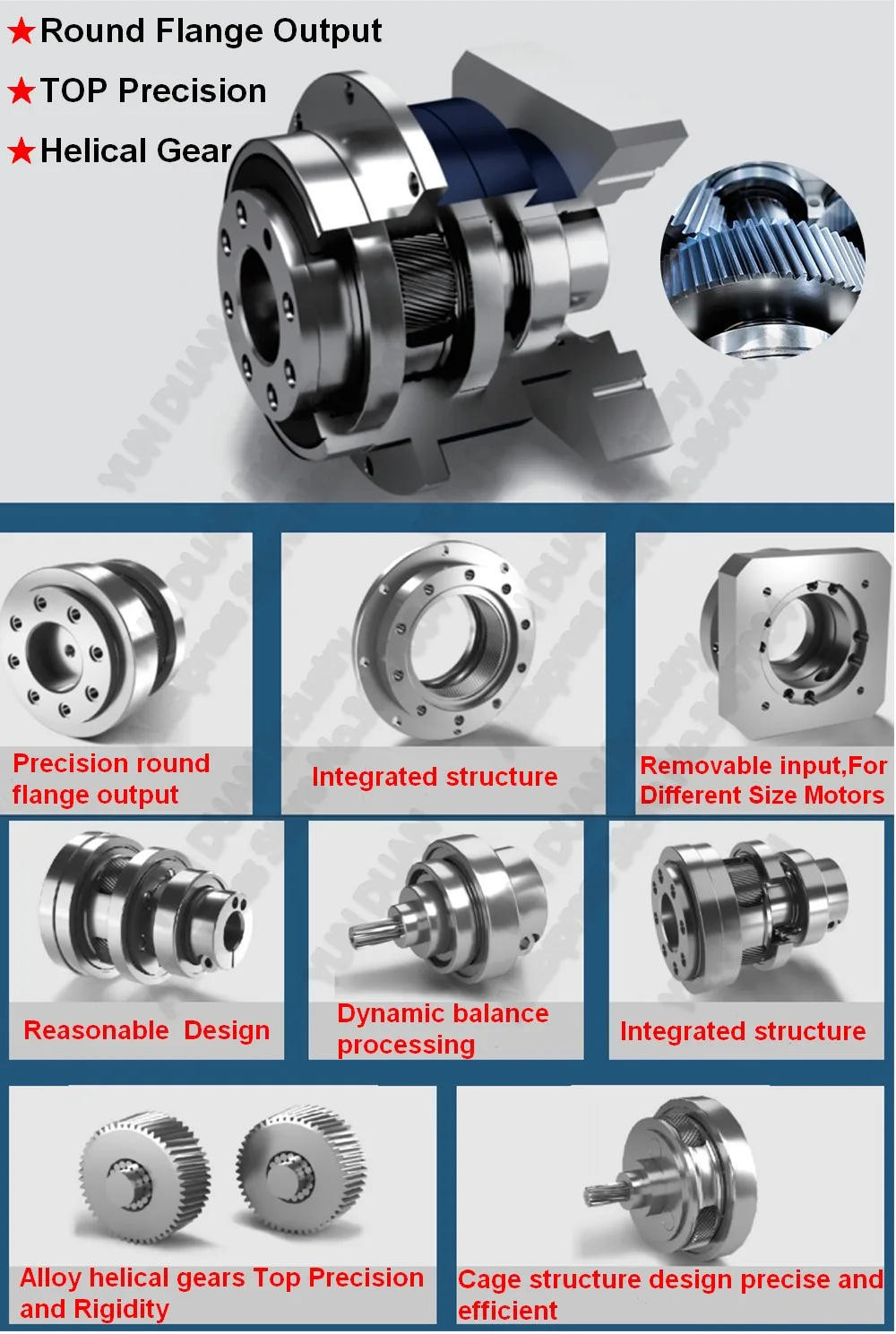

• 1X Planetary reducer   1X Key 4X Install screw Features: 1. The exotic circular flange output mode offers bigger set up freedom. 2. The physique size is shorter and the set up space requirement is low. 3. Low return clearance, excessive precision and extra exact positioning. 4. Double-supported cage variety planet carrier structure, excessive reliability, can adapt to frequent positive and unfavourable rotation. 5. The turret is equipped with tapered curler shaft to fulfill the requirements of heavy load conditions.   PLX060 PLX090 PLX120 Max. Output Torque Nm 2 Times Rated Output Torque Instant Braking Torque Nm 3 Times Rated Output Torque Max Radial Torque N 680 1750 3100 Max Axis Torque N 340 875 1250 Torsional Stiffness Nm/arcmin thirteen 31 eighty two Max Input Speed rpm 6000 6000 6000 Rated Input Speed rpm 3300 3000 3000 Noise dB ≤58 ≤60 ≤65 Life time h 20000 Full Load Efficiency percent L1≥95%, L2≥90% Backlash PO L1 arcmin ≤3 ≤3 ≤3 L2 arcmin ≤5 ≤5 ≤5 Moment of Inertia L1 4:1 Kg.cm2 0.13 0.51 2.87 5:1 Kg.cm2 0.13 0.47 2.71 7:1 Kg.cm2 0.13 0.45 2.62 10:1 Kg.cm2 0.03 0.44 2.57 L2 20:1 Kg.cm2 0.03 0.23 2.77 25:1 Kg.cm2 0.03 0.23 2.77 35:1 Kg.cm2 0.03 0.23 2.77 40:1 Kg.cm2 0.03 0.23 2.49 50:1 Kg.cm2 0.03 0.2 2.49 70:1 Kg.cm2 0.03 0.2 2.49 100:1 Kg.cm2 0.03 0.2 2.49

•
•
•
•
•
