Description

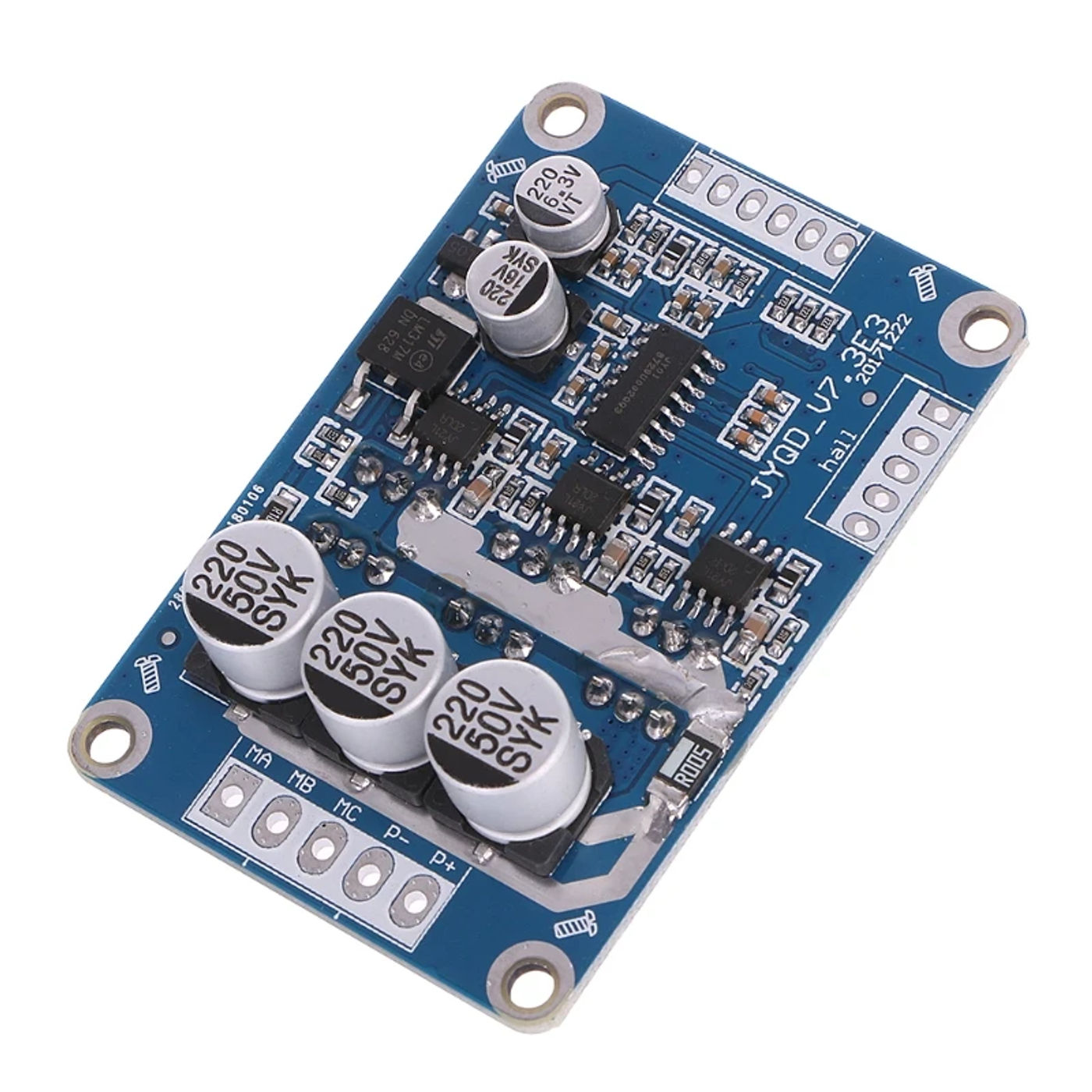

• Specifications: Operating Voltage: DC 12V-36V Operating Current: <=15A Driver Power: <=500W Speed Voltage: 0 Operating Temperature:-40-85°C Humidity: 90%RH Stall protection: Yes Enable Control: Yes Over-current protection: Yes Steering control: Yes Speed control signal: Yes Size: 63x42mm/2" Quantity: 1 Pc Power terminal Out: VCC(positive power supply) GND(negative one) MC(motor phases W) MB(motor phases V) MA(motor phase U) Set for the management side: [GND] control terminal ground [VR] the governor finish 0-5V(corresponding to 10% of motor pace -) [ZF] reversing control(connected to 5V or floor can payment the motor rotation direction) [M] tachometer pulse output(depending at the number of motor poles equivalent to the variety of pulse per revolution of the output number) [EL] enable control terminal(connected to 5V ot floor working then 5V, grounding the motor stops) [5V] 5V management terminal HALL for the hall terminals: [5V] Hall strength fantastic [Ha] Hall signal [Hb] Hall signal [Hc] Hall Signal [GND] Hall negative Wiring: Control terminal for SET: 1 The motor velocity control wiring methods: accessible potentiometer formulation speed is also connected to the MCU control, when the potentiometer control wiring, the potentiometer middle pin is hooked up to VR pace port, potentiometer related to both ends of 5V and GND terminal voltage extra high velocity faster 2 Motor steerage control wiring methods: you can change control can also be linked to the MCU control, to GND in a single direction, then in a single route 5V three Pulse velocity signal: excessive and coffee output IC can't understand the data with the client request Hall sign inputs for hall: Wiring diagram is shown, one equivalent to the HA, HB,HC and at the motor, 5V energy supply linked to the motor hal indicators positive, GND power delivery adverse signal to the motor corridor Note: Due to assorted motor manufacturers to make the corridor of corridor line order does not essentially stick with the line on the board to check the sequence, should be adjusted, please parents who pay attention! If the line sequence wrong, doesn't boot properly, current, or start different phenomena now not open, compelled to apply the force plate will burn!!! Motor driver board 12-36V DC power enter , VCC high-quality energy supply,GND energy supply is unfavourable Electrical wiring methods: Brushless DC motor for the three lines, corresponding MA/U,MB/V,MC/W Tips: If you use lower than 60W, without additional heat sink , ensure you upload more than 60W heatsink fins power performance without decreasing the temperature is simply too excessive will shine into everlasting damage! The length of the warmth sink could be a unhealthy surroundings founded work(recommended cooling floor discipline greater than two hundred square centimeters)!When installing the heat sink ,must listen in on the back of the module 6 MOS pipe insulation, no insulation, it will be adhered to pressure plate permanently damaged! Proposes so as to add insulation films, each side of the insulating sheet plus thermal grease! No Retail Package Package Includes: 1 x Brushless Motor Controler

•
•
•
•
•
