Description
Generally speaking, high temperature resistant motors are defined by way of their insulation class The discipline of stepper motors usually includes six insulation lessons this motor is category H This motor is desighed for top temperature utility We have customed motor&;s winding, bearing, magnetic metallic and likewise the plastic skeleton to achivel insulation class of H, the teprature reach as much as 180C diploma This motor is broadly utilized in 3-d Printer Manufacturer Part Number: 17HS19-2504S-H Motor Type: Bipolar Stepper Step Angle: 1 Holding Torque: 55Ncm(77) Rated Current/phase: 2 Phase Resistance: 1 Inductance: 1 ± 20%(1KHz) Insulation Class: H 180C(356F) Frame Size: forty two x 42mm Body Length: 48mm Shaft Diameter: Φ5mm Shaft Length: 24mm D-cut Length: 20mm Number of Leads: four Lead Length: 1000mm
Review
0 people rated this product

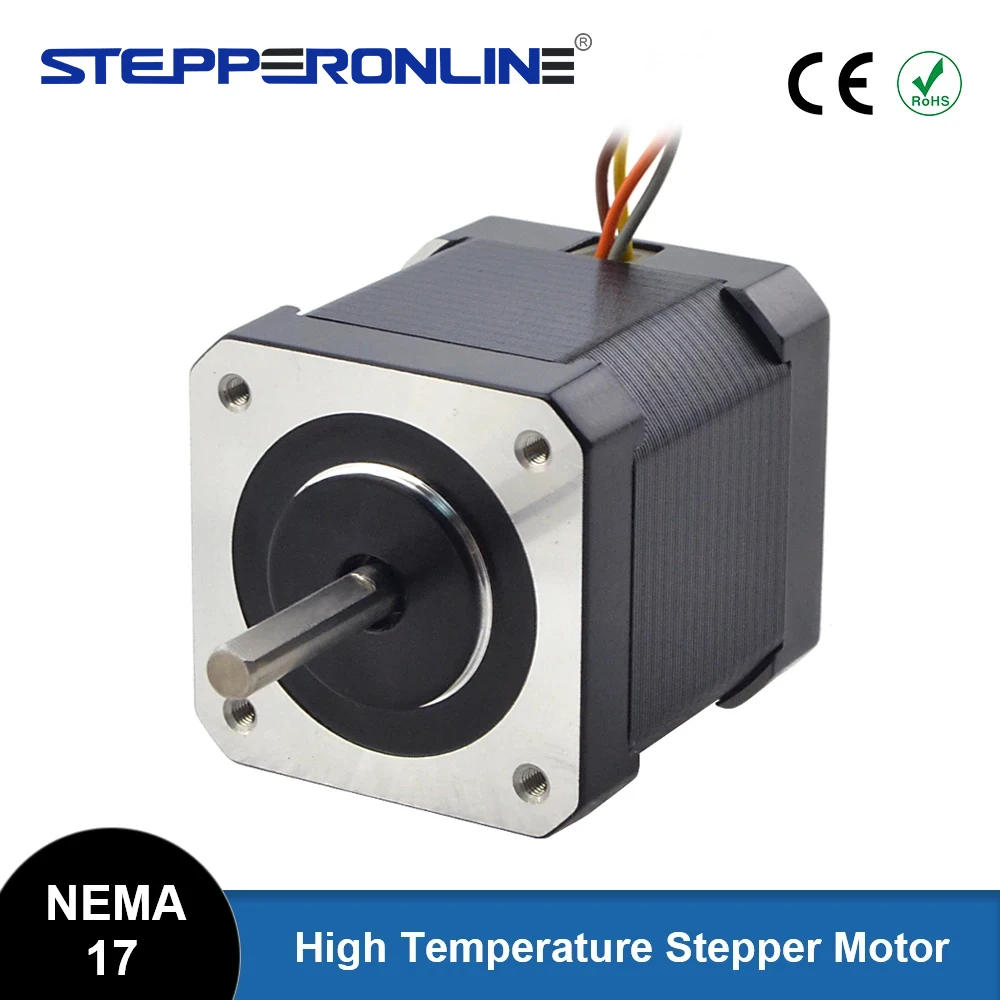

High Temperature Nema 17 Stepper Motor 48mm 2.5A 4-lead (17HS19-2504S) Insulation Class H 180℃ for CNC Extruder 3D Printer
