Description

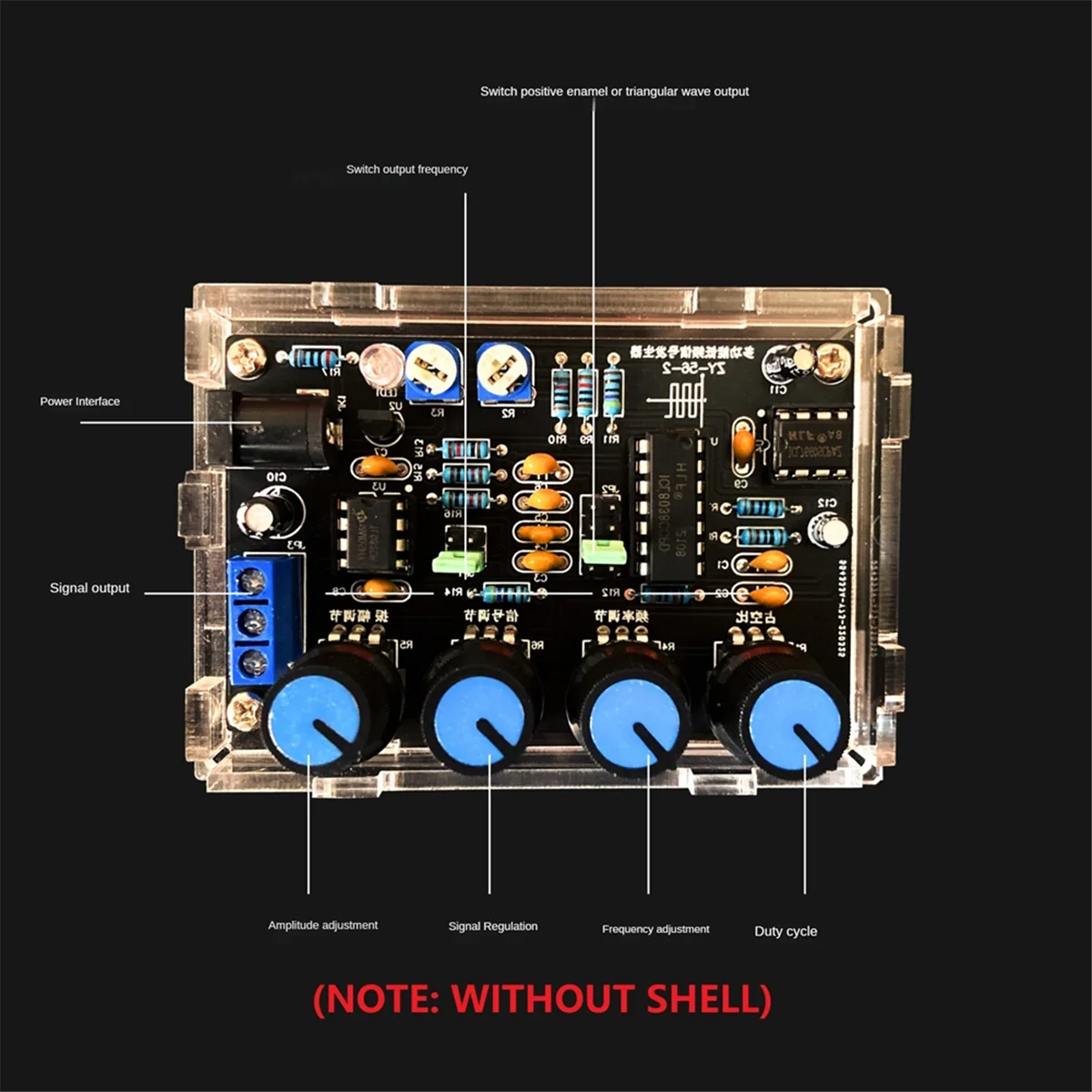

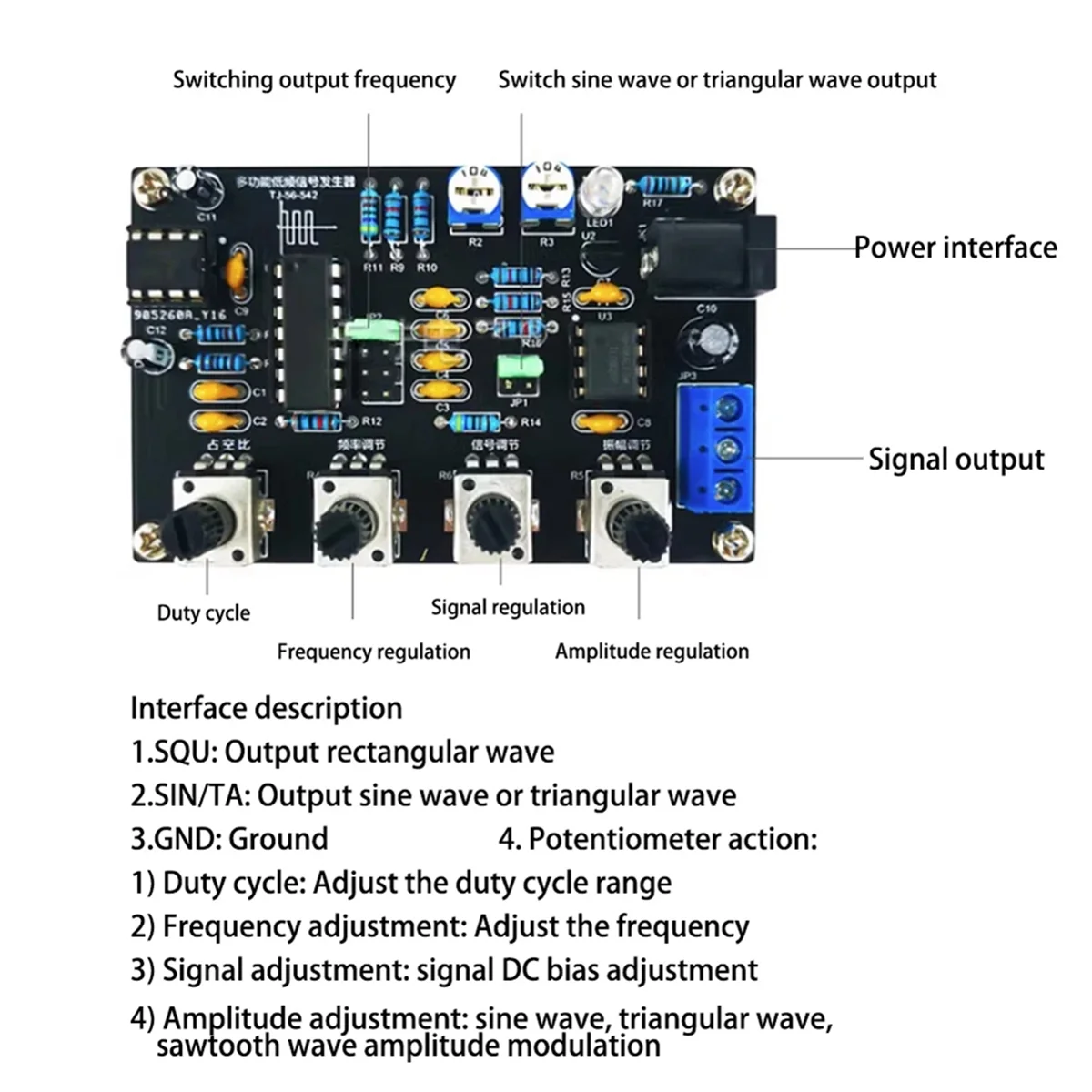

• Adopting ICL8038 and high-speed operational amplifier, with larger accuracy;It can output sine/triangular/square wave/forward and opposite sawtooth waveforms; Frequency range: 5Hz~400kHz; Duty cycle range: 2~95% (adjustable); Support twin energy amplifiers without blocking capacitors, guaranteeing high and occasional frequency sign distortion; Adjustable frequency and amplitude;Frequency adjustment has coarse and superb tuning functions;All are through-hole components, clean to put in Different batches can have diverse appearance, which does not impression use on the batch, the colors of electronic components/knobs, and so on could also be different, which would not impact use Parameter: Power delivery voltage: 12V~15V Frequency range: 5Hz~400KHz (adjustable) Duty cycle range: 2~95% (adjustable) Low distortion sine wave: 1% Low temperature drift: 50ppm/° C Output triangular wave linearity: 0% DC bias range: -7~7 Output amplitude range: 0~11VPP (working voltage 12V) Interface Description: 1 SQU: Output rectangular wave 2 SIN/TA: Output sine wave or triangular wave 3 GND: Grounding 4 Potentiometer function: 1) Duty cycle: Adjusting the duty cycle differ 2) Frequency regulation: Adjusting the frequency 3) Signal adjustment: Signal DC bias adjustment 4) Amplitude adjustment: sine wave, triangular wave, sawtooth wave amplitude modulation Pre purchase instructions: This equipment (loose parts) is not a carried out product and is just used for medical study and experiments This package isn't always suitable for purchasers who require carried out merchandise Assembling and debugging the equipment (loose parts) requires corresponding data and talents Colour:Black Material:FR4+ digital components Package Contents: 1 x signal generator DIYkit without shell Only the above kit content, other products are not integrated Note: Light reflection and diversified displays may cause the colour of the article in the picture a little assorted from the real thing The size allowed error is +/- 1-3cm

•
•
•
•
•
