Description

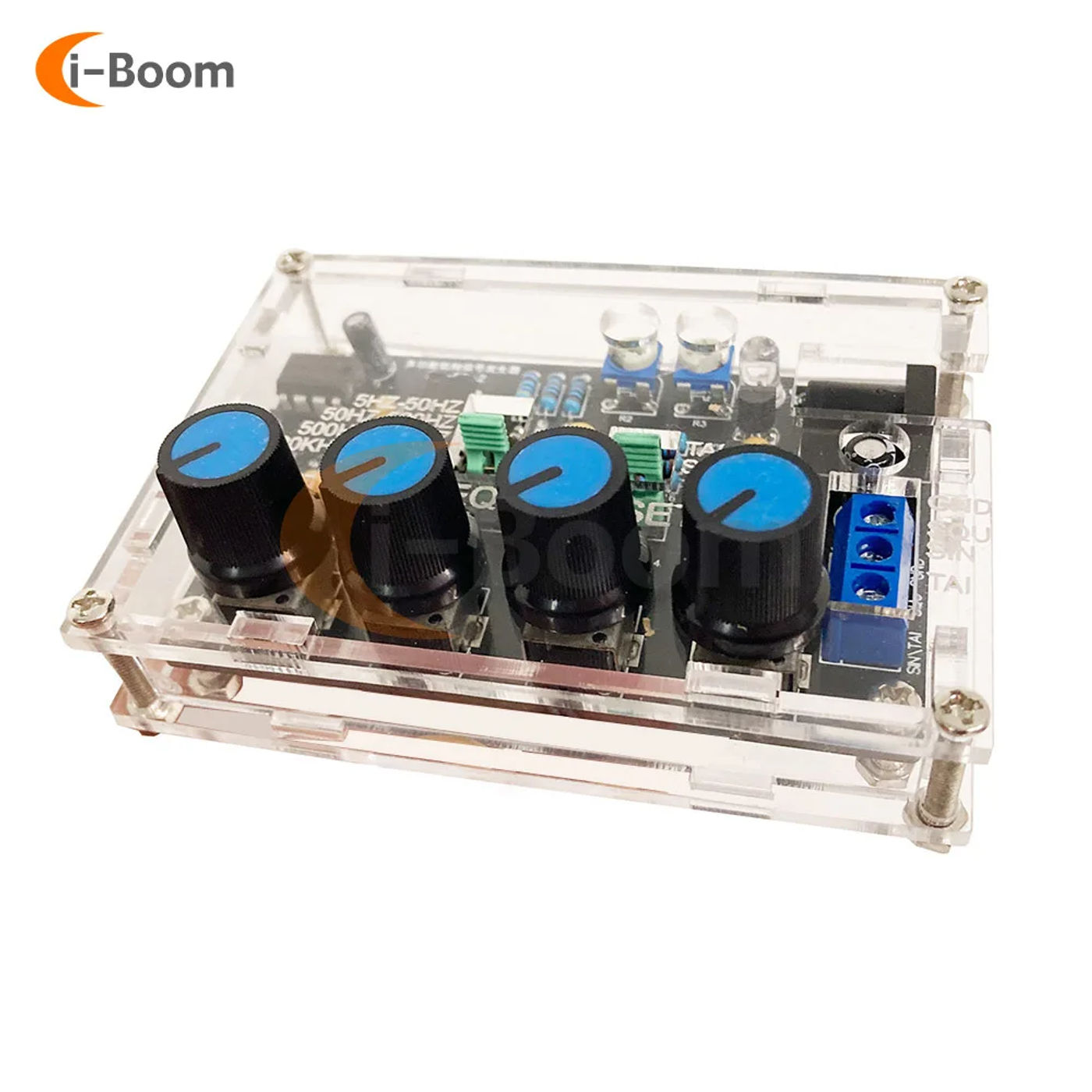

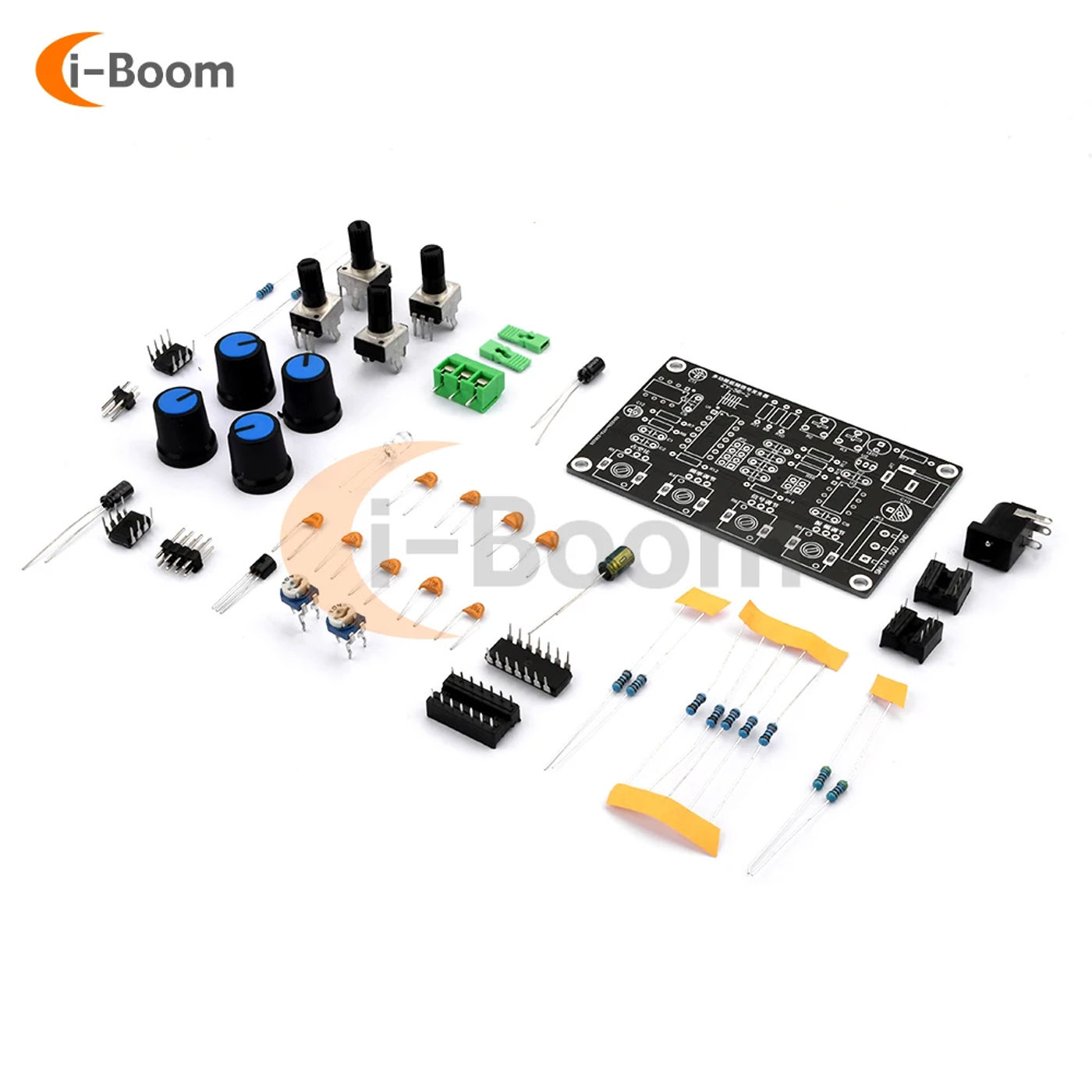

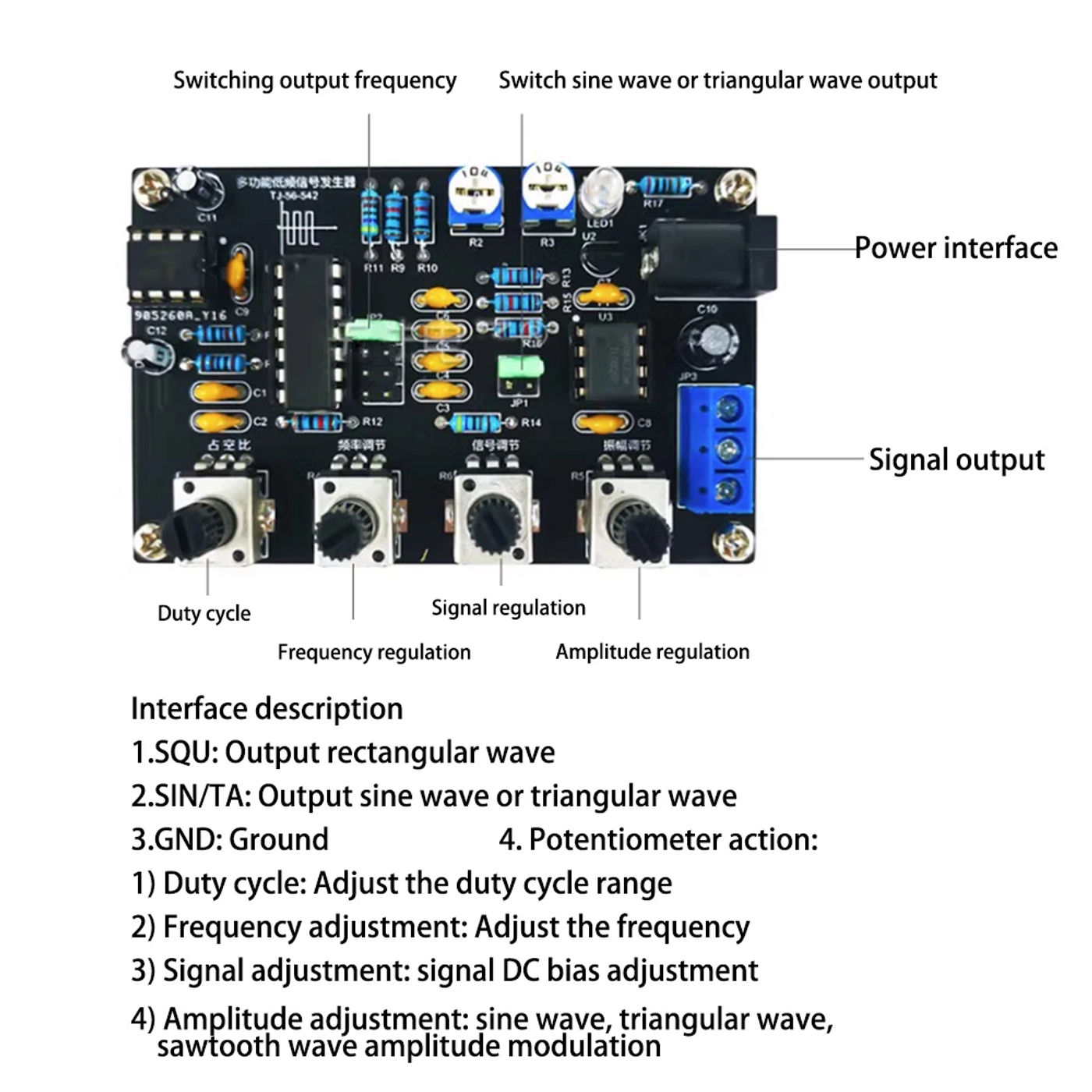

• Features: 1 ICL8038 and high-speed operational amplifier, with greater accuracy; 2 can output sine/triangular/square wave/forward and opposite sawtooth waveforms; three range: 5Hz~400kHz; Duty cycle range: 2~95% (adjustable); four dual energy amplifiers without blockading capacitors, making certain high and occasional frequency sign distortion; five frequency and amplitude; 6 adjustment has coarse and tremendous tuning functions; 7 are through-hole components, smooth to install Product Introduction: The ICL8038 multifunctional low-frequency signal generator kit is a single-chip incorporated circuit chip made utilizing stepped forward processes equivalent to Schottky barrier diodes It has the advantages of broad strength voltage range, excessive stability, excessive accuracy, and simplicity of use It can paintings with only a few exterior substances and can generate square, triangular, and sine waves simultaneously The frequency of its operate waveform is controlled by means of inside or external voltage, and can be utilized to voltage managed oscillation and FSK modulator, 2 It has low frequency go with the flow when temperature adjustments occur, with a maximum of 50PPM/C; Having varied Western sign outputs comparable to sine wave, triangular wave, and square wave; The sine wave output has a distortion of less than 1%; The triangular wave output has a excessive linearity of 0%; Has a frequency output fluctuate of 5Hz to 400KHZ; Wide working cycle, adjustable between 2% and 95%: excessive level output range, from TTL point to 28V; Easy to apply with minimal external situations required three ICL8038 is a precision oscillation included circuit with a number of waveform outputs, which might generate low loss true sine wave, triangular wave, rectangular wave, and other pulse alerts from 0 to 300kHz by adjusting particular person external components The frequency and duty cycle of the output waveform is also managed through recent or resistance Additionally, because of its FM sign input, the chip can be utilized for frequency modulation of low-frequency indicators Parameter: Material: FR4+acrylic Power supply voltage: 12V~15V Frequency range: 5Hz~400KHz (adjustable) Duty cycle range: 2~95% (adjustable) Low distortion sine wave: 1% Low temperature drift: 50ppm/° C Output triangular wave linearity: 0% DC bias range: -7~7 Output amplitude range: 0~11VPP (working voltage 12V) PCB board size: eighty one * 51mm Interface Description: 1 SQU: Output oblong wave 2 SIN/TA: Output sine wave or triangular wave 3 GND: Grounding 4 Potentiometer function: 1) Duty cycle: Adjusting the task cycle differ 2) Frequency regulation: Adjusting the frequency 3) Signal adjustment: Signal DC bias adjustment 4) Amplitude adjustment: sine wave, triangular wave, sawtooth wave amplitude modulation Package include: 1X sign generator DIY equipment Pre buy instructions: This package (loose parts) is not a accomplished product and is only used for clinical study and experiments Some kits are geared up with faulty or poorly acting components, with the aim of assessing the assembler&;s skill to troubleshoot and improve functionality By measuring and getting better the performance alerts of troubleshooting and accessories, it is useful to augment applicable knowledge and skills Even if the package (loose parts) is assembled, its technical specs and parameters may not meet the criteria of the finished product If you prefer to upgrade the functionality signals of the assembled product, customers can be taught and upgrade it themselves This kit is not compatible for customers who require executed products Assembling and debugging the kit (loose parts) calls for corresponding information and talents Before assembling the kit, all equipment must be measured to ensure their performance parameters are safe earlier than set up Customers who don't have the corresponding professional knowledge should not construct themselves, otherwise they will be held chargeable for the chance induced By procuring this package (loose parts), it suggests that you agree to the directions

•
•
•
•
•
