Description

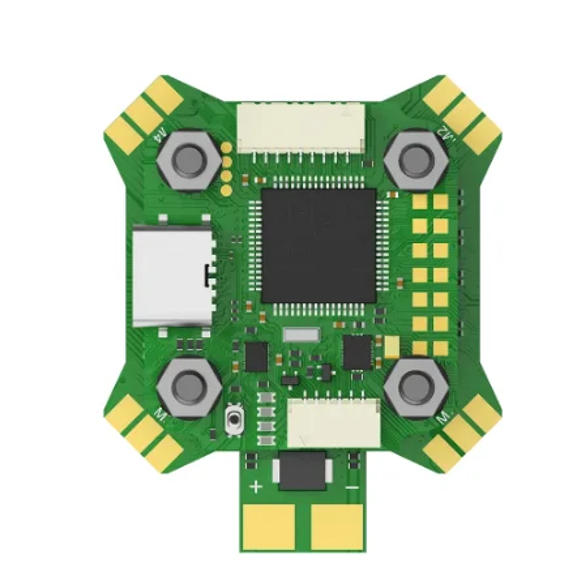

• FC Specifications MCU: AT32F435RGT7 Gyro: BMI270 Barometer: DPS310 OSD Chip: AT7456E Flash: 16MB (Blackbox flash) UARTS: 6 Motor outputs: 4x (SH1 connector) I2C serial: SDA / SLA pads Smartaudio / IRC Tramp VTX protocol supported LED controller: Yes Beeper pad: Yes Firmware target: IFLIGHT_BLITZ_ATF435 Mount pattern: 20*20mm/φ4 Dimensions: 30*27mm Weight: 5g BEC: 5V 2 ESC Specifications Mounting Holes: 20*20mm/Φ4mm Weight: eleven Supports 2-6S lipo enter MCU: BB21 Constant: fifty five Amps Burst: 65 Amps Telemetry Output: No Current sensor: Yes Current rate: three hundred BEC: No Supports: DShot DShot150/300/600/MultiShot/ OneShot etc Target: Q-H-25 16(BlheliS) / Bluejay Q-H-50 (Bluejay) Packing List 1 x BLITZ Mini ATF435 Flight Controller 1 x BLITZ Mini E55S 4-IN-1 2-6S ESC 1 x Power cables & ESC sign wires
