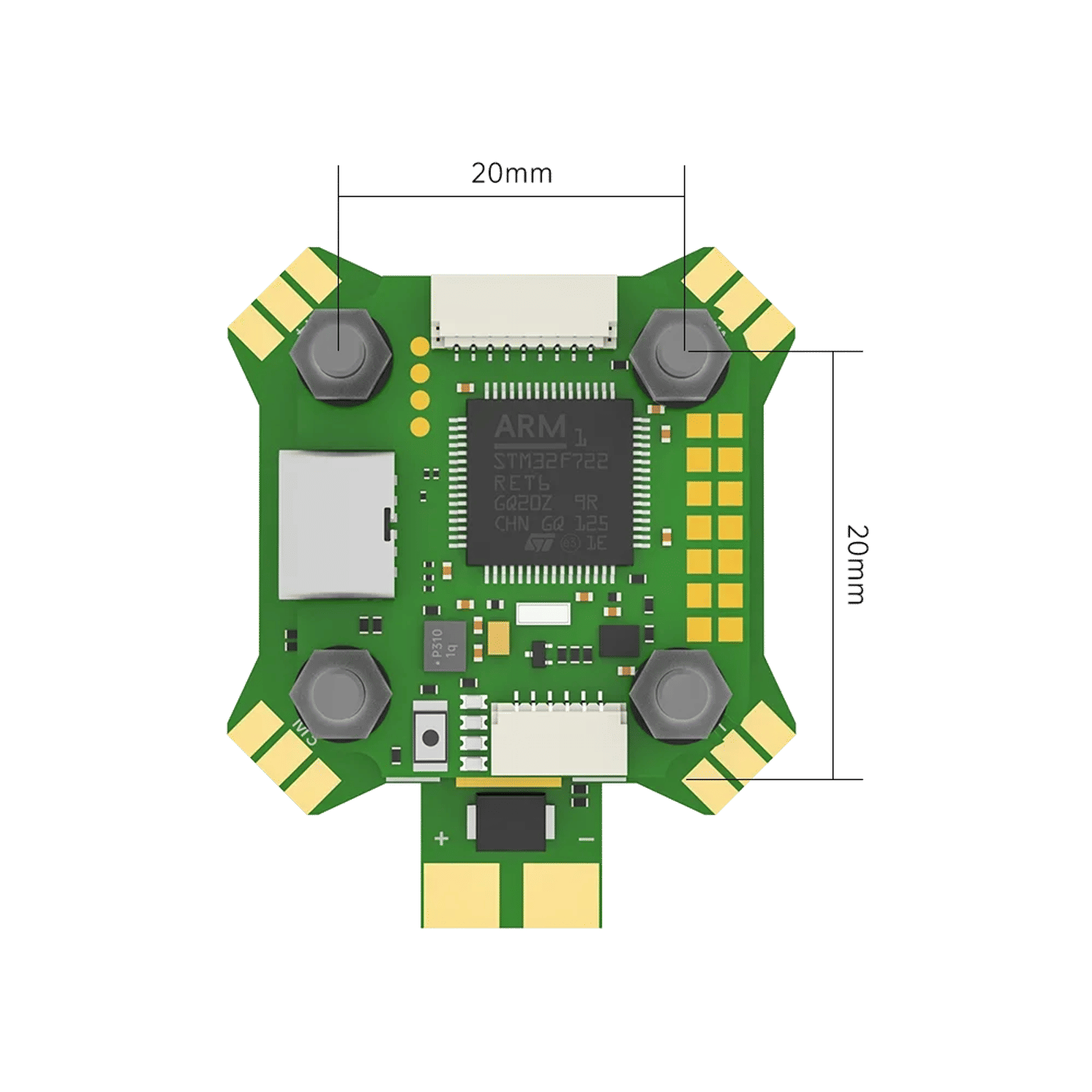

• Description: Features: Improved circuit design, larger elements and decrease electric noise! DJI HD VTX Connector (Plug-and-Play / No soldering required) FC indicator LEDs for visual debugging Specifications: MCU: STM32 F722 Gyro: ICM42688 Barometer: DPS310 OSD Chip: AT7456 Flash: 8MB (Blackbox flash) UARTS: 6 Motor outputs: 4x (SH1 connector) I2C serial: SDA / SLA pads Smartaudio / IRC Tramp VTX protocol supported LED controller: Yes Beeper pad: Yes Firmware target: IFRC-IFLIGHT_BLITZ_F722 Mount pattern: 20x20 mm / φ4 Dimensions: 30 mm Weight: 5g Wiring suggestion: UART 1 for VTX HD / Analog UART 2 for a Receiver UART 3/4/5 for GPS or other sensors that require a serial port UART 6 for ESC Telemetry Tips 1 F722 MCU has an internal inverter 2 SBUS,CRSF,ELRS,IBUS,DSM ETC could be related to any unused UART_RX,we suggest you hook up with Uart_RX2 3 Frsky SmartPort,Tramp & Smartaudio could be linked to any unused UART_TX,we suggest you connect to Uart_TX1 four F can be connected to any unused UART_TX,we propose you hook up with Uart_TX2 ESC Specifications Product Name: BLITZ Mini E55S 4-IN-1 ESC Mounting Holes: 20*20mm/Φ4mm Weight: eleven Supports 2-6S Lipo input MCU: BB21 Constant: fifty five Amps Burst: 65 Amps Current sensor: Yes BEC: No Current rate: 2 hundred Supports: DShot DShot150/300/600/MultiShot/OneShot and so forth Target: Q-H-25 16(BlheliS) / Bluejay Q-H-50 (Bluejay)/Q-H-50 - Bluejay, 0, 24kHz Packing List 1 x BLITZ Mini F7 V1 Flight Controller 1 x BLITZ Mini E55S 4-IN-1 2-6S ESC 1 x silicon grommets 1 x twine harness for F7 Flight controller

•
