Description

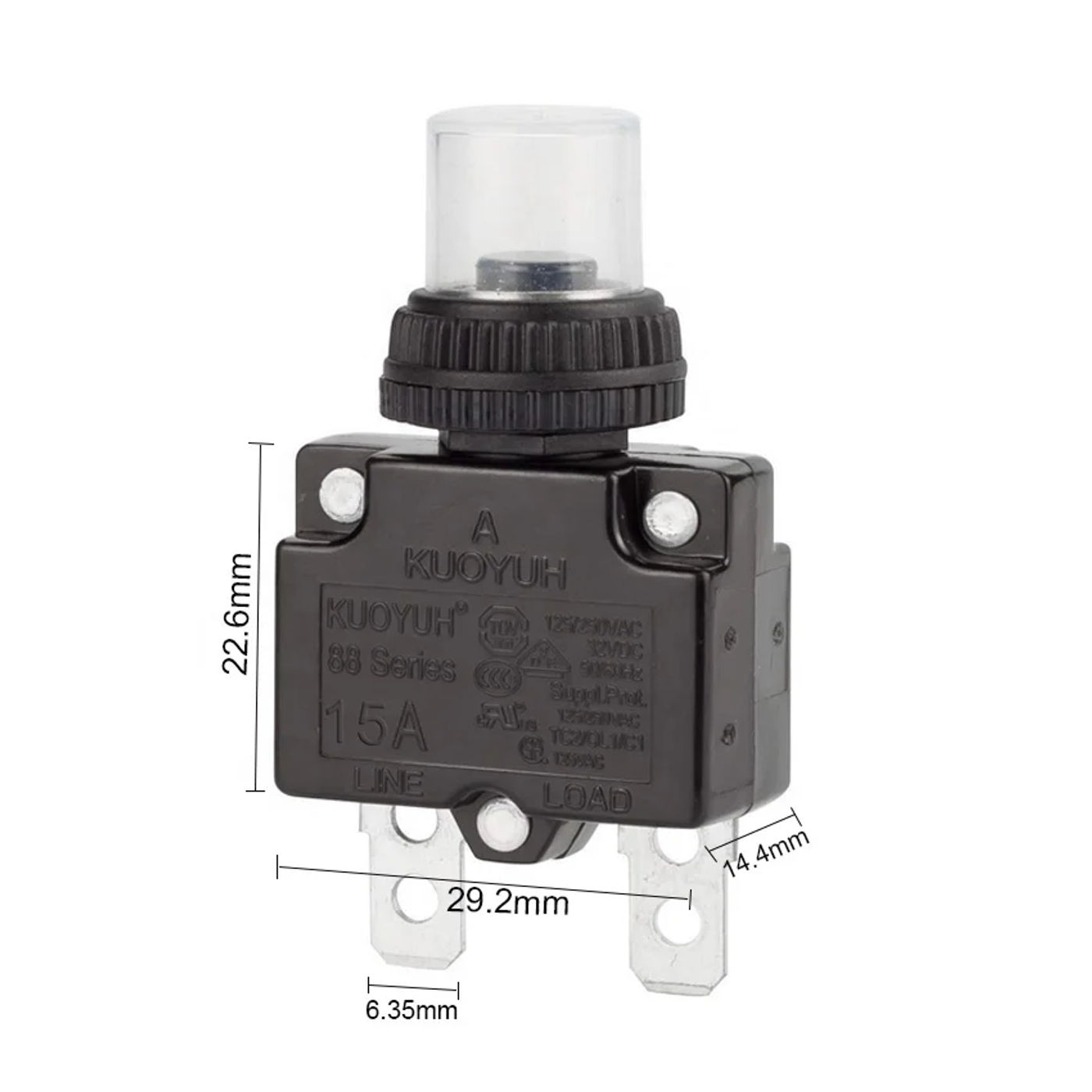

• Product Description Free samples Kuoyuh 88 Series 15A thermal overload protector circuit breaker for pump motor thermal protector Technical dataCurrent ranking range:3~30A Input voltage rating :125/250VAC; 32/50VDC Interrupting Capacity : 125/250VAC x 1,000A(UL 1077) Typical existence : 1,000 operations at 200% overload Insulation co-ordination:Rated impulse face up to voltage 2 Dielectric Strength:> 1/min Insulation Resistance:>100MOHM (DC 500V) Degree of protection:Terminal field IP00, operating subject IP40Mechanical/Environmental DataOperating Ambient Temperature: -10℃ to +60℃ Mounting: Various strategies See Ordering Information and drawings Termination: 250&;&;(6)quick connects or solder terminalsCalibration(at25℃)100% of Rated Current: Hold , No Trip 300% of Rated Current: 1 sec Trip •200% of Rated Current: 5-30 sec Trip • 150% ofRated Current: Trip Within 1 HourApprovalApproval & File No Rated latest Rated voltageCUL UL E155159 3- 30A 125/250VAC; 50VDC TUV SUD B15 09 58611 007 3-20A 125/250VAC; 32VDC VDE 40036160 3-16A 125/250VAC CSA 102199 3-16A 250VAC IEC 60934 3-20A 250VACTypical applicationsTarnsforms, Motors, Battery chargers, Power supplies, appliances, extra low voltage systems, machineryApplication ExhibitionCompany ProfileProduct certificationContact informationSalesMobile Phone E-mail Whatsapp Jack Pan +86 18 61639 0107jackpan@onegol+ 86 186 1639 0107

•
•
•
•
•
