Description

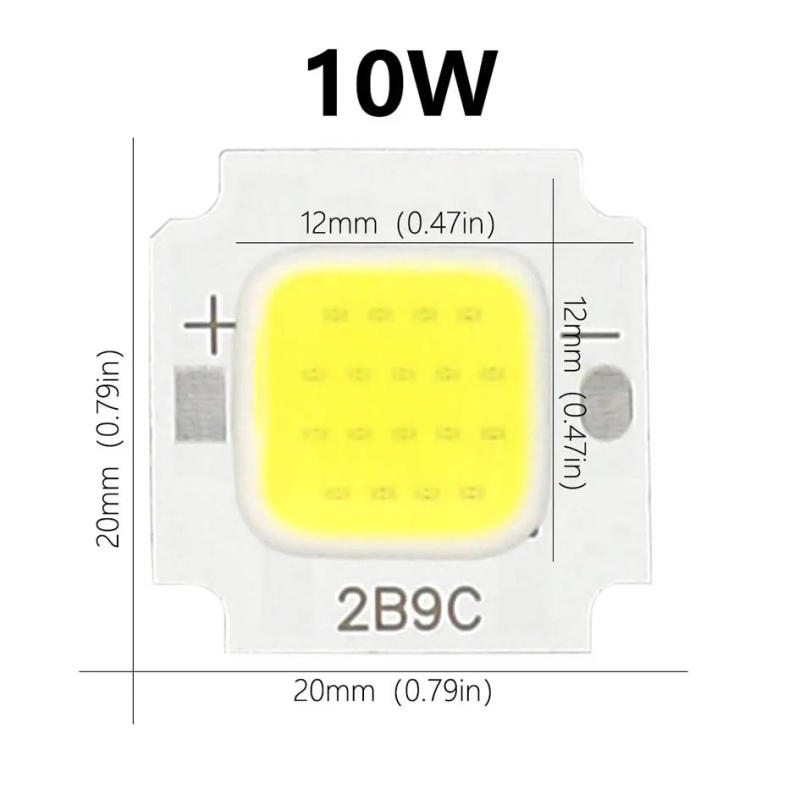

• Product details 10WPower: 10W Voltage: DC30-32V Current: 300mA±5% Serial and parallel circuit: 2 collection and nine parallel Size: 20*20mm(0*0) Light-emitting floor size: 12*12mm (0*0) Crystal size: 10*21mil Number of crystals: 18pcs Crystal name: Epistar chip Lumens: 1000LM Aluminum substrate thickness: 1 (0) Thermal conductivity of aluminum substrate: 2/(m·K) Application place: Flood light Conditions of use: radiator required Chip temperature doesn't exceed 65℃20WPower: 20W Voltage: DC30-32V Current: 600mA±5% Serial and parallel circuit: five sequence and 10 parallel Size: 46*40mm (1*1) Light-emitting surface size: 20*20mm (0*0) Crystal size: 10*21mil Number of crystals: 50pcs Crystal name: Epistar chip Lumens: 2000LM Aluminum substrate thickness: 1 (0) Thermal conductivity of aluminum substrate: 2/(m·K) Application place: Flood smooth Conditions of use: radiator required Chip temperature does not exceed 65℃30WPower: 30W Voltage: DC30-32V Current: 900mA±5% Serial and parallel circuit: 7 collection and 10 parallel Size: 46*40mm (1*1) Light-emitting surface size: 20*20mm (0*0) Crystal size: 10*21mil Number of crystals: 70pcs Crystal name: Epistar chip Lumens: 3000LM Aluminum substrate thickness: 1 (0) Thermal conductivity of aluminum substrate: 2/(m·K) Application place: Flood soft Conditions of use: radiator required Chip temperature doesn't exceed 65℃50WPower: 50W Voltage: DC30-32V Current: 1500mA±5% Serial and parallel circuit: 10 collection and 10 parallel Size: 46*40mm (1*1) Light-emitting surface size: 20*20mm (0*0) Crystal size: 10*21mil Number of crystals: 100pcs Crystal name: Epistar chip Lumens: 5000LM Aluminum substrate thickness: 1 (0) Thermal conductivity of aluminum substrate: 2/(m·K) Application place: Flood light Conditions of use: radiator required Chip temperature doesn't exceed 65℃70WPower: 70W Voltage: DC30-32V Current: 2100mA±5% Serial and parallel circuit: 10 series and 14 parallel Size: 46*40mm (1*1) Light-emitting floor size: 20*20mm (0*0) Crystal size: 10*21mil Number of crystals: 140pcs Crystal name: Epistar chip Lumens: 7000LM Aluminum substrate thickness: 1 (0) Thermal conductivity of aluminum substrate: 2/(m·K) Application place: Flood mild Conditions of use: radiator required Chip temperature does not exceed 65℃100WPower: 100W Voltage: DC30-32V Current: 3000mA±5% Serial and parallel circuit: 10 sequence and 25 parallel Size: 46*40mm (1*1) Light-emitting surface size: 18*18mm (0*0) Crystal size: 10*21mil Number of crystals: 250pcs Crystal name: Epistar chip Lumens: 10000LM Aluminum substrate thickness: 1 (0) Thermal conductivity of aluminum substrate: 2/(m·K) Application place: Flood gentle Conditions of use: radiator required Chip temperature would not exceed 65℃

•
•
•
•
•
