Description

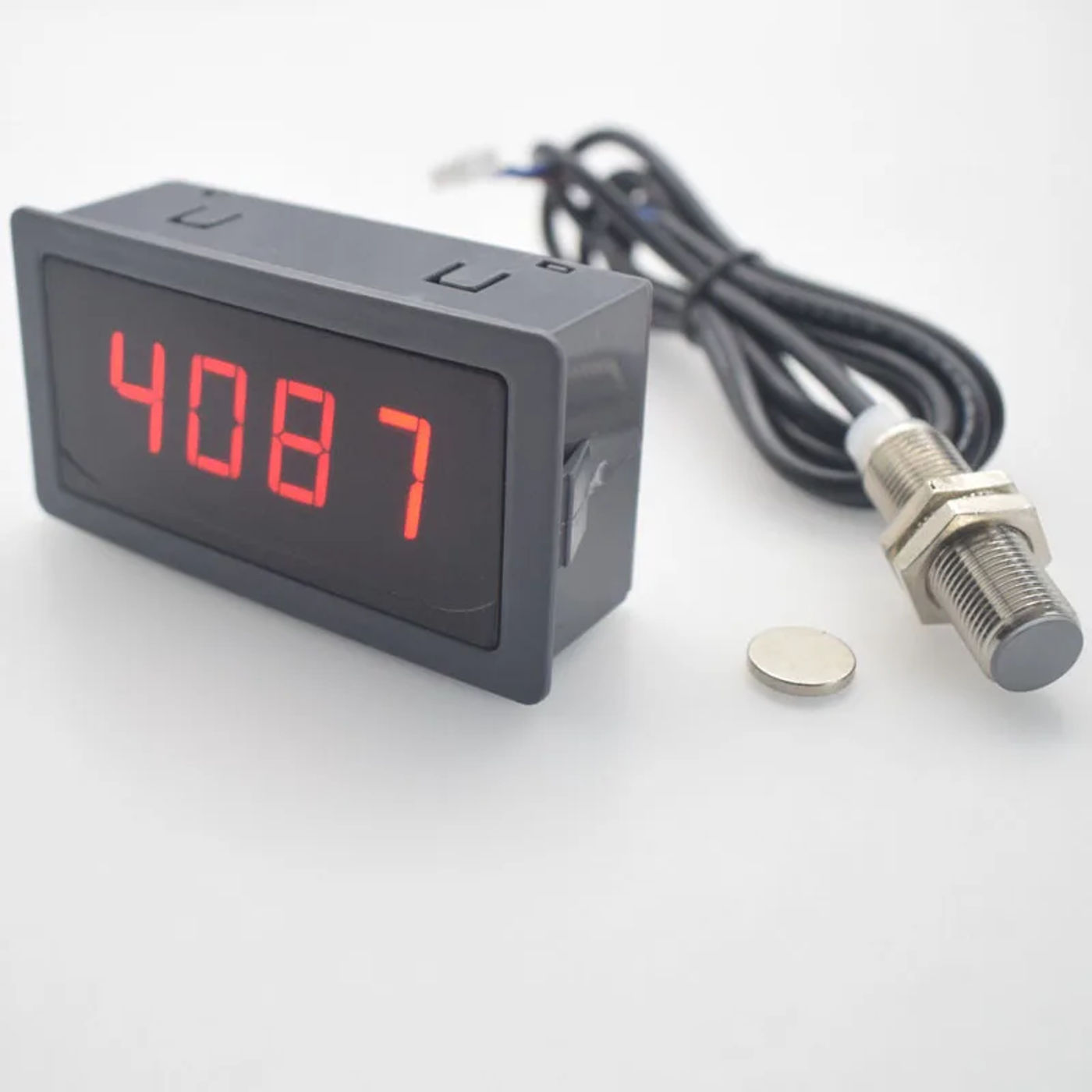

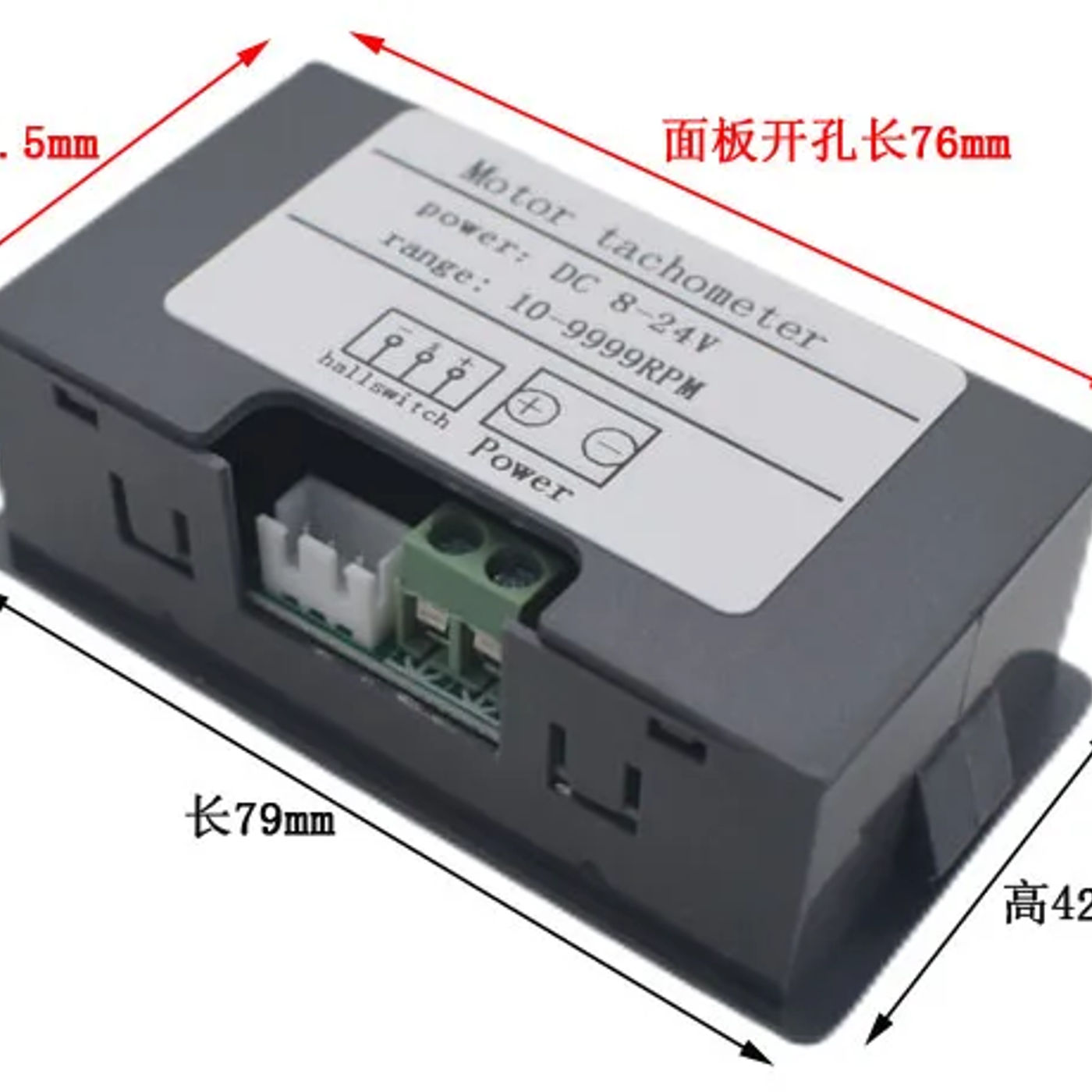

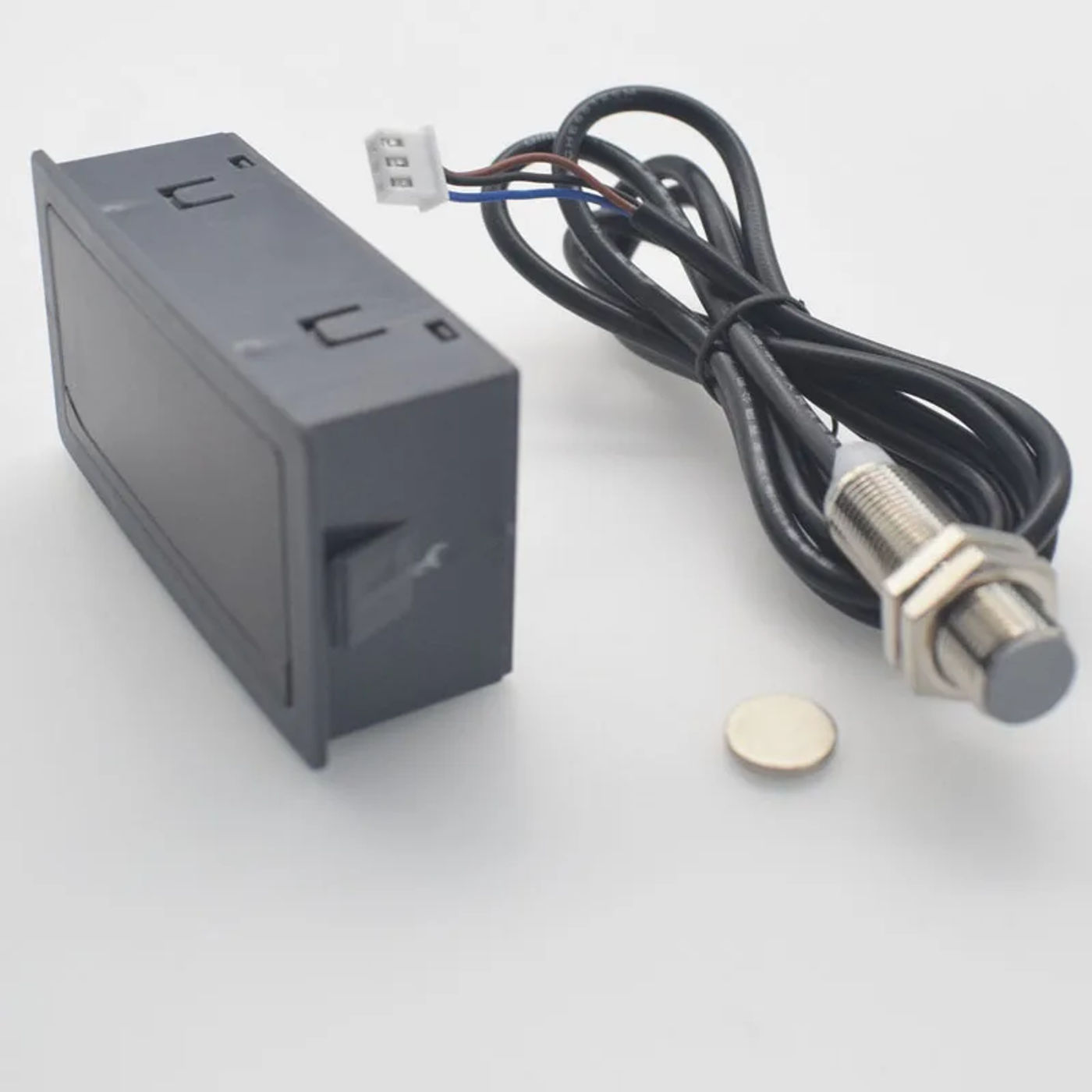

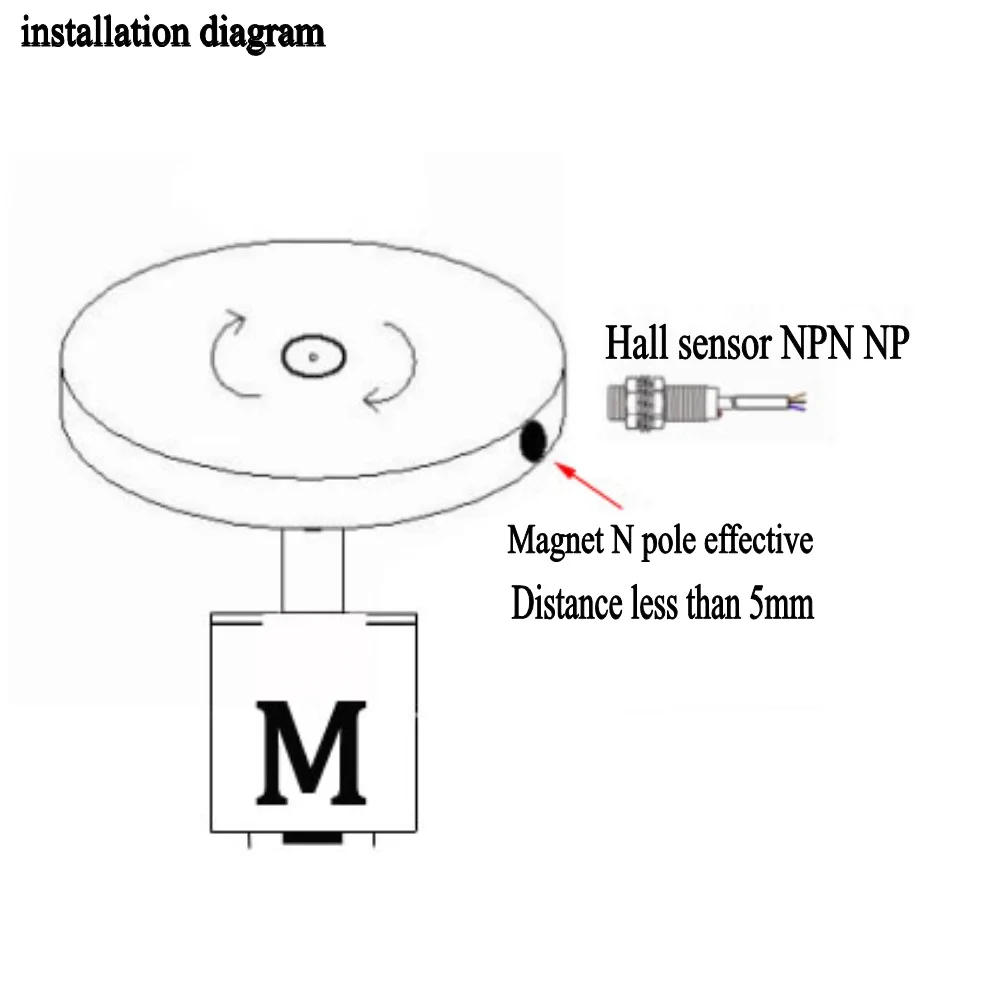

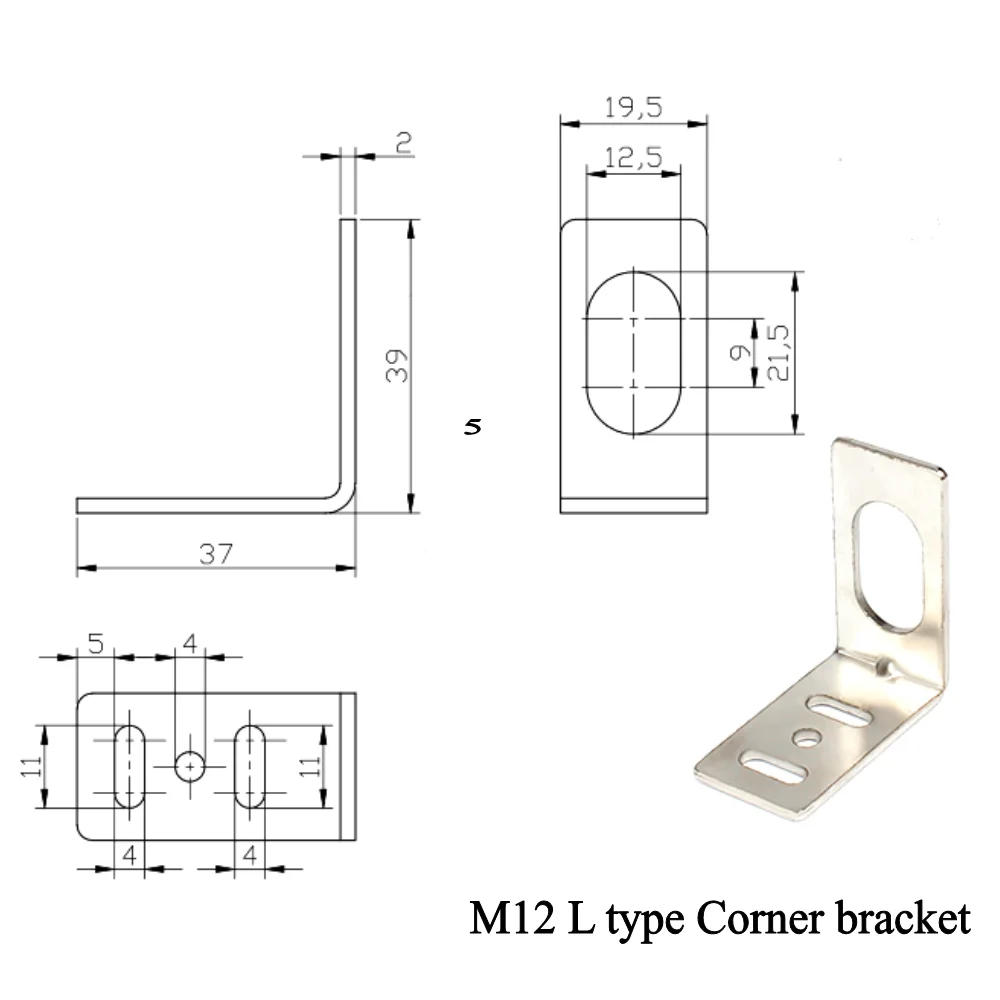

• Notice: L kind bracket and the Tachometer and hall is offered individually , Choose the L sort bracket no longer encompass the Tachometer and corridor sensor Product parameters Input voltage: DC8-24V Hall sensor: NPN sort 5V Measurement range: 10-9999RPM Measurement accuracy: ± 0% Display mode: zero "Nixie tube Hall change cord length: 1 meter, Module size: length * width * top 79mm * 42mm * 27mm Installation method: embedded Panel opening: size * width 76mm * 39 Magnet and Hall change installation Pay consideration to the polarity of the magnet during set up If there's no speed show close to the Hall switch, update the magnet at the different aspect The set up needs to be agency to stop high-speed throwing out The fine distance between the entrance of the Hall change and the magnet is<5mm, and the magnet N pole is valuable The Hall switch and motor often need to be fixed with a bracket, and it is not allowed to carry the motor Hall change for velocity measurement The magnet is constant on a large-diameter rotating shaft, and the rotating disk must rotate concentrically and horizontally as much as probable Improper shaking and excessive horizontal rotation can result in inaccurate detection

•
•
•
•
•
