Description

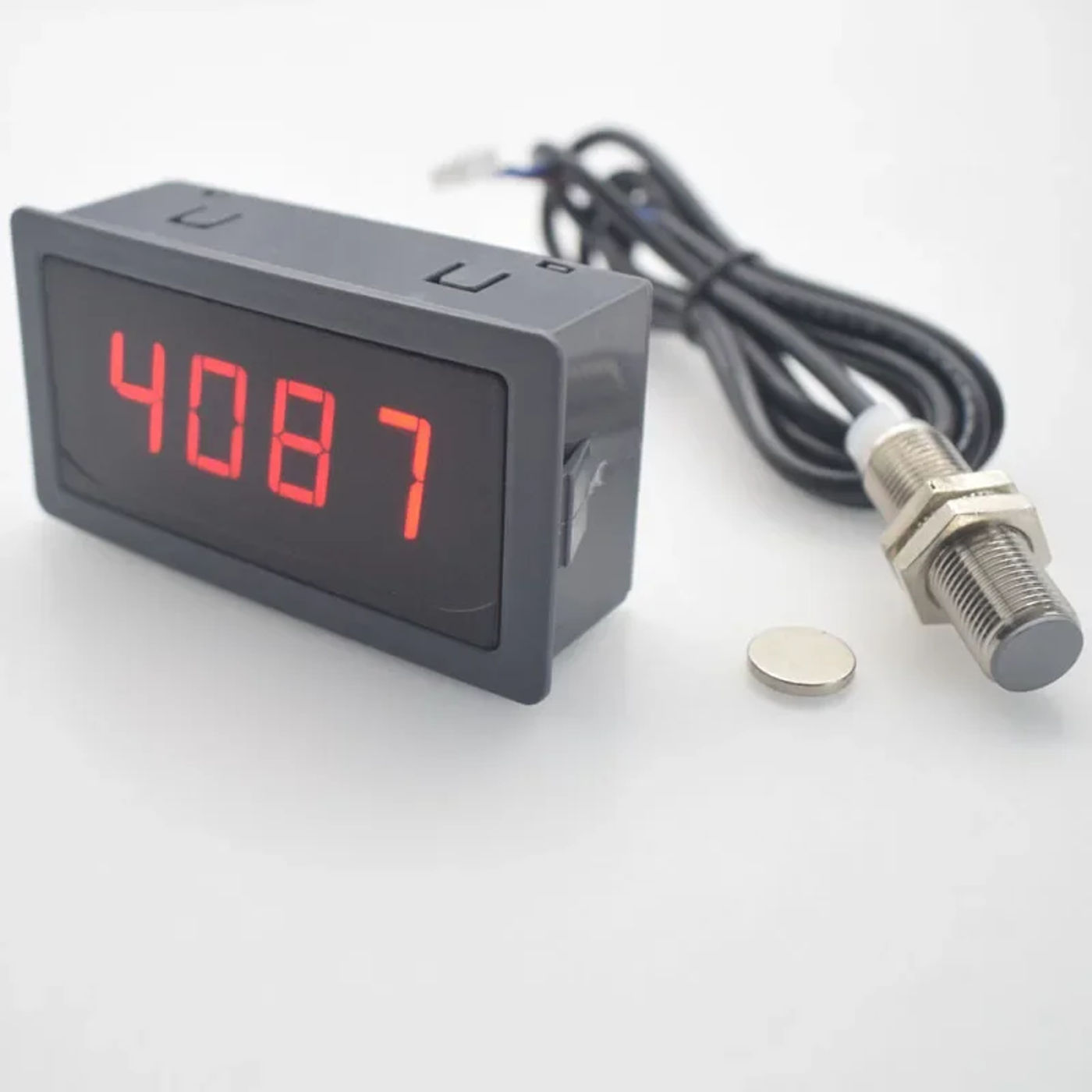

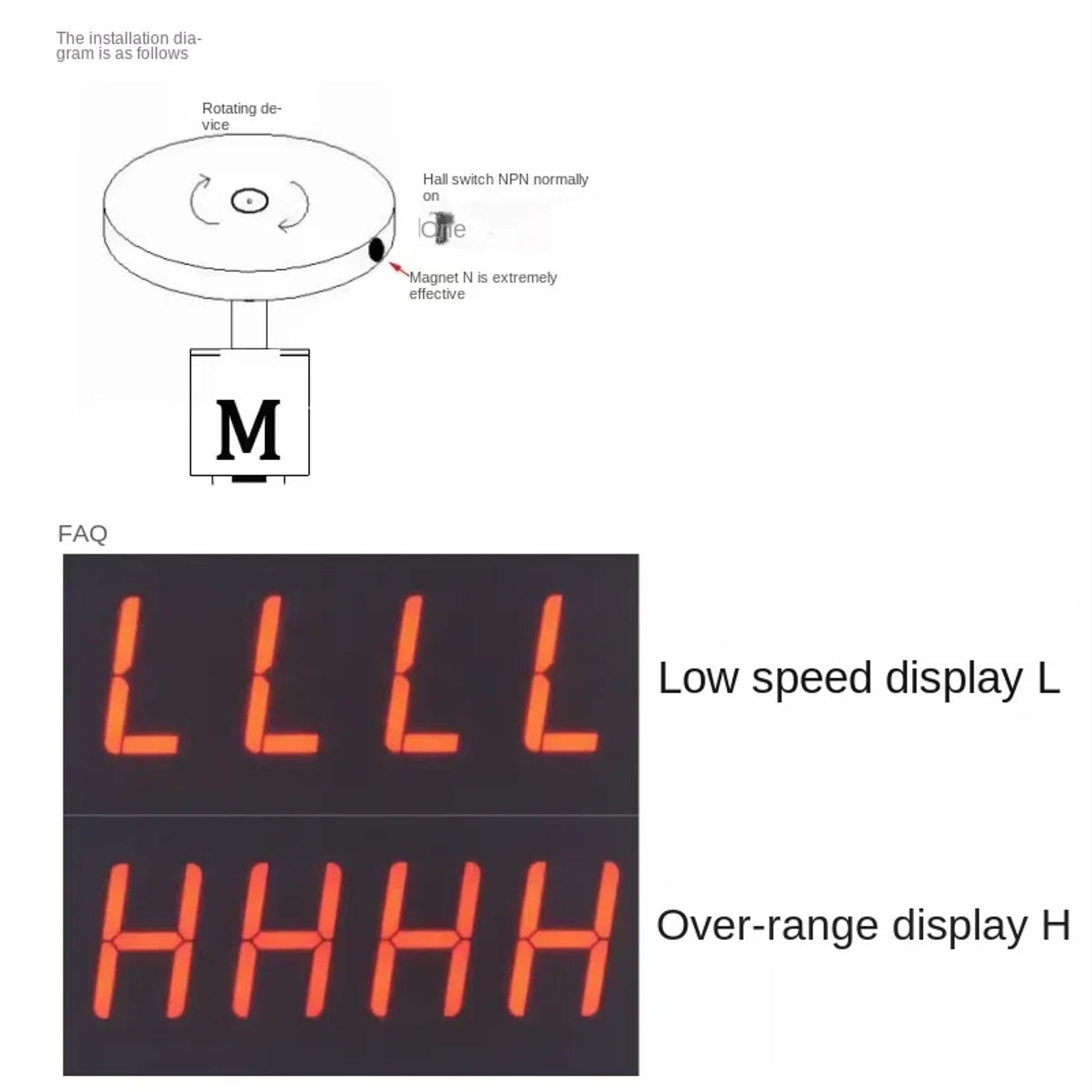

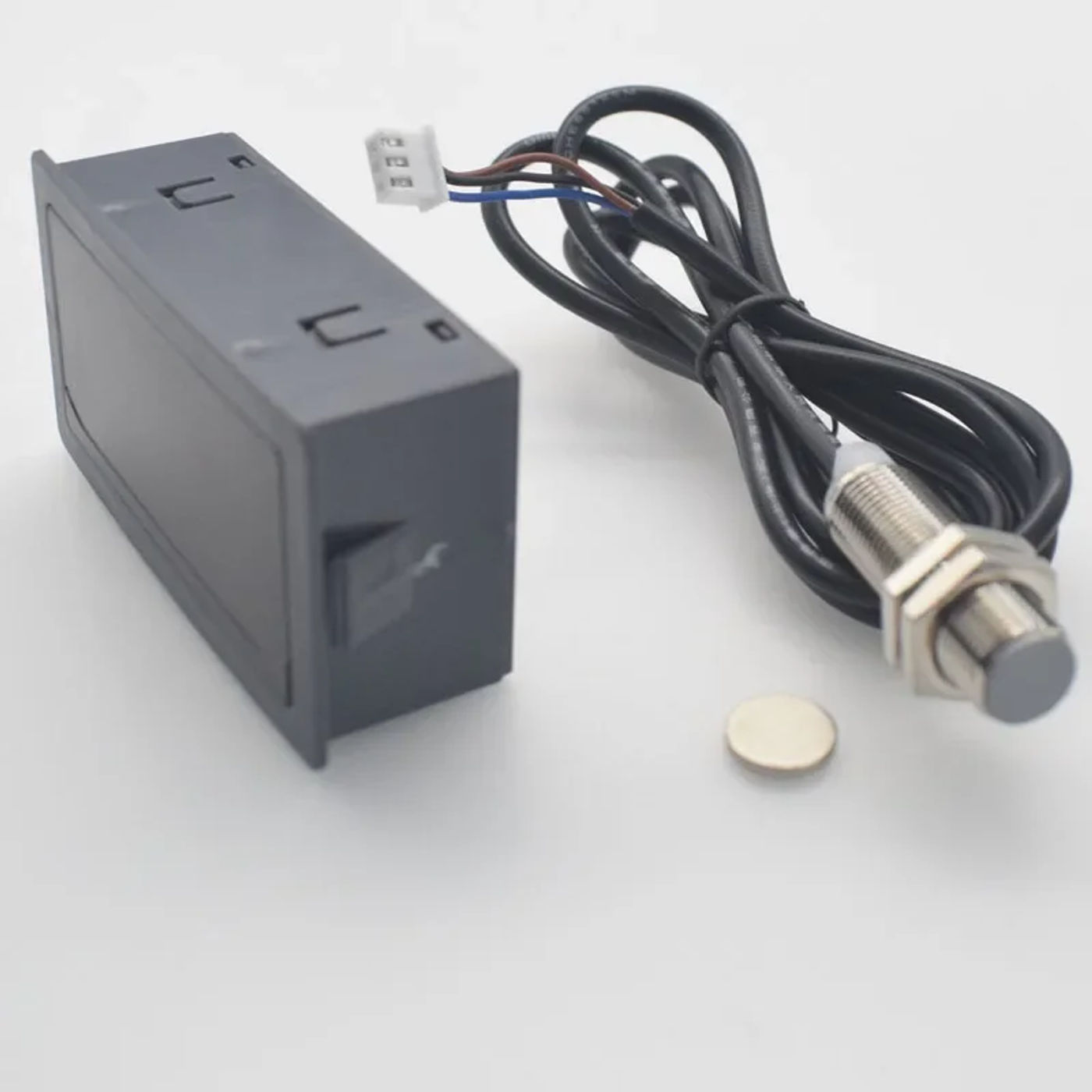

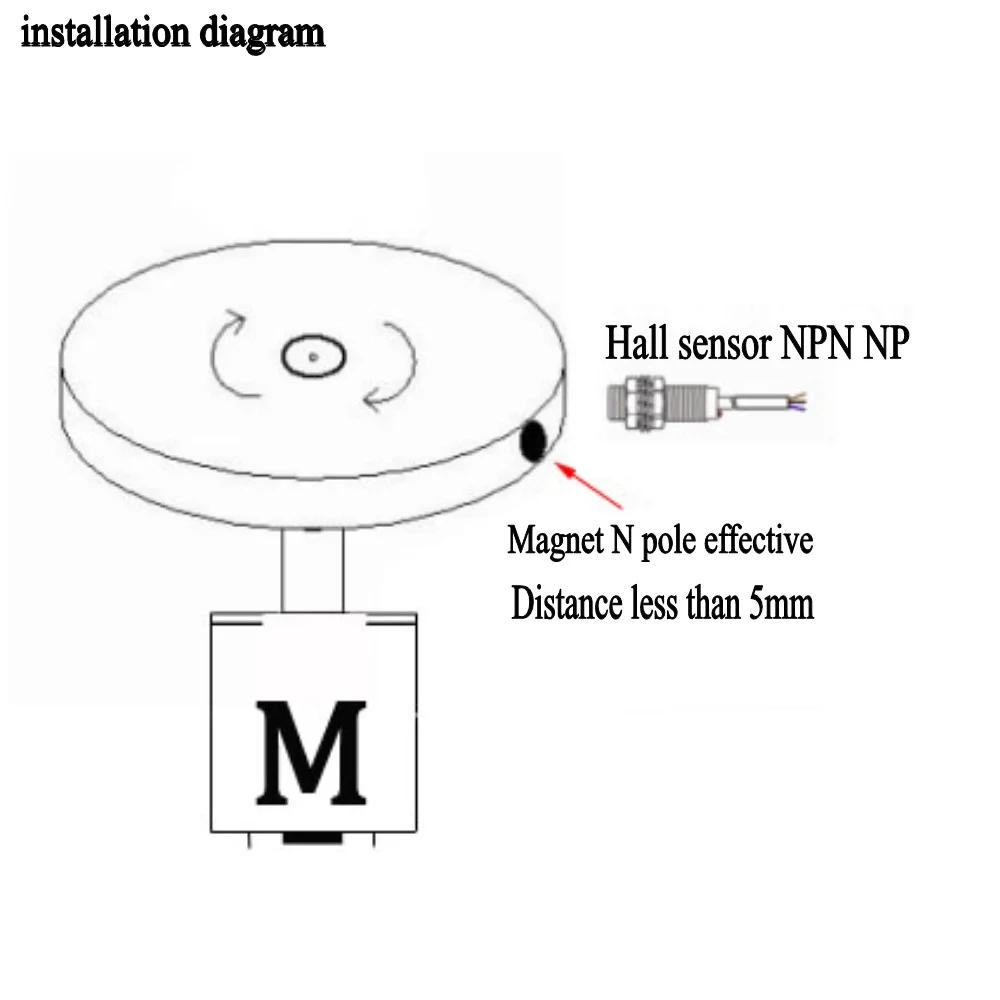

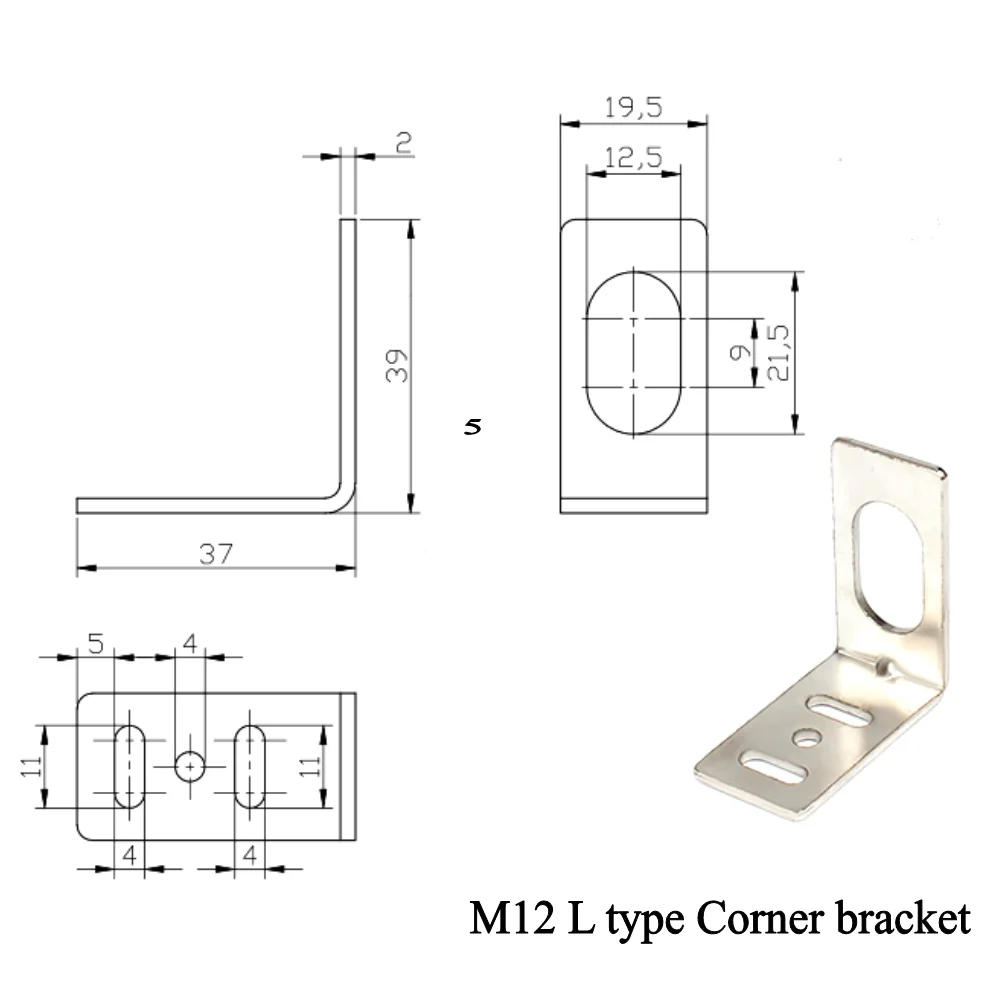

• Notice: L variety bracket and the Tachometer and hall is offered separately , Choose the L kind bracket no longer include the Tachometer and corridor sensor Product parameters Input voltage: DC8-24V Hall sensor: NPN sort 5V Measurement range: 10-9999RPM Measurement accuracy: ± 0% Display mode: zero "Nixie tube Hall swap twine length: 1 meter, Module size: length * width * top 79mm * 42mm * 27mm Installation method: embedded Panel opening: length * width 76mm * 39 Magnet and Hall switch set up Pay consideration to the polarity of the magnet during installation If there isn't any velocity demonstrate close to the Hall switch, update the magnet at the other side The installation needs to be agency to stop high-speed throwing out The tremendous distance between the entrance of the Hall swap and the magnet is<5mm, and the magnet N pole is efficacious The Hall change and motor often need to be constant with a bracket, and it isn't allowed to carry the motor Hall switch for speed measurement The magnet is constant on a large-diameter rotating shaft, and the rotating disk must rotate concentrically and horizontally as much as possible Improper shaking and excessive horizontal rotation can result in faulty detection

•
•
•
•
•
