Description

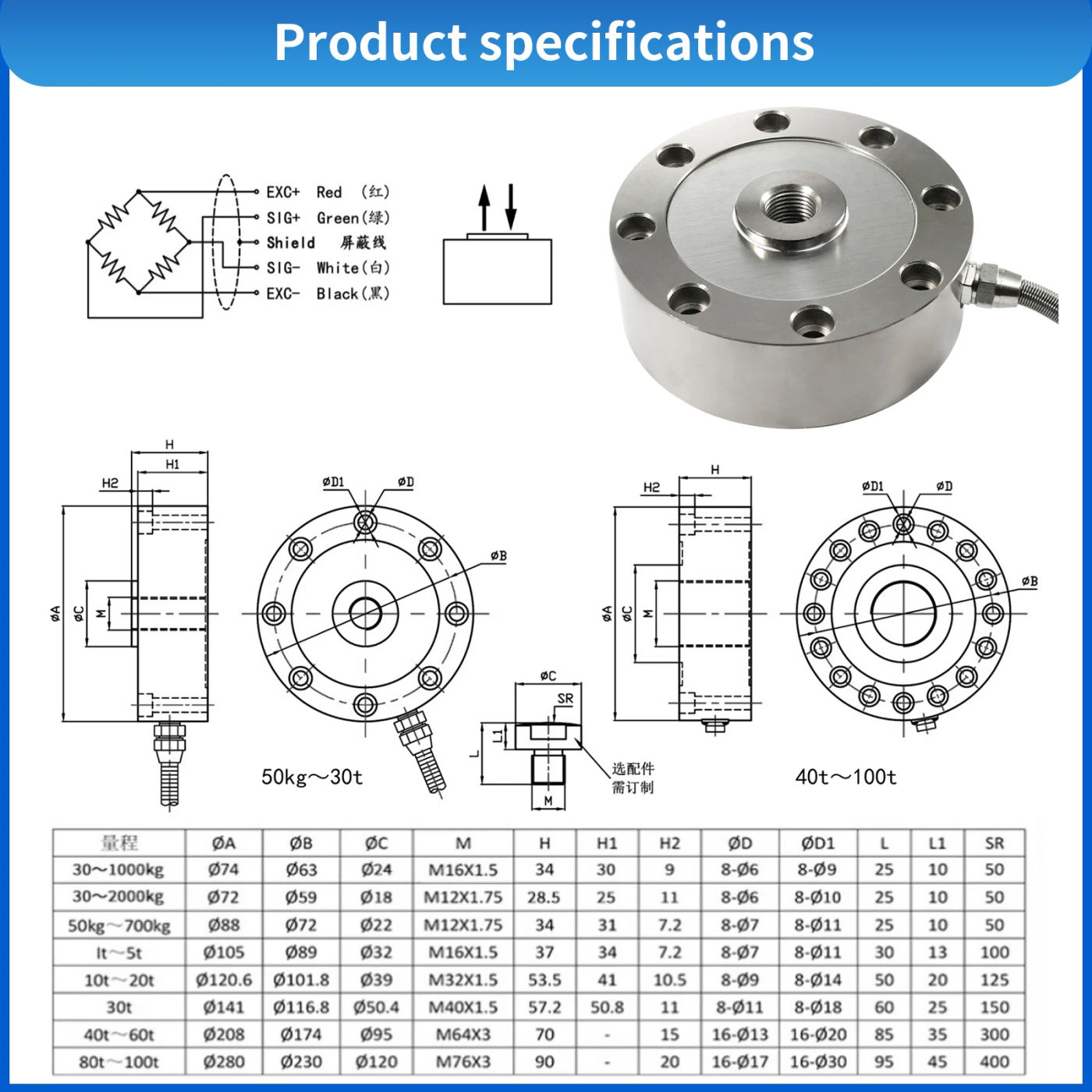

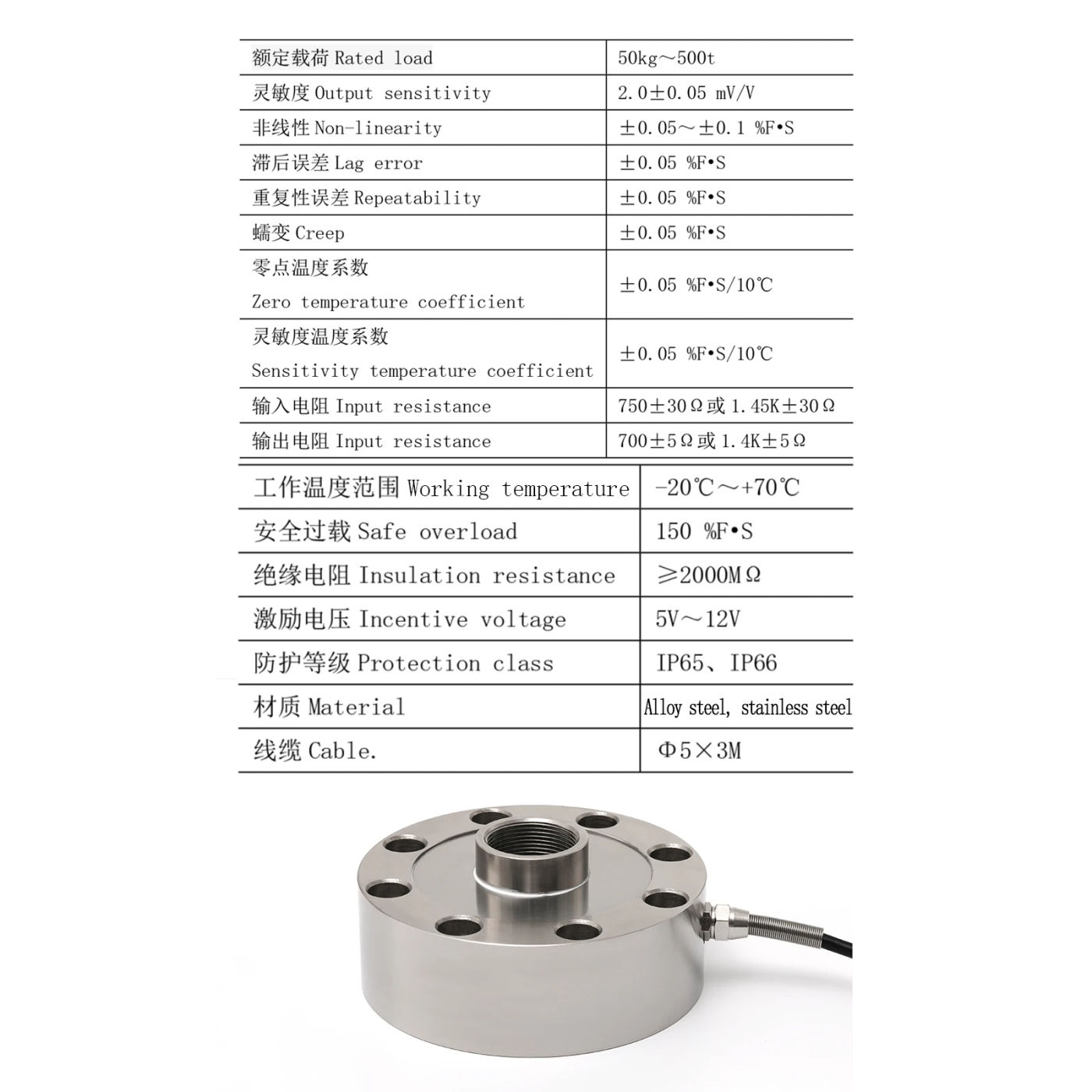

• Durable Material Constructed with durable materials, these sensors promise long-lasting performance and reliability High Capacity Capable of dealing with heavy plenty up to 2T, these sensors are splendid for commercial scale assessments requiring excessive capacity Versatile Load Range With a spread from 50KG to 2T, those load cell sensors cater to varied weighing needs, making them ultimate for varied applications Spoke Type Design The spoke type design ensures correct size of anxiety and strain forces, editing the sensor&;s reliability and precision Easy Installation These sensors feature a straightforward set up process, saving time and energy for users Parameters Table Capacity 0-500T Rated Output 2±10%mV/V Zero Balance 1%F Non-Linearity 0%F Hysteresis 0%FS Repeatability 0%F Creep(30min) 0%F Temp Effect on Output 0%F/10°℃ Temp Effecton Zero 0%F/10°℃ Response frequency 10kHz Material Alloy metal Impedance 20-1000kg:700/1400Ω Impedance 1-30T:700050-500T:1400Ω Insulation ≥5000MQ/100VDC Operating Temp Range 5-15v Operating Temp Range -20-80°℃ Safe Overload 150% Maximum Overload 200% Cable Specifications φ5x3m Cable best pull 10kg

•
•
•
•
•
