Description

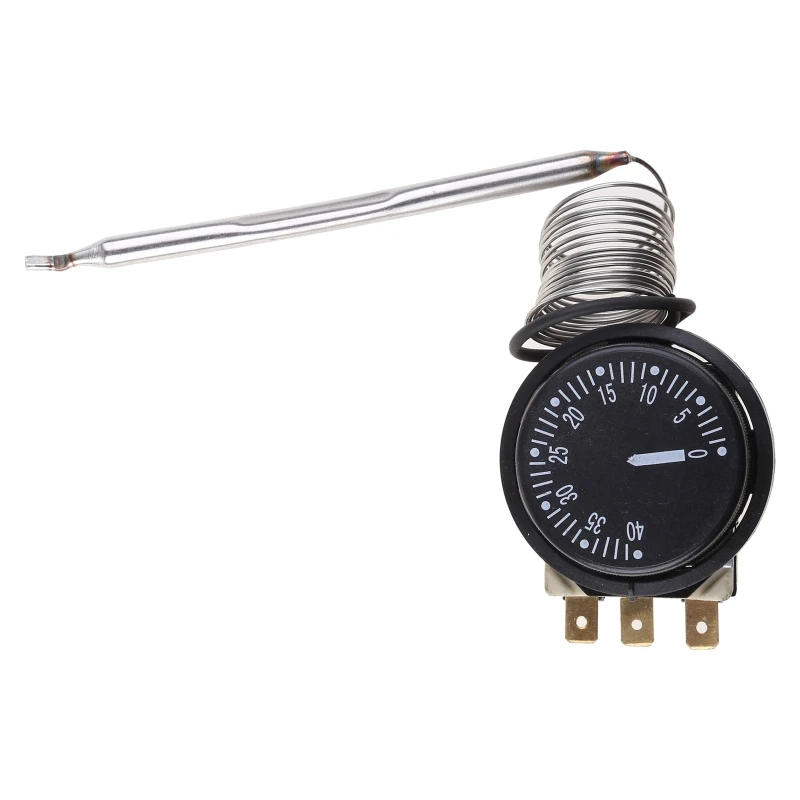

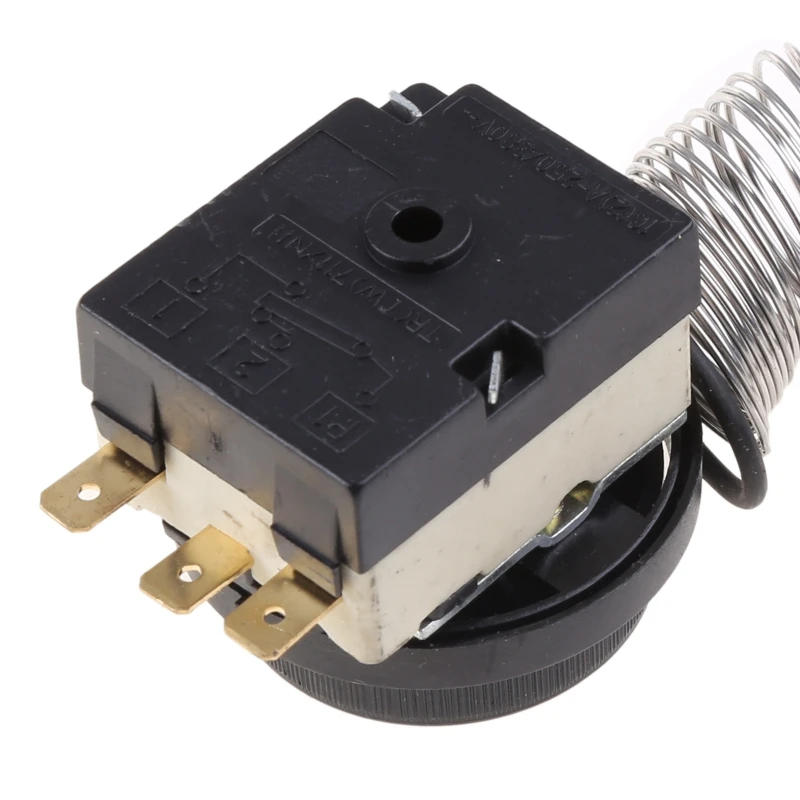

• Electrical performance:16(3)A-250V～10(1)A-400V～ OOTDTY Product life:> 100,000 occasions Electric strength:AC2000V/1min Contact resistance:≤ 50mΩ The minimum current:200mA for Tide insulation resistance:≥10MΩ Normal insulation resistance:≥100MΩ The temperature response rate:≤ 1°C/min Disconnect the temperature:the motion temperature is or minus five levels Heat management Principal: when the Tem is set at 35℃,the probe 1 and 2 is closed when the sensed temperature is decrease then 35,it stops heating until 1 and 2 disconnected when the sensed temperature reached 35 Cooling Principal: Set the temperature at 35,the condensor give up working when sensed tem is decrease then 35 when 1 &4 disconnect condensor began to cooling when the teperature reaches 35 and 4 will closed a atmosphere temperature is kept by way of such stream Note: Please enable 1-3mm error because of guide size make sure you do not mind before you bid Due to the adaptation between various monitors,the photo may not reflect the particular colour of the object you! Package Includes: 1x Temperature Control

•
•
•
•
•
