Description

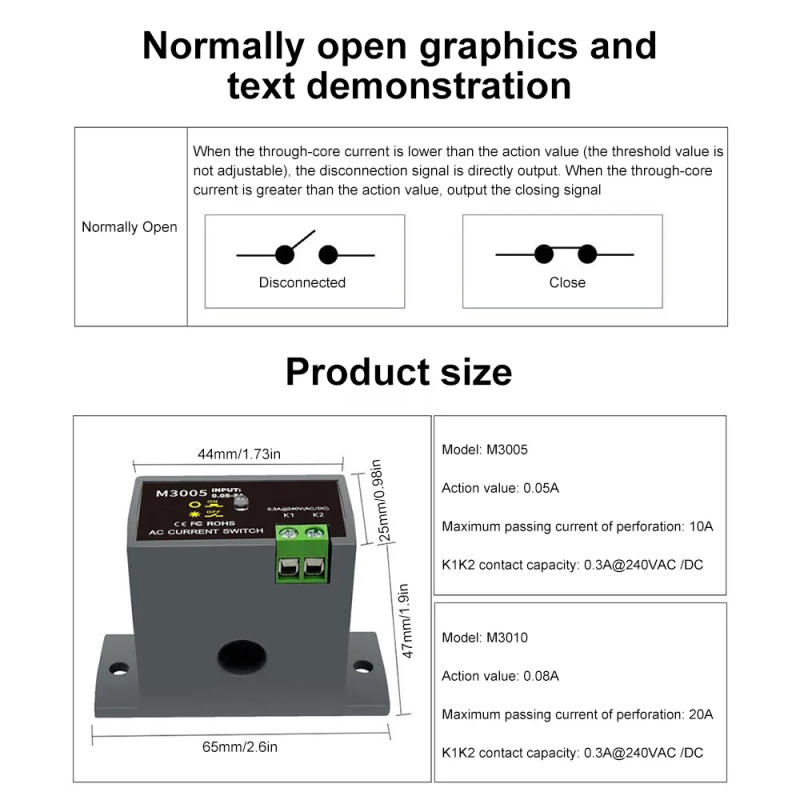

• M3076 M3086 M3010 M3005 Current Detection Switch Induction Relay Switch Alarm Transformer Control Current Sensing Detection Module Features: 1 Hysteresis <1%, can be used in strong magnetic surroundings 2 No contact digital switch, fast response speed, no on/off instances limit three The shell environmental defense flame retardant PC materials or ABS flame retardant material four Mutual inductance current monitoring, input and output security isolation, self-powered monitoring threshold :M3005(0) M3010(0) Specifications: Size: 65*25*47MM Straight threading hole: 10MM Maximum leakage value: 0 Maximum overload capacity: 100 percent Contact capacity: 0@240V AC/DC Working temperature: -20~55C Hysteresis phenomenon: (1%) Monitoring current: M3005 usually open (0~5A), M3010normally open (0~10A), M3050 normally open(0 ), M3056 usually closed (0), M3060 normally open(0) Working principle: Model :M3005 Normally open type, threshold 0, measuring fluctuate 5A When the current is less than 0, the indicator is on and the change is off When the current is larger than 0, the indicator is off and the switch is on Model: M3010 Normally open type, threshold 0, measuring range 10A When the current is lower than 0, the indicator is on and the swap is not switched on When the current is bigger than 0, the indicator is off and the switch is on Packing list: Current sensing switch *1

•
•
•
•
•
