Description

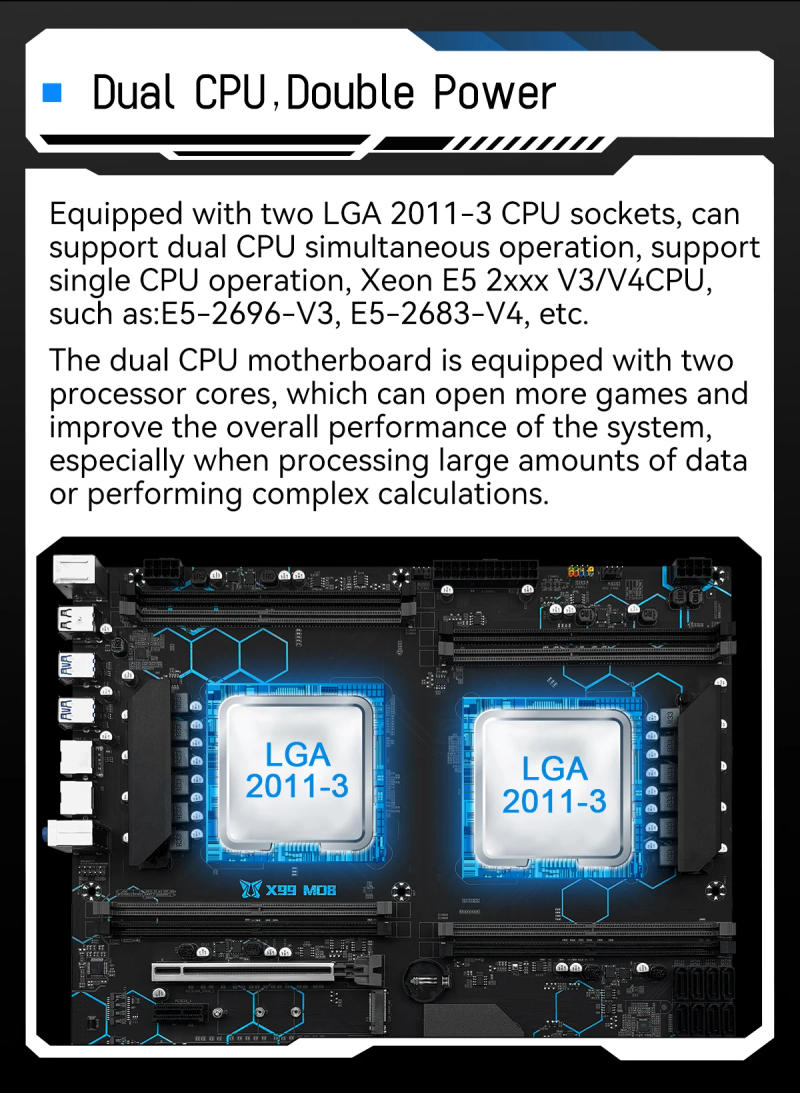

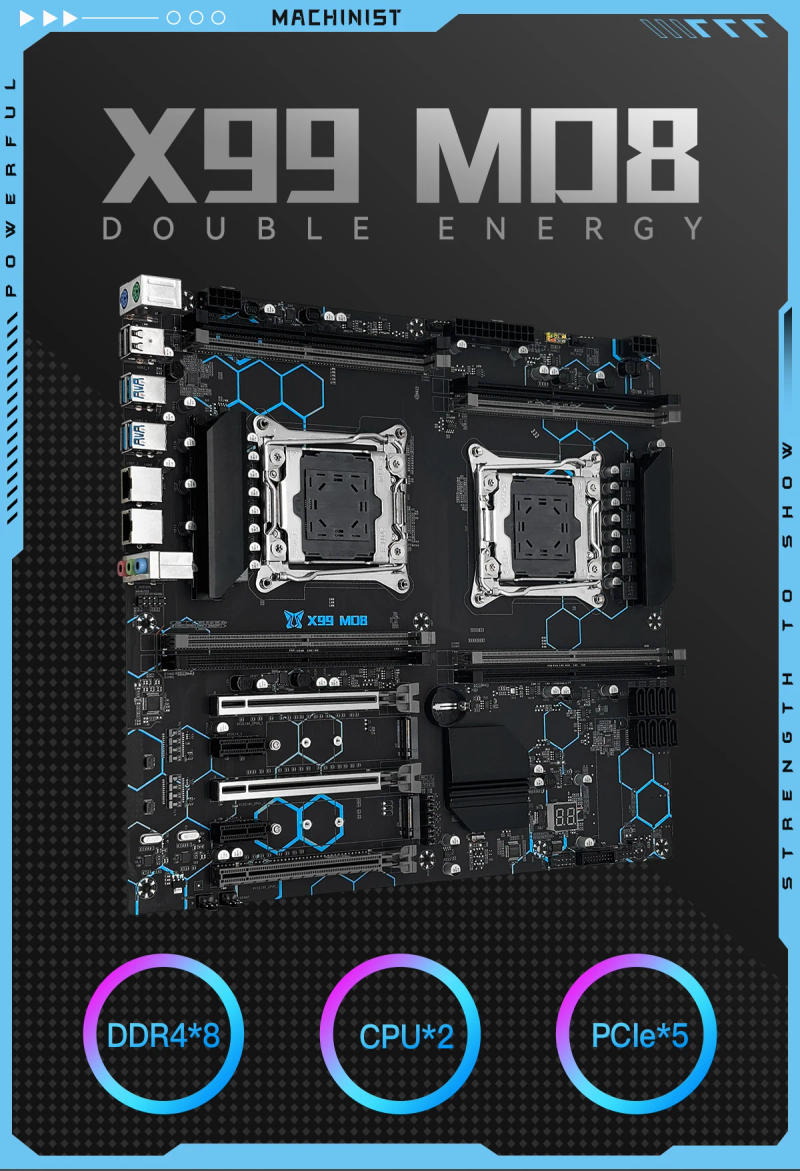

• What&;s in the package? Main products: MACHINIST X99 X99 MD8 MAX motherboard*1 >>Gift accessories: i/o shield, CPU cooling bracket, sata cable (all are hand-tested and packaged, there could also be omissions, please forgive me!); Specifications: Processor DUAL Intel Xeon E5 LGA2011-3 collection processor; South Bridge C612 chipset series; >>Memory Technology: Quad-channel DDR4 2133/2400/2666/3000/3200MHz; Maximum capacity: 32GB*8=256GB;Memory slot: 8*288 PIN DDR4/ECC; Note: When using V4 CPU, solely ECC, RECC server memory can be used Applicable tough disk: SATA 2 strong state drive, SATA three mechanical not easy disk, MVME M, SATA M (support M mode switching); The default mode of M hard disk drive is NVME, which might be switched to NGFF (SATA) through the jumper cap The M specification is PCIe three x4, and the theoretical maximum velocity is 3600M/S >>Rear I/O USB interface: four USB3; 2 USB2; Ethernet: 2 Realtek 8111H (Gigabit) community cards; Audio: 2 channel audio interface; Sound card model: Realtek ALC 897 2 channel >>Internal connector PCIe: 2 PCIe x16; SATA: 8 SATA interfaces; Physical dimensions 330MM*300MM Overclocking: Not supported RAID: Supports RAID0, RAID1, RAID5 Startup merchandise shortcut key: f11 Mainboard weight (including packaging): about 1 Note: >>The default is purple graphics card slot at the motherboard If you would like a black graphics card slot motherboard can touch customer support remarks >>For the tariff problem, please ensure you can resolve the customs clearance issue by yourself, when you can&;t clear up it, we do not recommend you to buy goods in our shop We usually are not answerable for customs responsibilities Thanks for your realizing (1) The coloration of the lowest plate of the slot may differ from batch to batch, but it surely will not impression the use of the product The product is constantly optimized and upgraded (2) Please allow 1-3mm differs due to handbook dimension (3) Due to the several show and various light, the picture might not reveal the actual coloration of the article Thanks to your understanding (4) This planform desires powerful energy supply please ensure your strength supply can satisfactory to supports this planform(at least 500w brand strength supply) (5) The battery in motherboard images is not incorporated and will be removed before shipping, as this battery is forbidden per the logistics standards

•
•
•
•
•
