Description

  • 1* Handwheel With Scale Sliding Table ●Model: M-GS200 ●Material: 45# Steel ●Ballscrew type: SFU2505 (Screw Diameter 25mm, Pitch 5mm,the screw rod rotates as soon as and the panel strikes 5mm)/ SFU2510 ●Ballscrew accuracy: C7 level ●Mobile panel/ table size: 130mm*130mm ●Guide Type: 2* HGR25 rail ●Slider : 4*HGH25CA ●Horizontal load: 150KG (Max) ●Vertical load: 50KG(Max) ●Effective stroke: 100mm-600mm Optional ●Total slide desk length: Effective stroke+270mm ●Maximum speed: 100mm/s ●Ballscrew Repeat positioning accuracy: 0.03mm

  • Description Picture 2 of itemManual Linear Guide rail Heavy 45#Steel Plate Handwheel Scale Slide Table CNC Module Ballscrew SFU2505/SFU2510 Stroke 100~600mm
  • Description Picture 3 of itemManual Linear Guide rail Heavy 45#Steel Plate Handwheel Scale Slide Table CNC Module Ballscrew SFU2505/SFU2510 Stroke 100~600mm
  • Description Picture 4 of itemManual Linear Guide rail Heavy 45#Steel Plate Handwheel Scale Slide Table CNC Module Ballscrew SFU2505/SFU2510 Stroke 100~600mm

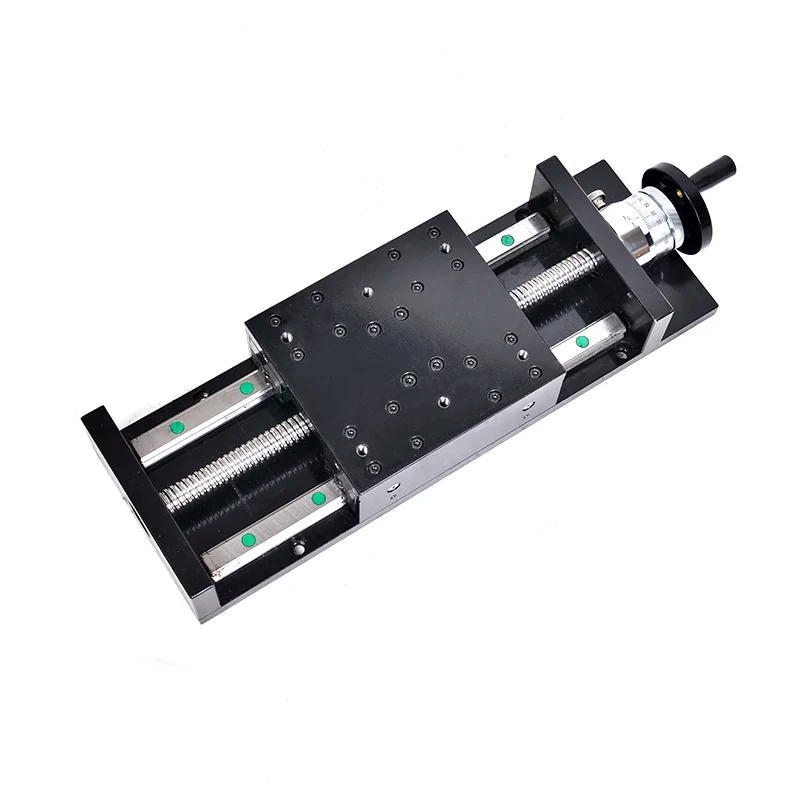

  • Description Picture 5 of itemManual Linear Guide rail Heavy 45#Steel Plate Handwheel Scale Slide Table CNC Module Ballscrew SFU2505/SFU2510 Stroke 100~600mm
  • Description Picture 6 of itemManual Linear Guide rail Heavy 45#Steel Plate Handwheel Scale Slide Table CNC Module Ballscrew SFU2505/SFU2510 Stroke 100~600mm

Review

0 people rated this product
No reviews
Aigle

Aigle

Provided by:Aigle

Manual Linear Guide rail Heavy 45#Steel Plate Handwheel Scale Slide Table CNC Module Ballscrew SFU2505/SFU2510 Stroke 100~600mm

0.0
-23%$ 882.05$ 1187.73
VAT included
Color: SFU 2510
SFU 2510
SFU 2505
Style
Quantity
Only 222 left in stock
Provided by Aigle. Ships from BUYDO

Free shipping & returns

Shipping: 5-9 business days
