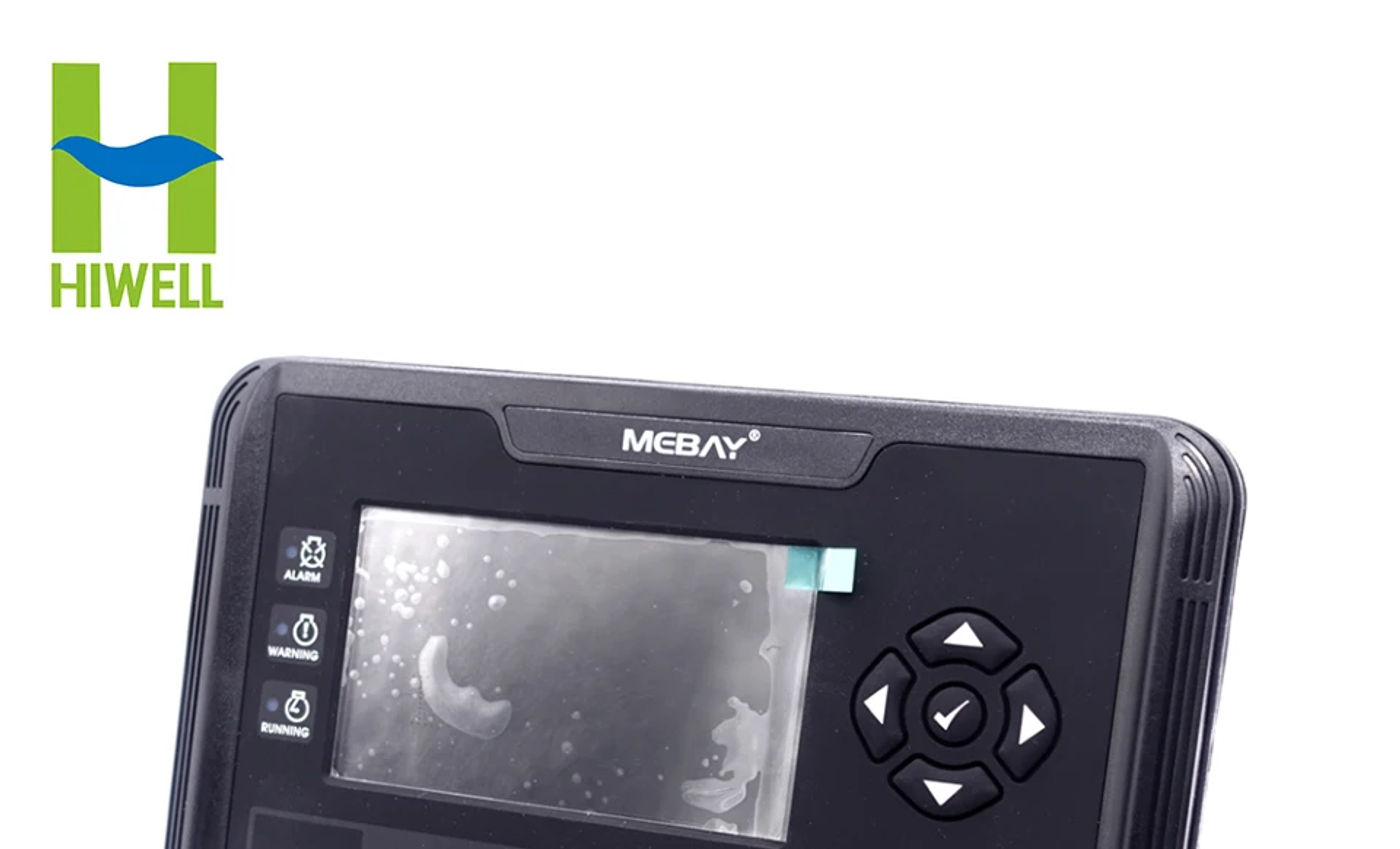

• Mebay DC72D DC72DR Generator Controller Auto Start AMF Genset Parameters Monitoring LCD Display Panel With USB/RS485 Description Genset Controller DC7XD Series This series controller is really expert for Diesel / Gasoline / Gas Genset Start, Stop,Parameters monitoring, faults-checking as well as records surroundings 4 inch colorful LCD display reveal with fresh UI design is adapted in this controller that the relative failures could be displayed instantly All the parameters would be displayed via simulated signals and words, LCD display can exhibit varied faults in the similar time that the genset may be stopped once it'll not work easily There are Chinese/English interface options, extra language can be set per user’s request All the parameters can be configured during the entrance face buttons or use programmable interface by RS485 or USB to regulate through PC could be widely applied for every kind of vehicle control system of gensets Options Parameters Working voltage DC8V----36V Continuous Power intake Standby：24V：MAX 1W Working：24V：MAX 5W AC Voltage Input 1P2W 30VAC-276VAC(ph-N) 2P3W 30VAC-276VAC(ph-N) 3P4W 30VAC-276VAC(ph-N) Rotate pace sensor Frequency 200-10000Hz MAX Accumulating Time 99999（Min Store time:6min） Fuel Relay Output 16Amp DC+VE Supply voltage Start Relay Output 16Amp DC+VE Supply voltage Programmable Relay output 1 5Amp DC+VE Supply voltage Programmable Relay output 2 5AMP Non-contact-Normal open--Normal close output Programmable Relay output three 5AMP Non-contact Normal Open output Programmable Relay output 4 5AMP Non-contact common open output Programmable Relay output five 5AMP Non-contact-Normal open--Normal shut output Excitation output Max 1AMP DC+VE supply voltage Switch value enter Available if connecting with Battery - Working situation -20-65℃ Storage condition -40-85℃ Protection Level IP54：when water resistant rubber gasket is added between controller and its panel Overall measurement 210mm*160mm*50mm Panel cutout 186mm*142mm Weight 0

•
•
•
•
•
