Description

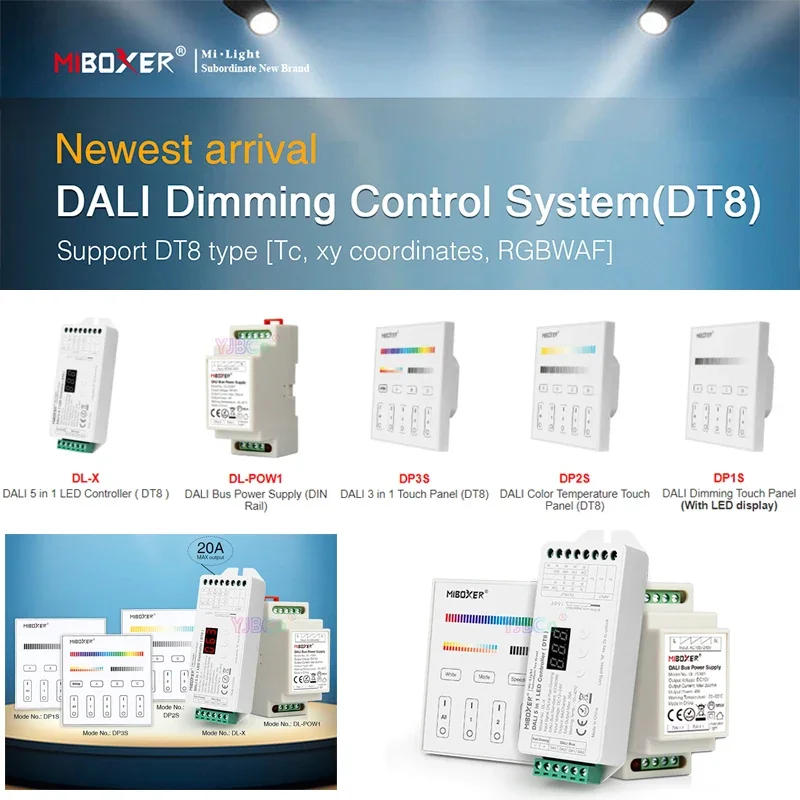

• Product Parameters: PProduct Name: DALI Dimming Touch Panel ( DT6 ) Model No.: DP1S Power Supply: DALI Power DALI Bus Standard: IEC62386 Output Signal: DALI Signal Controlling Type: Dimming(DT6) Standby Current: <4mA@16V Working Temp.: -10~40°C Product Name: DALI Color Temperature Touch Panel ( DT8 ) Model No.: DP2S Power Supply: DALI Power DALI Bus Standard: IEC62386-102, 207, 209 Output Signal: DALI Signal Controlling Type: CCT(DT8 type: Tc) Standby Current: <4mA@16V Working Temp.: -10~40°C Product Name: DALI 3 in 1 Touch Panel ( DT8 ) Model No.: DP3S Power Supply: DALI Power DALI Bus Standard: IEC62386-102, 207, 209 Output Signal: DALI Signal Controlling Type: RGB(DT8 type: xy coordinates) RGBW(DT8 type: RGBWAF) RGB+CCT(DT8 type: RGBWAF) Standby Current: <4mA@16V Working Temp.: -10~40°C Product Name: DALI 5 in 1 LED Controller ( DT8 ) Model No.: DL-X Input Signal: DALI Signal or Push Dimming DALI Bus Standard: IEC62386-102,207,209 Input Voltage: DC12~24V Output: 6A/Channel Total Output Max: 20A Working Temperature: -10~40°C Product Name: DALI Bus Power Supply (DIN Rail) Model No.: DL-POW1 Input Voltage: AC100~240V 50/60Hz Input Current: 115Vac/≤0, 230Vac/≤0 Leakage Current: <0/230Vac Inrush Current: Cold delivery 10A at 230Vac Setup Time: 115Vac<2500ms,230Vac<1500ms (at total load) Output Voltage: DC16V Output Current: 250mA Max Max. Rated Power: 4W Ripple Noise: zero (at full load) Working Temp.: -20~60°C Working Humidity: 20 ~ 95%RH, non-condensing Safety EMC Isolation Resistance: I/P-O/P: 100MΩ/500VDC/25℃/70%RH DALI 3 in 1 Touch Panel ( DT8 ) Package included: 1pcsDALI controller (AS you choose) (NotBattery) DP1SDALI Dimming Touch Panel ( DT6 ) DP2SDALI Color Temperature Touch Panel ( DT8 ) DP3SDALI 3 in 1 Touch Panel ( DT8 ) DL-X DT8 DALI 5 in 1 LED Controller DL-POW1DIN Rail DALI Bus Power Supply

•
•
•
•
•
