Description

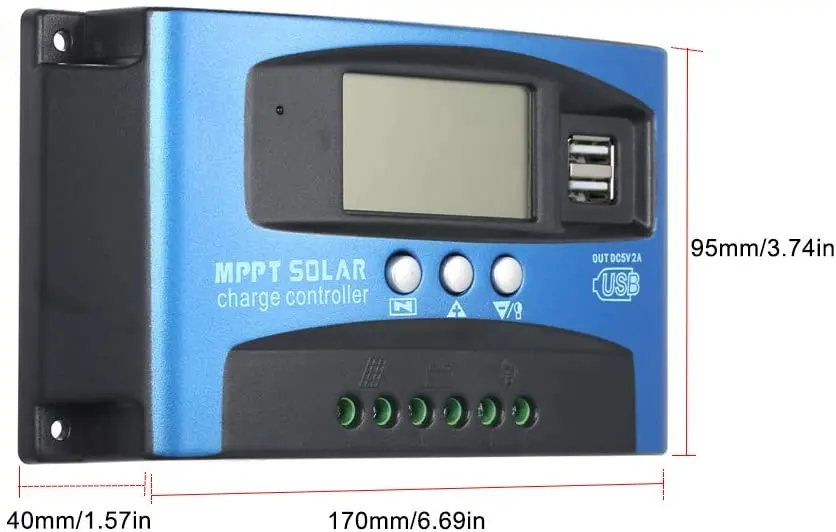

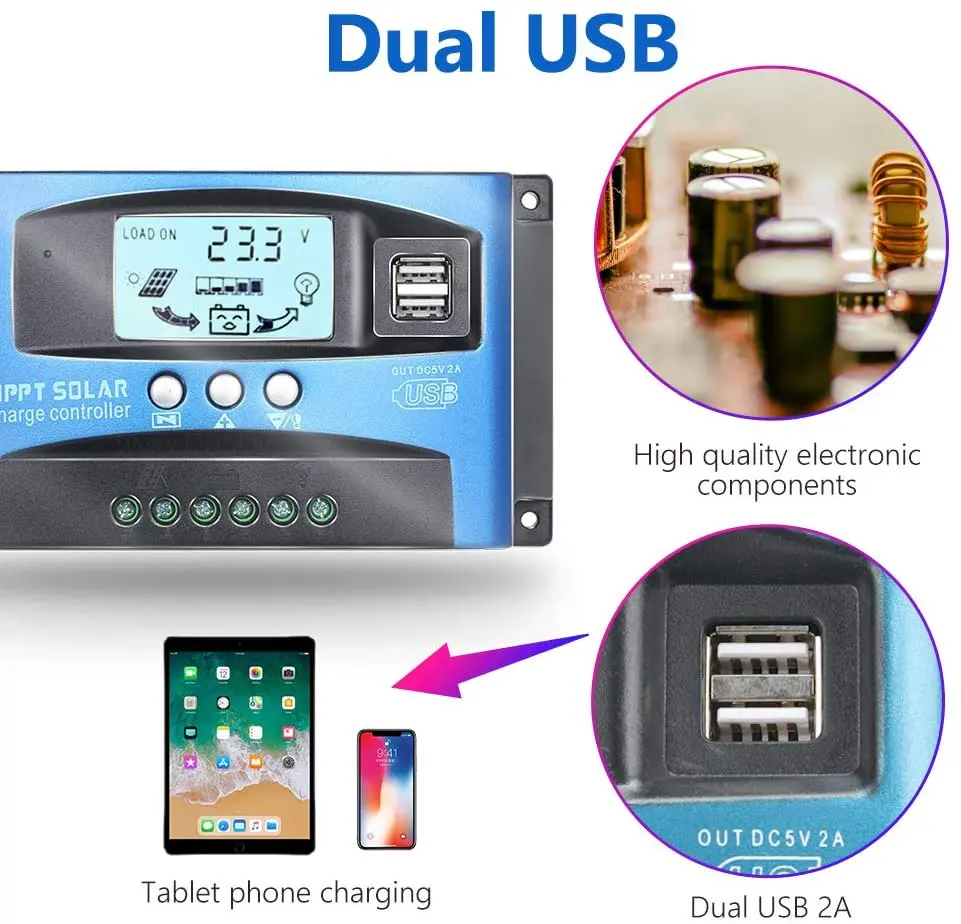

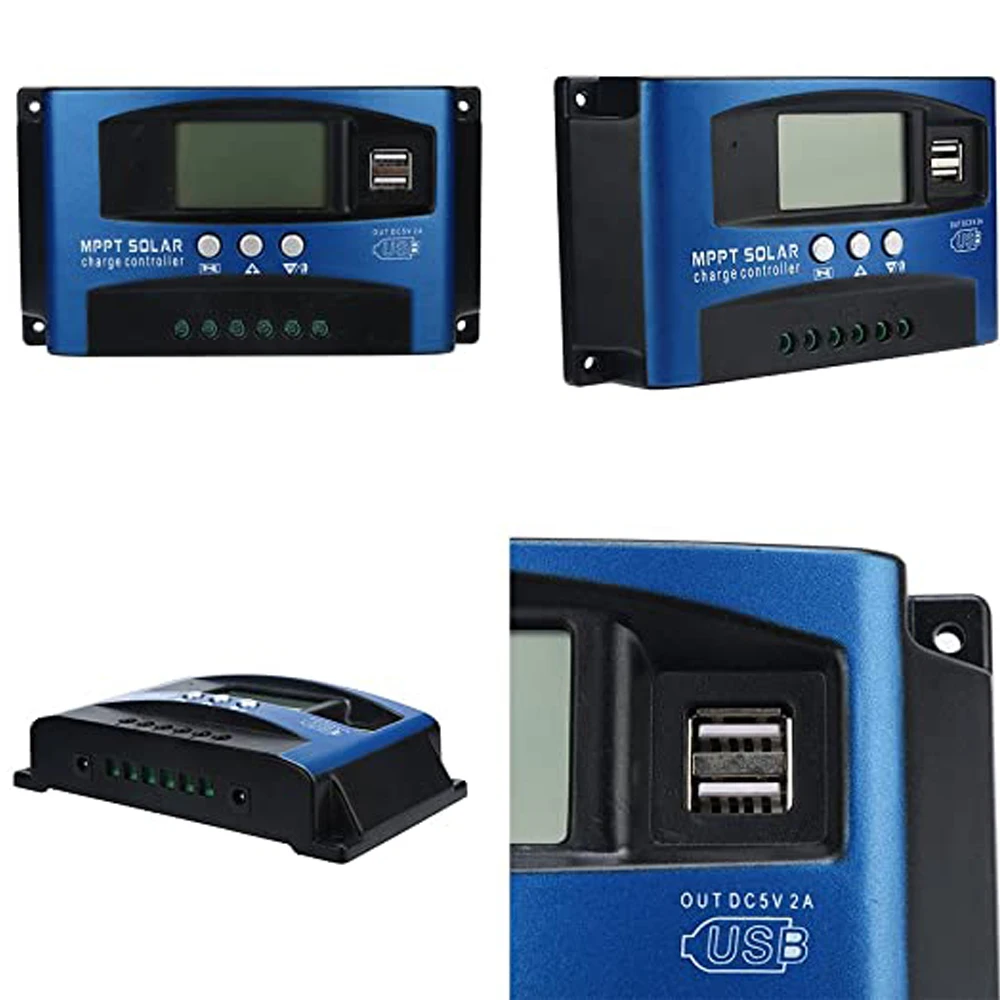

• MPPT LCD Display 30A/40A/50A/60A/100A 12V/24V Solar Panel Battery Regulator Charge Controller Dual USB 5V2A Note:It is nice well matched MPPT + PWM Solar Controllers ,not 100% Ture MPPT Function: 1 Always maintain the battery on fill voltage situation 2 Prevent the battery from over-charging 3 Prevent the battery from over-discharging four Prevent the battery from reverse charging to photo voltaic panels during nights five Reverse Polarity Protection for Battery 6 Reverse Polarity Protection for Solar Panels 7 When the battery voltage is low, the controller will robotically bring to an end the weight from the components If the voltage of battery is again to common and the load will restart operating 8 Thunder protection 9 According to the battery voltage grade, the controller can routinely set charge-off voltage, the load-off voltage, the load- repair voltage (The parameter is default beneath 25℃ condition, locked via the CPU procedure, can't adjust) 10 The controller will automatically compensate the temperature of the charging voltage in step with the modifications of ambient temperature Features: 1 Industrial-grade grasp chip, sixteen AD sampling accuracy, temperature, charging current, discharge current correct real-time display, strength generation at a glance 2 Automatic focusing MPPT tracking charging, high charging efficiency, continuous detection during charging, bidirectional focusing tracking three Large-screen LCD display, adjustable charging and discharging parameters UItra-wide price and discharge adjustable, as long as you know the characteristics of the battery set its corresponding charging parameters, you might price a battery When the output is off, the time would be adjusted, which is extra convenient (on the market, there is not any point adjustment) 4 Acomplete three-phase price management, effectively preserve the battery, the battery is extra sturdy five Built-in overheating, overcurrent quick circuit, open circuit protection, reverse connection protection,when the fault is eliminated, the controller automatically recovers, would not damage the device 6 Bidirectional MoS tube anti-backflow circuit, high-power charging mode, ultra-low warmth 7 R5 zero photo voltaic charging DC plug, R5 zero DC lamp output DC plug, convenient connection Specifications: 1 Rated voltage: 12/24V 2 Rated current: 30/40/50/60/100A 3 Max PV input power: 750W(12V) / 1200W(24V) 4 voltage: 12 / 24V adaptive 5 charging current: 30A | 40A | 50A| 60A | 100A 6 discharge current: 10A | 20A | 20A | 30A | 30A 7 photovoltaic voltage :12V battery with 18V solar panel, 24V battery with 36V solar panel eight Voltage Value : Lithium Battery (12) | B02 Colloidal Battery (14) | B03 Open Cell (14) 9 Charge Voltage : thirteen V ( Default, Adjustable ) 10 cut-off voltage::10 V ( default, adjustable ) 11 restoration voltage: 12 V ( default, adjustable ) 12 current :10mA 13 Output : 5V / 2A MAX 14 temperature:- 35 - 60 Package Includes： 1 x Solar Panels Battery Charge Controller 1 x User Manual(English) Photo:

•
•
•
•
•
