Description

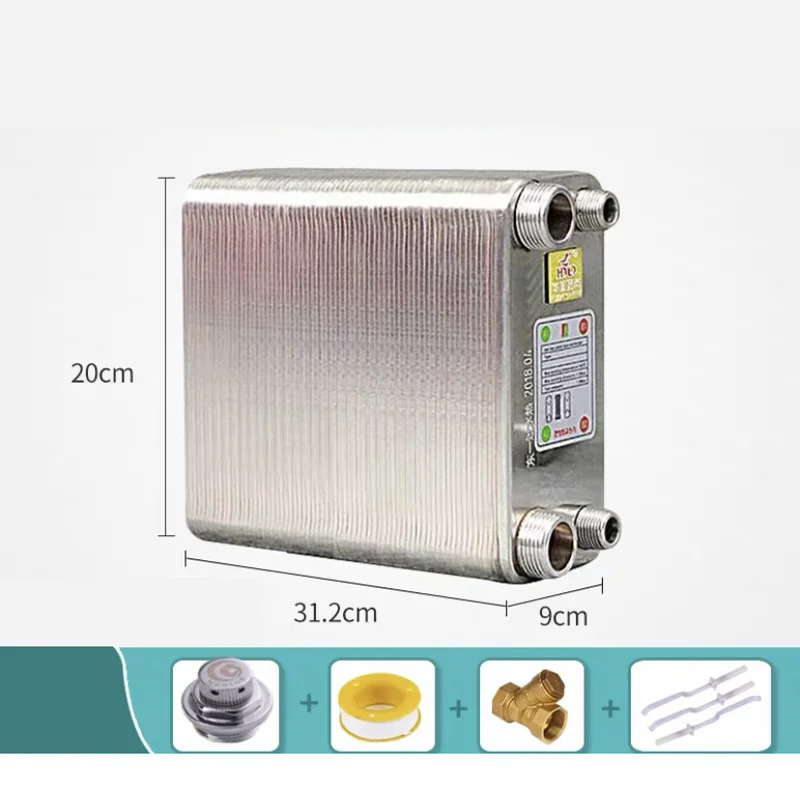

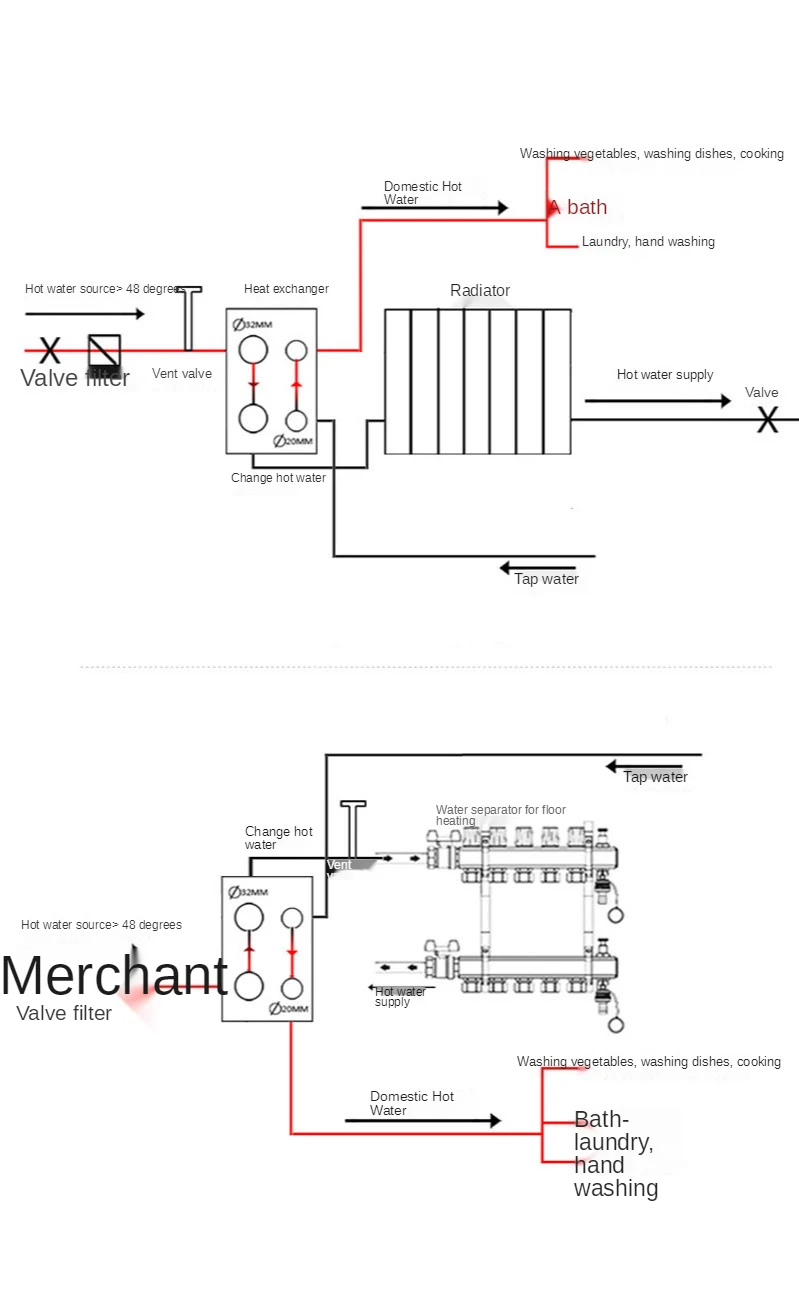

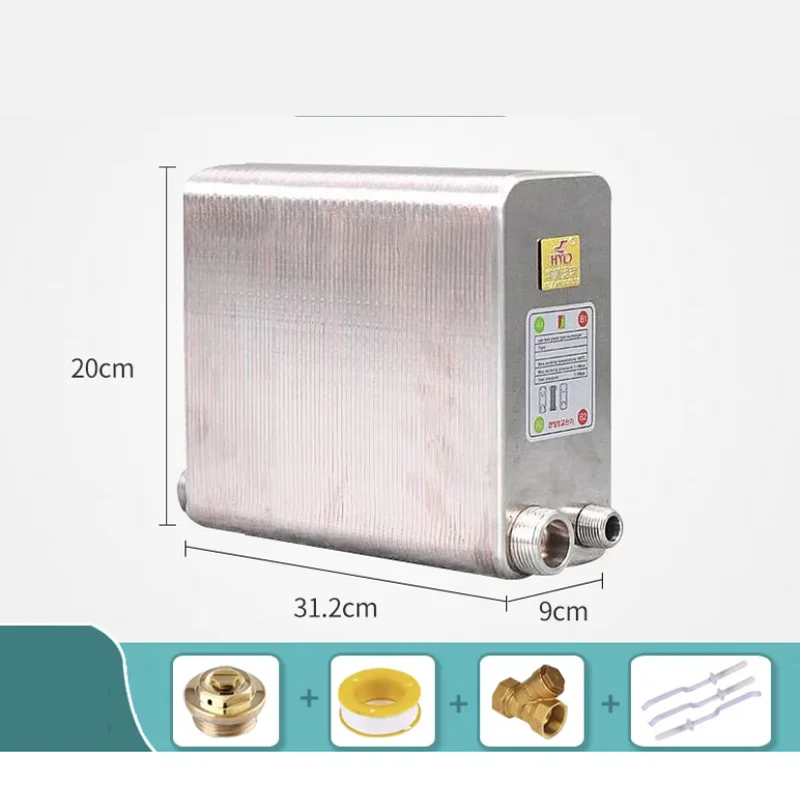

• a hundred Plates Stainless Steel Heat Exchanger Brazed Plate Type Water Heater Chiller Cooler Counter Flow Chiller 100. Plate warmth exchanger, compatible for home scorching water conversion, common heating, multi-channel heating switching, air energy, solar energy, multi-channel gasoline wall-hung boiler incorporated heating, wort beer cooling, non-pressure boiler to pressure, swimming pool, etc. Tap water interface: 20mm outer diameter Heating interface:25mm outer diameter preference (if you need 32mm outer diameter, go away a message to notify us of the interface caliber) Specification: Name: Brazed plate range heat exchanger Material:SUS 304 Stainless Steel, meals grade WeldIing Material: 99% Copper Application:Home Brew Wort Chiller, Famliy Hot Water delivery Thread of Port A1、A2:1/2" BSPT Male Thread of Port B1、B2:1" BSPT Male Plates Number: one hundred plates Heat Transfer Area/plate: zero m2(0 ft2) Thickness of One Plate:0 Max Flowrate:12 m3/H Working Temperature:-160 ℃ to + 185 ℃ Below 50 plates: suitable for laundry hands and face 60-80 plates: compatible for kitchen washing dishes and dishes. 100-120 plates: can support bathing, chiefly depends on the warmth source's capability to supply heat. Heat replace rate: 85% Heat supply heating capacity> 50 ° C hot water temperature, happy bathing Heat supply heating potential <50 ° C, sizzling water temperature, regular bathing experience (winter) Options Instruction: Same side: imply the 4 ports are within the same aspect Different side: mean the 4 ports are in numerous side, either side with 2 ports. Please want it per your individual demand. Thanks. Besides above 4 ports, there's an air vent on the warm temperature exchanger for 50 plates heat exchanger and above, this air vent's function is to avoid if there's some air remained in the exchanger and also you should launch the stay air so that the water can wade through when you first time use this heat exchanger. For diversified time, the air vent should be plugged with a plug.

•
•
•
•
•
