Description

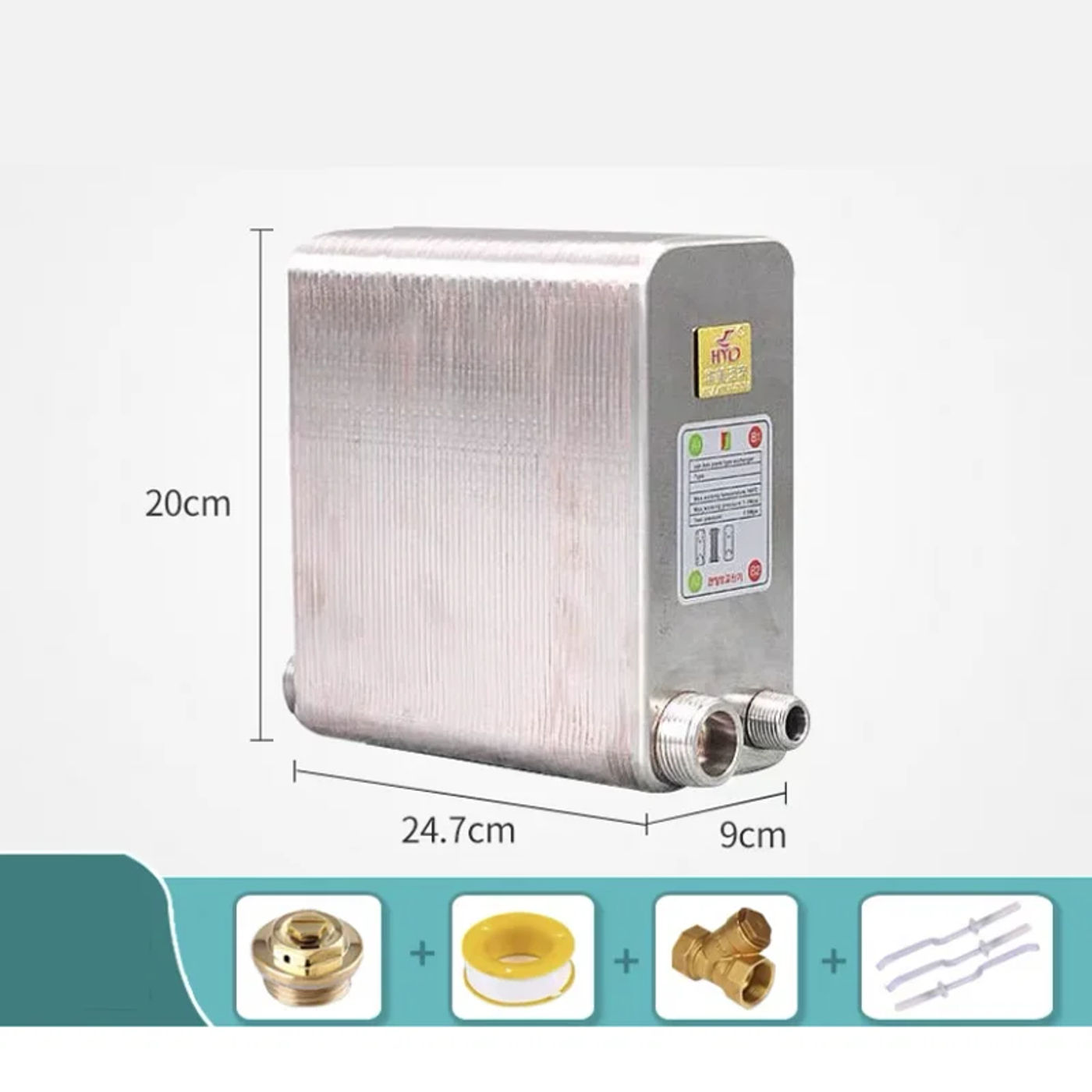

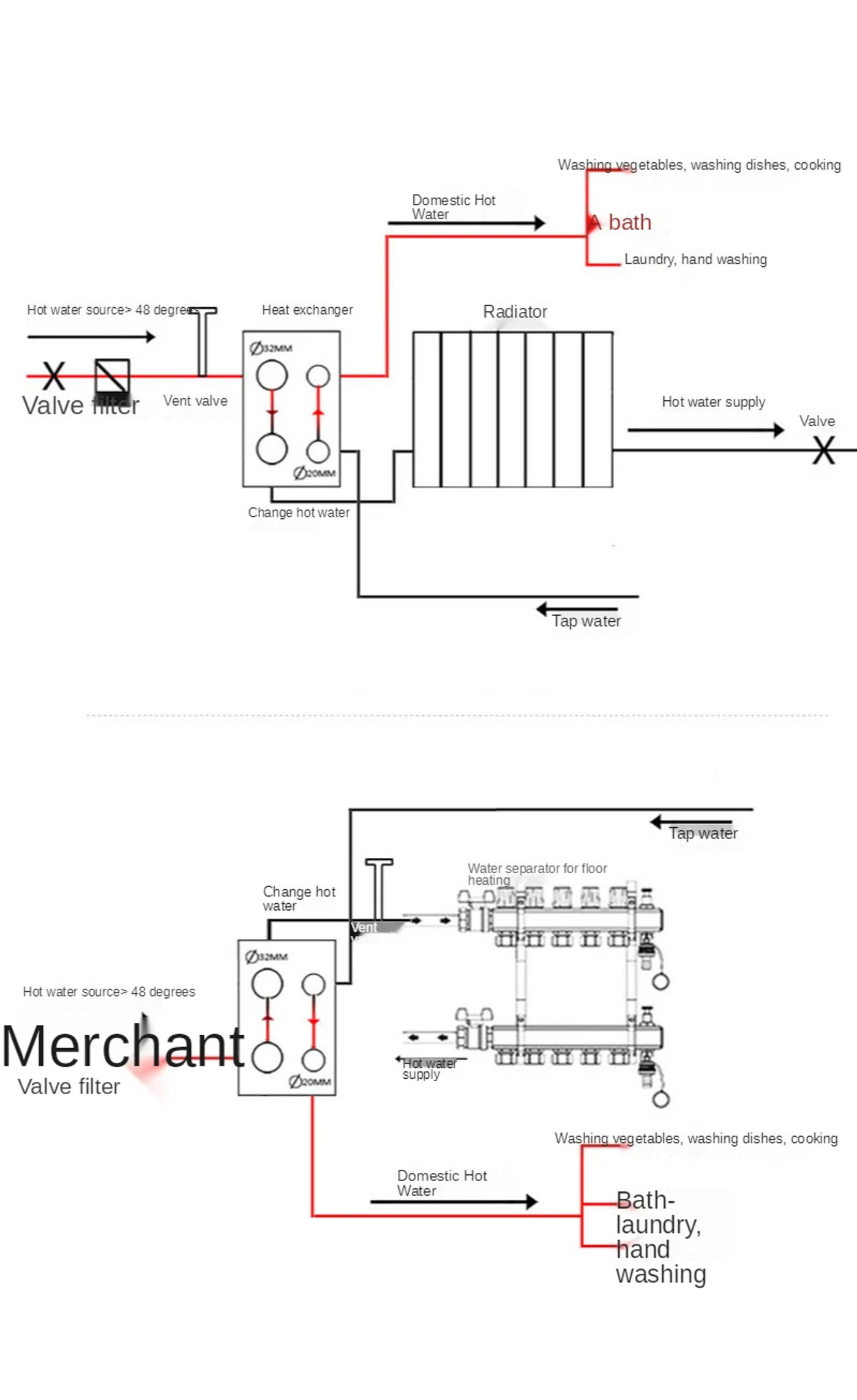

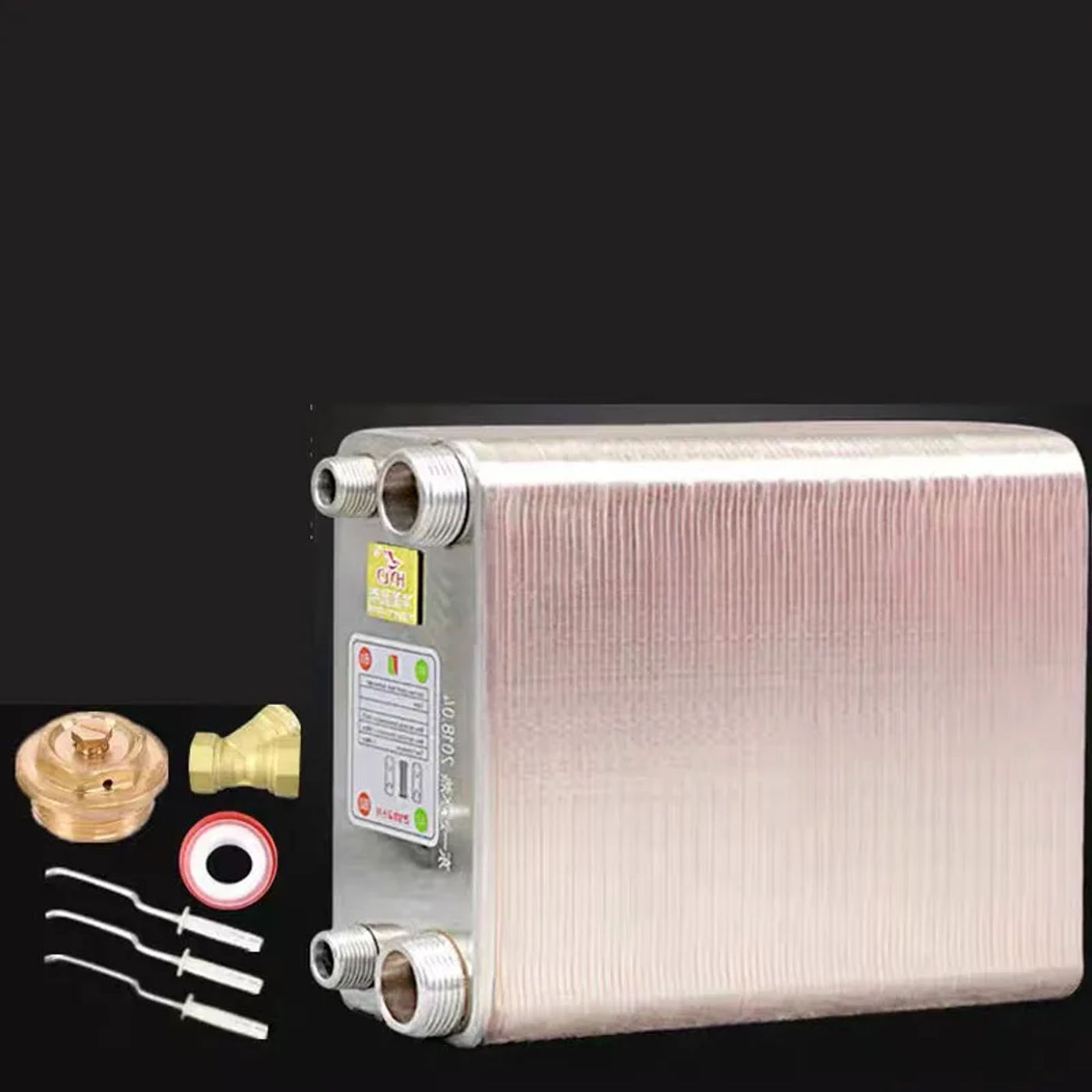

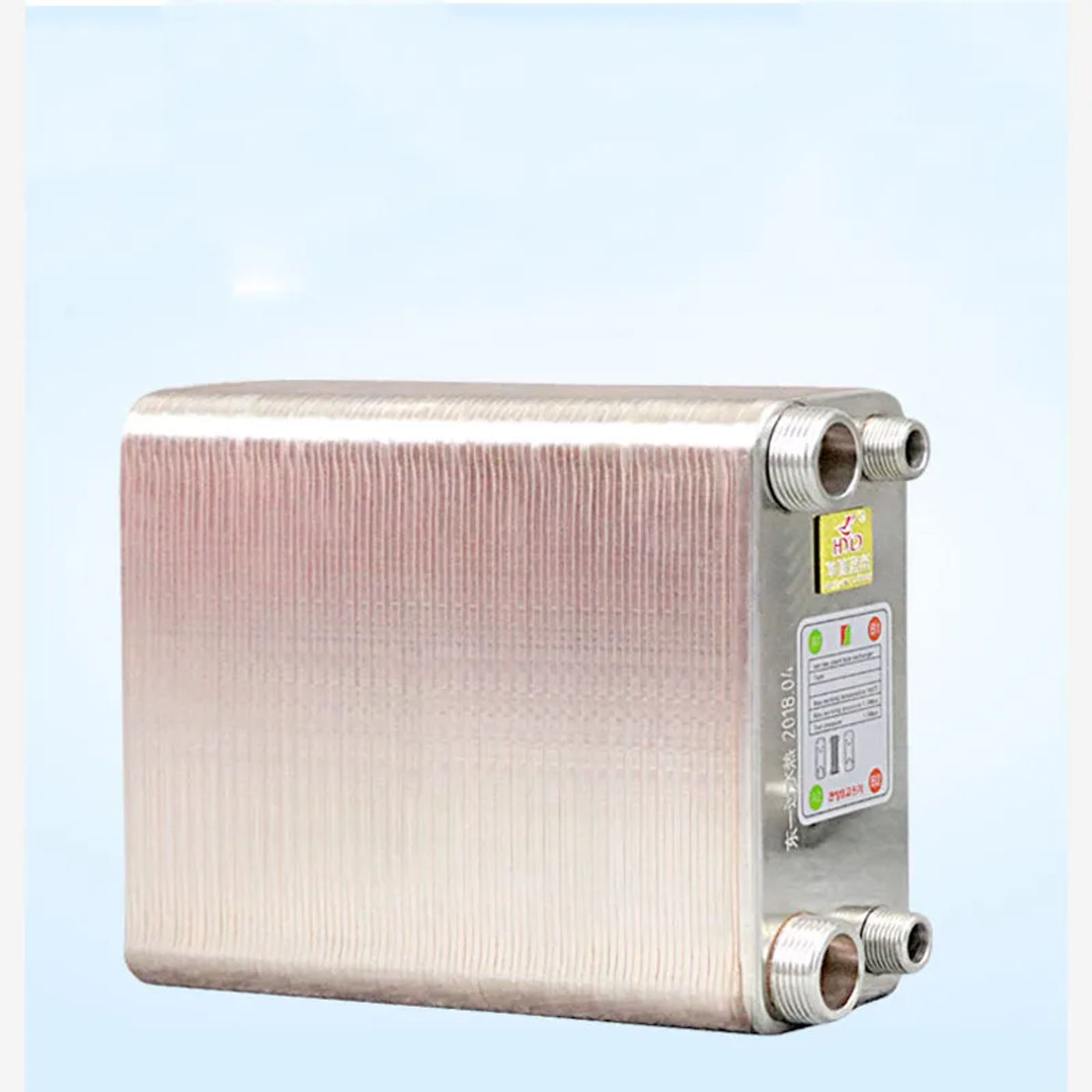

• eighty Plates Stainless Steel Heat Exchanger Brazed Plate Type Water Heater Chiller Cooler Counter Flow Chiller. Plate warmth exchanger, compatible for domestic sizzling water conversion, usual heating, multi-channel heating switching, air energy, solar energy, multi-channel gas wall-hung boiler included heating, wort beer cooling, non-pressure boiler to pressure, swimming pool, etc. Tap water interface: 20mm outer diameter Heating interface:25mm outer diameter alternative (if you would like 32mm outer diameter, leave a message to notify us of the interface caliber) Specification: Name: Brazed plate kind warm temperature exchanger Material:SUS 304 Stainless Steel, meals grade WeldIing Material: 99% Copper Application:Home Brew Wort Chiller, Famliy Hot Water transport Thread of Port A1、A2:1/2" BSPT Male Thread of Port B1、B2:1" BSPT Male Plates Number: 80 plates Heat Transfer Area/plate: zero m2(0 ft2) Thickness of One Plate:0 Max Flowrate:12 m3/H Working Temperature:-160 ℃ to + 185 ℃ Below 50 plates: suitable for laundry fingers and face 60-80 plates: compatible for kitchen washing dishes and dishes. 100-120 plates: can assist bathing, chiefly depends on the warmth source's capacity to supply heat. Heat exchange rate: 85% Heat supply heating capacity> 50 ° C hot water temperature, happy bathing Heat supply heating capacity <50 ° C, scorching water temperature, common bathing journey (winter) Options Instruction: Same side: mean the four ports are in the similar aspect Different side: imply the 4 ports are in several side, each side with 2 ports. Please desire it in step with your own demand. Thanks. Besides above four ports, there may be an air vent at the warm temperature exchanger for fifty plates warm temperature exchanger and above, this air vent's function is to circumvent if there could also be some air remained in the exchanger and you should launch the stay air simply so the water can struggle through when you first time use this warmth exchanger. For other time, the air vent must be plugged with a plug.

•
•
•
•
•
