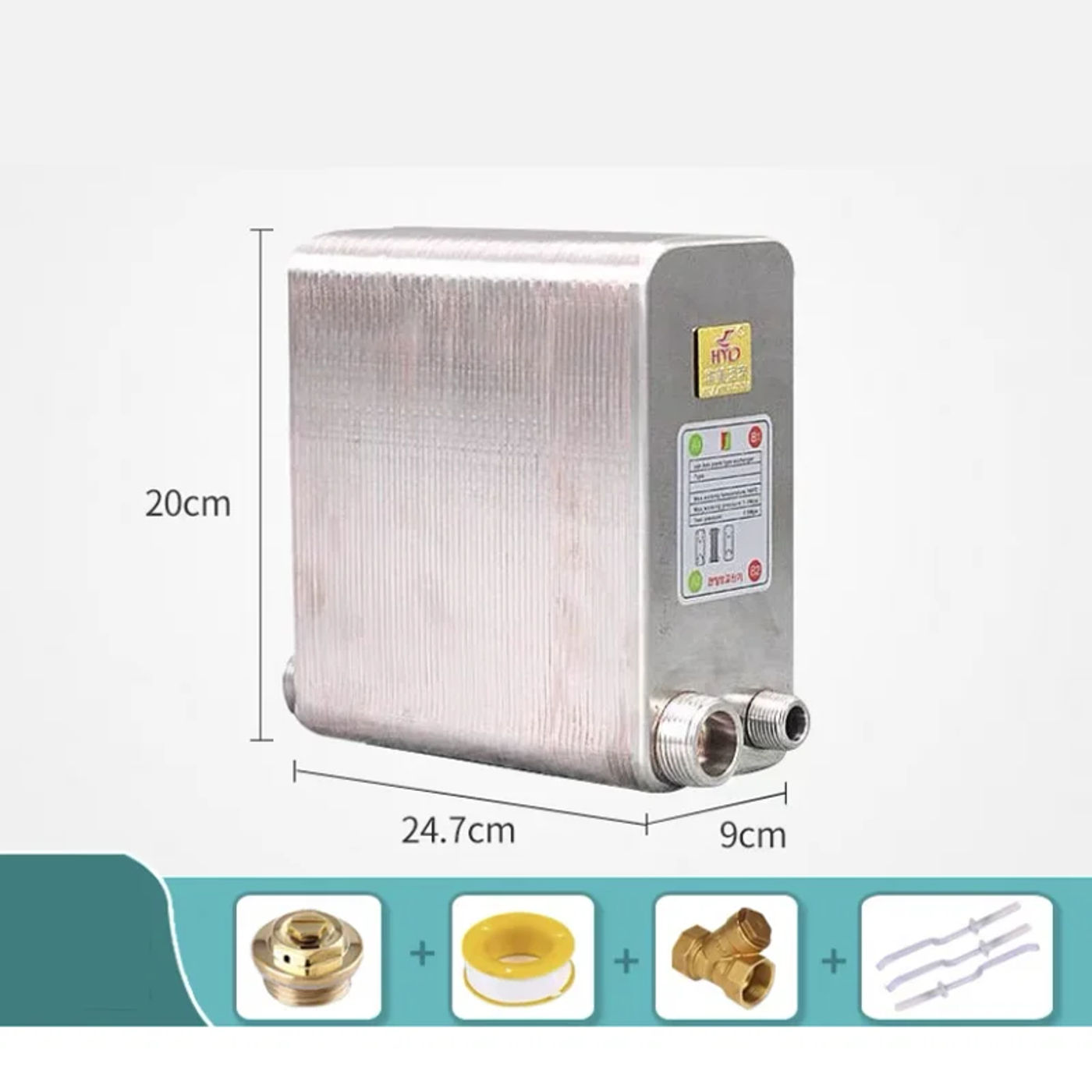

80 Plates Stainless Steel Heat Exchanger Brazed Plate Type Water Heater Chiller Cooler Counter Flow Chiller.
Plate warmth exchanger, suitable for home hot water conversion, standard heating, multi-channel heating switching, air energy, solar energy, multi-channel gasoline wall-hung boiler incorporated heating, wort beer cooling, non-pressure boiler to pressure, swimming pool, etc.
Tap water interface: 20mm outer diameter
Heating interface:25mm outer diameter desire
(if you wish 32mm outer diameter, leave a message to inform us of the interface caliber)
Specification:
Name: Brazed plate kind warmth exchanger
Material:SUS 304 Stainless Steel, food grade
WeldIing Material: 99% Copper
Application:Home Brew Wort Chiller, Famliy Hot Water delivery

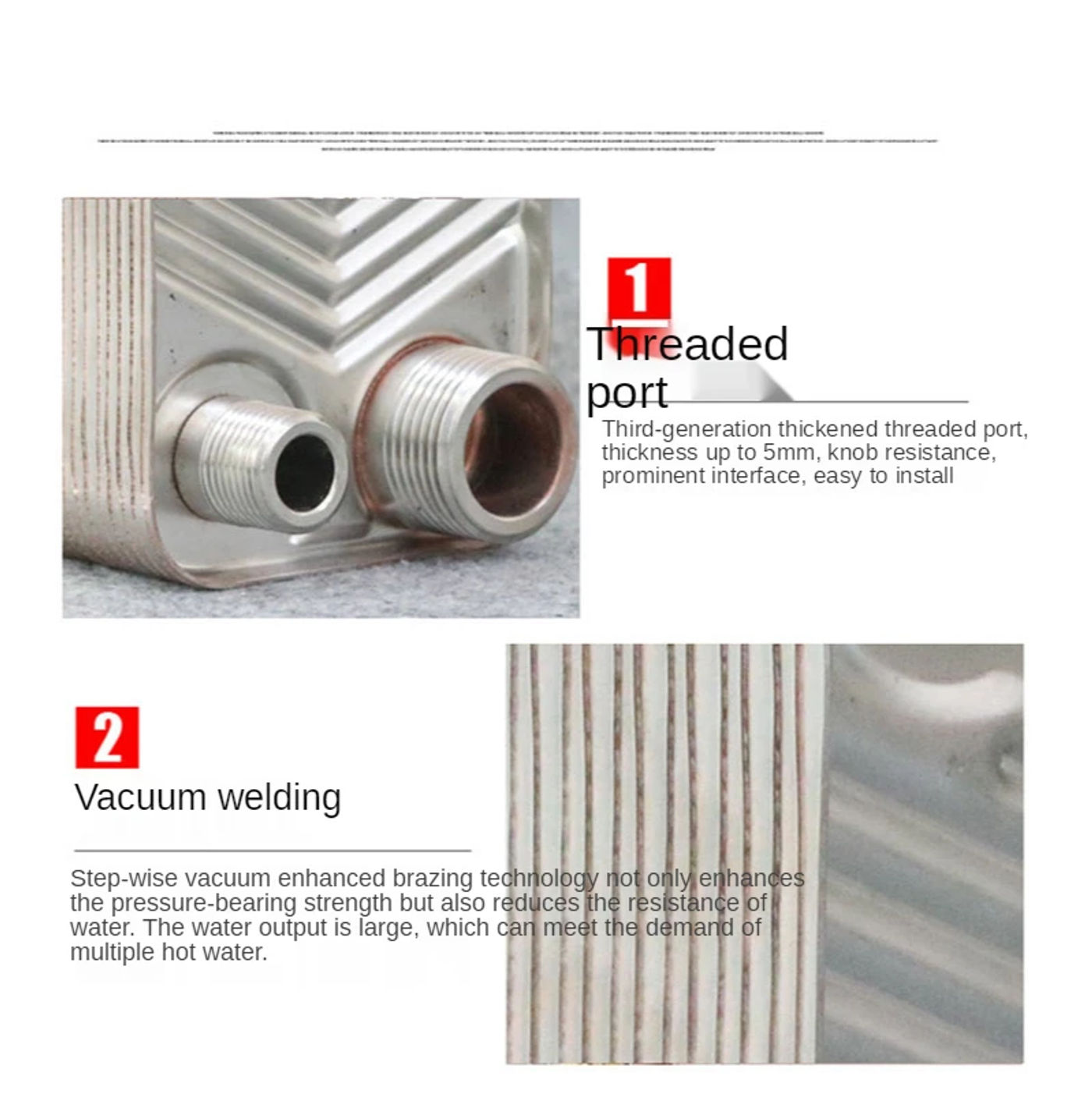

Thread of Port A1、A2:1/2" BSPT Male
Thread of Port B1、B2:1" BSPT Male
Plates Number: 80 plates
Heat Transfer Area/plate: zero m2(0 ft2)
Thickness of One Plate:0
Max Flowrate:12 m3/H
Working Temperature:-160 ℃ to + 185 ℃
Below 50 plates: right for washing palms and face
60-80 plates: suitable for kitchen washing dishes and dishes.
100-120 plates: can assist bathing, mainly relies on the warmth source's skill to offer heat.
Heat substitute rate: 85%
Heat delivery heating capacity> 50 ° C scorching water temperature, joyful bathing
Heat source heating means <50 ° C, hot water temperature, ordinary bathing experience (winter)
Options Instruction:
Same side: mean the 4 ports are within the same facet
Different side: mean the 4 ports are in several side, either side with 2 ports.
Please desire it in line with your individual demand. Thanks.
Besides above four ports, there may be an air vent on the warmth exchanger for fifty plates heat exchanger and above, this air vent's operate is to circumvent if there is some air remained within the exchanger and also you need to launch the stay air simply so the water can battle through when you first time use this heat exchanger. For different time, the air vent should be plugged with a plug.
