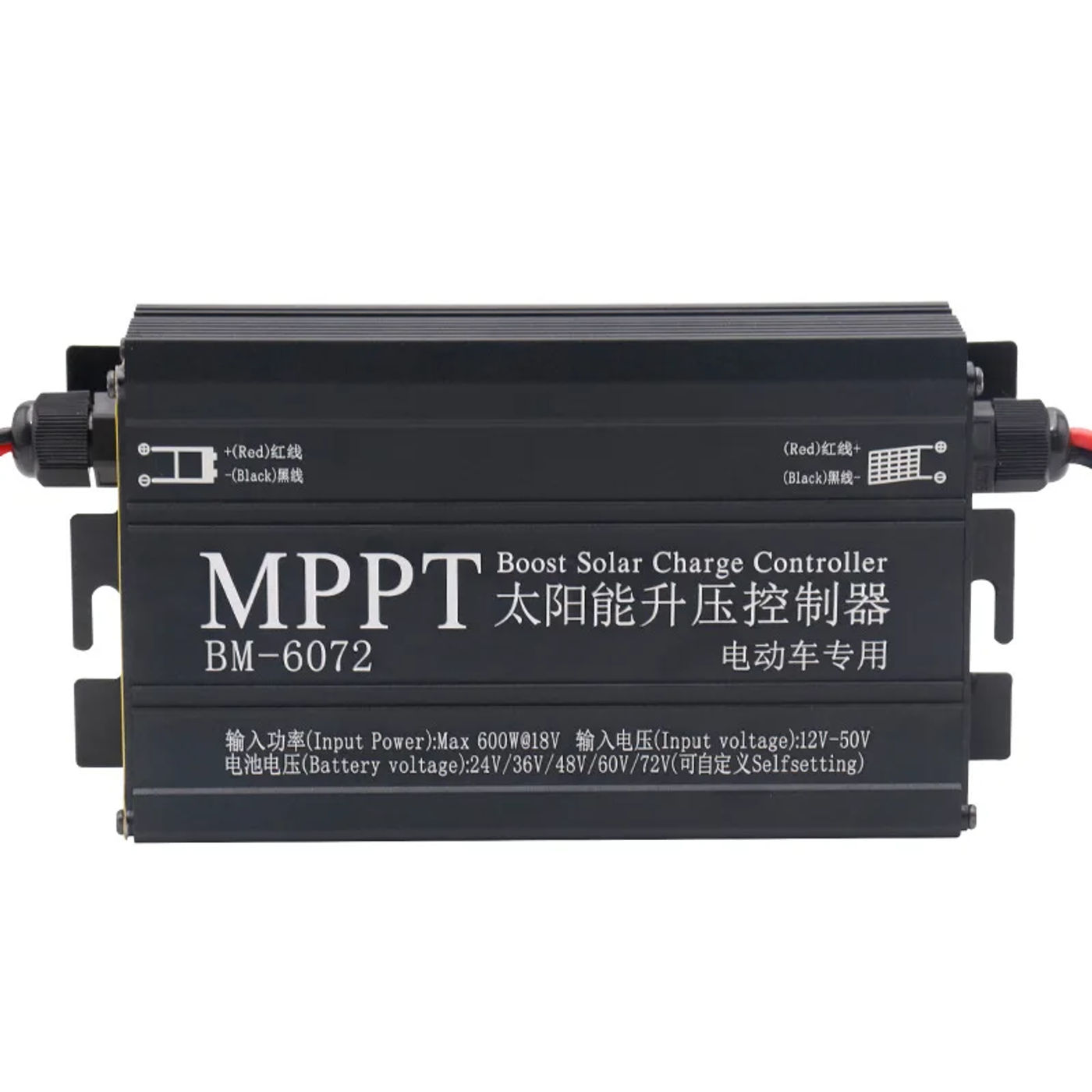

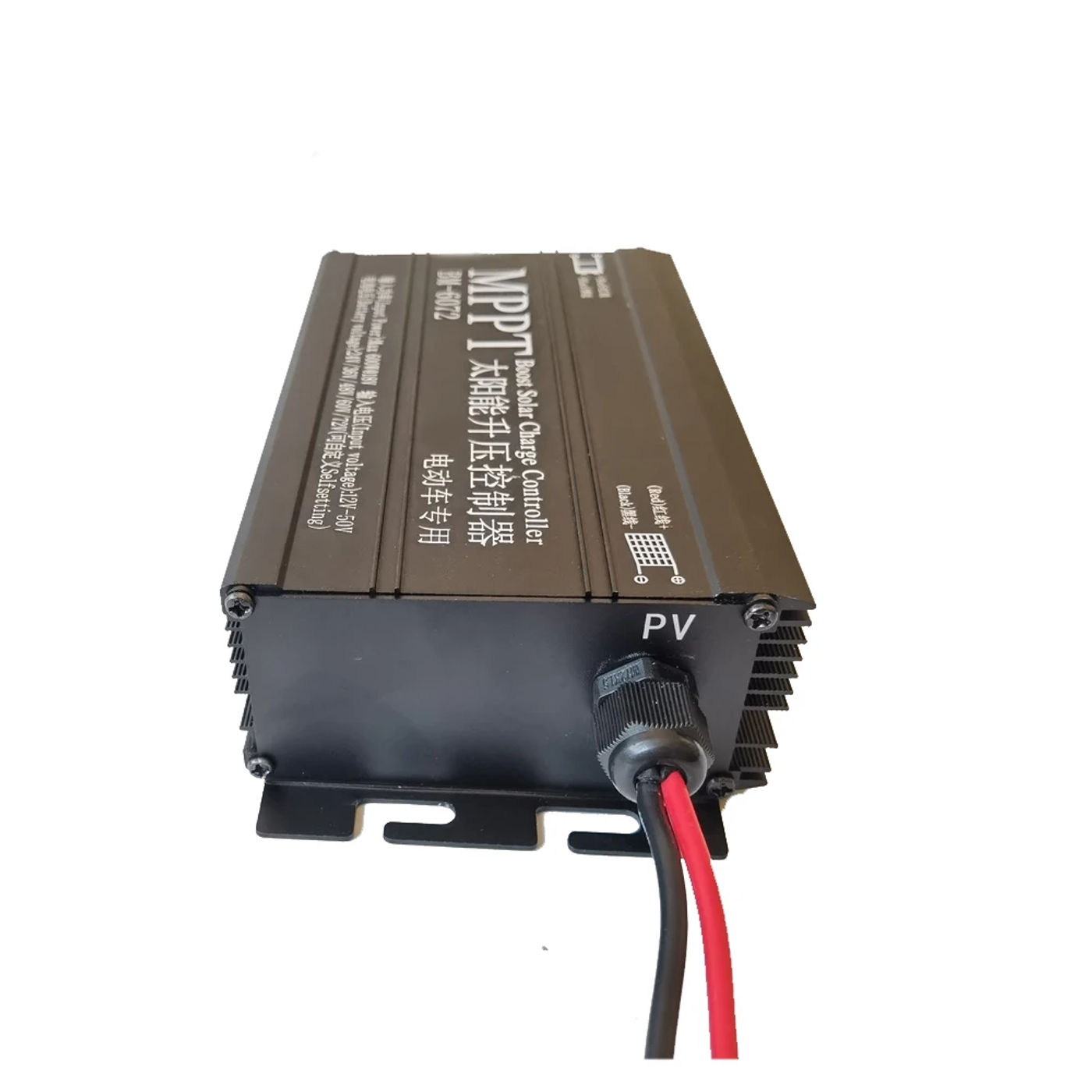

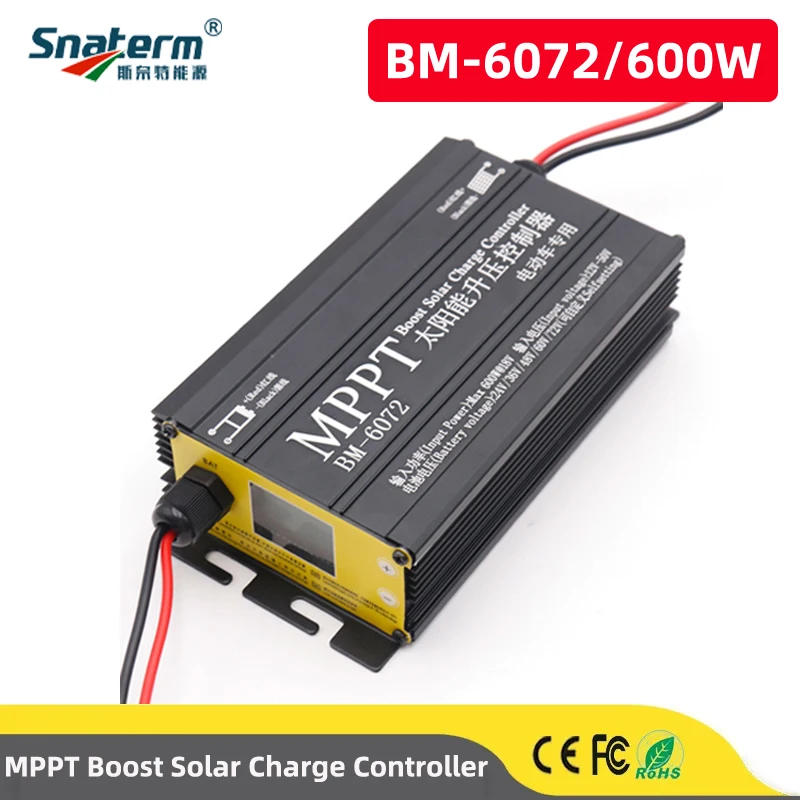

• Newly 600W MPPT Boost Solar Charge Controller LCD Display For24V 36V 48V 60V 72V Battery System Solar Panel 12-50V enter voltage Product traits 1 maximum strength tracking technology, up to 99% charging efficiency 2 panel width enter voltage 12-50V three type charging, assist 24V, 36V, 48V, 60V, 72V Battery and custom battery charging four high-precision battery voltage monitoring operate to forestall the incidence of battery overcharge five two keys, clear-cut and handy operation 6 display, display content information comprehensive, concise,easy to appreciate 7 panel take strength technology, standby 0 power consumption, evening would not work, will not devour battery strength eight little one lock function, after locked, exterior battery parameters cannot be set to forestall misoperation of the incorrect parameters to carry trouble, little one lock would not influence the electronic display and parameter question 9 product has a enormous area of efficient warmth dissipation, and multi-point high-precision temperature detection, flexible and correct control of charging power, for the product, within the safe ntemperature differ paintings escort 10 at the identical time because the city price Charger, the controller and city price charger don't affect each other 11 current-limited charging mode, when the ability of the panel is just too large, the charging latest is larger than the rated current, the controller routinely reduces the charging strength and makes it paintings on the rated charging current 12 Twelve Built-in over-temperature defense mechanism, when the temperature exceeds the set price of the device, the charging latest decreases linearly with the temperature, thus reducing the temperature upward push of the controller to bypass high temperature harm thirteen Adopt metal shell, warmth dissipation functionality is healthier Points to note 1 Because the applied voltage of this controller exceeds the secure voltage of human body, please read the manual closely before operation and function the controller after the Safe Operation Training 2 There is not any need to preserve or repair the internal controller components, users do not disassemble and repair the controller 3 This product only permits to charge the battery, can't supply strength to different varieties of load 4 this product is a lift Charge controller, the photo voltaic panel voltage is needed to be less than the battery voltage 5 Please install the controller in a well-ventilated place, the temperature of the heat sink will be very excessive when working 6 Before installing the controller, please make sure that the voltage is in line with the battery voltage It is forbidden to charge the excessive voltage to the low voltage 7 Be certain to disconnect the PV array and the fuse or circuit breaker near the battery ter minals before installing and adjusting the controller wiring 8 installation, test all wiring connections are tight, to bypass the chance of heat accumulation thanks to virtual connection 9 the photo voltaic panel wisely after ending the battery, join the fine and unfavorable poles of the photo voltaic panel correctly according to the indication, position the solar panel within the outside sunlight, join properly if the demonstrate of the controller is dis played If the high-quality and unfavorable poles of the photo voltaic panels are connected back then the controller cannot paintings properly, the video display does not demonstrate any Specification call value form BM-3072 BM-4072 BM-6072 PV Input Voltage 12V ~50V PV Max Current 16A 22A 33A PV Max Power 300W@18V 400W@18V 600W@ 18V Battery type 24V/36V/48V/60V/72V/Self setting (Default 48V) Battery overcharge defense voltage 28(24V System)/ 43(36V System)/ 57(48V System)/72V (60V System)/ 86(72V System)/ Custom voltage No-load loss < 20mA Conversion performance > 97% MPPT Tracking eficiency > 99% Operating temperature -20°C ~+65°C Protection point Ip65 NET weight 0 0 zero Gross weight 0 0 0 Electromagnetic compatiblity EN61000,EN55022,EN55024 Product dimensions 133*93* 45mm 153 *93*45mm 183*93*45mm 1、Display page switching: ordinary operating state, short press any key to switch reveal page, Run the web page normally-> Parameter to query the web page 2、Parameter settings: non-setting state and not set little one lock, long press" -" key 5 seconds to go into the battery variety settings, battery icon flashing Shor Press"+"or"-" to choose the objective battery type,Lead acid (24V-> 36V-> 48V -> 60V->72V) -> Custom( Can be set 24V~ 88V) within the custom option state, long press"-" key for two seconds to enter the tradition voltage settings, brief press"+"or"-" 0 V each time to adjust the targ et voltage, long press " + " or"-"to quickly alter the objective voltage 10 seconds keyless operation routinely save settings parameters, and exit the present settings, set the page back to the major running page At this point, you could possibly short-press any key to question whether the environment parameters event the ideal environment parameters 3、Child lock function: common working state, on the similar time lengthy press"+" key and"-" key 5 seconds, you might liberate or set youngster lock The screen shows the child lock icon to indicate that the kid lock is released and the parameters could be set If the screen does not show the kid lock icon, the parameters can not be set If you would like set parameters, you need to liberate the child first ①Charging reputation chart During charging, the entity within the arrow flashes at 1 Hz Uncharged display only, arrow outline box ②PV panel icon Show regularly ③PV input voltage latest PV panel voltage and PV panel current interval of 5 seconds alternating demonstrate ④Child Lock emblem Display signifies that a parameter can be set, now not display signifies that it's going to no longer be set ⑤Failure identification PV panel related to excessive voltage, failure icon reveal ⑥Battery energy display, temperature display Battery price and controller temperature are displayed alternately at 5-second intervals ⑦Battery charging voltage, recent Battery voltage and battery current are displayed alternately at periods of five seconds ⑧Lead-acid battery form Indicates the present variety of lead-acid battery ⑨Custom Battery type Indicates the present tradition battery kind

•
•
•
•
•
