Description

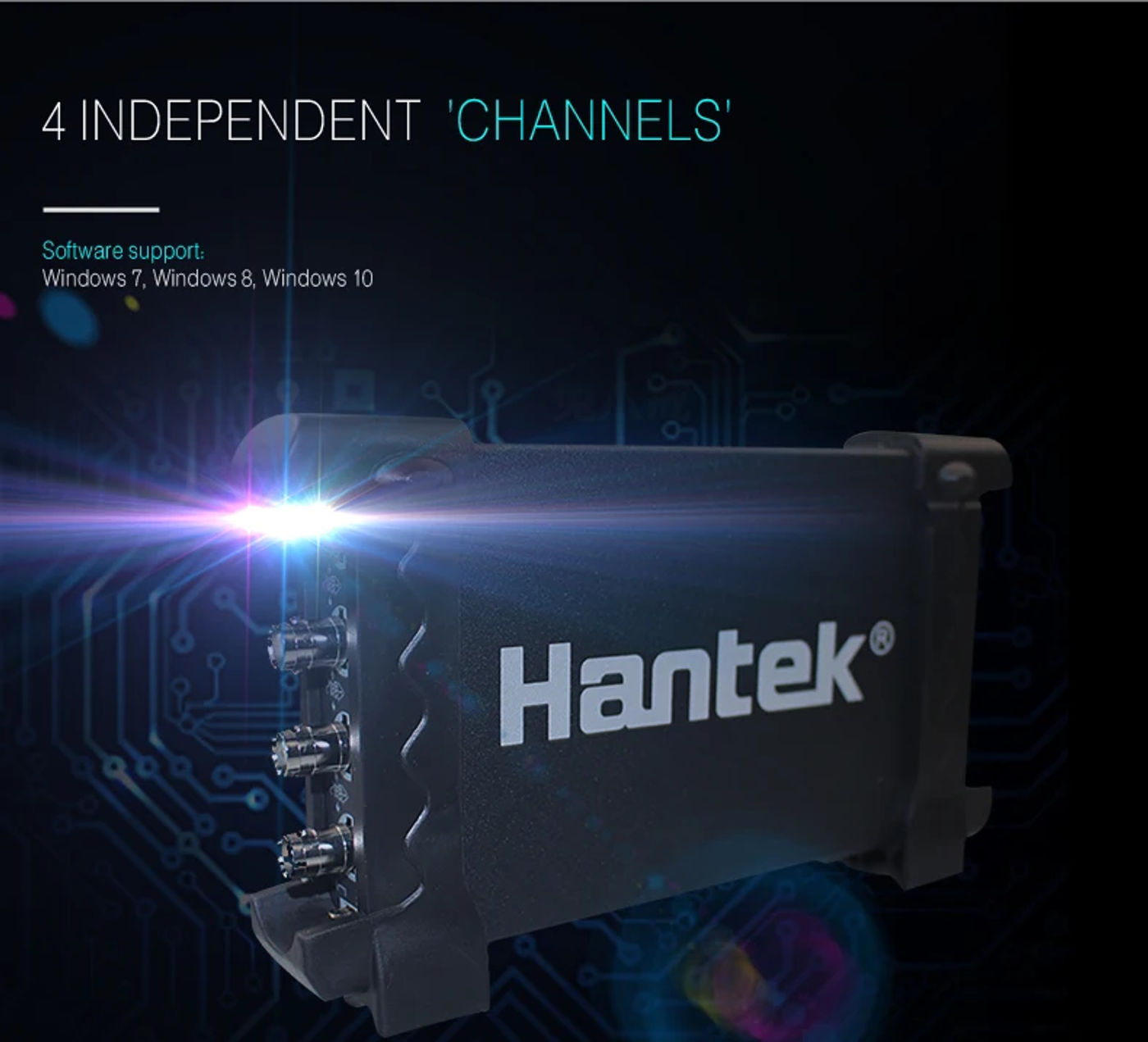

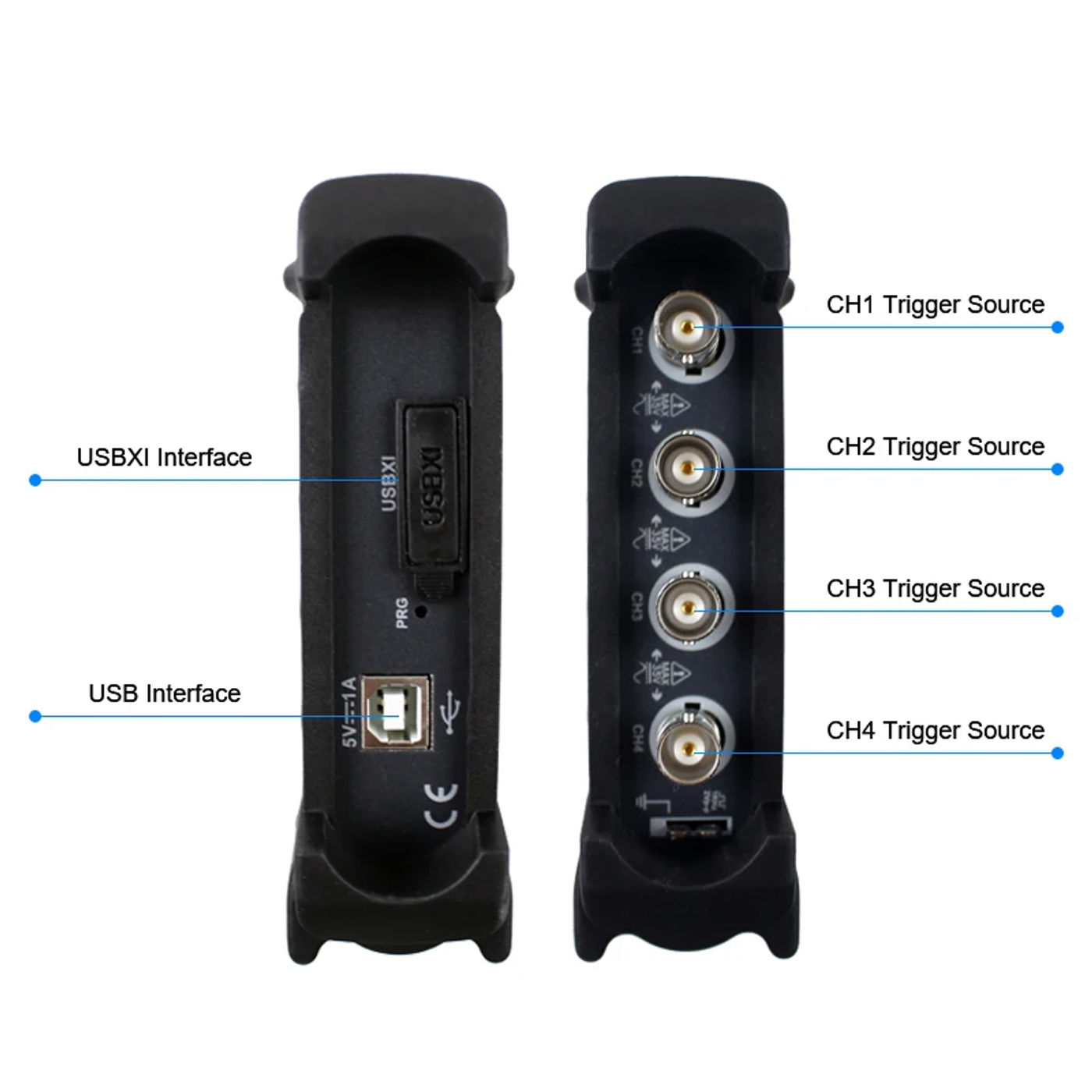

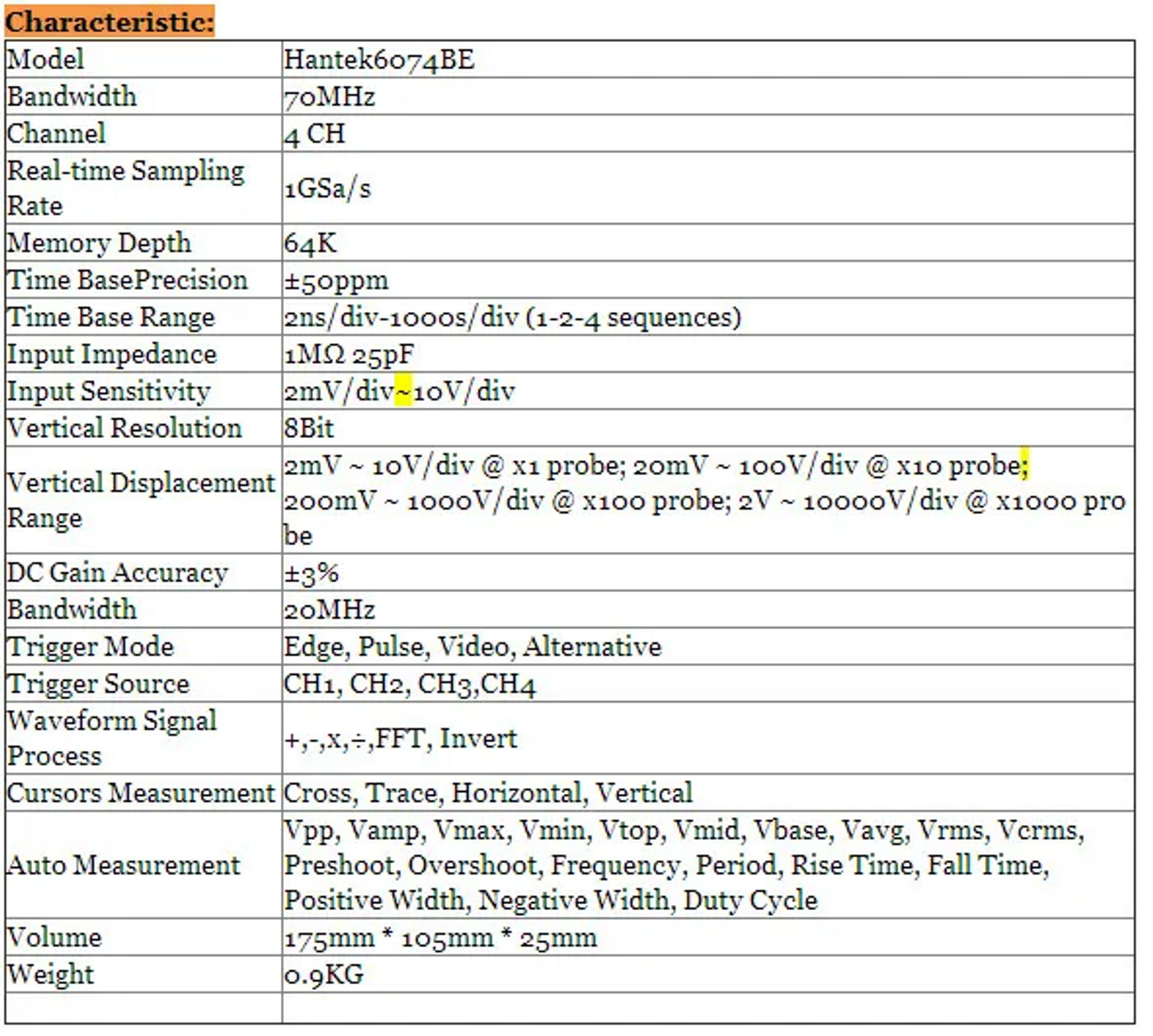

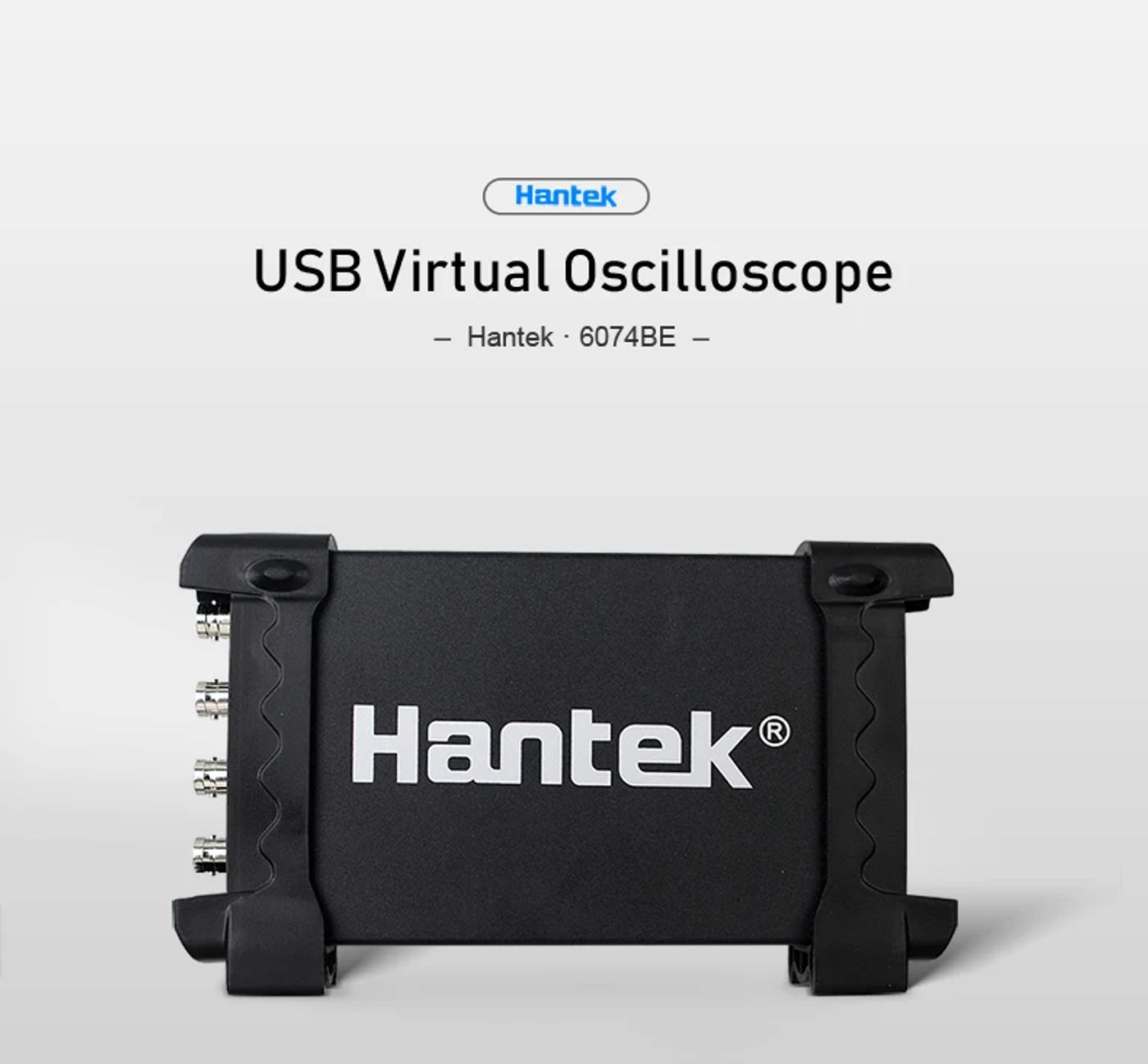

• Hantek 6074BE/6074BC/6074BD 6074BE is a four channel automotive oscilloscope 6074BC is a regular 4 channel oscilloscope 6074BD is a standard 4 channel oscilloscope with a sign generator USB Digital garage oscilloscopes, transportable oscilloscopes 4 channels 70MHz bandwidth automobile oscilloscope Hantek6074 Series 6 height advantages： 1 geared up over 80 varieties of automotive measurement function (Ignition Action/The Sensor/Bus Diagnosis/Performer/Startup&Charge); 2 2 interface plug and play, and no use extra power supply; 3 capsule PC; Support WIN10/ WIN8/WIN7 and so on 4 application upgrading constantly, greater charge performance; five USBXI, smooth to function four remoted channels oscilloscope, 1GSa/s genuine time sampling rate, 2mV-10V/DIV high input sensitivity and large input range, 70MHz high bandwidth, small size, smooth for wearing 6 cursor tracking, waveform checklist and replay function As the appearance of the product is upgraded, the color may be slightly different, nevertheless it won't affect the use The distinction is The 6074BC does not have a vehicle test choice function, and other functions are the same as the 6074BE The 6074BD has a couple of sign generator and does not have the car check option function， Other applications are similar to the 6074BE operate Feature Standard equipped over eighty kinds of automobile measurement function;First Diagnosis: Intake manifold vacuum ignition,Petrol fumes adjusting valve vacuum ignition,Idle exhaust ignition, Starting exhaust ignition;Ignition: most important and secondary;Sensor:Air Flow Meter, Camshaft, Crankshaft, Distributor, Lambda sensor, Throttle position;Bus Diagnosis:CAN bus data examine, CAN bus sign integrity, CAN bus LH very long time acquisition, LIN bus;Performer: Petrol/Diesel Fit for the portable computers, table PC, and suitable for wild mobile use and business journey use Support WIN10/ WIN8/WIN7 and many others USB 2 interface plug and play, and no need extra power supply; Great function, More than 20 varieties of computerized dimension function, PASS/FAIL Check function Resourceful trigger function, dynamic cursor tracking, waveform list and replay function Good mechanical design with small length which is easy for sporting The outer case is made by a similar material with iPad - Anodised aluminium It has super heat resistance and abrasive resistance with exquisite look The hardness of aluminium alloy surface is drastically advanced four isolated channels oscilloscope, 1GSa/s real time sampling rate, 2mV-10V/DIV excessive input sensitivity and big enter range, 70MHz high bandwidth The waveform data can be output to EXCEL,BMP,JPG Waveform averaging, afterglow,lightness control, reverse, add, subtract, multiply, divide, X-Y reveal FFT spectrum analyzer One computer might connect to multiple oscilloscopes, expand the channel number easily Provide secondary development library DLL; Provide Labview\VB\VC\QT establishing example

•
•
•
•
•

Review
