Description

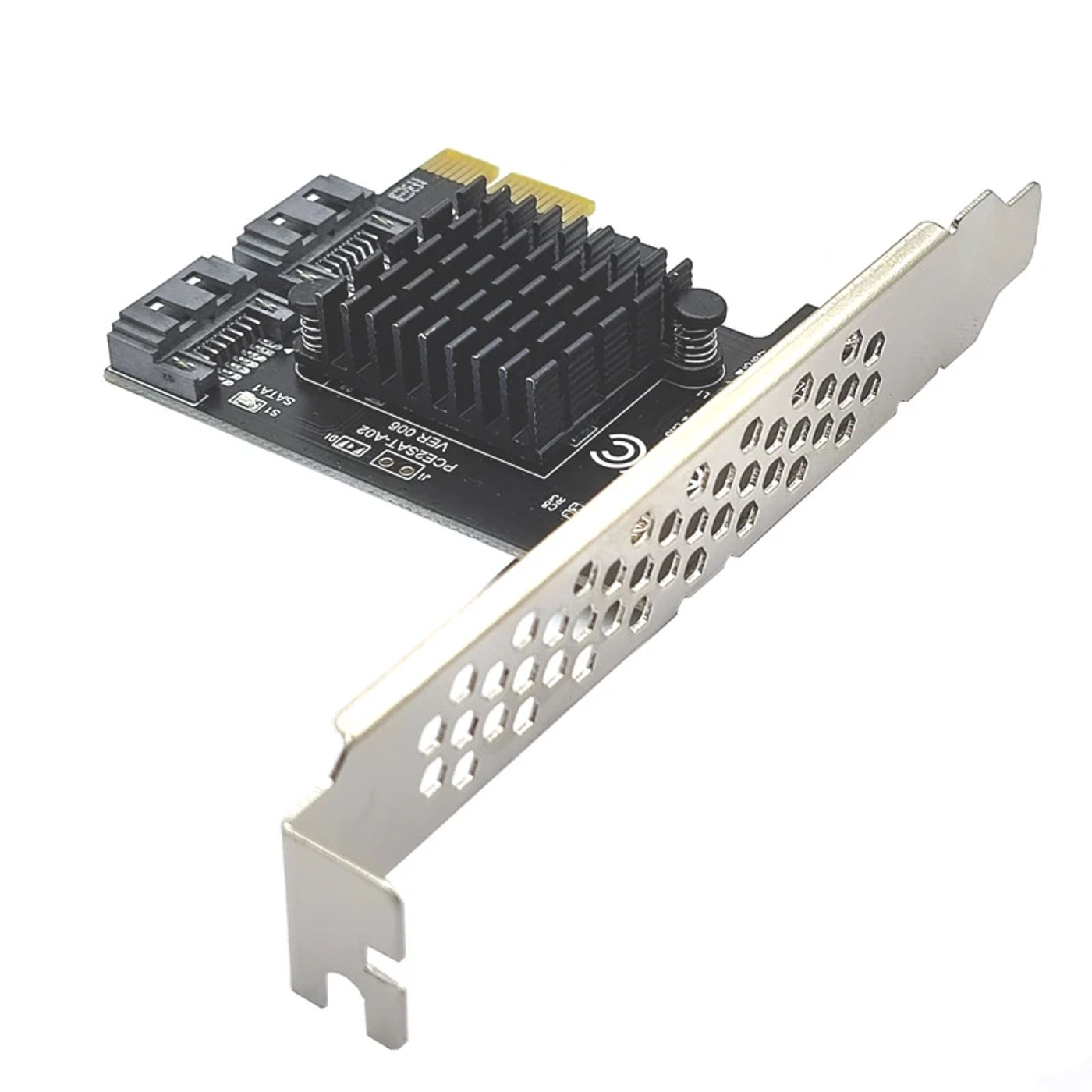

• PCI-E SATA 1X 4X 8X 16X PCI-E Cards PCI Express to SATA three 2-Port SATA III 6Gbps Expansion Adapter Board with ASMedia 1061 chip About Description: Feature: 1 Compliant with Serial ATA Specification 3, down well matched with SATA2 SATA1 2 Conformance to PCI-Express v2 specifications, down well suited with PCI-Express v1 three Supports conversation speeds of 6,3 and 1 four Supports Gen 1i,Gen 2i,Gen 2m, Gen 2x and Gen 3i five Supports two SATA Ports 6 Supports AHCI 1 and IDE modes 7 Supports Native Command Queuing(NCQ) eight Supports Port Multiplier FIS based switching or command founded switching 9 Supports Hot Plug and Hot Swap 10 Compatible with SATA 6G,3G and 1 Hard Drives Specification: Product interface: PCI-E 1X 4X 8X 16X Chipest: ASM1061 Support specification: SATA3 7PIN Bus interface: PCI-Express X1 slot Extension interface: 2 SATA3 interfaces System requirements: there's an obtainable PCI Express X1 slot, while supporting PCI-E X2 X4 X8 X16 Operating system: Windows10/8/7 (32/64 bit) / Vista (32/64 bit) / XP/2003/2008/linux Kind Tips: 1 With SATA3 records cable to realize the best results 2 PCI-E X1 or X16 must be it is V2 version, PCI-E V1 pace will not exceed 250M, we propose immediately inserted On the X16 slot, the pci-e x16 assuredly is v2 3 BOIS surroundings of the motherboard: SATA mode needs to be replaced to AHCI, even supposing some motherboard PCIE is edition 2, but BOIS does not enable high-speed transmission mode through default (gen2 high pace mode) ought to be manually turned on Thanks! You&;ll receive: 1 x PCI-E to SATA three Extension Card 1 x High Profile Bracket 1 x Low Profile Bracket Please verify photos for extra particulars

•
•
•
•
•
