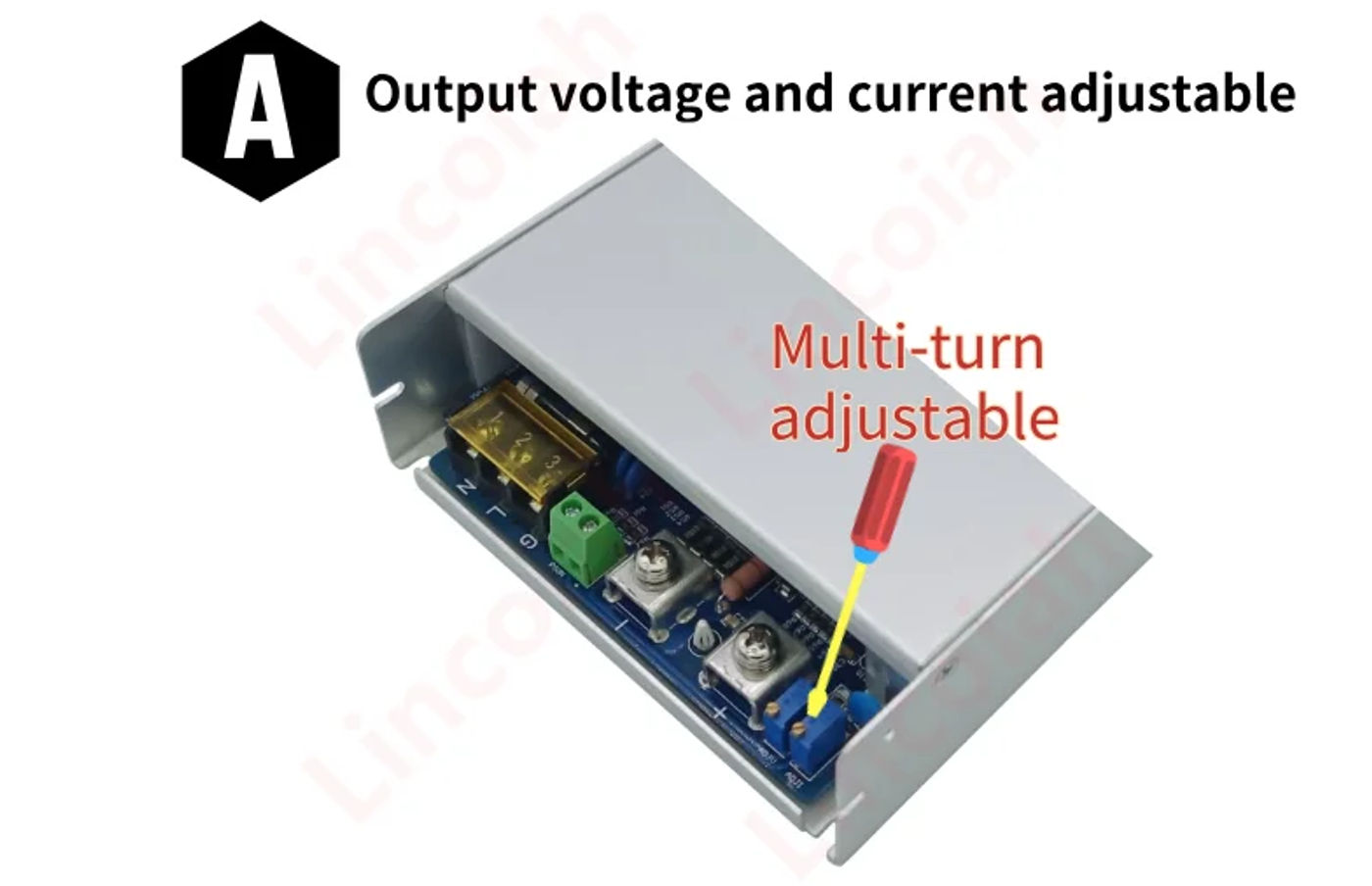

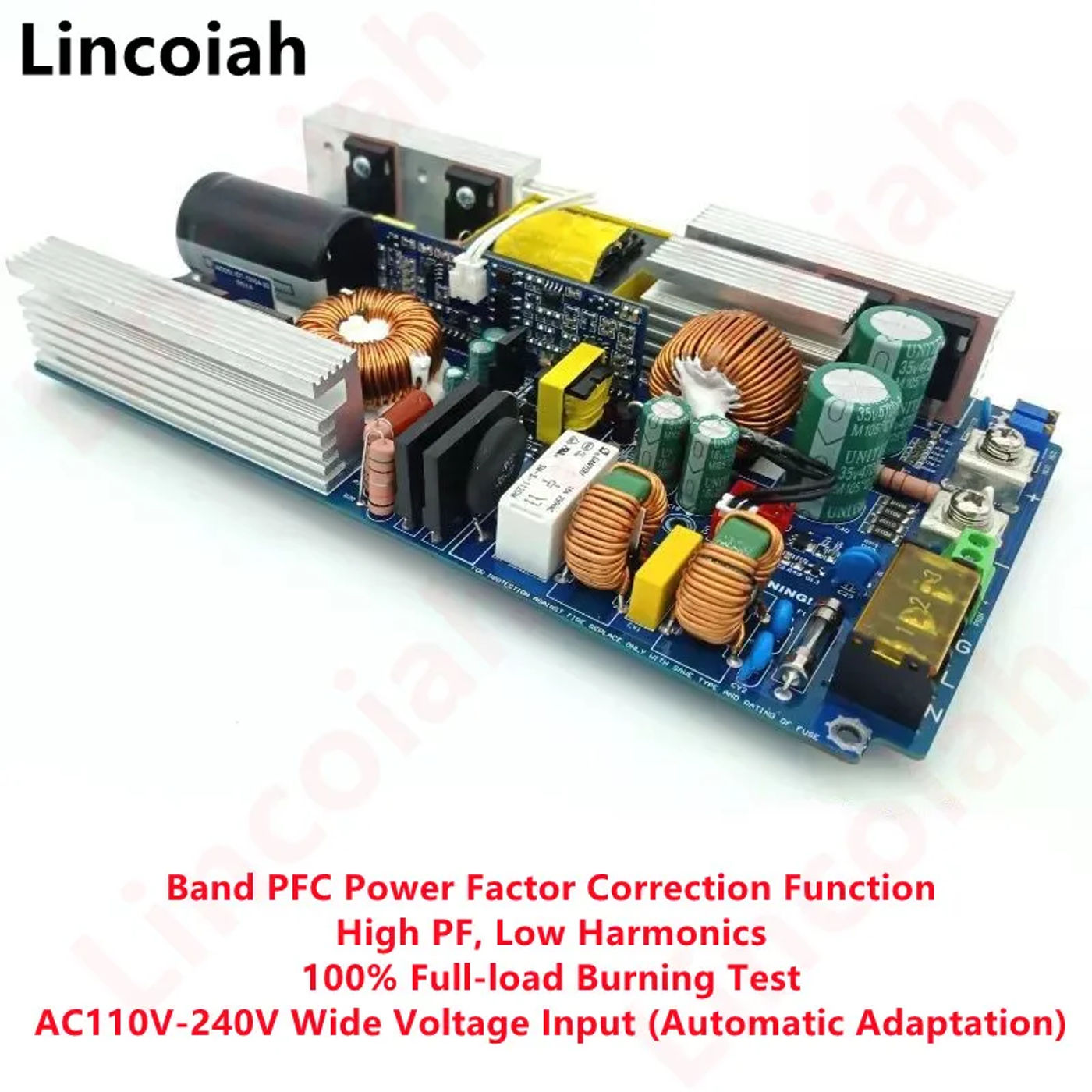

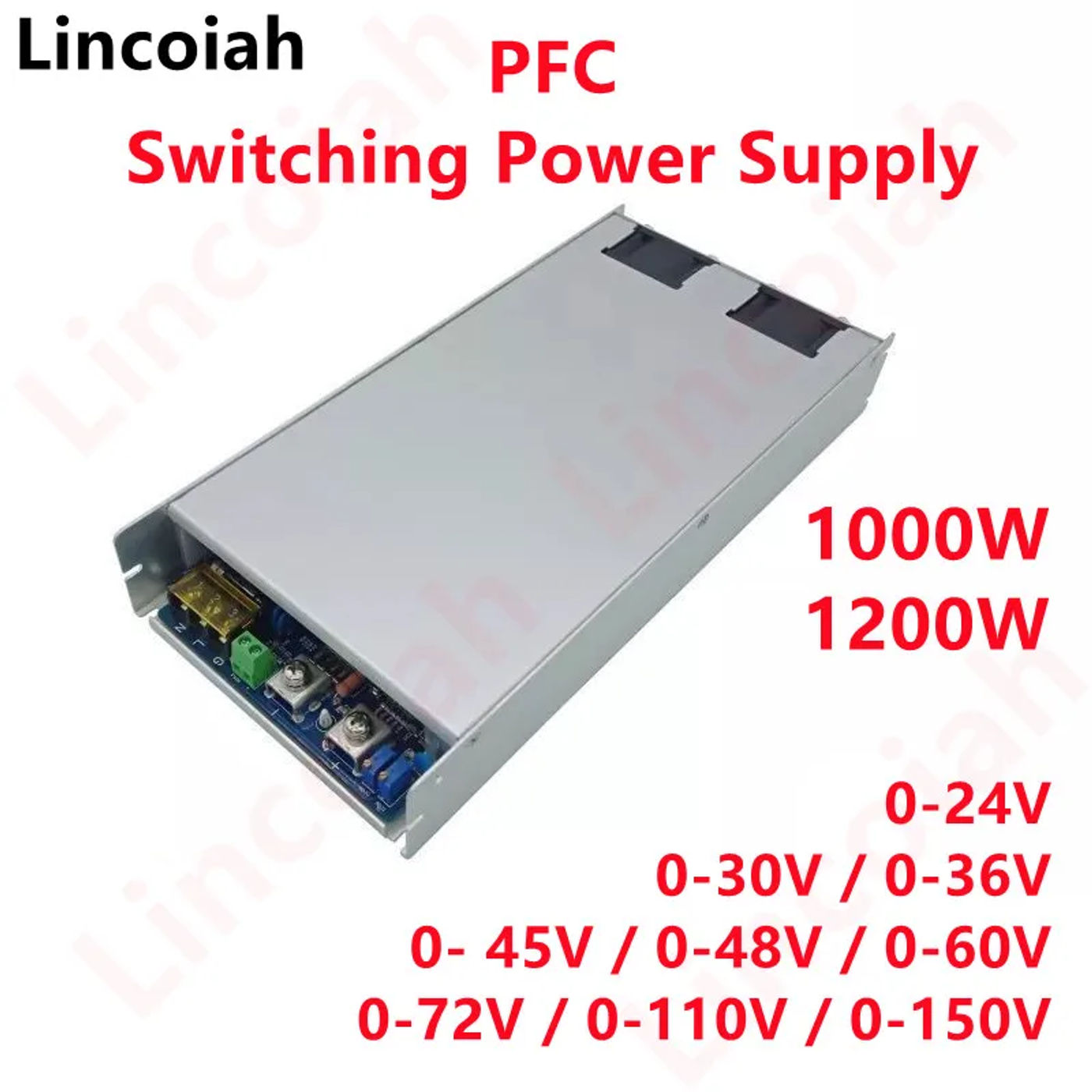

• LincoiahAdjustable Voltage 0-24V 30V 36V 45V 48V 60V 72V 110V 150V PFC Switching Power Supply For Led 1000W 1200W 110V/220V Ac/Dc SmpsFeature Over load defense Over voltage protection Short circuit defense Over temperature defense More strength substitute savings and fewer energy wasting, it really works more efficient PCB & Cover are manufactured with fireproofing materials Low ripple and noise Model S-1200PFC INPUT AC enter voltage range(V) AC 110V-240V Input current(A) 5A/230VAC 10A/110VAC Frequency (Hz) 50/60Hz Efficiency 91%(230VACFull Load) Inrush current(A) AC 50A/230VAC 25A/110V Leakage current(mA) <3/240VAC output Output Voltage(V) 24V30V36V45V48V60V72V110V150V Voltage Regulation 0V~Rated output voltage Rated Power(W) 1000W/1200W Start time, hold-up time(ms) 1500ms/230VAC Rise time(ms) 50ms at Full Load Ripple/Noise(MVP-p) 120mVp-p Environment working Temperature (°C) -20 centidegree to+60 centidegree Storage Temperature(°C) -25 centidegree to+85 centidegree Humidity 20% to90%RH non condensing Protection Over voltage Protection >115%-135% Rated output voltage Over load Protection >110%-130% Auto recovery Short circuit Protection When the output terminal is short circuited, the flexibility delivery has no voltage output, and the ability delivery recovers the output voltage after the fast circuit is removed Others Size L*W*H(cm) 26*13*4cm Brand Lincoiah

•
•
•
•
•
