Description

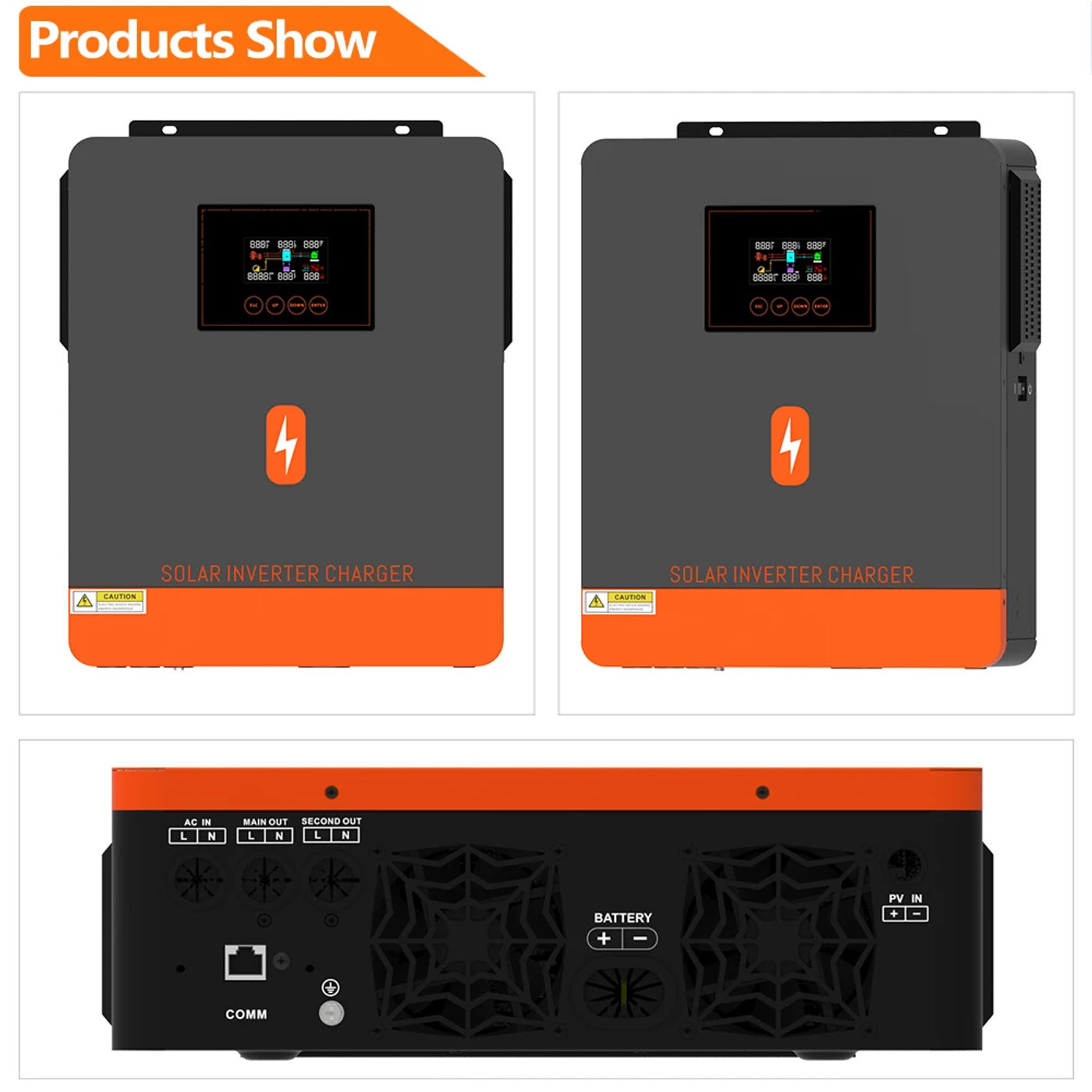

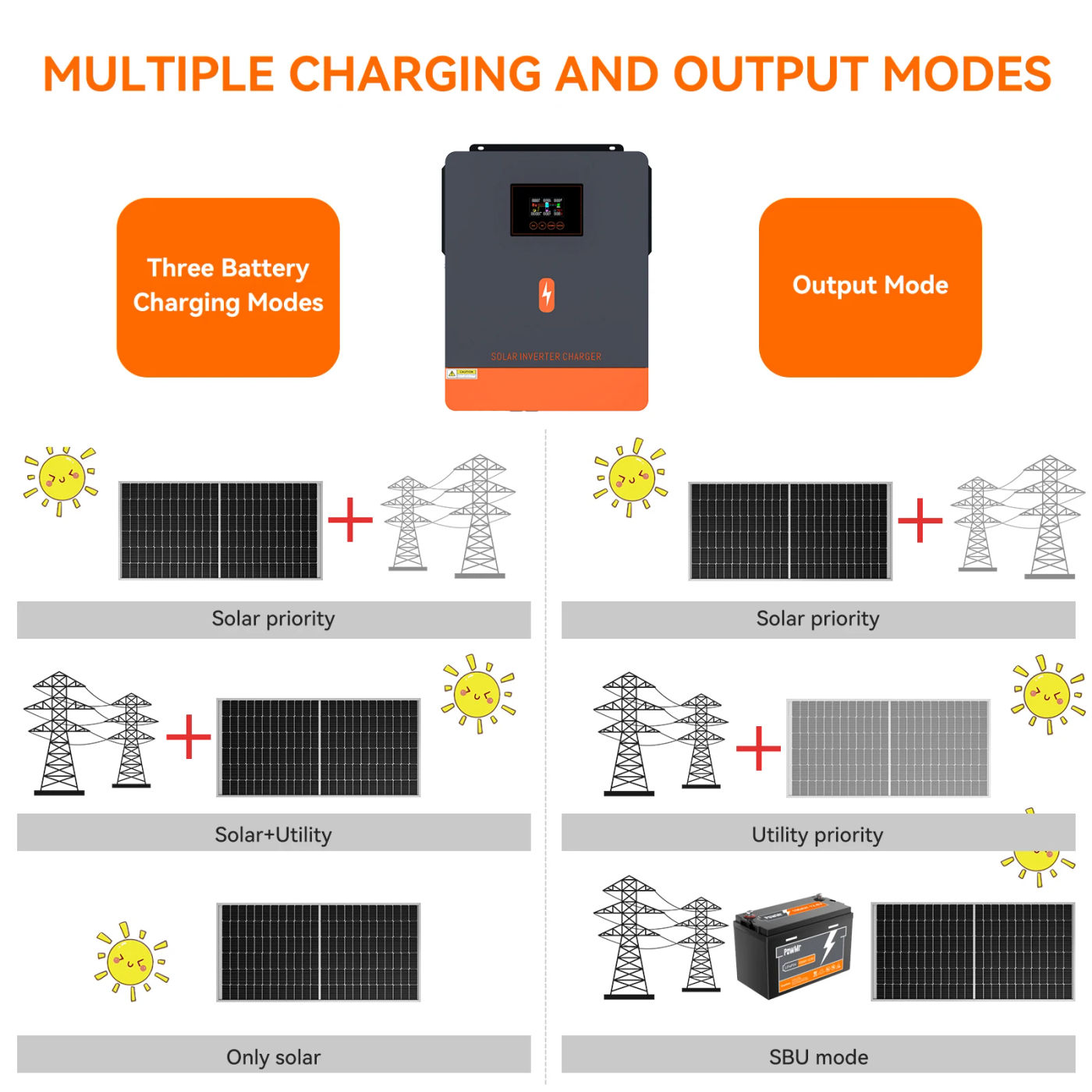

• PowMr four 24V MPPT Hybrid Solar Inverter With 120A Solar Charge Controller 230Vac Output PV Range 60~450VDC Input Support WIFI Introduction: This is a multi-function inverter/charger, combining purposes of inverter, solar charger and battery charger to offer uninterruptible strength support with portable size Its comprehensive LCD show presents user-configurable and easy-accessible button operation resembling battery charging current, AC/solar charger priority, and acceptable enter voltage in response to assorted functions Feature: 1 sine wave inverter 2 enter voltage fluctuate for domestic appliances and private computer systems through LCD setting three battery charging latest in line with applications through LCD surroundings four AC/Solar Charger priority through LCD setting five with mains voltage or generator power 6 restart while AC is improving 7/ Over temperature/ short circuit defense eight battery charger design for optimized battery performance 9 start function 10 grid connection or off grid use eleven AC Output Specification: Table 1 Line Mode Specifications INVERTER MODEL POW-HVM4 POW-HVM6 Input Voltage Waveform Pure Sine Wave(Utility or Generator) Nominal Input Voltage 230Vac Max AC Input Voltage 300Vac Efficiency(Line Mode) >95%( Rated R load,battery full charged) Transfer Time 10ms typical(UPS);20ms typical(Appliances) Table 2 Inverter Mode Specifications INVERTER MODEL POW-HVM4 POW-HVM6 Rated Output Power 4 6 Output Voltage Waveform Pure Sine Wave Output Voltage Regulation 230Vac±5% Output Frequency 50HZ Peak Efficiency zero Overload Protection 3s@≥150% load;5s@101%~150% load Surge Capacity 2* rated energy for 5 seconds Nominal DC Input Voltage 24Vdc 48Vdc Cold Start Voltage 23 46 No Load Power Consumption 30W 50W Table 3 Charge Mode Specifications Utility Charging Mode INVERTER MODEL POW-HVM4 POW-HVM6 Charging Algorithm 3-Step AC Charging Current (Max) 100A 100A MPPT Solar Charging Mode INVERTER MODEL POW-HVM4 POW-HVM6 Max PV Array Power 6200W 6500W Nominal PV Voltage 240Vdc 360Vdc PV Array MPPT Voltage Range 60Vdc~450Vdc 90Vdc~500Vdc Max PV Array Open Circuit Voltage 500Vdc Max Charging Current(AC charger plus photo voltaic charger) 120A 120A Tabel 4 Grid-Tie Operation INVERTER MODEL POW-HVM4 POW-HVM6 Nominal Output Voltage 220/230/240VAC Feed-in Grid Voltage Range 195-253VAC Feed-in Grid Frequency Range 49-51±1Hz/59-61±1Hz Nominal Output Current 18 26 Maximum Conversion Efficiency(DC/AC) 97% Table 5 Two Load Output Power INVERTER MODEL POW-HVM4 POW-HVM6 Full Load 4200W 6200W Maximum Main Load 4200W 6200W Maximum Second Load(battery model) 1400W 2066W Main Load Cut Off Voltage 26VDC 52VDC Main Load Return Voltage 27VDC 54VDC Product Overview:

•
•
•
•
•

Review
