Description

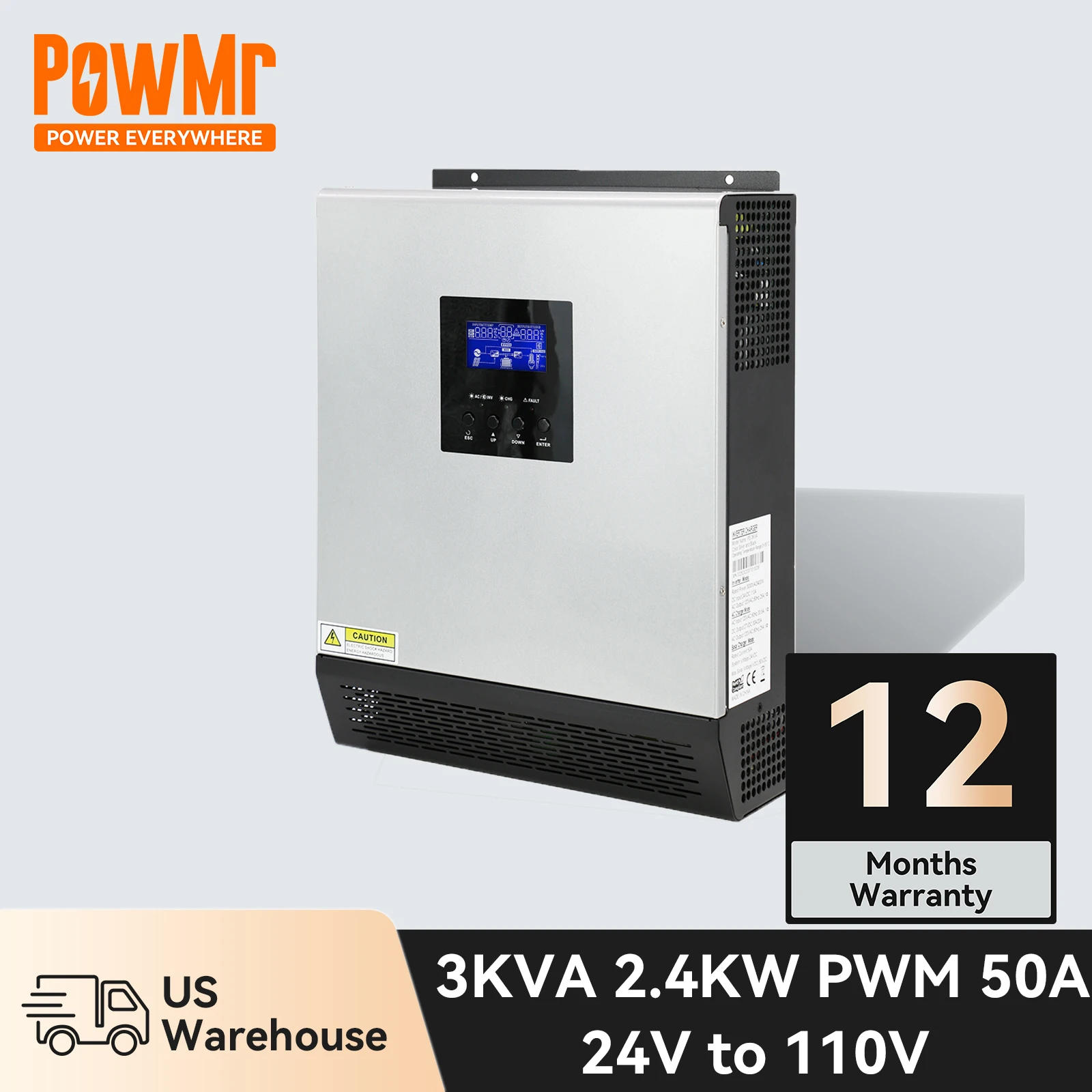

• PowMr 3KVA Pure Sine Wave Hybrid Solar Inverter 24VDC Input 220VAC 110VAC Output 50A PWM Solar Charge Controller and AC Charger Introduction: This is a multi-function inverter/chargei; combining functions of inverter photo voltaic charger and battery charger to supply uninterruptible strength support with transportable length Its complete LCD exhibit presents user-configurable and easy-accessible button operation reminiscent of battery charging current, AC/solar charger precedence and appropriate enter voltage according to various applications It is Pure Sine Wave Hybrid Solar Inverter Built-in PWM Solar Charge Controller For Home UseDesign WAith ac input /output 220-240vac unmarried section solely ( no longer Split phase 110/220vac) Note: Please Only Use Sealed Lead Acid Battery Or Sealed GEL/AGM Lead-Acid Battery The new equipment is no CD disc, but we've the software, if you need it , be at liberty to touch us Features: Pure sine wave inverter Built-in PWM photo voltaic fee controller Configurable enter voltage vary for domestic applicances and personal computers via LCD environment Configurable battery charging current in line with functions by way of LCD setting Configurable AC/Solar charger precedence through LCD atmosphere Compatible to mains voltage or generator power Auto restart while AC is improving Overload/over temperature/ brief circuit defense Smart charging method optimizes battery performance Cold delivery function Product Parameter： Model Name PS-3K-110V PS-3K-220V Input Voltage Waveform Sinusoidal(utility or generator) Rated Power 3000VA/2400W Input Voltage 110VAC 230VAC Frequency Range 50HZ/60HZ(Auto Sensing) Output AC Voltage Regulation 110VAC 230VAC Surge Power 6000VA Wareform Pure Sine Wave Battery & AC Charger Battery Voltage 24VDC Float Voltage 27VDC Overcharge Protection 30VDC AC Charging Current 20A/30A Solar Controller Charging Current(PWM) 50A Max PV Array Open Circuit Voltage 80V Max PV Power Input 1200W Standby Power Consumption 2W Battery Connection Model Typical Amperage Battery Capacity Wire Size Ring Terminal Torque cost Cable mm2 Dimensions D(mm) L（mm) 3KVA 100A 100AH 1*4AWG 22 6 33 2~3 Nm 200AH 2*8AWG 14 6 29 AC Input/Output Connection Model AC Breaker Gauge Torque value 3KVA 32A 12 AWG 1~1 Nm PV Connection Model Typical Amperage Gauge Torque cost 3KVA 50A 8 AWG 1~1 Nm PV Module Selection Maximum Power(Pmax) 260W Max module numbers in sequence Max Power Voltage Vmpp(V) 30 1: 30=30~32 Max Current Impp(A) eight PV module numbers in parallel Open Circuit Voltage Voc(V) 37 6: 50A/8 Short Circuit Current Isc(A) 8 Total PV module numbers:1x6=6 Maximum PV module numbers in Series :1 PV module numbers in parallel :6 Total PV module numbers :1x6=6

•
•
•
•
•
