Description

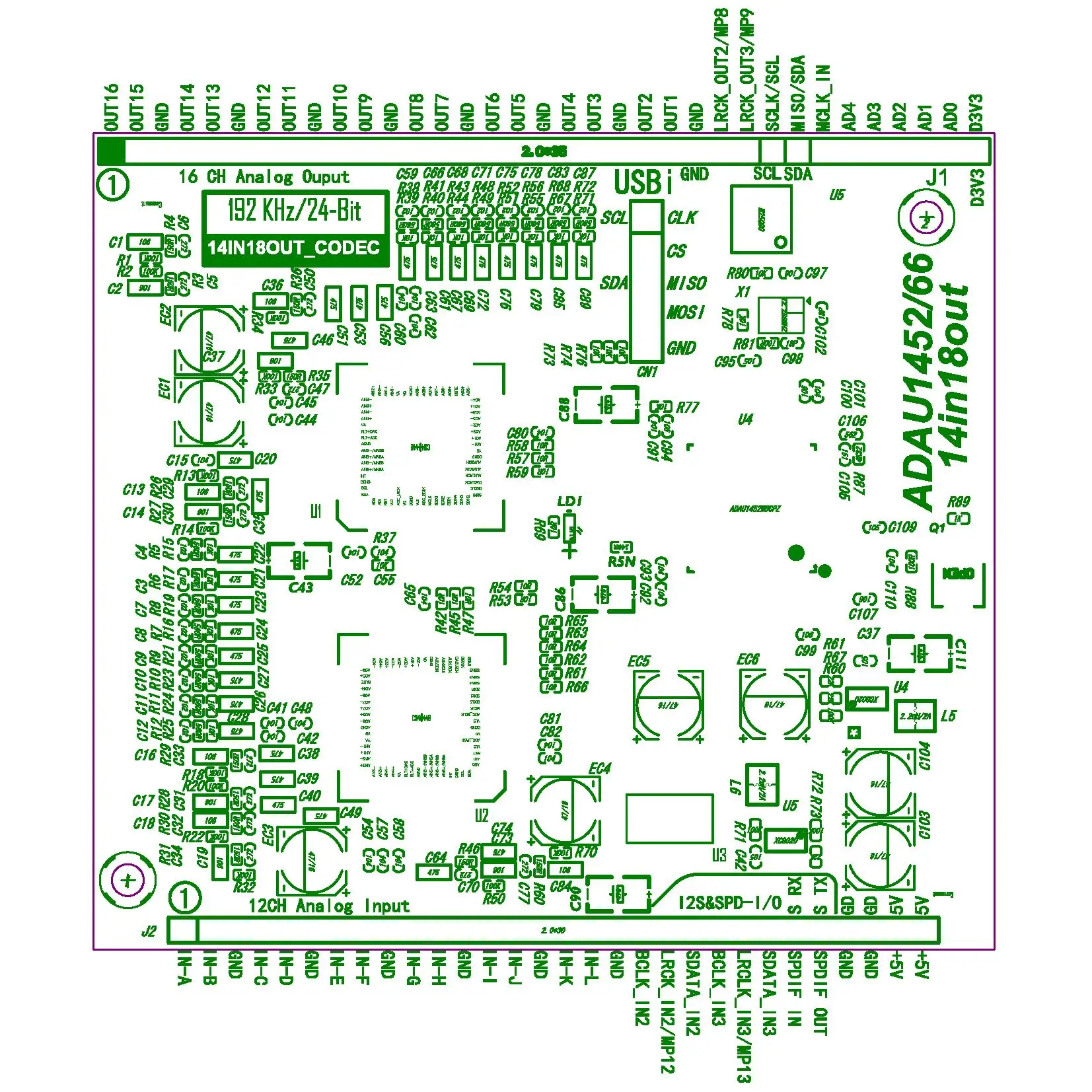

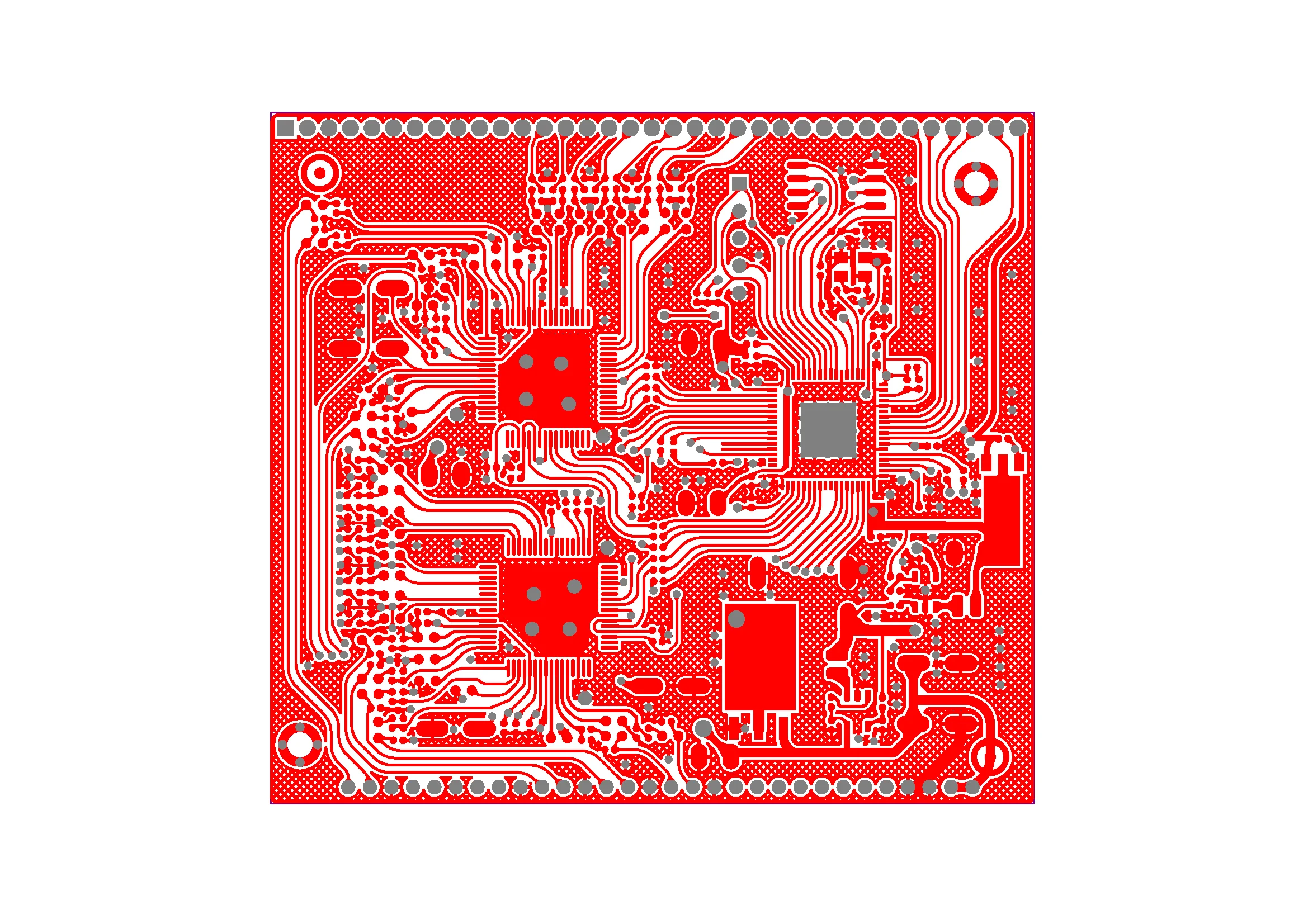

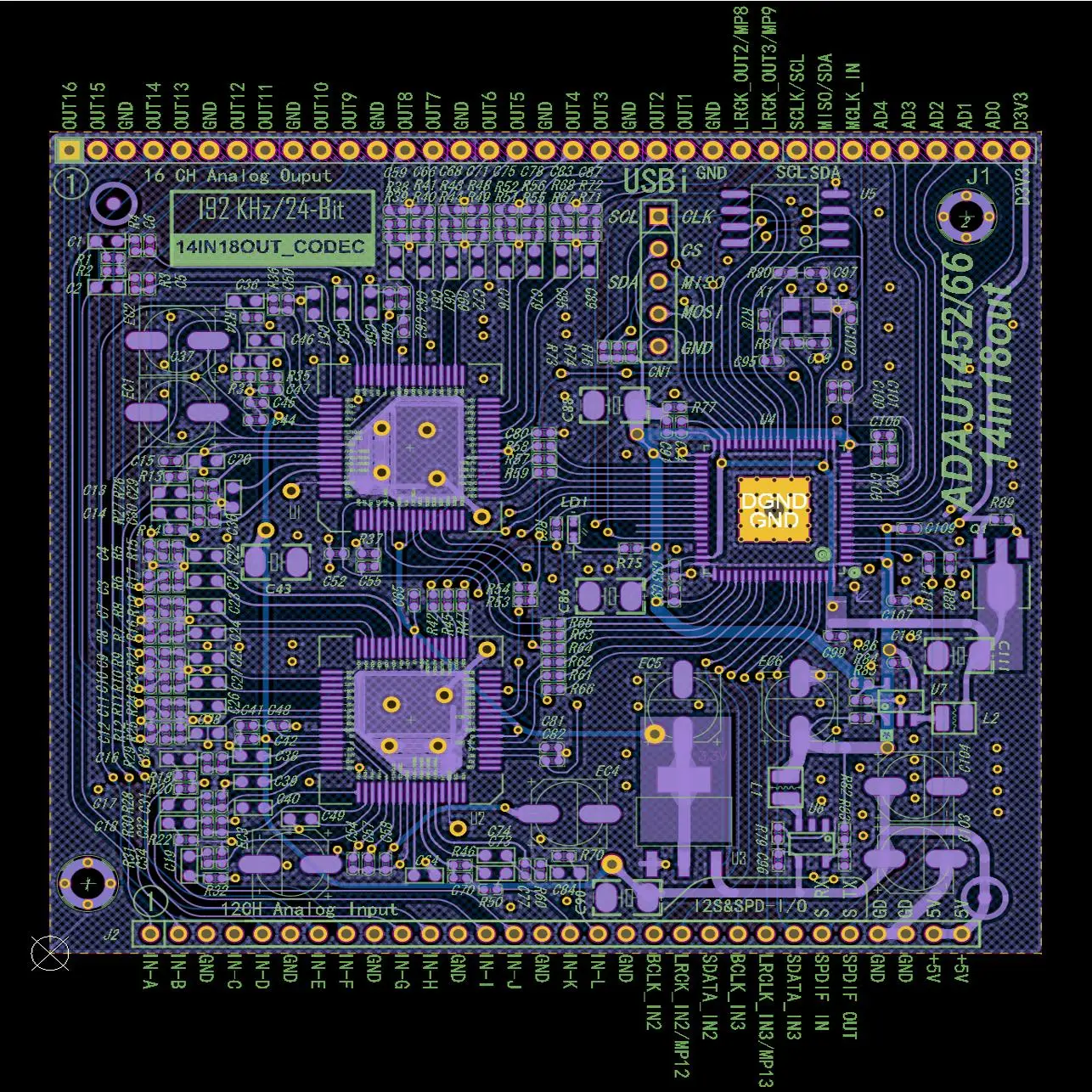

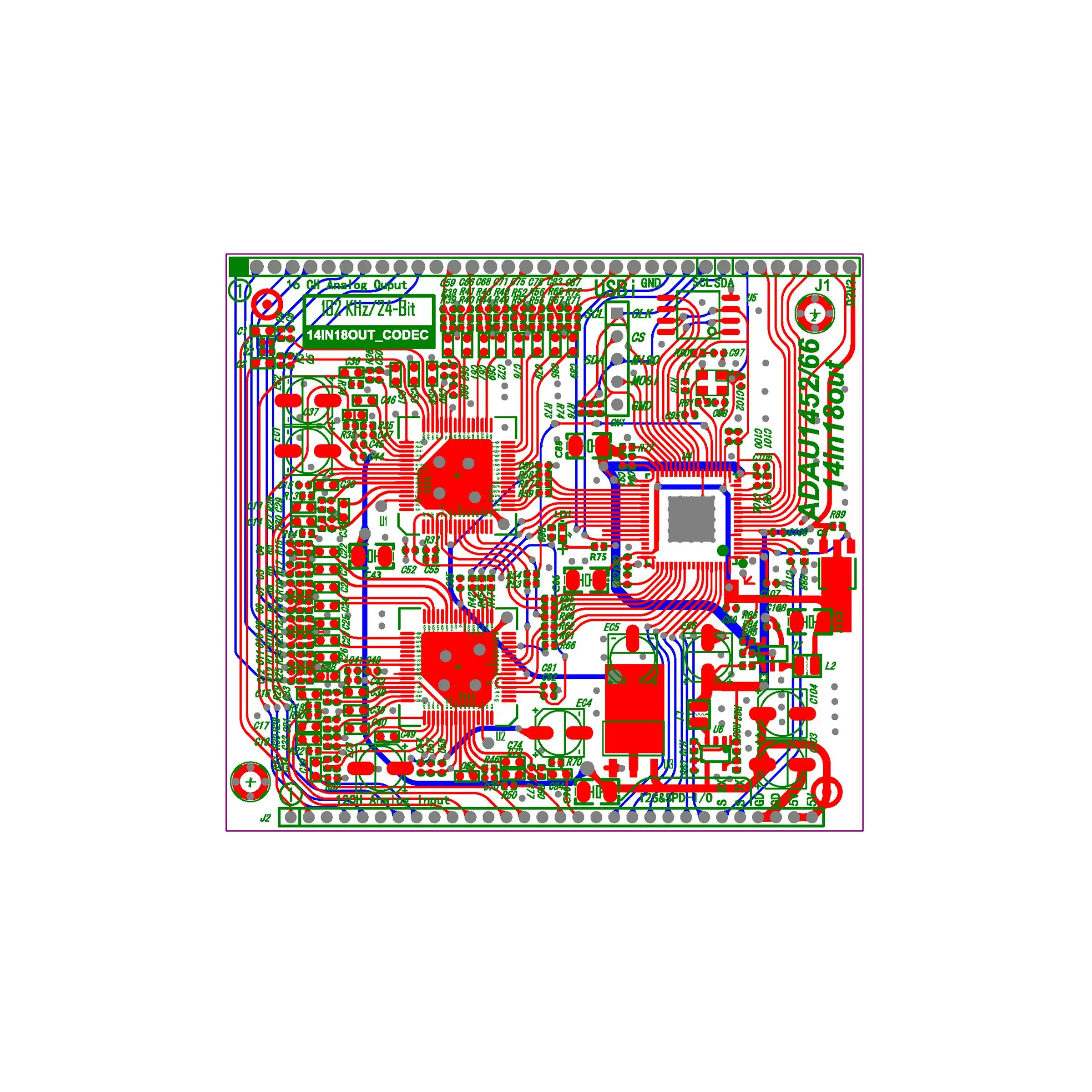

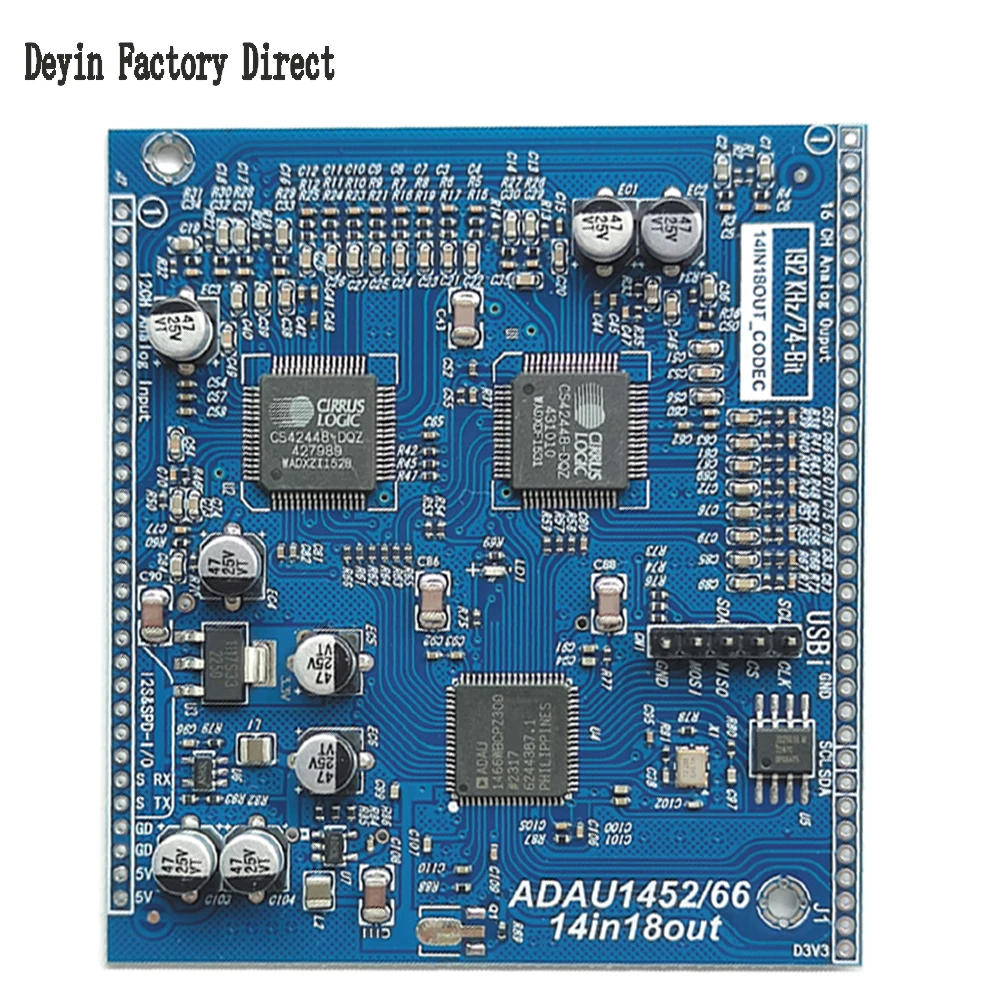

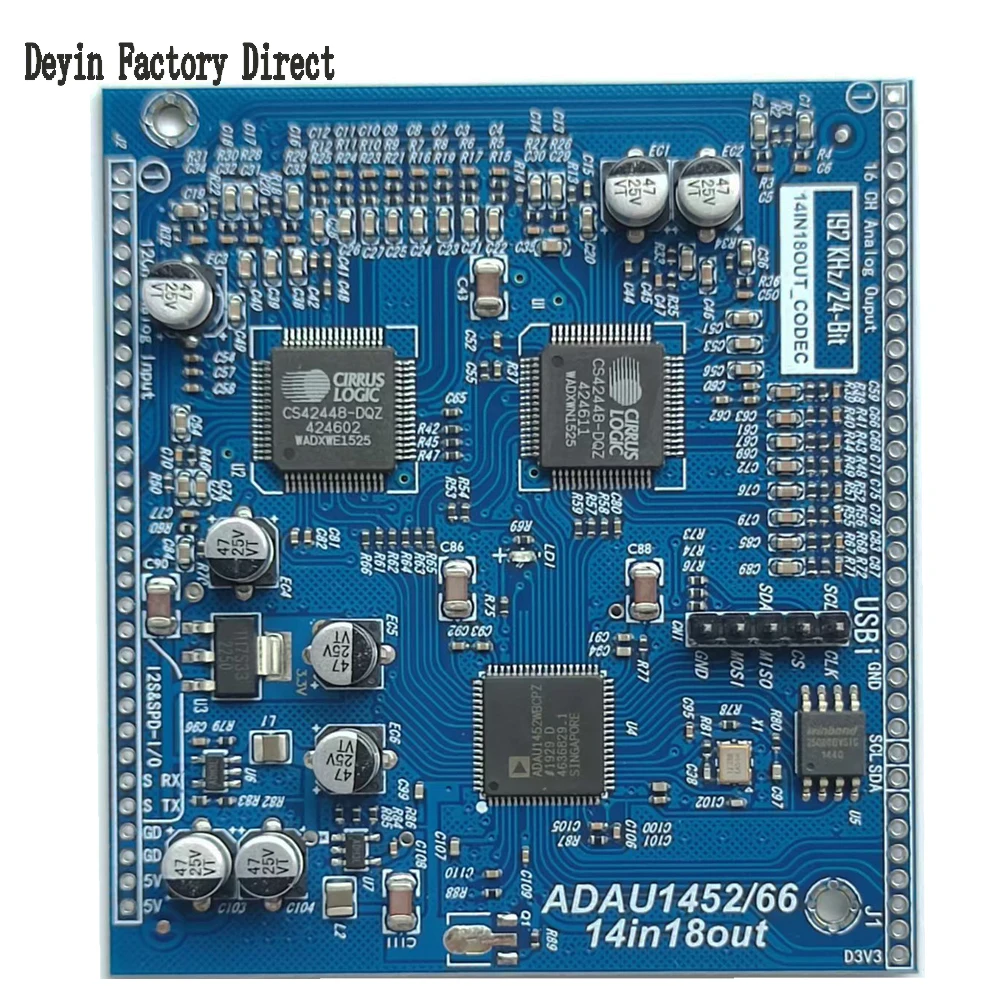

• Factory direct gross sales Large portions were sold You can choose with self assurance You can ship the ordinary assignment supplies through e mail It is recommended to choose ADAU1466 with 14 inputs and 18 outputs, as it can have greater functionality and a lower cost For any issues corresponding to customs responsibilities and specific delivery, you can seek the advice of the store proprietor for communique We will present you with passable and considerate service upfront Plate size：64MM*71MM ADI&;s SS collection DSP ADAU1466 and ADAU1452 are used because the main control, two CS42448 are used as ADC 6-channel analog-to-digital conversion, 8-channel digital-to-analog conversion DAC, plus the SFDIF input and output interface of the DSP itself, forming a complete of 14 channels of input The 18-channel output DSP module board can be used as a multi-channel audio signal processing for vehicle audio amendment or domestic theater processing Electronic frequency department adjustment, noise reduction, compression, delay, digital surround and other audio processing Provides whole routines suitable for formula engineering, including enter and output interface configuration/clock configuration and total configuration Feel loose to add more purposes and results you would like The CS42448 is a highly included audio codec designed to simplify the design of domestic theater and vehicle audio systems System designers can use this codec to bring advanced multi-channel surround sound performance to entry-level and mid-level audio products The CS42448 helps the addition of as much as eight single-ended or six differential audio enter sources, and as much as eight single-ended or differential output sources Highly integrated, multiple audio channels could be transferred to the DSP chip without exterior analog-to-digital (A/D) converters for audio processing An auxiliary serial input is offered for 2 additional PCM (Pulse Code Modulation) information channels The inputs are extra powerful, enabling audio/video (A) receivers that may get hold of audio from a number of assets In vehicle leisure systems, audio input assets can consist of in-car navigation systems, mobile phones, CD/DVD players, and radio tuners The CS42448 outputs function Cirrus Logic&;s patented Popguard™ technology, which removes clicks and pops caused by energy switching Popguard complements audio whereas simplifying formula design and lowering bill of fabrics (BOM) costs The CS42448 affords progressed performance, design flexibility, decreased BOM cost, and a competitive retail charge This IC is good for audio functions requiring large dynamic range, negligible distortion and occasional noise, such as AV receivers, DVD receivers and car audio methods CS42448 Features Six 24-bit A/D converters and eight 24-bit A/D converters system sampling frequencies up to 192kHz Analog-to-digital converter dynamic fluctuate 105 dB differential 102 dB single-ended Digital-to-analog converter dynamic vary 108 dB differential one zero five dB single-ended THD+N (analog-to-digital converter and digital-to-analog converter) -98 dB differential -95dB single-ended Analog/Digital Input Multiplexer – Single-Ended Mode Featuring Cirrus Logic Popguard expertise to minimize clicks and pops Programmable A/D converter high-pass filter out for DC offset calibration Supports logic levels from 1 to 5V Package: 64-pin LQFP; lead-free meeting elective audio interface structure Left justified, I?s, TDM Consumer and Automotive Class D Availability ADAU1466 Features Compliant with automobile software standards High-performance SigmaDSP core supports low latency and energetic noise cancellation (ANC) for audio functions Echo Canceller and Noise Reduction (ECNR) Surround Sound Algorithm Equipped with a dedicated graphical integrated advancement surroundings (IDE) SigmaStudio, appropriate for establishing custom signal flows Comprehensive toolbox of predefined building blocks Reduce design time with proven strategies Intuitive system design 294 MHz, 32-bit SigmaDSP core, voltage 1 v24 kiloword program reminiscence 80K words parameter/data RAM 6144 SIMD directions per pattern at 48 kHz Digital audio put off pool 1600 ms at 48 kHz Audio I/O and routing four serial input ports, four serial output ports 48 channels, 32-bit electronic l/0, sampling fee as much as 192 kHz Flexible configuration of 12s, left and appropriate justified and as much as 16-channel TDM format on serial records pins 8 stereo ASRC, ratio between 1:8 and 7:1, dynamic fluctuate is 139 dB at 192 kHz Stereo S/PDIF input and output 4 PDM microphone input channels Multi-channel, byte-addressable TDM serial port, clock oscillator, integer PLL and flexible clock generator for producing grasp clock from crystal Integrated die temperature sensor I2C and SPI management interfaces (including grasp and slave) operate independently Boot from serial EEPROM 6-channel, 10-bit SAR auxiliary management ADC 14 multi-purpose pins for electronic management and output On-chip voltage regulator for producing 1 from 1 to 3 supplies 72-pin, 10 mm × 10 mm LFCSP package with 5 mm uncovered pad Operating temperature range: ?40°C to +105°C The ADAU1462/ADAU1466 are audio processors certified for automotive applications, with electronic signal processing functions a ways exceeding those of previous SigmaDSP instruments They are pin and check in like minded with each other and with the ADAU1450/ADAU1451/ADAU1452 SigmaDSP processors The hardware architecture has been reorganized and optimized to attain efficient audio processing Audio processing algorithms assist a continuing mixture of utility streaming (per-sample), multi-rate processing and block processing modes Through the SigmaStudio? graphical programming tool, you could create intuitive, interactive and robust sign processing flows The enhanced digital sign processor (DSP) core structure enormously improves code efficiency by means of requiring vastly fewer instructions to execute certain types of audio processing algorithms compared to previous generations of SigmaDSP ADAU1466 DSP ADAU1452 DSP

•
•
•
•
•

Review
