Description

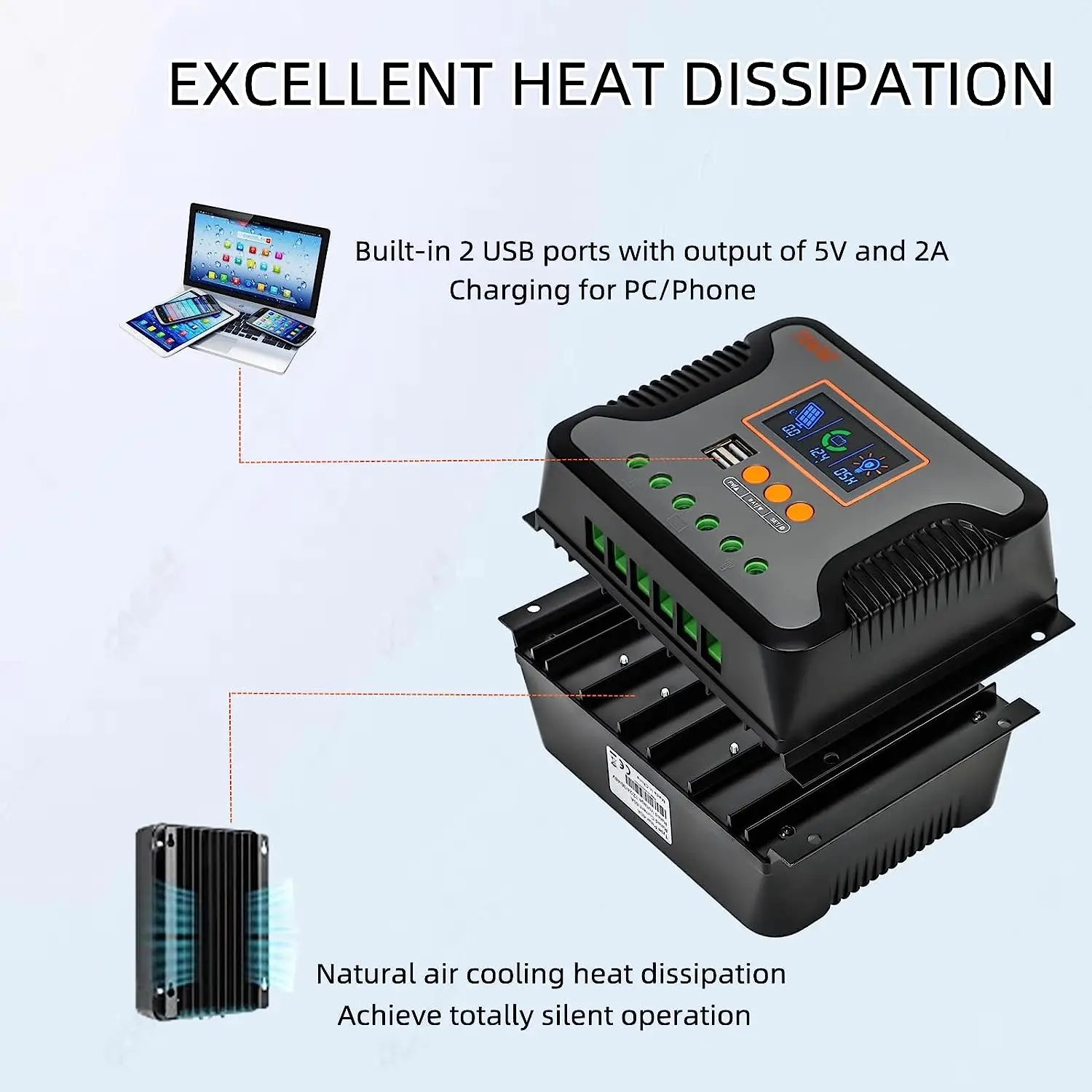

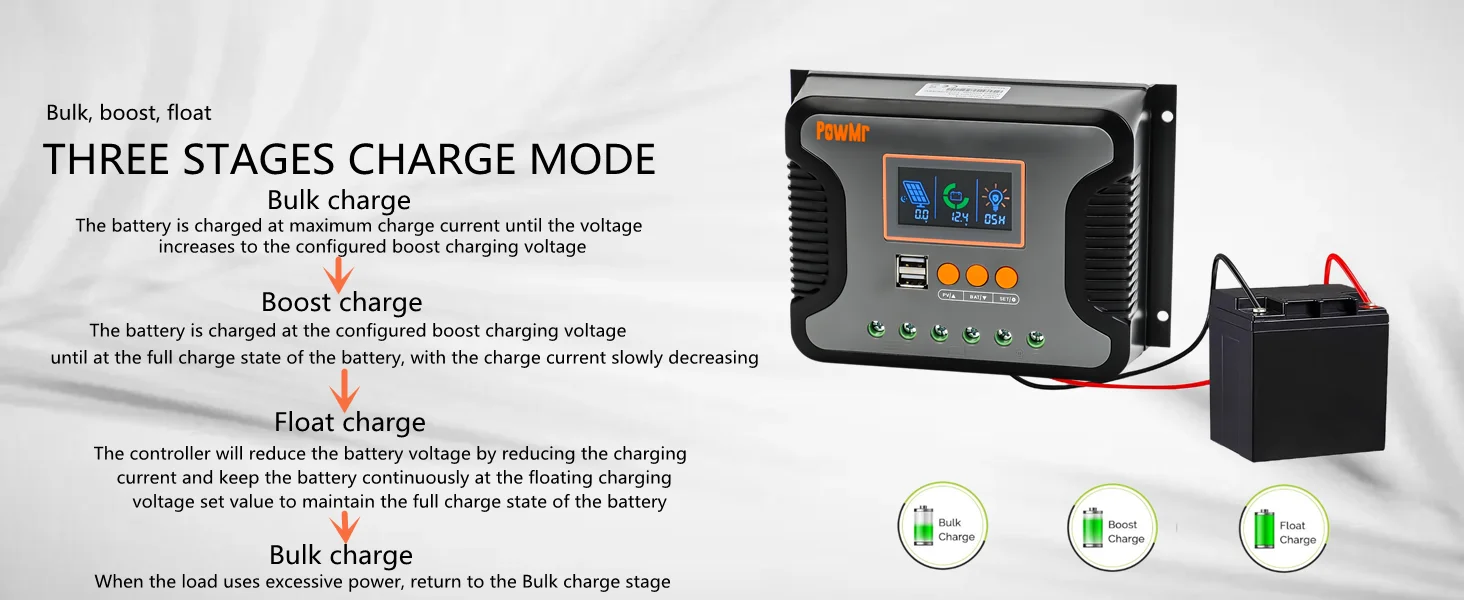

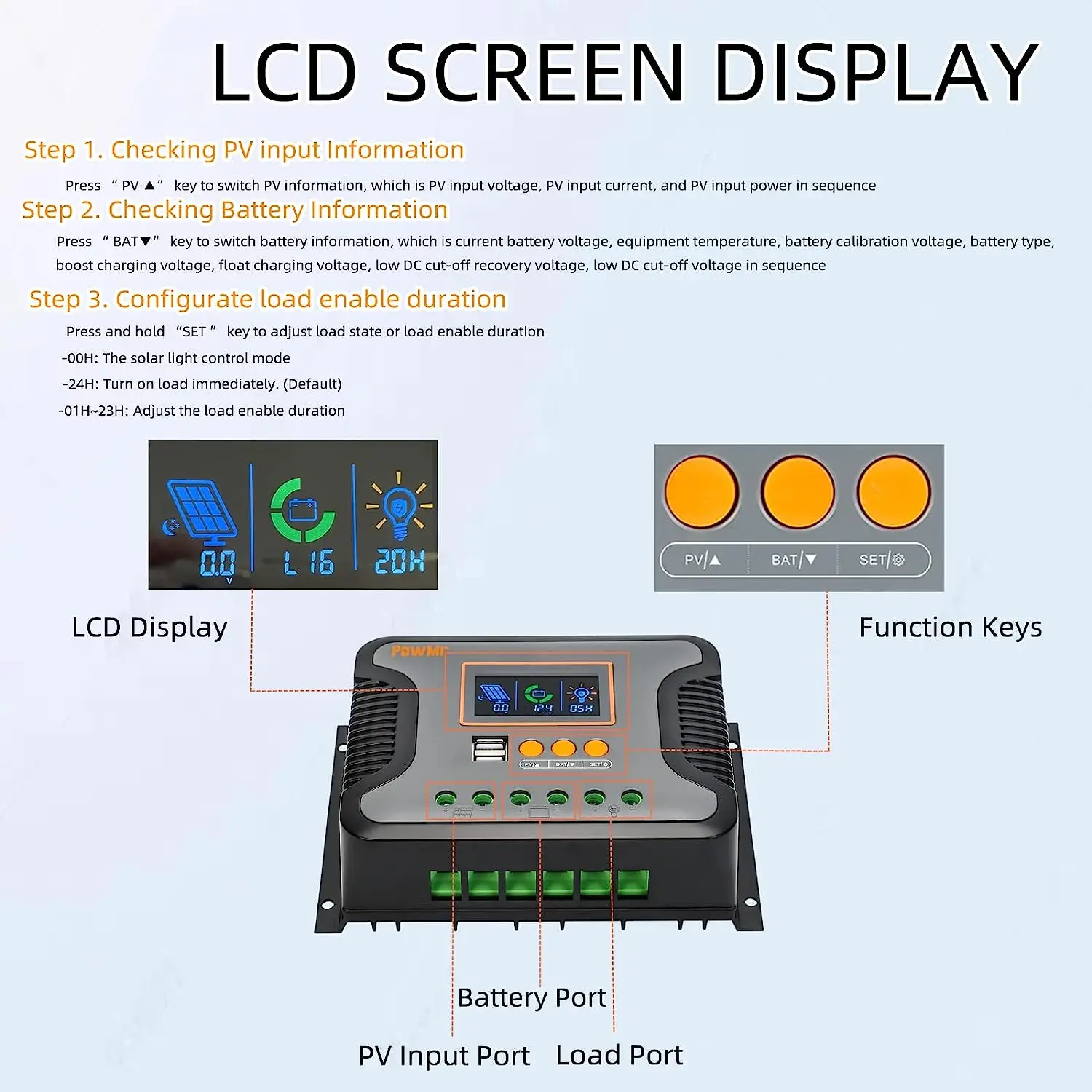

• PWM 80A 60A 30A Solar Charger Controller 12V 24V 36V 48V Auto Max PV 100V 24 hour Settable Work Time Fit for Light and RV System Thank you for choosing the Pstar Series of Solar Power Controllers The controller uses numerical management expertise design, LCD display, computerized operation Its pulse-width modulation (PWM) kind battery charging mode, as well as management technology, will drastically amplify the battery life This controller is suitable for the solar power formulation (independent system), management the charging and discharging task robotically The battery charging and discharging process of the controller is optimized, which might lengthen the battery life and upgrade the method performance Its self-test function and digital defense function can keep away from controller injury due to set up mistakes and method failures 1 with lithium-ion and lead-acid battery, help user-defined batteries identification of 12V/24V/36V/48V formula voltage style of protection applications to ensure the normal operation of the system and expand thebattery life air cooling heat dissipation, to achieve totally silent operation5 LCD display permits real-time tracking and parameter configuration size, mild weight, clean and quick installation 2 USB ports with output of 5V and 2A pleasant setup, fast and easy commissioning through front panel LCD ●Multi-stage fee algorithmThe multi-stage fee algorithm is specifically engineered to optimise each recharge cycle andcharge maintenance over extended periods ●Silent operationAlmost silent operation since there isn't any cooling fan or transferring parts, cooling is by way of pure convection●Lithium battery compatibleCompatible with Li-ion (LiFePO₄) batteries; when the battery form parameter is decided to Lithium battery the price cycle settings are altered to suit: Do now not payment Li-ion batteries if the battery temperature is below 0°C Model Pstar-30A Pstar-60A Pstar-80A PV Input Max Open Voltage of PV Module 100V PV Operation Voltage Range >System voltage and ≤100V Max Input Power: For 12V components For 24V components For 36V method For 48V formulation ≤360W ≤720W ≤1080W ≤1440W ≤720W ≤1440W ≤2160W ≤2880W ≤960W ≤1920W ≤2880W ≤3840W Charge Mode Charging know-how PWM Charge Algorithm 3-Stages Self-consumption ≤20mA Nominal System Voltage 12V/24V/36V/48V Rated Charging Current 30A 60A 80A DC output Rated Output Current 20A 35A 50A USB Interface 5V/2A*2 Environment Operating Temperature Range -20℃~+55℃ Humidity Range ≤90%，Non-condensing General Specification Protection Class IP30 Dimension 187*94*49mm 187*132*60mm 187*132*60mm Net weight zero 0 0 PWM 30A Appearance PWM 60A 80A Appearance

•
•
•
•
•
