Description

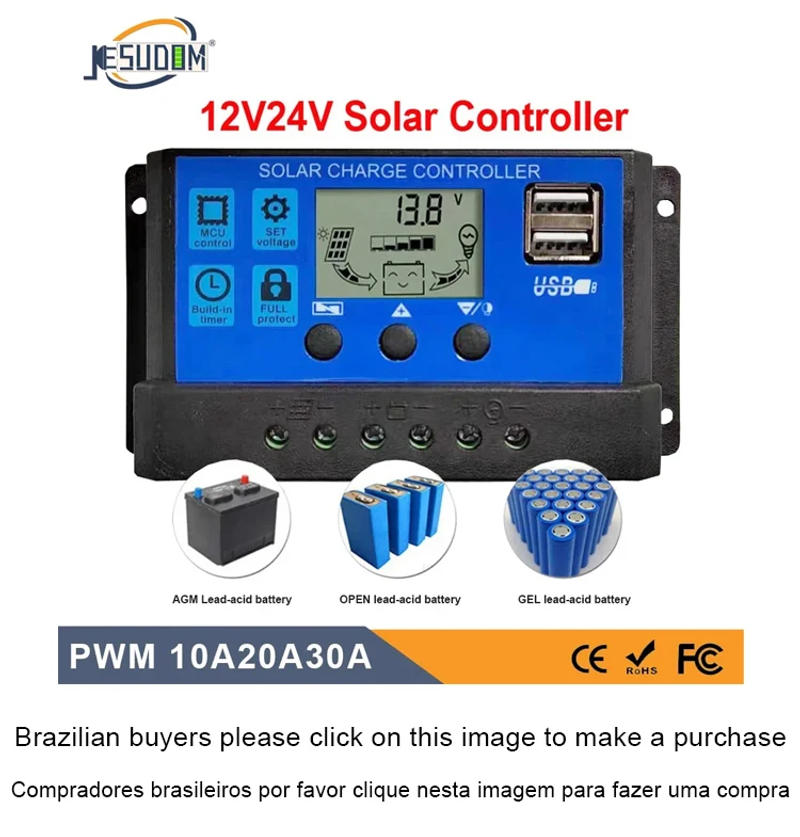

• PWM Solar Controller 12V/24V Auto 30A20A10A LCD Battery PV Cell Panel Charger Regulator Lamp 100W 200W 300W Wholesale consult the carrier of store This controller is a intelligent, multi-purpose photo voltaic fee and discharge controller Fixed LCD exhibit with a completely pleasant interface is utilized in this product; assorted management parameters can be flexibly set, solely meet your different software requirements This is NEW Solar Controller ,It can totally meet your place Photovoltaic system(including domestic lighting system)requirements can recongize 12V and 24V Lead acid ,Gel battery routinely There are optionally available 10A 20A 30A model 10A: if your battery is 12V ,the max photo voltaic panel enter is 25V 120W if your battery is 24V ,the max photo voltaic panel input is 50V 240W 20A: if your battery is 12V, the max solar panel input is 25V 240W in case your battery is 24V, the max solar panel input is 50V 480W 30A if your battery is 12V ,the max solar panel enter is 25V 360W in case your battery is 24V ,the max photo voltaic panel enter is 50V 720WFeatures: 1 business micro controller 2 LCD display,all adjustable parameter three 4-stage PWM payment leadership four short-circuit protection,open-circuit protection,reverse protection,over-load protection 5 mosfet Reverse recent protection ,low warmth production 6 regulator is just suitable for lead acid batteries:OPEN,AGM,GEL it isn't suited for nickel steel hydride,lithium ions or other batteries 7 fee regulator is barely compatible for regulating photo voltaic modules Never join one other charging supply to the price regulator Parameter: MODEL PWM 10A PWM 20A PWM 30A PWM 40A PWM 50A PWM 60A Battery Voltage 12V 24V Auto Charging Current 10A 20A 30A 40A 50A 60A Discharging Current 10A 10A 10A 30A 30A 30A Max Solar enter 50V(for 24V battery) 25V(for 12V battery) Equalization 14(Sealed) 14(Gel) 14(Flood) Float fee 13(defaul,adjustable) Discharge stop 10(defaul,adjustable) Discharge reconnect 12(defaul,adjustable) Charge reconnect 13V Voltage of open light Solar Panel 8V(Light lighting fixtures delay) Voltage of close gentle Solar Panel 8V(Light off delay) USB output 5V/3A Self-consume <10mA Operating temperature -35°C~+60°C Size 133*70*35mm 188*90*47mm *all pink color voltage X2 ,while using 24V components Connection: 1 the battery to the charge regulator - plus and minus 2 the photovoltaic module to the regulator - plus and minus 3 Connect the patron to the charge regulator - plus and minus The reverse order applies when deinstalling! An incorrect sequence order can injury the controller!

•
•
•
•
•
