Description

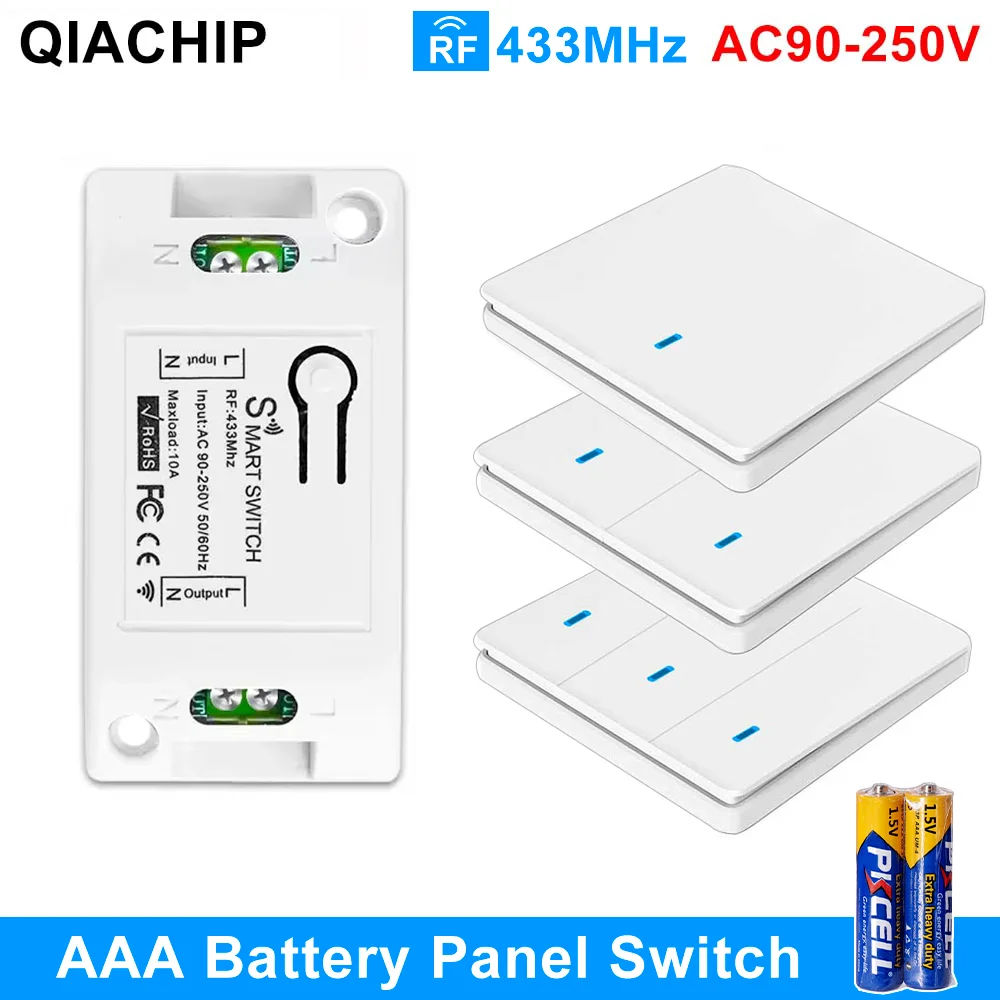

• Technical Data Of Receiver:Model Number: KR2201D-4 Frequency: 433Mhz Voltage: AC 85V-250V Mode: ASK Working Mode: Superheterodyne Reception Storing The Quantity Of Remteo Control: 32 PCS The Type Of Remote Control: Learning Code(1527), Fixed Code(2262) Mode: Momentary, Toggle and Latching Connection Way: Fixed Wiring Pillar:42x82x26mmTechnical Data Of Wall Panel Transmitter:Operating Frequency: 433MHz Model:AAA Battery(Package Not Included Battery) Specification: 1527: White(L/W/H): 86mm x 86mm x 13mm Operation Introduction: About Working Mode: Learning The Code (momentary): Press the training key once, the LED on the Receiver will flash as soon as When the LED switches on, press any button on the distant control, the LED at the Receiver will flash three times and switches off Indicates that they are efficiently paired Learning The Code (Toggle) Press the training key twice, the LED on the receiver will flash twice When the LED change on, press any button on the distant control, the LED on the Receiver will flash three times and switches off Indicates that they are efficiently paired Learning The Code (Latching): Notes: Latching mode require 2 varied buttons, the first one for "ON", the second for "OFF" For example: button A = ON, button B = OFF Push the educational key on the receiver three times, provoke latching mode environment Wait for a moment, the LED indicator on the receiver will flash temporarily and switches off Push the remote button A, LED flashes five times Push the remote button B LED flashes 5 instances three seconds later, the LED indicator will activate again, indicates that the remote control and the receiver are efficiently paired Receiver Code Resetting/Clearing: Push the training button at the receivers 8 times, the codes may be cleared After clearing the code, all the distant controls must be re-paired in order to management the receiver again NOTES: 1 Please don't charged operation, you must shut off the power, and operation after checking out and correct electricity 2 Please promptly substitute battery when handheld remote control voltage is inadequate (when the battery voltage is insufficient, generally get close transmitting) three Please pay attention to avoid metal mask,large equipment,strong interference electromagnetic filed when using wi-fi RF products, and avoid too brief distance between the remote control and receiver board four Please keep away from abnormal using of the product utilizing will cut product performance and life, when seriously it might harm the products and even make hazard on your secure Advantage1 Save wires and save labor, no risk of electrical shock and combustion with out contact with solid electricity, no warmth source within and no temperature upward thrust influence;2 One lamp holder can be matched with a number of unfastened decal switches at the identical time to realize that one lamp can switch the lamp in multiple places! Solve the issues of no switch on the bed, turning on the lights at night, unreasonable circuit design, inappropriate switch top for the aged and kids at home, and inconvenient wiring at domestic because of aging wiring!3 After an influence failure, the ability will self-extinguish to bypass waste of electrical energy and will not interfere with each other It adopts digital coding and interpreting know-how and has no directionality; high-performance processing chip, integrated relay control, safer and extra stable, large heterodyne receiving module ultra-low energy intake Strong anti-interference and high sensitivity! Input and output cannot be reversed Slide again conceal wall switch

•
•
•
•
•
