Description

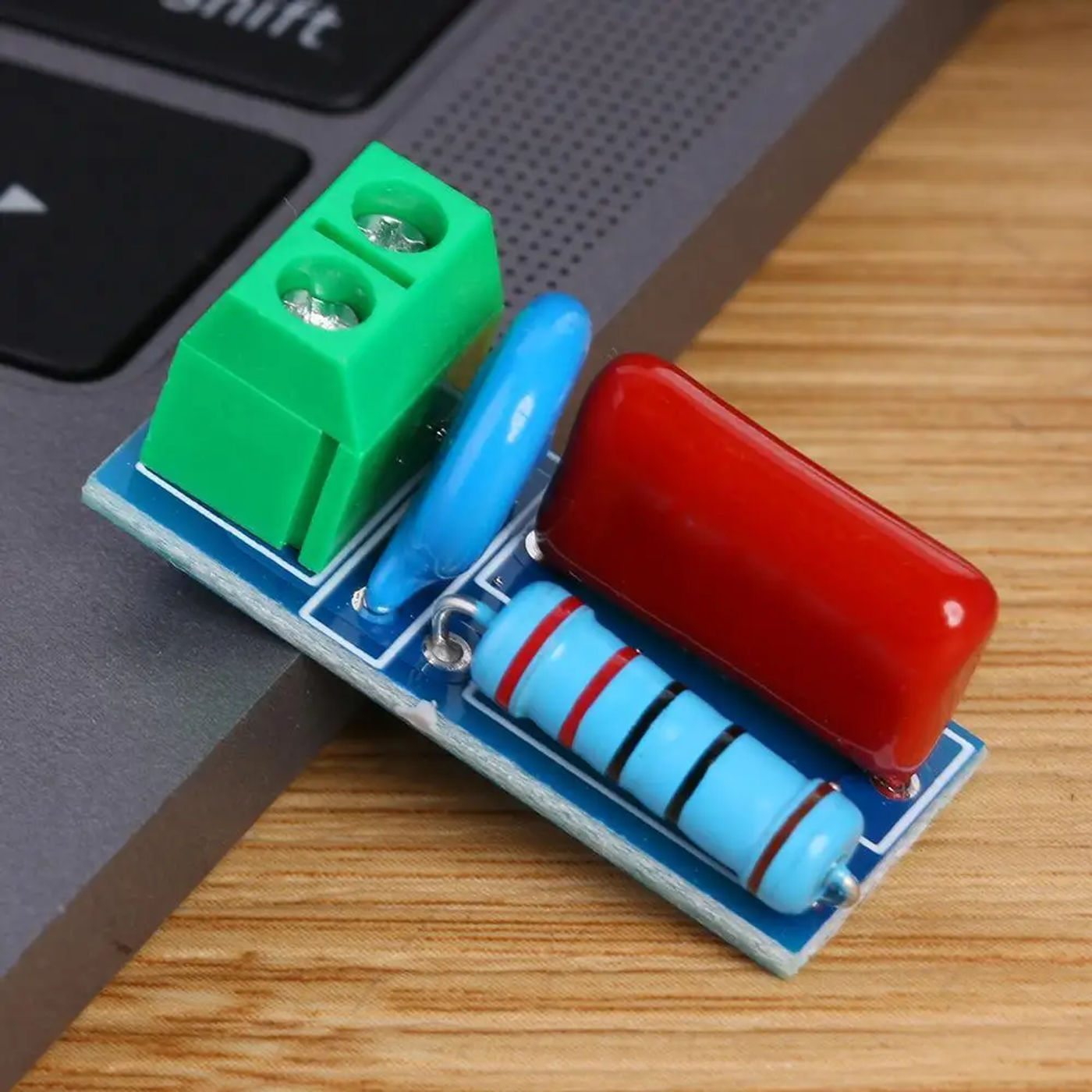

• RC Absorption Circuit Module Relay Contact Protection Resistance Surge AC/DC 5V-400V Snubber Board Description: RC absorption circuit also is known as RC Snubber circuit It is a circuit constitution in which resistors and capacitors are linked in sequence and linked in parallel with switching devices It is used to enhance the voltage and current waveforms of digital power instruments after they are turned on and rancid The RC absorption circuit module can forestall the induced electromotive power generated right now of turning on and stale of the inductive load from inflicting injury to the switching devices resembling relays and thyristors, stopping electromagnetic interference and lengthening the anti-interference potential of the microcontroller Feature: Suitable for AC or DC 5~400V inductive load (load lower than 1000W) to protect relay contacts or thyristors RC absorption circuit absorbs the caused electromotive pressure of the inductive load There is a varistor to stop excessive voltage fluctuations and immoderate currents from inflicting adhesion of relay contacts Provide circuit anti-interference ability Use crimping terminals to make wiring extra convenient Specification: Product Size: 30 X 13 X 12mm/1 X 0 X 0" Note: 1 Due to the different computer screen and light effect, the particular color of the object might be barely diversified from the colour showed on the images Thank you! 2 Please enable 1-3mm measuring deviation because of guide size 1 X RC Absorption Circuit Module

•
•
•
•
•
