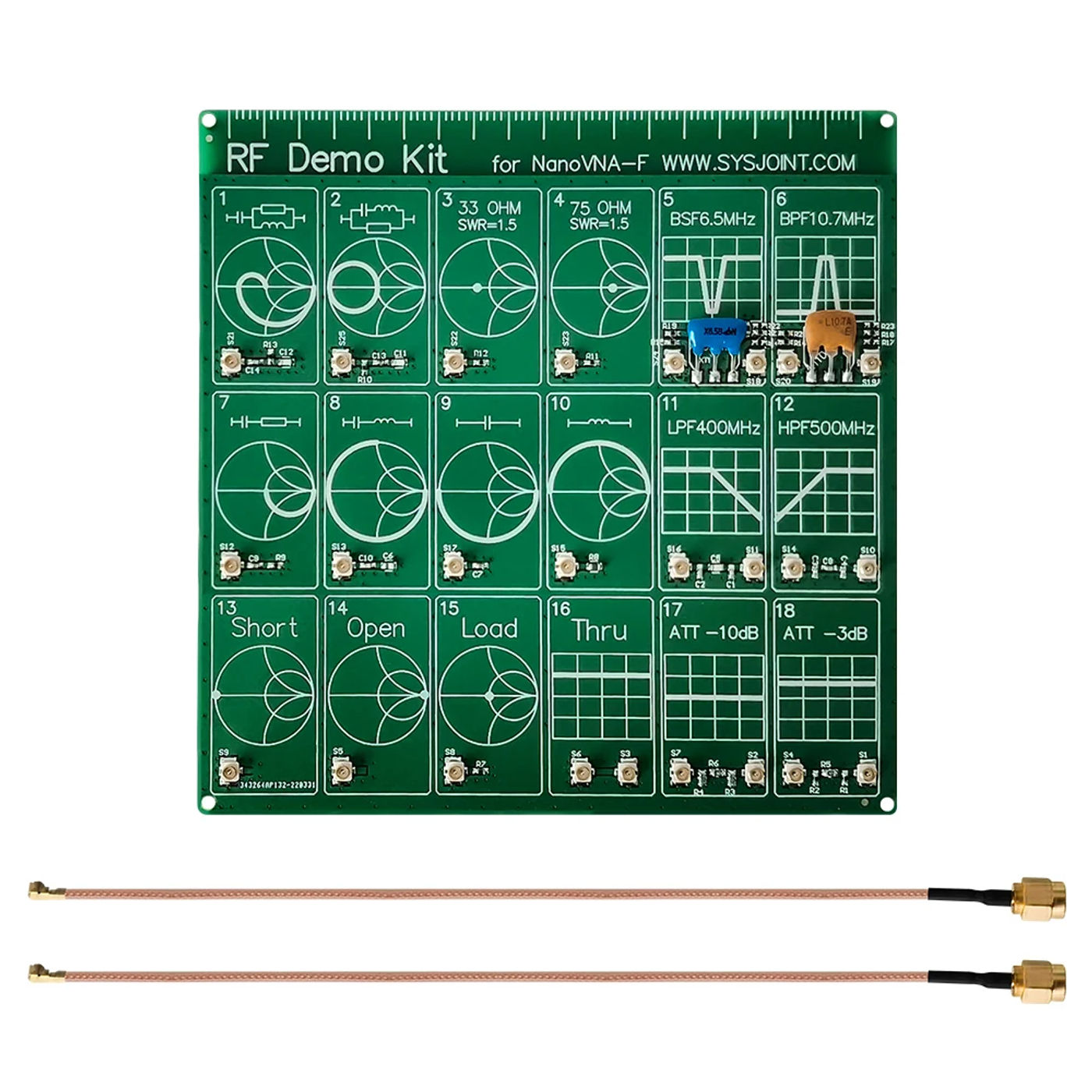

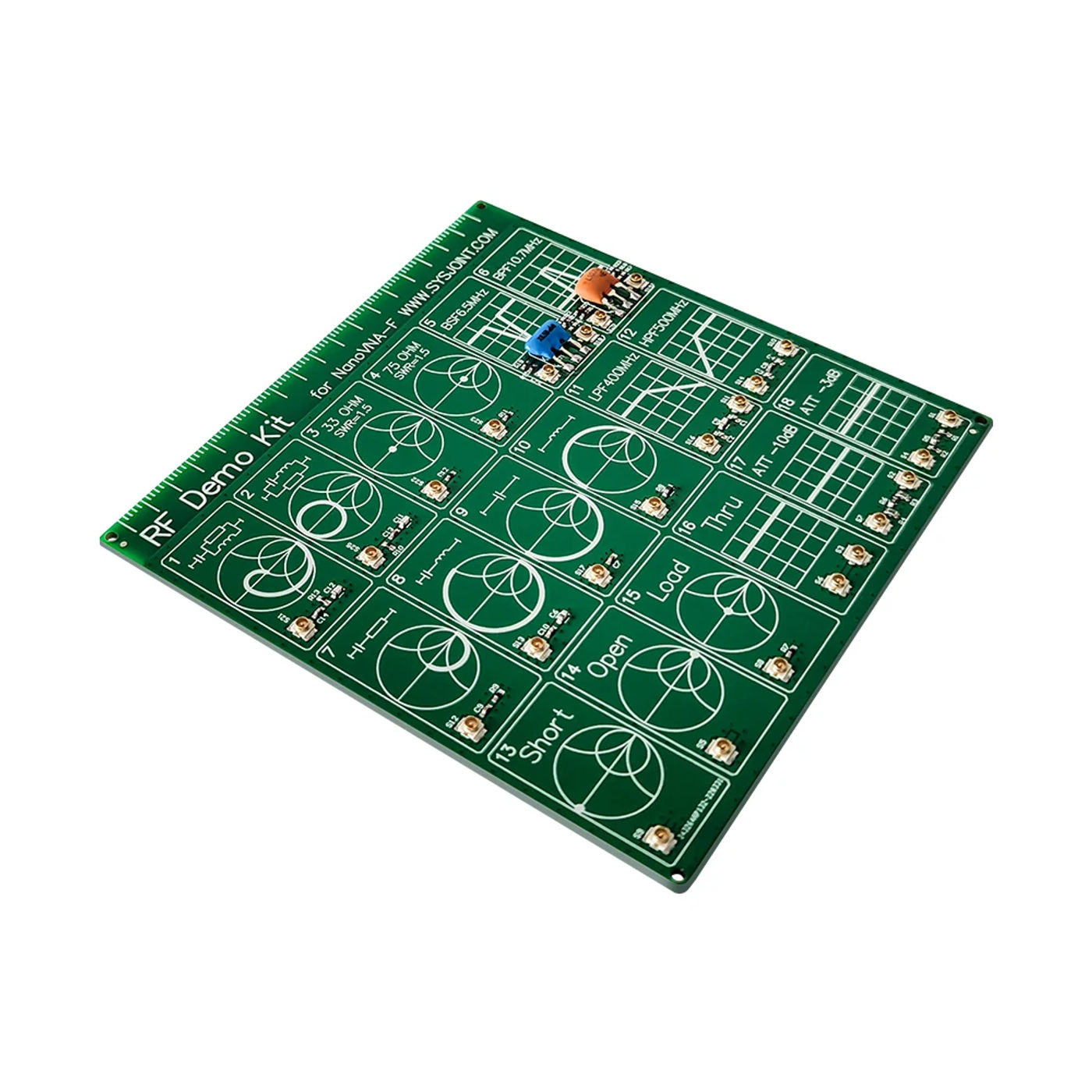

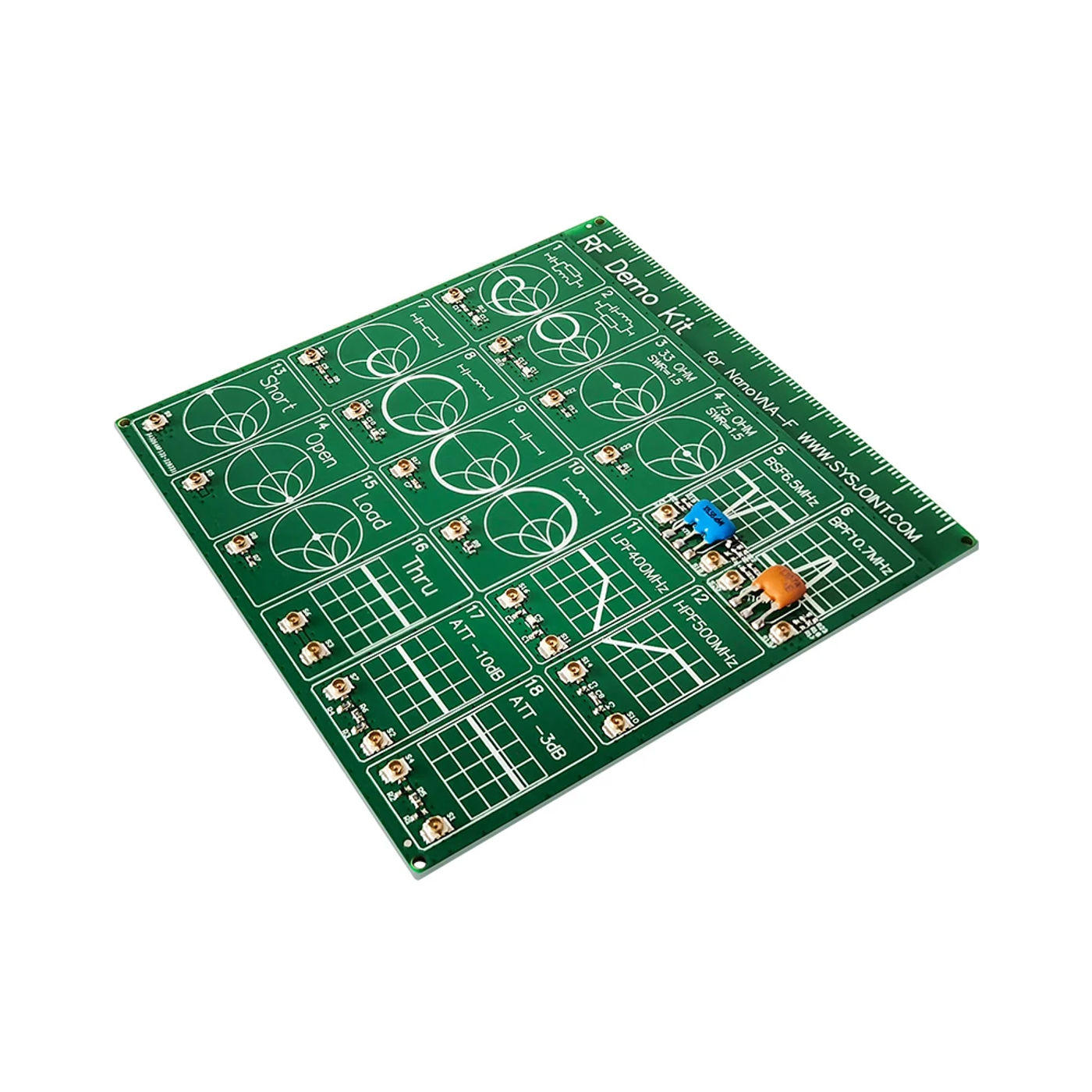

• RF Test Board, RF Demo Kit, Frequency Test Board, NanoVNA RF Test Module Vector Network Analyzer Board Filter/Attenuator Module Feature: The board is totally integrated with 18 purposeful modules Equipped with 2 pcs of UFL patch wire for handy use The board is small and lightweight ,suitable for carrying with Each module is definitely chosen of wonderful and tremendous reliability RF Demo Kit RF verify board demo calibration board for studying Vector Network Analyzer , Antenna Analyzer check calibration learning Specification: Item Type: RF Demo Kit The filter: ◆Short-wave low-pass filter LPF: 30MHz ◆FM high-pass clear out HPF: 100MHz ◆Commonly used SAW bandpass filter out BPF: 433MHz ◆Video ceramic trap BSF: 6 RLC sequence and parallel circuit ◆Includes R, L, C and combinational circuits Open /short circuit and load calibration circuit The attenuation circuit Package List: 1 x RF Demo Kit Board 2 x UFL Patch Cord

•
•
•
•
•
